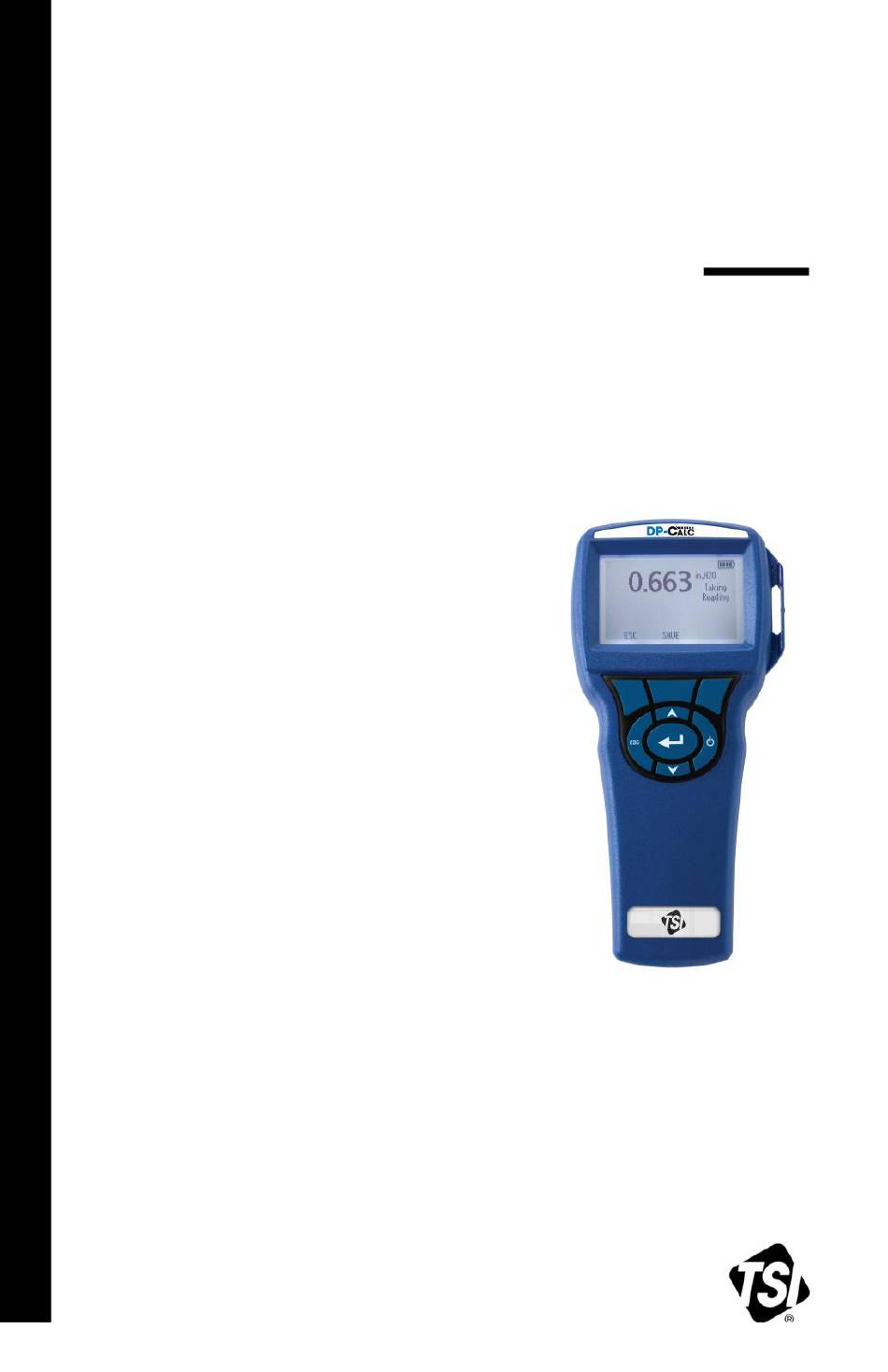

- Page 1 DP-CALC™ MICROMANOMETER MODEL 5825 OPERATION AND SERVICE MANUAL P/N 1980568, REVISION F FEBRUARY 2016 GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 2 GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 3 Copyright TSI Incorporated / 2007–2016 / All rights reserved. LIMITATION OF WARRANTY AND LIABILITY (effective February 2016) Seller warrants the goods, excluding software, sold hereunder, under normal use and service as described in the operator's manual, to be free from defects in workmanship and material for 24 months, or if less, the length of time specified in the operator's manual, from the date of shipment to the customer.
- Page 4 GOODS. IN THE CASE OF SOFTWARE, SELLER WILL REPAIR OR REPLACE DEFECTIVE SOFTWARE OR IF UNABLE TO DO SO, WILL REFUND THE PURCHASE PRICE OF THE SOFTWARE. IN NO EVENT SHALL SELLER BE LIABLE FOR LOST PROFITS, BUSINESS INTERRUPTION, OR ANY SPECIAL, INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES.
-
Page 5: Table Of Contents
CONTENTS CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION .... 1 CHAPTER 2 SETTING-UP ..............3 Supplying Power to the Model 5825 DP-C Micromanometer ... 3 Installing the Batteries ............... 3 Using the Optional AC Adapter ..........3 Connecting to a Computer .............. 3 CHAPTER 3 OPERATION .............. -
Page 6: Chapter 1 Unpacking And Parts Identification
Chapter 1 Unpacking and Parts Identification Carefully unpack the instrument and accessories from the shipping container. Check the individual parts against the list of components below. If anything is missing or damaged, notify TSI immediately. 1. Carrying case 2. Instrument 3. -
Page 7: Chapter 2 Setting-Up
Chapter 2 Setting-up Supplying Power to the Model 5825 DP-Calc Micromanometer The Model 5825 is powered with four size AA batteries. Installing the Batteries Insert four AA batteries as indicated by the diagram located on the inside of the battery compartment. The Model 5825 is designed to operate with either alkaline or NiMH rechargeable batteries, although it will not recharge NiMH batteries. -
Page 8: Chapter 3 Operation
Chapter 3 Operation Keypad Functions Press to turn the Model 5825 on and off. During the ON/OFF Key power up sequence the display will show the following: Model Number, Serial Number and Software Revision. Arrow () Keys Press to scroll through choices while setting a parameter. -
Page 9: Menus
Log Interval The logging interval is a frequency period that the instrument will log readings. For example, if the logging interval is set to 30 minutes, each sample will be the average of the last 30 minutes. Menus DISPLAY SETUP Display setup menu is where you will setup the desired parameters to be displayed on the running screen. -
Page 10: Actual/Standard Setup
Up to 5 Kfactors can be pre-programmed for quick use. When Flow is set as the Primary measurement in the Display Setup menu, the Kfactor will also be displayed. When measuring Flow as the Primary measurement, the parameters can be quickly changed by pressing the ... -
Page 11: Delete Data
Delete Data Use this to delete all data, delete test or delete sample. % Memory This option displays the memory available. Delete All, under Delete Data, will clear memory and reset the memory available. LogDat2 Downloading Software The Model 5825 comes with special software called LogDat2 Downloading Software, which is designed to provide you with maximum flexibility and power. -
Page 12: Chapter 4 Maintenance
Chapter 4 Maintenance The Model 5825 requires very little maintenance to keep it performing well. Recalibration To maintain a high degree of accuracy in your measurements, we recommend that you return your Model 5825 to TSI for annual recalibration. Please contact one of TSI’s offices or your local distributor to make service arrangements and to receive a Return Material Authorization (RMA) number. -
Page 13: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting Table 5-1 lists the symptoms, possible causes, and recommended solutions for common problems encountered with the Model 5825. If your symptom is not listed, or if none of the solutions solves your problem, please contact TSI. Table 5-1: Troubleshooting the Model 5825 Symptom Possible Causes Corrective Action... -
Page 14: Appendix A Specifications
Appendix A Specifications Specifications are subject to change without notice. Static / Differential Pressure: Range -15 to +15 in. H O (-28.0 to +28.0 mm Hg, -3735 to +3735 Pa) Accuracy: ±1% of reading ±0.005 in. H O (±0.01 mm Hg, ±1 Pa) Resolution: 0.001 in. - Page 15 Power Requirements: Four AA-size batteries (included) or AC adapter (optional) 9 VDC, 300 mA, 4-18 watts (input voltage and frequency vary depending on which adapter is used) Overpressure range = 7 psi (190 in. H O, 360 mmHg, 48 kPa). Pressure velocity measurements are not recommended below 1,000 ft/min (5 m/s) and are best suited to velocities over 2000 ft/min.
