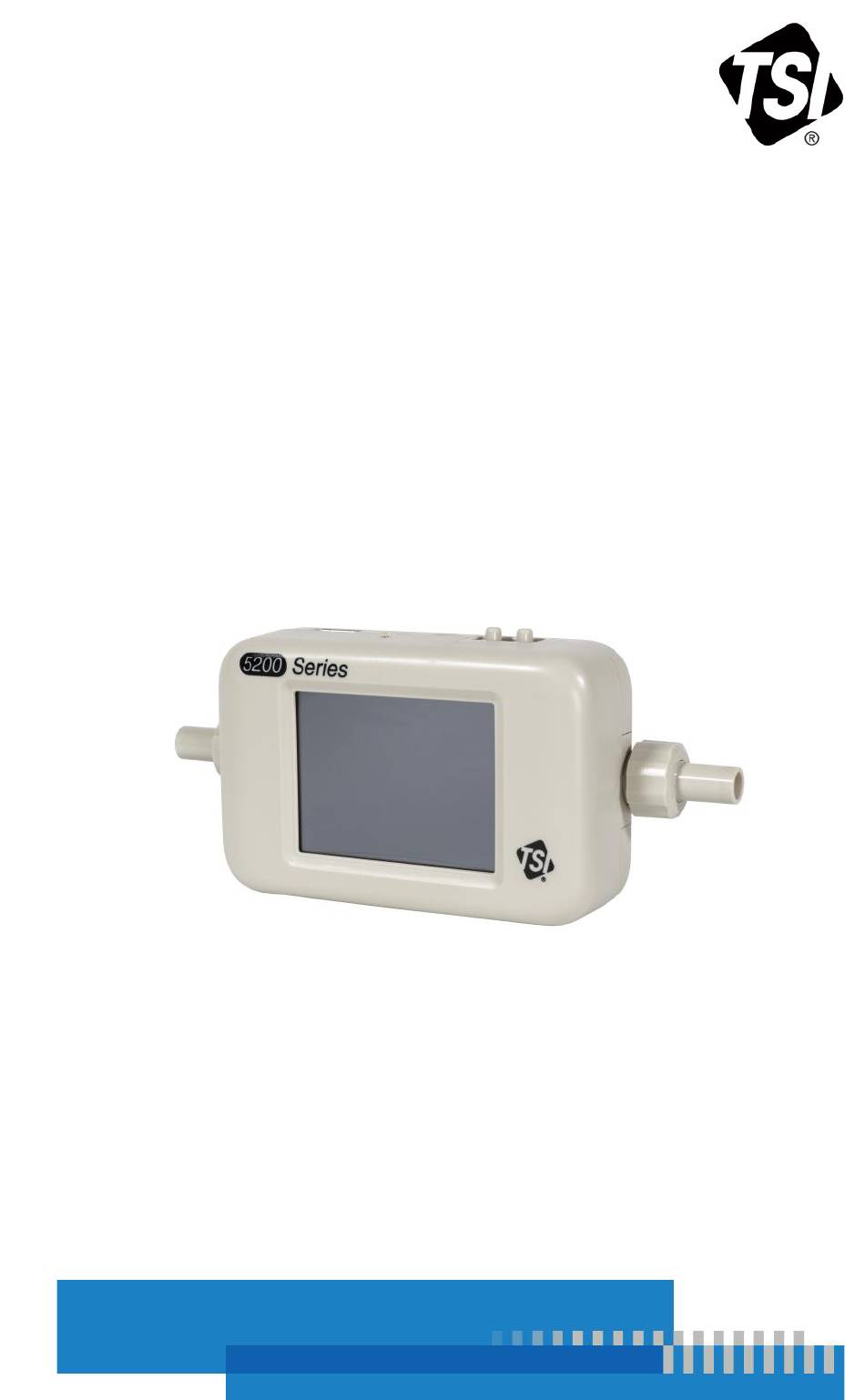

- Page 1 Gas Flow Multi-Meter 5200 Series Quick Start Guide P/N 6012621, Revision C May 2023 www.tsi.com...
- Page 2 Instrument Kit Components 5200 Series Low Flow Gas Multi-Meter Item Description Part/Model Low Flow Gas Flow Multi-Meter, 3/8-inch tube ends 5200 Measures Flow, Temperature, Absolute Pressure Low Flow Gas Flow Multi-Meter, 3/8-inch tube ends 5210 Measures Flow, Volume, Temperature, Absolute...
-
Page 3: Instrument Overview
Communications Port 2. Color Touchscreen Display* 6. USB-A Communications Ports (2) 3. Interchangeable Tube Ends 7. Low Differential Pressure Ports (5210/5220/5230 models only) 4. Mounting Inserts (M3 thread) 8. Collars Dimensions shown in inches [mm] Gas Flow Multi-Meter 5200 Series... -
Page 4: Setup Basics
Meter on. To turn the meter off, press and hold the power button for 5 seconds. Connect Inlet Filter ® recommends an inlet filter be used at all times while operating the Flow Multi-Meter. Gas Flow Multi-Meter 5200 Series... - Page 5 1. Unscrew collars and remove tube ends. 2. Insert replacement tube ends into the meter while aligning the anti-rotation locking notch on the tube end with the tab on the meter. 3. Screw collars back onto the meter. Gas Flow Multi-Meter 5200 Series...
-
Page 6: Touchscreen Display Overview
When paused, the button’s icon will change to a play icon Press the button again to resume display updates. Gas Flow Multi-Meter 5200 Series... -
Page 7: Menu Screen
Reset Device Settings *Available on 5210, 5220, and 5230 models only Touchscreen Display The touchscreen display is resistive and responds to pressure from your finger or other objects. You can also operate the Meter while wearing gloves. Gas Flow Multi-Meter 5200 Series... -
Page 8: Configuring The Meter
Measurement Parameters Press a value field, use the scroll arrows to select a parameter, and click Save. Units of Measurement Press a units field, use the scroll arrows to select the desired units, and click Save. Gas Flow Multi-Meter 5200 Series... -
Page 9: Type Of Gas
Meter is stopped (shown below left) and press on the field you would like to edit. If a volume measurement is active (shown below right), then press the Stop button to cancel the measurement and allow edits to be made to trigger settings. Gas Flow Multi-Meter 5200 Series... - Page 10 Trigger Values Flow Std L/min 0.1, 0.5, 1, 2, 3, 5, 7.5, 10, 20 +/– Absolute Pressure 90, 95, 98, 100, 102, 104, 107, 110 Low Differential 0.5, 1, 2, 3, 4, 5, 10 +/– Pressure Gas Flow Multi-Meter 5200 Series...
- Page 11 The Multi-Meter will notify you on screen when the begin trigger, and then end trigger, is reached. Once the end trigger has been reached, the Meter will deliver the volume measurement. Gas Flow Multi-Meter 5200 Series...
- Page 12 ________________ TSI and TSI logo are registered trademarks of TSI Incorporated in the United States and may be protected under other country’s trademark registrations. TSI Incorporated – Visit our website www.tsi.com for more information. Tel: +1 800 680 1220 India Tel: +91 80 67877200 Tel: +44 149 4 459200 China...
