Low Pressure
Measurement Kit
5300 Series
Quick Start Guide
P/N 6011710, Rev. C
June 2023
5300 Series Low Pressure Measurement Kit (5300-LPMK)
Components
Item
Description
1
22-mm (M/F) Airway
Pressure Fitting with
Screen
2
1/8 inch ID x 1/4 inch
OD Tubing
www.tsi.com
Qty.
2
❷
96 in.
❶
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TSI Instruments 5300-LPMK
Summary of Contents for TSI Instruments 5300-LPMK

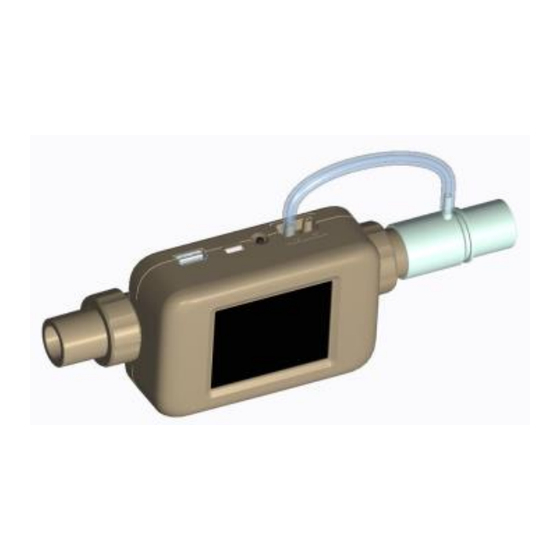

- Page 1 Low Pressure Measurement Kit 5300 Series Quick Start Guide P/N 6011710, Rev. C June 2023 5300 Series Low Pressure Measurement Kit (5300-LPMK) Components Item Description Qty. Picture 22-mm (M/F) Airway Pressure Fitting with Screen ❷ ❶ 1/8 inch ID x 1/4 inch 96 in.
- Page 2 Assembly Standard Setup: 22-mm ISO Tube Ends 1. Attach the 22-mm Airway Pressure Fitting to the outlet side Tube End of the 5300 Series Instrument with the barb facing up. 2. Measure and cut a length of tubing and connect it from the Airway Pressure Fitting barb to the (+) port on the Multi-Meter.
- Page 3 3. Measure and cut a length of 1/8 ID x 1/4 OD tubing and connect it from the Airway Pressure Fitting barb to the (+) port of the Meter. 4. Insert the Inlet Filter–Low Pressure (supplied in Std Accessory Kit) into the inlet side of the Multi- Meter in the inverted direction.
- Page 4 5. Insert alternative Tube Ends into the inlet of the Filter and into the outlet side of the Airway Pressure Fitting. ________________ TSI and TSI logo are registered trademarks of TSI Incorporated in the United States and may be TSI Incorporated – Visit our website www.tsi.com protected under other country’s for more information.
