Component Access & Removal

French Top Components:

French Top Burner Rings, Top Plate, Porcelanized
Spacer, Flame Ring & Burner Head Removal
•
Lift the center ring from the second ring, using the
French Top hook provided with the appliance.
• Lift the second ring from the third ring.
• Lift the third ring from the top plate
• Lift the top plate from the appliance.
• Lift the porcelanized spacers from the appliance.
• Lift the flame ring off burner pan.
• Lift the burner head off of the burner.
(See Figure 3-17)
French Top Burner Pan Removal
After removing the components listed above, extract the
screws at front, back and sides of the burner pan.
Then, lift the front of the pan up.
NOTE: If the burner pan has been riveted in place, the
rivets will need to be drilled out. When reinstalling the
burner pan 1/8" rivets may be used, or #10-24X1/2"
screws (part #730228) can be installed.
From under the burner pan, disconnect the electrode
wire terminal from the electrode. Disconnect the gas
line from the orifice holder at the bottom of the pan and
lift the pan off of the appliance. (See Figure 3-18)
French Top Electrode & Electrode Wire Removal
Electrode - Begin removing the electrode by discon-
necting the electrode wire terminal from the electrode.
Remove the retaining clip from the bottom of the elec-
trode and pull the electrode up out of its mounting hole.
(See Figure 3-18)
Electrode Wire - The French Top electrode wire has a
terminal at one end that fits onto the base of the elec-
trode. The other end of the wire is inserted into a wire
sleeve and routed to the spark module which is located
on the back side of the unit.
In order to remove the French Top electrode wire, the
unit must be pulled from its installation and the back
panel removed. Then, disconnect the electrode wire
terminal from the electrode and unplug the other end of
the wire from the spark module. (See Figure 3-18)
French Top Orifice Removal
The French Top burner orifice is hex shaped and
attached to the orifice holder/jet holder at the bottom of
the burner pan.
Use wrenches to remove the orifice from the holder.
(See Figure 3-19)
RANGES & & R R ANGETOPS
Spacer
Top Plate
Flame Ring
Burner Head

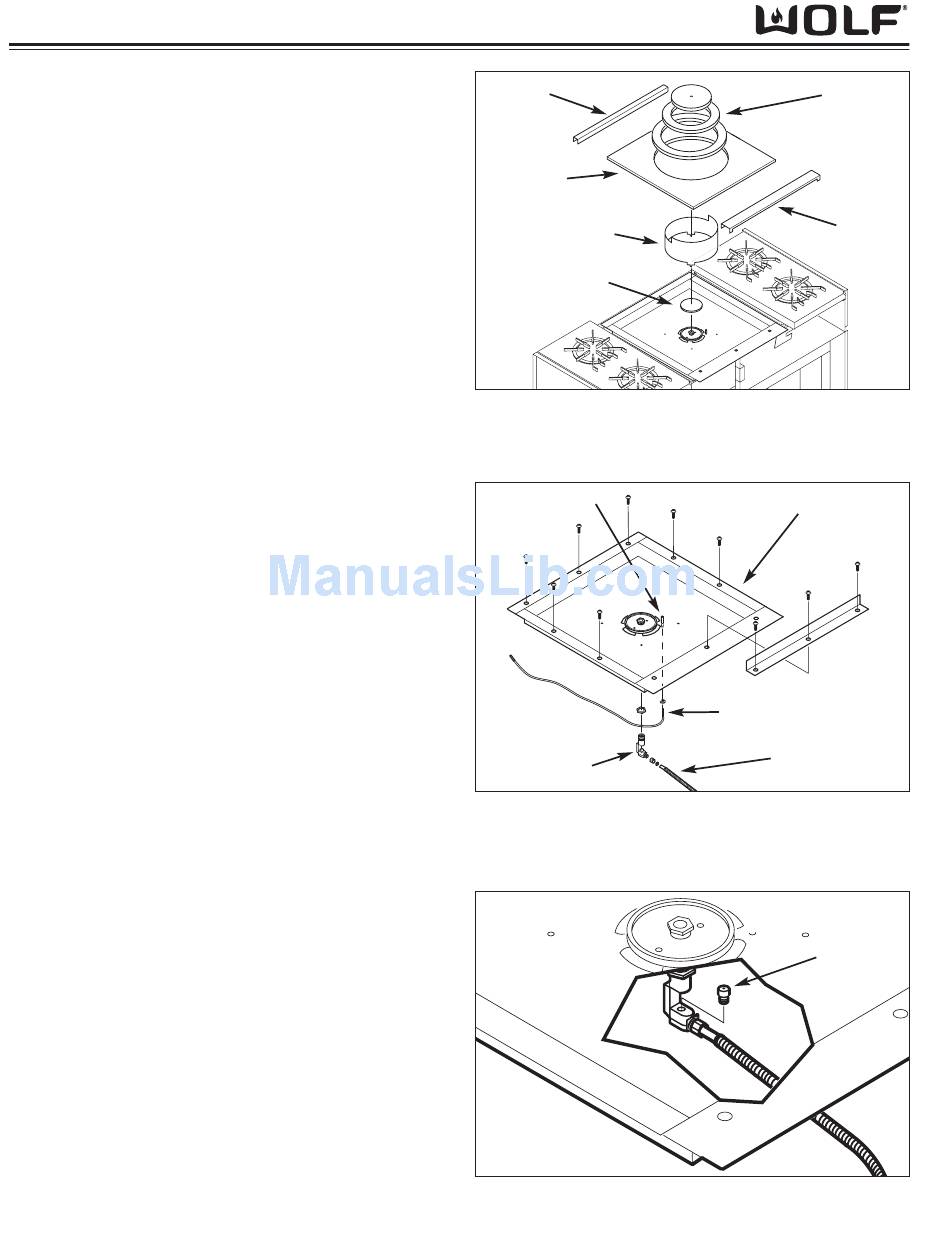

Figure 3-17. Components that Lift Off
Electrode
Orifice Holder
Figure 3-18. French Top Burner Pan Removal
Figure 3-19. French Top Orifice Removal
4-8
Rings (3)
Spacer
Burner Pan
Electrode Wire
Gas Line
Orifice
