RANGES & & R R ANGETOPS
Infrared Griddle Solenoid Valve Removal
The griddle solenoid valve is mounted to the side wall
beneath the open burner pressed steel top, usually on
the left hand side.
In order to remove the solenoid, the surface burner
components will need to be removed first. Extract the
solenoid shield mounting screws and remove the shield.
Disconnect the gas lines from the brass elbows and the
elbows from the valve body. Now, extract the bolts from
the solenoid mounting bracket and pull the solenoid
from the unit. (See Figure 3-14)
Infrared Thermostat Removal
The griddle thermostat is mounted to the control panel
with two screws and the thermostat bulb is inserted into
a channel welded to the bottom of the griddle plate.
To remove the thermostat, first disconnect the control
panel from the unit (See Control Panel Removal
Instructions) and tilt the top of the panel down. Unplug
the electrical leads from the thermostat. Pull the control
knob from the shaft of the thermostat and extract the
thermostat mounting screws. Pull the thermostat bulb
from the channel at the bottom of the griddle plate and
lift the thermostat from the unit. (See Figure 3-15)
Infrared Griddle Sparker Removal
The infrared griddle sparker is attached to a bracket
with a screw and then mounted 1/32" above the surface
of the burner tile. The sparker wire is then inserted into
a wire sleeve and routed to the spark module which is
located on the back side of the unit.
In order to remove the griddle sparker, the griddle plate
must be removed, the unit must be pulled from its
installation and the back panel must be removed.
Once the back panel is removed, disconnect the spark-
er wire from the module. Extract the mounting screw
from the sparker bracket and pull the sparker wire up
through the oblong hole in the back wall.
(See Figure 3-16)
Component Access & Removal
Shield
Mounting
Bracket

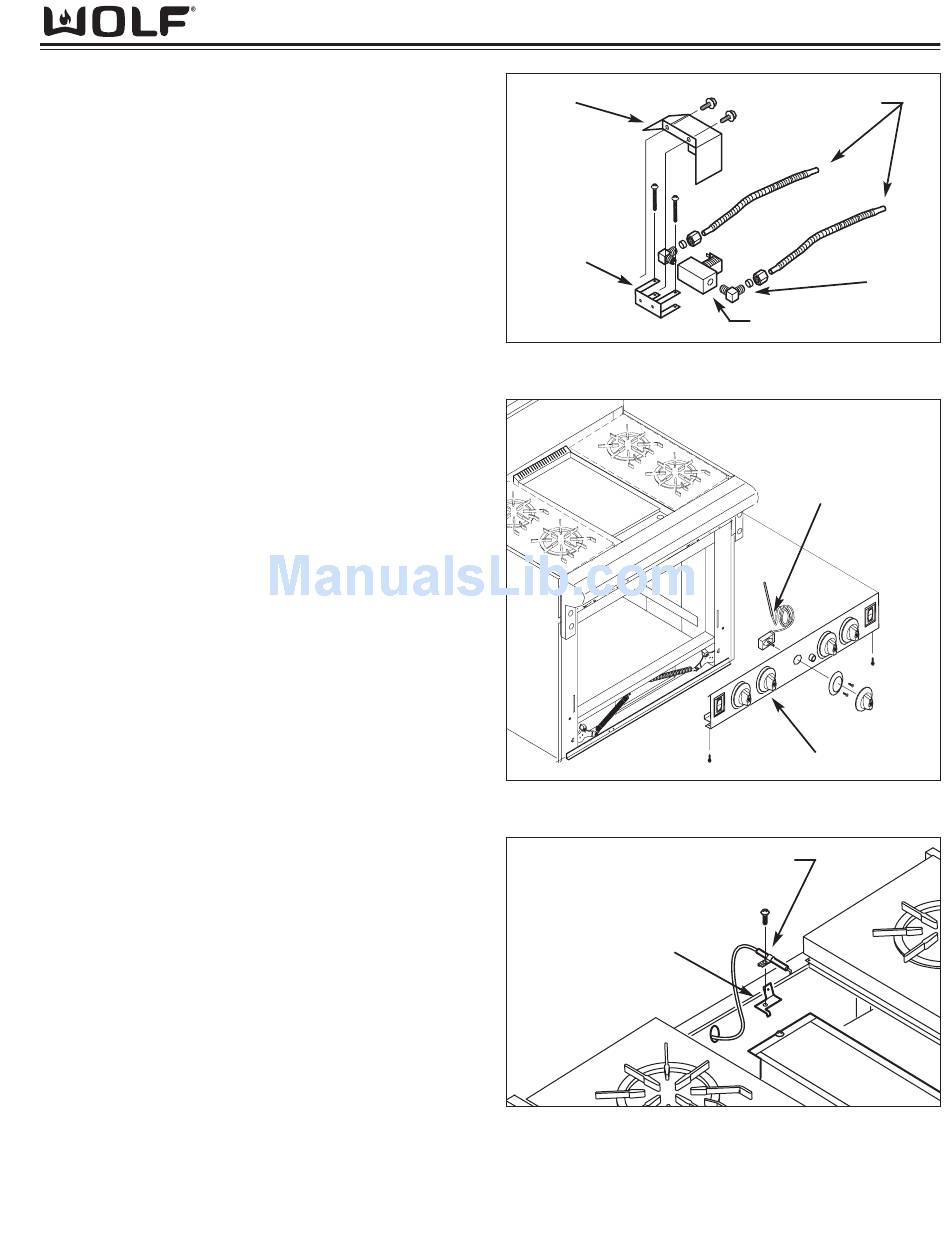

Figure 3-14. IR Griddle Solenoid Removal
Figure 3-15. IR Griddle Thermostat Removal
Sparker Bracket
Figure 3-16. IR Griddle Sparker Removal
4-7
Gas Lines
Elbow
Valve Body
Thermostat
Control Panel
Sparker
