Wolf R484CG Planning Information

Planning Information
48" Gas Ranges
(1219)
M O D E L S R 4 8 8 , R 4 8 6 C , R 4 8 6 G , R 4 8 4 C G , R 4 8 4 D G A N D R 4 8 4 F
Large red
Model R488
control knobs
Location of
rating plate
Model R486C
Oven light
switch
Stainless steel
exterior finish
Model R486G
Full side panels
and skirt
Model R484CG
Spring/damper
door system
18" (457) oven
Model R484DG
Model R484F
The Wolf 48" (1219) gas range is
available in natural or LP gas, with your
choice of several top configurations.
Model numbers indicate the features;
(C) charbroiler, (G) griddle, (DG) double
griddle and (F) French top. The model
number followed by (-LP) denotes an LP
gas model.
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/07
Porcelain-coated Infrared charbroiler
cast iron top grates (optional)
Model R484CG shown with optional 5" (127) riser.
I
f it looks as if it could be in a restaurant kitchen, well,
that's natural. That's precisely where Wolf has spent the
past seven decades, perfecting the form, function and
sheer durability of our stainless steel gas ranges.
Wolf gas ranges offer a variety of standard features
such as an infrared oven broiler, convection baking, dual
brass surface burners and our signature large red control
knobs. Optional infrared charbroiler, infrared griddle and
French top give you the freedom to customize your gas
range.
Let Wolf, the corporate companion and kitchen soul
mate of Sub-Zero, fuel your passion for cooking and
kitchen design.
Infrared griddle 5" (127) riser
(optional) (optional)
Dual brass
burners

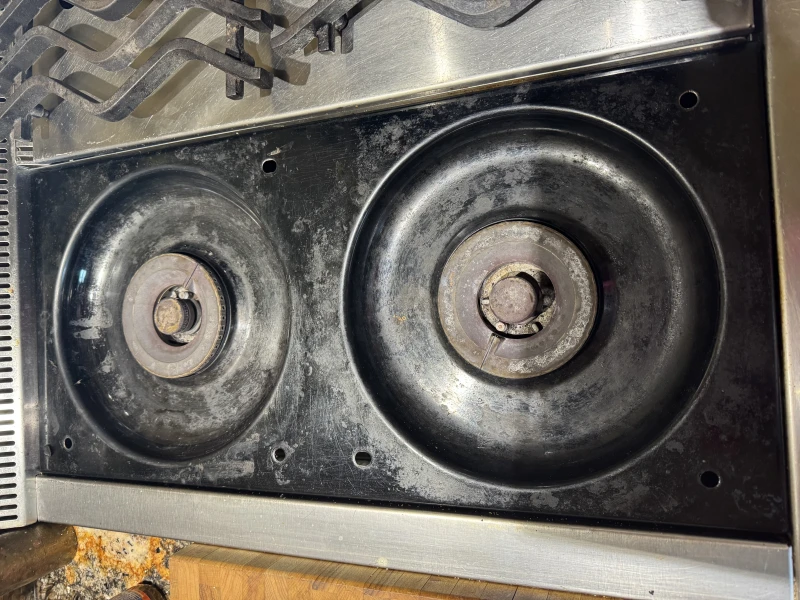

Burner drip
pan
Oven light
switch
Pull-out drip
tray
Convection fan
switch
Oven indicator
light
Large-capacity Griddle
convection oven indicator light
1
