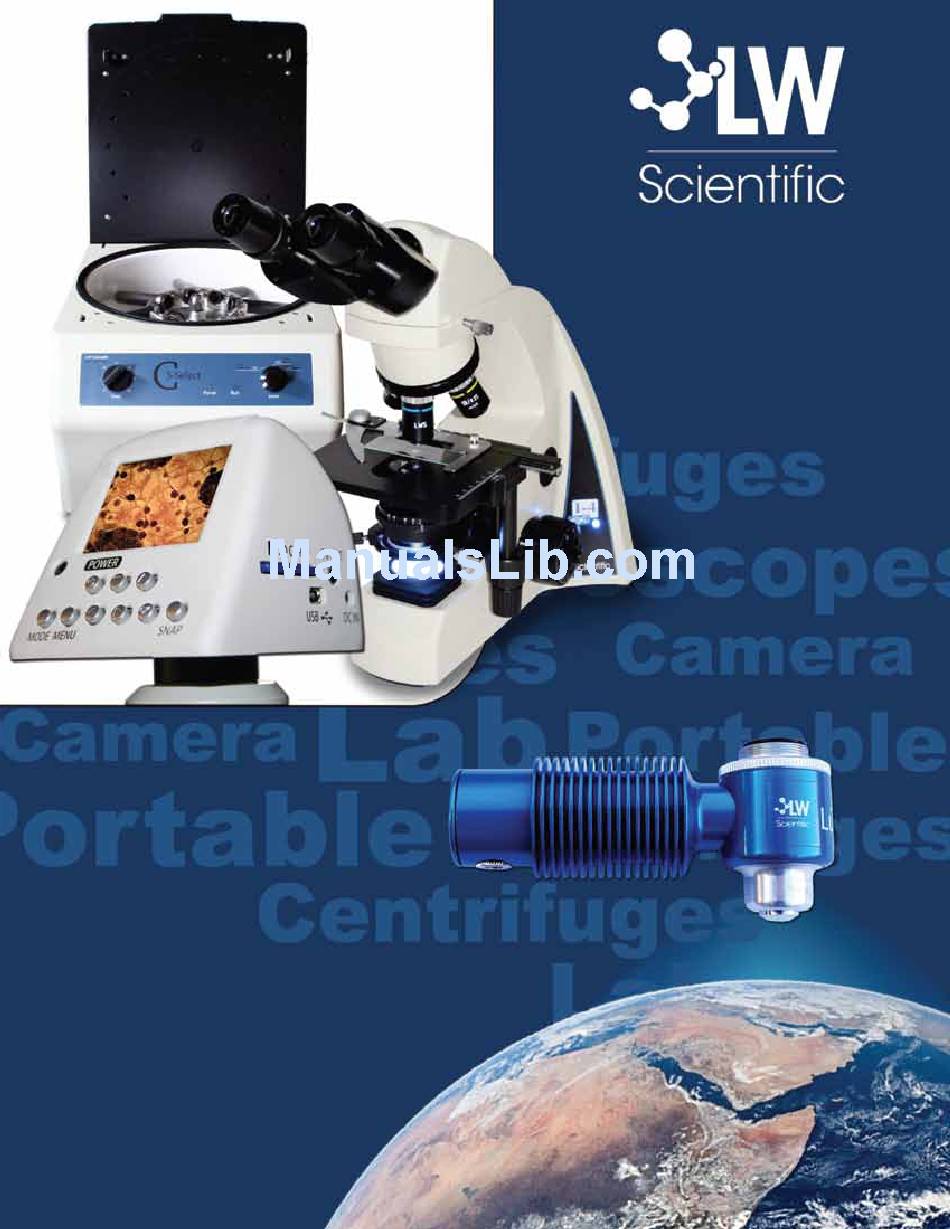

- Page 1 P. 770.270.1394 P. 770.270.1394 F. 770.270.2389 F. 770.270.2389...
- Page 2 Products Guide LABORATORY MICROSCOPES CENTRIFUGES C3 Select Ultra Revelation lll Inverted Portafuge Semen Evaluation Combo V24 M2 Rheumatology Infinity Epi-Fluorescence Zip Series Digital Tachometer EDUCATION Student Advanced LABORATORY AL MICROSCOPES Standard Student Water Bath Mobi Jr. Turbo Mixer Incubator INSPECTION Digital Rotator Z2 Zoom Diff Counter / Refractometer...
- Page 3 The i5 modular series microscope features exceptional optical quality and expandability for top-notch performance in the lab. Use the rotating head to adjust the height for taller users. Infinity Plan optics with a 30-year anti-fungal coating match quality with value within any clinic’s budget. The i5 microscope provides comfort, durability, dependability and superior imaging for the lifetime of the laboratory.
- Page 4 The i4 modular series microscope features exceptional optical quality and expandability for top-notch performance in the lab. Use the rotating head to adjust the height for taller users. Infinity Plan and Semi-Plan optics with a 30-year anti-fungal coating match quality with value within any clinic’s budget. The i4 microscope provides comfort, durability, dependability and superior imaging for the lifetime of the laboratory.
- Page 5 The highly versatile M5 LabScope is built to withstand the rigors of daily laboratory use in the pathology, hematology, cytology and microbiology lab. The five-position nosepiece allows for specialized objectives, including 50X oil Plan, 60X high dry Plan, 2X Plan and Phase Contrast objectives. The oversized 10X/20 high point Plan eyepieces combined with Infinity Plan or DIN Plan objectives offer high resolution flat-field imaging over a larger specimen area.
- Page 6 The M2 modular series LabScope features exceptional optical quality and expandability for top-notch performance in the lab. The 10X/20 high-point Plan eyepieces on super-wide eyetubes offer an extremely broad field of view, with ample eye relief for users who wear eyeglasses. Infinity Plan or DIN Plan optics match quality with value within any clinic’s budget.

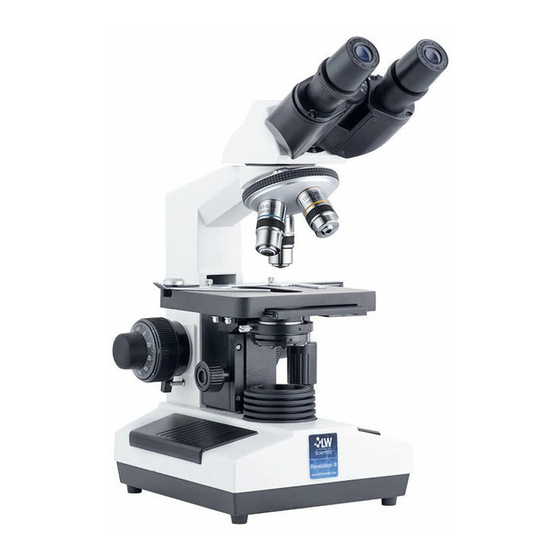

- Page 7 Rev lll The Revelation III professional-grade microscope is a best-seller into physician and veterinarian clinics, as well as universities and medical schools. Equipped for performance, its features include titanium-finished DIN achromatic or DIN Plan optics and a 30-year anti-fungal coating. The Revelation III is the choice for superior performance at a great value! Included accessories: three 0.5 amp fuses, mirror attachment (for field use), blue and green filters, dust cover, immersion oil, spare bulb, manual and warranty card.
- Page 8 Inverted The LW Scientific Inverted Microscope is able to perform intricate and varied applications for vital tissue cultures. It is perfect for observation and education or for professional research in a clinical lab. Pathologists, biologists and medical researchers naturally choose this microscope. Accessories included: Green, blue and neutral filters, dust cover, immersion oil, manual and warranty card.
- Page 9 Semen Evaluation Perfect for veterinarians or fertility clinics, the Semen Evaluation LabScope is the complete package for live specimen microscopy. Motility analysis should be performed at 37 degrees Celsius to keep sperm active, and the heated stage has a digital temperature control unit which can be set for any temperature between 25 and 50 degrees Celsius.
- Page 10 M2 Rheumatology The M2 Rheumatology LabScope is an essential tool for synovial fluid analysis. Crystal-induced arthritis, such as gout or pseudogout, can be identified and differentiated with the use of the polarizing attachment and red compensator lens. The Rheumatology LabScope also functions as a flat-field, laboratory-grade microscope for routine cytology, hematology, urinalysis, etc.
- Page 11 Infinity Epi-Fluorescence The M2 LabScope with epi-fluorescence features a 100W HBO light system with blue and green exciting light filters. This scope is an ideal tool for immunology and other specialized applications. This system creates UV light at specific wavelengths for exciting fluorochrome-stained specimens. The light housing is mounted between the body and head of the microscope and includes a variable-control transformer box.
- Page 12 Student Advanced For the teacher that wants more than just the basic microscope for his classroom this advanced model is an excellent choice. The 1.25 ABBE condenser allows the addition of a100x oil immersion objective. The iris diaphragm allows precision adjustments to the cool fluorescent light.
-
Page 13: Warranty
Student Scope This student microscope has everything necessary for the middle school or high school classroom. This is a proven design with student proof features such as locked-in eyepieces, and a durable disk diaphragm. Clear DIN optics, coarse and fine focus, illumination and stage options make this scope a guaranteed winner. Included accessories: Dust cover, one fuse, spare bulb, manual and warranty card. - Page 14 Mobi, Jr The MOBI, Jr. microscope is designed for elementary and junior high classroom use. The LED light source combines a rechargeable battery with a bright, white LED bulb for up to 40 hours of use on a single charge. Standard features include a disk diaphragm, three hole nosepiece, and a 10x widefield eyepiece.
- Page 15 Z2 Zoom Starting with CAD design techniques, we have manufactured the new Z2 to exceed the clarity and quality of any zoom microscope available today. The depth of focus, field flatness, zoom parfocality and long working distance improve inspection accuracy and flexibility. The high point eyepieces offer ergonomic comfort and allow users to wear eyeglasses.
- Page 16 Vision The Vision is an industrial grade, dual-magnification stereo microscope designed make ultra-fine details easy to detect and manipulate. The pole mount, variable halogen light and wide base give your workspace plenty of flexibility, while the optional ring light offers shadow-free illumination. The objectives rotate internally with a convenient control knob.
- Page 17 Flex Arm Flex Arms Model # Description VSM-S12N-FA77 Vision on Flex Arm, 10x / 20x magnification Vision on Flex Arm, 10x / 30x magnification VSM-S13N-FA77 VSM-S24N-FA77 Vision on Flex Arm, 20x / 40x magnification Paragon on Flex Arm, 10x / 20x magnification APM-S12N-FA77 Paragon on Flex Arm, 10x / 30x magnification APM-S13N-FA77...
- Page 18 Video Systems The Video Zoom is a complete system for dental or industrial inspection. The Video Zoom produces 3-D images through the eyepieces while displaying your work on the screen. Two systems are available, featuring different cameras and illuminators. OPTICS Z2S-VS3Z-AT7I Both feature the Z2 Zoom optical head, zooming VS-3Z...
- Page 19 LED ring lights offer shadow-free cold illumination with super-long-life bulbs at a reduced cost. Long thumb screws allow for easy attachment to almost any brand of microscope with mounting rings from 35mm up to 61mm. Mounting rings are available for all LW Scientific stereoscopes. CONSTRUCTIO CONSTRUCTION...
- Page 20 Bend-e Systems The Bend-e System from LW Scientific is the most ergonomic, economical, and efficient inspection system available for the dental lab. With modular “Quick-Connect” components any configuration is possible, and it’s light-weight and portable too. System magnifications include 2x, 4x, 5x, and 10x with long working distances, deep depths of field, and high-resolution optics...which means...
- Page 21 Achiever / Paragon The Achiever stereoscope exceeds the performance demands of educators and is built to with-stand daily use by students or hobbyists. Its crisp 3-D optics, dual illumination, and large viewing area are excellent for dissecting and inspecting. Ready for use in the field, the Paragon’s wide-field optics gather ambient light for use without powered illumination, while the pole mount base offers flexibility and portability.
- Page 22 Illuminators Fluorescent and LED ring lights offer shadow-free cold illumination with super-long-life bulbs at a reduced cost. Long thumb screws allow for easy attachment to almost any brand of microscope. The newly-redesigned fluorescent ring light is the most affordable option, and the LED models produce the most intense, focused illumination with 10,000-hour white LED bulbs.
-
Page 23: Specifications
Illuminators POLARIZING LED LW Scientific LED ring light with Polarizing filters is perfect for glare-free illumination under inspection microscopes. This polarizing LED light reduces glare from reflective surface while allowing illumination from LEDs to pass through polarizing filters to illuminate the object. Rotating the outer ring aligns the analyzer with the polarizer and results in images with minimal glare and greater contrast. - Page 24 Use the wireless remote control to snap pictures or access the menu and playback modes. The Omnivid mounts directly onto any microscope trinocular head with C-Mount threading. The OmniVID camera on an LW Scientific microscope is the ultimate microscopic imaging solution.
- Page 25 BioVID The BioVID features BNC-RCA and S video outputs as well as on-screen programming, allowing the user to modify and improve the image. Connect the camera to your trinocular microscope with a C- or CS-mount or use the included macrolens and eyepiece adapter to work with a variety of optical equipment. The BioVID camera will connect over the eyepiece of any monocular or binocular microscope for live video microscopy.
- Page 26 MiniVID The MiniVID eyepiece camera is available with an RCA output or USB connection. Plug it in to your TV, VCR, or computer. Then, attach it to any microscope for instant video micrography. The innovative MiniVID camera slips into any standard microscope eyepiece tube, in place of the eyepiece or fits onto any standard threaded c-mount.
-
Page 27: System Requirements
d-VID USB An excellent, easy to use handheld digital microscope with USB output interface High resolution magnification at your fingertips! Real examination of any sector that you prefer. Included with each d-VID digital microscope is software, which leads you to “capture” either a photograph, video time-lapsed video with a simple click. - Page 28 FEATURES BENEFITS High Magnification Super clear, high-clarity, close-up images for perfect detail when docu- menting margins, impressions, waxing, dissections, amount of reduction, etc. Color Though not recommended for shad- ing. The d-VID produces vivid color. Takes pictures and records videos Labs and doctors can review the case instantly through email or live chat (Skype).
- Page 29 5“ TFT Screen The TFT Screen is our next generation monitor designed for education, inspection, demonstration and day–to–day use inconjunction with video cameras. It features brightness control, volume control, audio and video input. Ideal for teachers, doctors or other professionals who use a video camera on a regular basis. DIMENSIONS Height: 5.6”...
-
Page 30: Design Features
separations, including tighter straight-line gel separations to reduce re-spins and re-mixes. The C5 spins test tubes, up to 17.5 x 128mm, at speeds up to 5,000 rpm, with microprocessor speed control. Simply program the digital time and speed and the C5 will lock the lid and spin the load. G-forces up to 4,000g’s will produce locked until the rotor has come to a stop, to ensure safety. - Page 31 C3 Select Horizontal separation offers many advantages over traditional fixed-angle separations, including tighter straight-line gel separations to reduce re-spins and re-mixes. Additionally, spun fecal floatations in the veterinary markets produce much higher ova recovery results when spun with coverslips on top of the test tube. The C3 Select spins 3ml-15ml test tubes, up to 17mm x 128mm, at speeds up to 3,000 rpm.
- Page 32 Horizontal centrifugation offers advantages over traditional angled-rotor centrifuges, such as tighter straight-line gel separations, fewer re-spins and re-mixes, and fewer high-potassium results. The new CxR centrifuge delivers 1800 G-Force for quick spin down of serum-separator blood tubes. Low-maintenance features: self contained rotor, whisper-quiet operation, brushless no-maintenance motor, automatic braking, simple operation...set the timer and go! ADVANTAGES Low profile Saves Counter Space...
- Page 33 Ultra The 8-place Ultra centrifuge has a unique, space-saving triangle shape to fit easily into a corner. This unit, made of sturdy aluminum alloy, accommodates most test tubes from 3ml-15ml. The wide stance eliminates wobble, while the suction-cupped feet prevent slipping. The brushless motor (110V only) is virtually maintenance-free and the clear lid allows easy viewing of specimens while in use.
- Page 34 The 8-place E8 centrifuge is an economical fixed speed centrifuge designed to fit any budget. This unit accommodates most test tubes from 3ml - 15ml. The wide stance eliminates wobble, while the suction-cupped feet prevent slipping. The brushless motor (110V only) is virtually maintenance-free and the lid port allows easy viewing and tach-ing of specimens while in use.
- Page 35 Portafuge The portable 8-place Portafuge is an economical fixed speed centrifuge designed for spinning on the go*. This unit accommodates most test tubes from 3ml – 15ml. This unit is virtually maintenance-free and the lid port allows easy viewing and tach-ing for calibration.
- Page 36 Benefits of Mobile Centrifugation Home-health nurses and medics often draw blood from patients to run lab tests. Common serum tests are: *CMP – Comprehensive Metabolic Profile, runs 14 different tests. *BMP – Basic Metabolic Profile, runs 8 different tests. Are you spinning down your tubes within one hour? It is highly recommended that CMP and BMP tubes be spun within one hour otherwise glucose test results may be falsely low, and potassium test results may be falsely high.
- Page 37 Combo V24 Accomplish both test tube and microhematocrit separations with the new Combo centrifuge. Simply choose a box (with or without a digital tachometer) and choose your rotors. The Combo spins either test tubes, capillary tubes or microtubes by simply changing rotors — no tools required! Achieve hematocrit separations in less than five minutes at 12,000 rpm;...
- Page 38 The M24 centrifuge is a truly affordable microhematocrit centrifuge. This unit is designed for its ease of use in the laboratory. Spin hematocrits in less than 5 minutes at 12,000 rpm. The M24 has a microhematocrit reader disk provided with every unit.
-
Page 39: Dimensions And Weight
Zip Series ZIPSPIN Portable and compact microcentrifuge Perfect for medical missionaries or field veterinarians 6-place rotor for 1.5 and 2ml microtubes 12-place rotor for 0.5ml microtubes Powered by maintenance-free brushless motor Variable speed: 0-7,000 rpm RCF up to 2,800g Designed for: Cell separations Microfiltration of HPLC samples DNA preparations... - Page 40 Digital Tach Test your centrifuge for accuracy using the LW Scientific handheld digital tachometer. Be certain that you are spinning fluids at the correct CLIA recommended speeds. How do you know your variable speed centrifuge is spinning urines at 400 g’s? Spinning too slowly may give inadequate results...
- Page 41 TANK Capacity 20L or requested Stainless steel reservoir, corrosion resistant TEMPERATURE SETTING Digital TEMPERATURE READOUT Model # Description L 0LC-SSD TEMPERATURE CONTROL L-20LC-SSD 20 Liter TEMPERATURE SENSOR 00 o Platin ACCESSORIES TEMPERATURE RANGE DIMS +/- 0 2 INTERNAL TANK DIMS POWER SUPPLY 0V 220V available WEIGHT...
- Page 42 Turbo Mixer LW Scientific offers you two versions of the very popular Turbo Mixers. Ideal for the quick and complete mixing of samples, our cup and platform models will bring convenience and efficiency to your lab. They come with a variable speed control of up to 3000 RPM and can be activated to vibrate continuously or by pressure to the head.
- Page 43 Incubator The new incubators from LW Scientific are suitable for various applications such a very reasonable price! *Quality certification: ISO 9001, CE CONSTRUCTION Attractive and durable exterior powder coating Corrosion resistant Stainless steel interior Adjustable shelves Double walls Full fiberglass insulation...
- Page 44 Digital Rotator The Serology Rotator is designed to give years of dependable service, even in the busiest laboratory. It’s the ideal space-saving instrument for procedures that require constant or timed rotation (mixing) such as RPR, VDRL, latex tests and for procedures that require a nonstandard speed.
- Page 45 Lab Equipment DIFFERENTIAL COUNTERS LW Scientific offers a five-key and an eight-key model of blood cell differential counters. These manual counters are durable and will provide years of use; even in the most demanding laboratory settings. •Right and left reset knobs •Bell alarm for 100th counted cell...
- Page 46 The LWS 6 place shaker has the option of either continuous motion or timed motion using the 15 minute timer. Compact size and durability make the LW Scientific pipette shaker convenient for any laboratory.
- Page 47 Lumin i4 For users requiring a multi-purpose microscope for expanding health services, LW Scientific introduces the new i4 Fluorescence Microscope. With integrated LED technology for both bright field and epifluorescence microscopy, the Lumin i4 offers superior clarity and crisp imaging—all at a price that allows even labs on a limited budget to benefit from the latest technological advances.
- Page 48 Lumin ™ LW Scientific’s focus is to implement the Lumin™ as a primary component of worldwide Tuberculosis diagnosis standard practices. We believe that providing advanced fluorescence technology to health workers, doctors, and laboratory staff in each of the estimated 60,000 worldwide TB labs will create a substantial impact in the TB diagnosis rate.
- Page 49 P. 770.270.1394 F. 770.270.2389...
