MiniVID WiFi

Instruction Manual

Microscope Camera

This camera features 5GHz speed

Unpacking and Setup

The MiniVID WiFi comes with the following parts. If any parts are missing, please contact your distributor or LW Scientific.

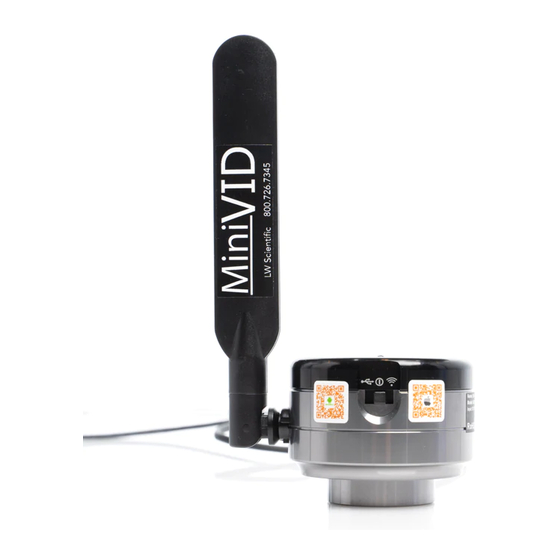

1-MiniVID WiFi Camera Body: for use on C-mount trinocular microscope (as pictured above)

1-CD with Micro Capture software: for use with Windows only

1-USB Cable (Attached to camera)

1-USB Power Block

1-Reset Pin

Optional Accessory

Optical Eyetube Adapter:

For use with monocular or binocular microscopes (to mount into a standard 23mm

eyetube in place of the eyepiece)

Part number: MVP-ADA0-ETMC

MKT-7.5.3-L-209 | Rev 1

P. 770.270.1394

F. 770.270.2389

865 Marathon Parkway Lawrenceville GA 30046

P. 770.270.1394

F. 770.270.2389

Table of Contents

Do you have a question about the MiniVID WiFi and is the answer not in the manual?

Page 1 This camera features 5GHz speed Unpacking and Setup The MiniVID WiFi comes with the following parts. If any parts are missing, please contact your distributor or LW Scientific. 1-MiniVID WiFi Camera Body: for use on C-mount trinocular microscope (as pictured above)
Page 2 Standard trinocular c-mount (threaded) or insert into eyetube with optional eyetube adapter Quick Start Guide For a video on how to install the MiniVID WiFi software on your PC and smart phone or tablet, please visit the following links: • PC Installation: https://youtu.be/C-h_HPuhGRM •...
Page 3 “Micro Capture Install Ver 6.9.3.” Set the MiniVID WiFi to USB mode, and then, using the USB cable, connect the product to your PC. The camera’s plug and play drivers will allow Windows to automatically install the product’s drivers.
Page 4 Connecting to PC via WiFi If your computer has a wireless card, you can also connect to the MiniVID WiFi wirelessly. Put your camera into WiFi Mode and follow the below instructions. With the camera in WiFi Mode, click on the wireless icon at the bottom right of your screen.
