Z4 Zoom Specifications
Zoom Range
See chart
Field of View
See chart
Zoom Ratio
1:6.5
Working Distance
See chart
Eye tube Inclination
45°
Microscope Head
360° Rotatable
Weight and Dimensions
Z4 Head: 3.35 lbs (1.52kg)
Z4 base: 4.7x` lbs (3.61kg)

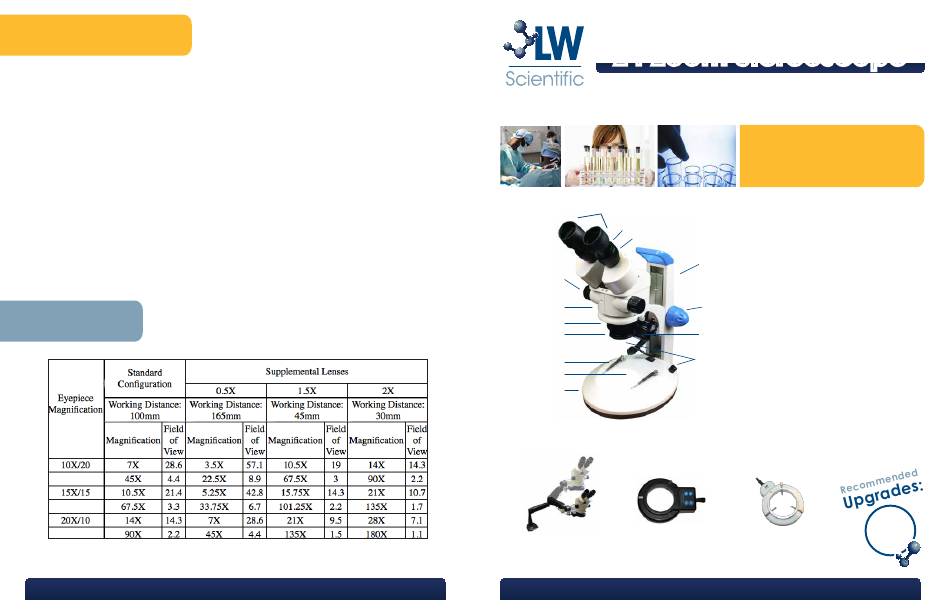

Performance Chart
P. 770.270.1394
F. 770.270.2389
MKT-7.5.3-L-182 | Rev 0
865 Marathon Parkway Lawrenceville GA 30046
Z4 Zoom Stereoscope
A
B
C
D
N
M
L
K
G
J
I
H
Z4 Zoom on
48 or 60 Bulb
Pneumatic Arm
Variable LED Ring Light
P. 770.270.1394
F. 770.270.2389
865 Marathon Parkway Lawrenceville GA 30046
Instruction Manual

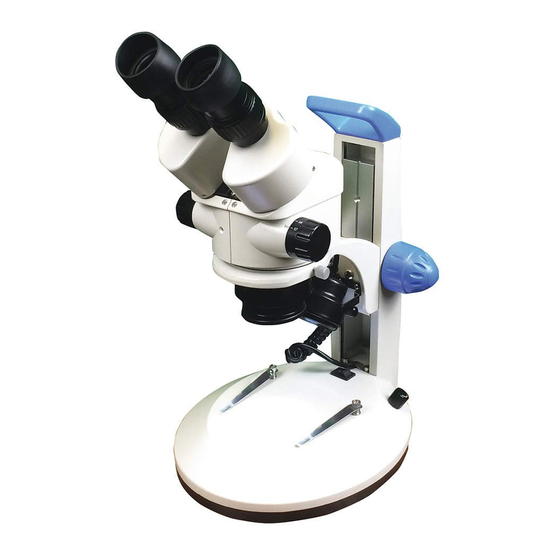

Model pictured:
Z4 Zoom Stereoscope
See back page for model specifications.
A
Rubber Eyeguards
B
Eyepieces
C
Diopter Adjustment
D
Post
E
Focus Knob
F
LED Incident Light
G
Variable Brightness Control Knob
H
Base
E
I
Stage Plate & LED Transmitted Light
J
Stage Clips
F
K
Nosepiece
L
Objectives (Internal)
M
Support Arm / Head Holder
N
Zoom Control Knob
Ask your
authorized LWS
dealer about
additional
Fluorescent Ring Light
accessories
Advertisement
Table of Contents
Related Manuals for LW Scientific Z4
Summary of Contents for LW Scientific Z4
- Page 1 Rubber Eyeguards Microscope Head 360° Rotatable Eyepieces Diopter Adjustment Weight and Dimensions Post Z4 Head: 3.35 lbs (1.52kg) Focus Knob Z4 base: 4.7x` lbs (3.61kg) LED Incident Light Variable Brightness Control Knob Base Stage Plate & LED Transmitted Light Stage Clips...
- Page 2 Diopter Adjustment: Since you are using a binocular stereoscope, you need to adjust for the normal difference in during use or transportation. vision between your two eyes. Your Z4 has dual diopter adjustments which must be initially set. This is a simple but critical adjustment! Store your stereoscope in a clean and dry environment away from high temperatures and direct sunlight.
