Introduction
The LW Scientific Revelation III Microscope is our best-selling medical-grade compound microscope, popular in physician and
veterinary offices as well as universities and medical schools. Its crisp optics, sturdy design and proven track record make the
Revelation III the best choice for superior performance at an economical price. The Revelation lll Microscope is intended for
use as a biological microscope in a professional environment in accordance with the guidelines set forth in this operations
manual.
Powered by USB Power Adapter
R3M-BN4A-DALP: Portable Revelation III, Binoc with 5V DC Base, USB Cord, & Battery
R3M-TN4A-DALP: Portable Revelation III, Trinoc with 5V DC Base, USB Cord, & Battery
N
M
O
P
L
Q
K
J
I
Portable, Rechargeable Model Available
Powered by Laptop USB Port
Revelation III LED
Not all features available on all models -
see back page for model specifications.
S
R
Instruction Manual

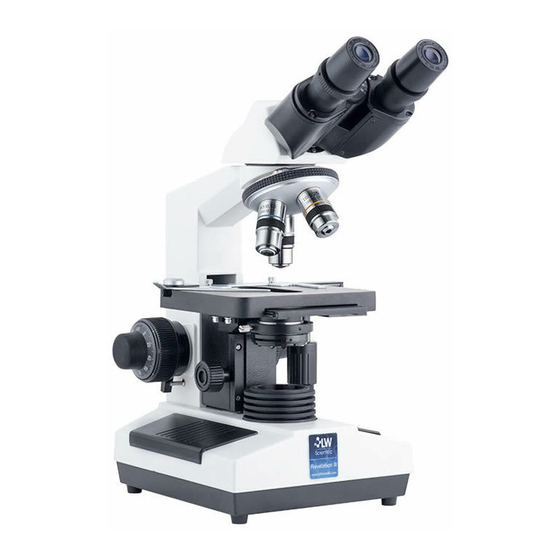

Model pictured:
Revelation III LED
A
Eyepieces
B
Single Diopter Adjustment
C
Nose Piece
D
Objectives
E
Slide Holder & Slide Finger
F
Substage Abbe Condenser
G
Flip-out Filter Holder
H
Base Condenser
I
On/Off Switch
J
Brightness Control
K
X/Y Axis Stage Controls
L
Substage Iris Diaphragm
M
Stage
N
Head Retention Screw
O
Friction Adjustment Ring
P
Coarse Focus
Q
Fine Focus
R
Stage Stop Lever
S
Microscope Head
(Binocular model shown)
Powered by Rechargeable Battery
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LW Scientific Revelation III LED
Summary of Contents for LW Scientific Revelation III LED
- Page 1 (Binocular model shown) Introduction The LW Scientific Revelation III Microscope is our best-selling medical-grade compound microscope, popular in physician and veterinary offices as well as universities and medical schools. Its crisp optics, sturdy design and proven track record make the Revelation III the best choice for superior performance at an economical price.
- Page 2 1 - 3-Prong power cord (For portable model: USB cord with powerblock, plus rechargeable battery) When purchased from LW Scientific or from an authorized distributor, LW Scientific Professional Stereoscopes and Laboratory Microscopes have a life time warranty against defects in materials and workmanship and one (1) year warranty on electronic components.
- Page 3 Operation Once you have assembled all the parts and allowed your microscope to come to room temperature, then plug in the power cord. Note: Excess cold can fog lenses and cause lamp to fail. Turn the light on using the green On/Off Switch on the right side of the base. Next, adjust the light intensity using the Bright- ness Control located on the right side just behind the On/Off Switch.
- Page 4 DROP OBJECTIVE LOOSELY INTO CONTAINER. To keep your microscope in top condition for years, LW Scientific recommends that you have the microscope professionally serviced once a year. Warning: The 40x objective is not sealed for oil immersion. Damage to the 40x objective due to oil immersion is not covered under warranty.
