Maintenance
1
Always cover your microscope with the dust cover when not in use.
2
When cleaning the lenses, use lens paper or a cotton swab dipped in lens cleaning solution.
3
Excess oil should be cleaned off your 100x objective and stage at once. An alcohol pad is best for removing oil from
the stage and on the other metal parts, but is not recommended for use on the lenses. Use lens cleaning solution and
lens paper to clean off your objectives.
4
Dust in the nosepiece or ocular tubes should be blown out using filtered air. Canned air dusters work well for this job.
5
Whenever you remove an objective, we recommend that you place it back into the original plastic shipping vial until
ready to be placed back on the microscope. SCREW THE OBJECTIVE SECURELY INTO THE CAP OF THE HOLDER - DO NOT
DROP OBJECTIVE LOOSELY INTO CONTAINER.
6
To keep your microscope in top condition for years, LW Scientific recommends that you have the microscope
professionally serviced once a year. Warning: The 40x objective is not sealed for oil immersion. Damage to the 40x
objective due to oil immersion is not covered under warranty.
Specifications
Nosepiece
Quadruple hole multiple ball bearing
Head
Binocular (Seidentopf)
Inclined 30°, rotates 360°
Single diopter adjustment
10X/18 wide-field eyepieces
Monocular or Trinocular available
Illumination
Moveable Abbe Condenser (NA 1.25)
Iris Diaphragm
Swing-out filter holder with blue and green filters
LED light
Operating Environment
Indoor Use Only
Ambient temperature: 5˚ to 40˚C (41˚ to 104˚F)
Stage
Mechanical stage
(140 mm x 140 mm) – coaxial drive controls
Range of traverse is 73 mm x 43 mm
Acid and reagent resistant finish
The Revelation III is covered by a limited lifetime warranty on materials and workmanship and
1-year warranty on electronics from date of purchase. If there is any indication of a problem,
Warranty
contact LW Scientific. Operating the unit after noticing a problem could compound a simple
problem and cause an unneccessary expense to the owner. LW Scientific support staff will
troubleshoot problems over the phone and attempt to solve problems in the most expedient manner. This may include
sending parts that can easily be installed by the user, or directing the user through a simple adjustment to the unit.
Making repairs to the unit without authorization from LW Scientific will void the warranty.
If the unit must be shipped in for repair, LW Scientific will issue a Return Merchandise Authorization (RMA) number. You will
need to provide the serial number and have either a warranty card on file at LW Scientific or proof of purchase.
P. 770.270.1394
F. 770.270.2389
Dimensions and Weight
Objectives: The following numbers are
Weight: 14 lbs / 6.4 kg
based on use with 10x/18 eyepieces.
Height: 15" / 380 mm
Length: 9" / 230 mm
Size
N.A.
Width: 7" / 178 mm
Shipping weight: 17 lbs/ 8kg
4X
0.10
10X
0.25
Objectives
20X
0.40
40XR
0.65
DIN Achromatic or DIN Plan
50XR
0.95
60XR
0.85
4X N.A. 0.10
100XR
1.25
10X N.A. 0.25
40XR N.A. 0.65
100XR N.A. 1.25 (oil immersion)
20X, 50X oil Plan, and 60XR available
Adjustment Controls
Eyepiece: Interpupillary distance adjustment 55-75 mm
Stage Controls: Knobs allow movement of slide on X-Y axis
Etched vernier scales
Coarse Adjustment: Range of 30 mm
Fine Adjustment: Graduation of 2µm
Variable Light Adjustment
Construction
Rugged alloy
865 Marathon Parkway Lawrenceville GA 30045
B
R
D
F
Mag.
Field of View
40X
4.5 mm
100X
1.8 mm
200X
0.9 mm
G
400X
0.45 mm
500X
0.36 mm
600X
0.3 mm
1000X
0.18 mm
P
Introduction

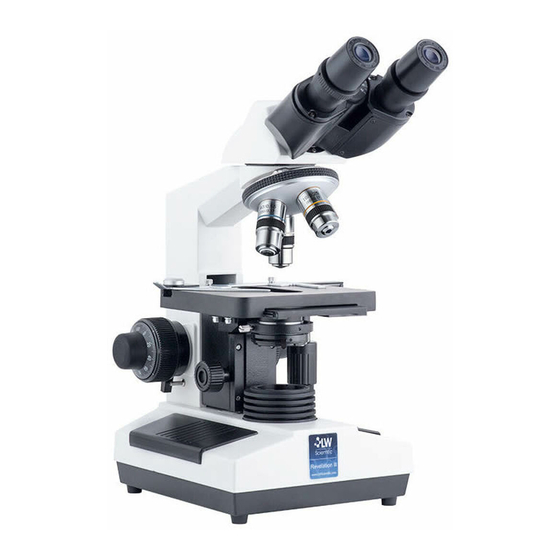

The LW Scientific Revelation III microscope is our best-selling medical-grade compound microscope, popular in physician
and veterinary offices as well as universities and medical schools. Its crisp optics, sturdy design and proven track record
make the Revelation III the best choice for superior performance at an economical price. The Revelation 3 microscope is
intended for use as a biological microscope in a professional environment in accordance with the guidelines set forth in
this operations manual.
Phase and Dark Field
P. 770.270.1394
Revelation III LED
R3M-B04A-DAL3
Not all features available on all models -
see back page for model specifications.
A
S
A
B
C
D
E
F
C
G
Q
H
I
O
J
K
K
E
L
L
M
M
N
N
H
O
P
Q
I
R
J
S
Four Head Choices
Carry Cases
Camera Attachments
F. 770.270.2389
865 Marathon Parkway Lawrenceville GA 30045

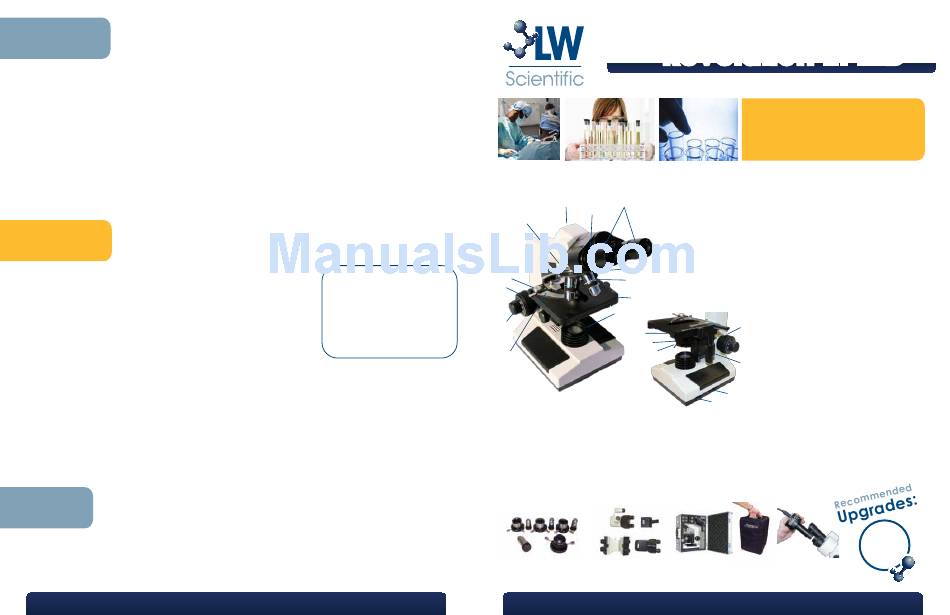

Instruction Manual
Model pictured:
Revelation III
Single Diopter Adjustment
Binocular Head
Head Retention Screw (side)
Stage Stop Lever
Friction Adjustment
Coarse Focus
Fine Focus
X/Y Axis Stage Controls
Brightness Control
On Switch
Base Condenser
Flip-out Filter Holder
Substage Iris Diaphragm
Substage Abbe Condenser
Stage
Slide Holder
Objectives
Nose Piece
Eyepieces
Ask your
authorized LWS
dealer about
additional
accessories
