LW Scientific i4 Infinity Instruction Manual

Maintenance
1
Always cover your microscope with the dust cover when not in use. When cleaning the lenses, use lens paper or a
cotton swab dipped in lens cleaning solution.
2
Excess oil should be cleaned off your 100x objective and stage at once. An alcohol pad is best for removing oil from
the stage and on the other metal parts, but is not recommended for use on the lenses. Use lens cleaning solution and
lens paper to clean off your objectives.
3
Dust in the nosepiece or ocular tubes should be blown out using filtered air. Canned air dusters work well for this job.
4
Whenever you remove an objective, we recommend that you place it back into the original plastic shipping vial until
ready to be placed back on the microscope. SCREW THE OBJECTIVE SECURELY INTO THE CAP OF THE HOLDER - DO NOT
DROP OBJECTIVE LOOSELY INTO CONTAINER.
5
To keep your microscope in top condition for years, LW Scientific recommends that you have the microscope
professionally serviced once a year.
Warning: The 40x objective is not sealed for oil immersion. Damage to the 40x objective due to oil
immersion is not covered under warranty.
Specifications
Nosepiece
Reverse quadruple hole multiple ball bearing
Head
Binocular (Seidentopf)
Inclined 30°, rotates 360°
Diopter adjustment
10X/18 wide-field eyepieces
10X/20 High-Point super-wide eyepieces available
Trinocular available
Illumination
Moveable Abbe Condenser (NA 1.25)
Iris Diaphragm
Blue and green filters
LED light
Construction
Rugged alloy
Stage
Mechanical stage (140 mm x 130 mm)
– coaxial drive controls
Range of traverse is 78 mm x 50 mm
Acid and reagent resistant finish
Operating Environment
Indoor Use Only
Ambient temperature: 5˚ to 40˚C (41˚ to 104˚F)
P. 770.270.1394 F. 770.270.2389
Objectives
Infinity Semi-Plan, Infinity Plan Achromat Objectives
4X N.A. 0.10
10X N.A. 0.25
40XR N.A. 0.65
100XR N.A. 1.25 (oil immersion)
50X oil Plan Infinity available
Adjustment Controls
Eyepiece: Interpupillary distance adjustment 48-75 mm
Stage Controls: Knobs allow movement of slide on X-Y axis
Etched vernier scales
Coarse Adjustment: Range of 30 mm
Fine Adjustment: Graduation of 2μm
Variable Light Adjustment
Dimensions and Weight
Weight: 16 lbs / 7.3 kg
Height: 14.1" / 267 mm
Length: 10.7" / 267.5 mm
Width: 6.1" / 152.5 mm
Shipping weight: 17 lbs/ 8kg
Objectives: The following numbers are
based on use with 10x/18 eyepieces.
Size N.A. Mag. Field of View
4X 0.10 40X 4.5mm
10X 0.25 100X 1.8mm
20X 0.40 200X 0.9mm
40XR 0.65 400X 0.45mm
50XR 0.95 500X 0.36mm
60XR 0.85 600X 0.3mm
100XR 1.25 1000X 0.18mm
MKT-7.5.3-L-127 | Rev 2
865 Marathon Parkway Lawrenceville GA 30046
A
A
B
B
C
D
S
C
R
Q
P
O
N
M
L
K
J

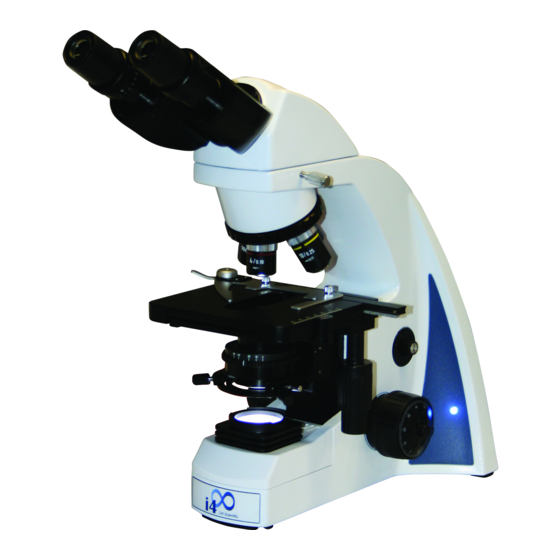

Introduction
The LW Scientific I-4 microscope features exceptional optical quality with an infinity optical system, like found on the
most expensive laboratory microscopes, but at a fraction of the price. The ergonomic narrow design allows users to
rest their arms flat on the table and easily operate all controls. The binocular eyetubes can also be rotated upward to
achieve an additional 2 inches of height for taller users. LED lighting produces "daylight" color, with a cool temperature
and long life. Comfort, durability, dependability, and superior imaging make the I-4 a great value for labs, physicians,
vets, and universities. The I-4 microscope is intended for use as a biological microscope in a professional environment in
accordance with the guidelines set forth in this operations manual.
Lumin
Phase and Dark Field
Epi-Module
P. 770.270.1394 F. 770.270.2389
i4 Infinity
i4 Infinity

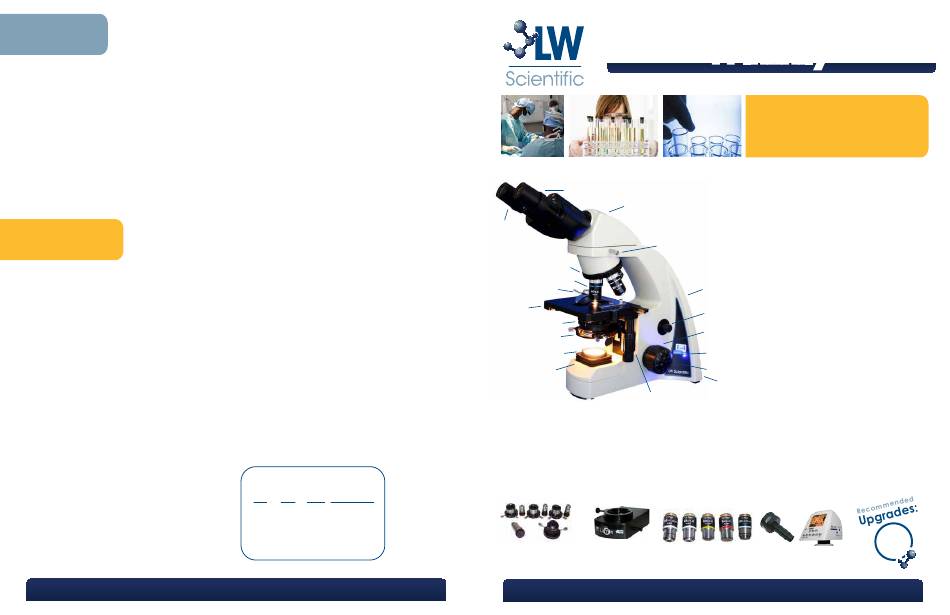

Instruction Manual
Diopter Adjustment E Brightness Control
Binocular Head F Focus Friction Control
Head Retention Screw G Coarse Focus
Stage Stop Lever H Fine Focus
(located on left side) I On/Off Switch
(located on rear)
J X/Y Axis Stage Controls
K Base Condenser
L Filter Holder
D
M Substage Iris Diaphragm
N Substage Abbe Condenser
E
O Stage
P Slide Holder
F
Q Objectives
G R Nosepiece
S Eyepieces
H
I
Objectives Camera Attachments
865 Marathon Parkway Lawrenceville GA 30046
Ask your
authorized LWS
dealer about
additional
accessories
