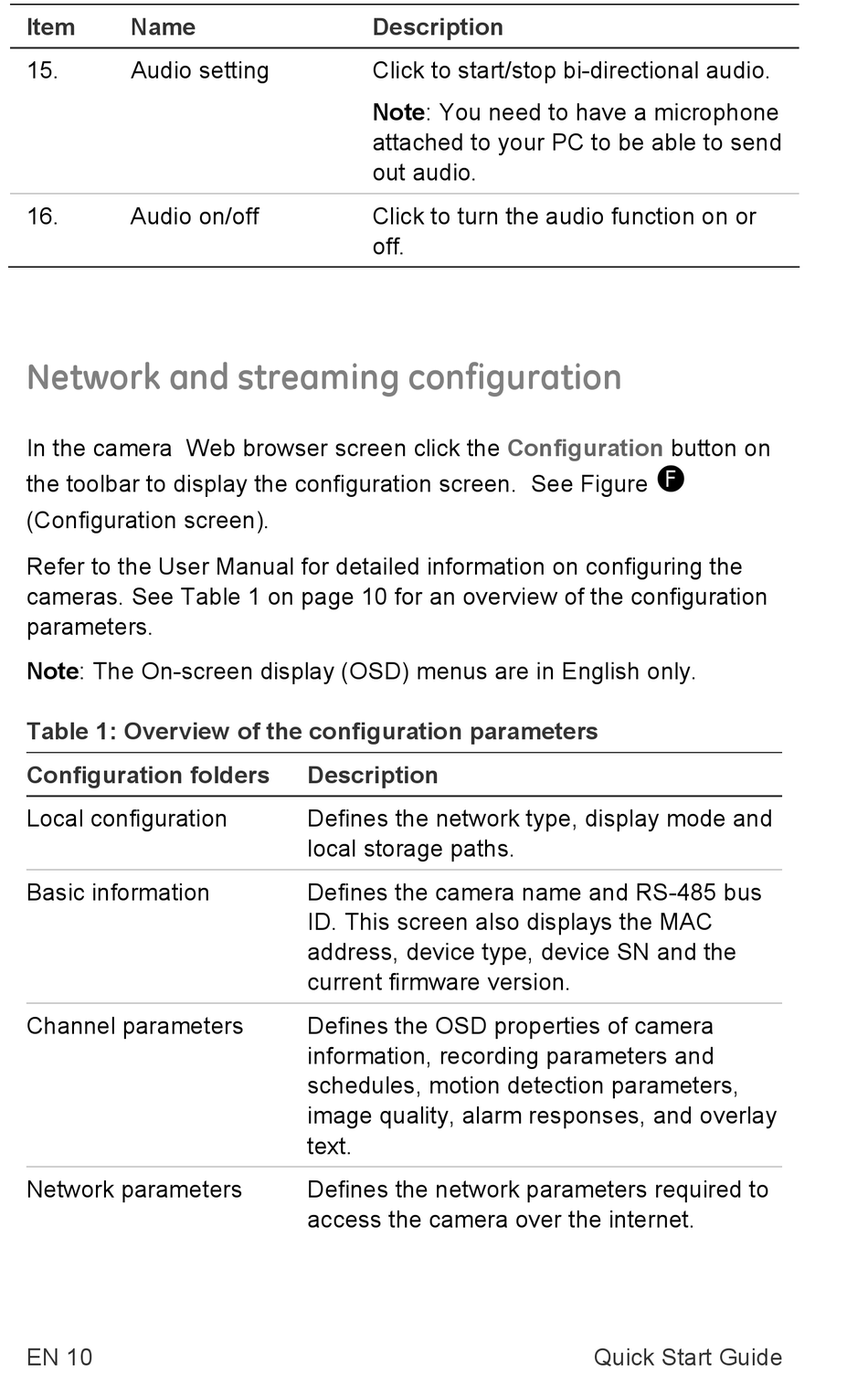

Network And Streaming Configuration - Interlogix TruVision Open-Standards Quick Start Manual

Item Name
15. Audio setting
16. Audio on/off

Network and streaming configuration

In the camera Web browser screen click the
the toolbar to display the configuration screen. See Figure
(Configuration screen).
Refer to the User Manual for detailed information on configuring the
cameras. See Table 1 on page 10 for an overview of the configuration
parameters.
Note: The On-screen display (OSD) menus are in English only.
Table 1: Overview of the configuration parameters
Configuration folders
Local configuration
Basic information
Channel parameters
Network parameters
EN 10
Description
Click to start/stop bi-directional audio.
Note: You need to have a microphone
attached to your PC to be able to send
out audio.
Click to turn the audio function on or
off.
Description
Defines the network type, display mode and
local storage paths.
Defines the camera name and RS-485 bus
ID. This screen also displays the MAC
address, device type, device SN and the
current firmware version.
Defines the OSD properties of camera
information, recording parameters and
schedules, motion detection parameters,
image quality, alarm responses, and overlay
text.
Defines the network parameters required to
access the camera over the internet.
Configuration

Quick Start Guide
button on
