Please follow the installation steps below to set up F3100 / F3105 IP Camera.
Check the package contents against the list below. See P.1
Physical overview. See P.1
Use the software CD to install Intelligent IP Installer.
Change light environment setting. See P.5
Access to Internet via Static IP, Dynamic IP or both. See P.8
For more information, please check the User Manual available in the Software CD or you can download the latest
software from
http://www.zavio.com
Package Contents

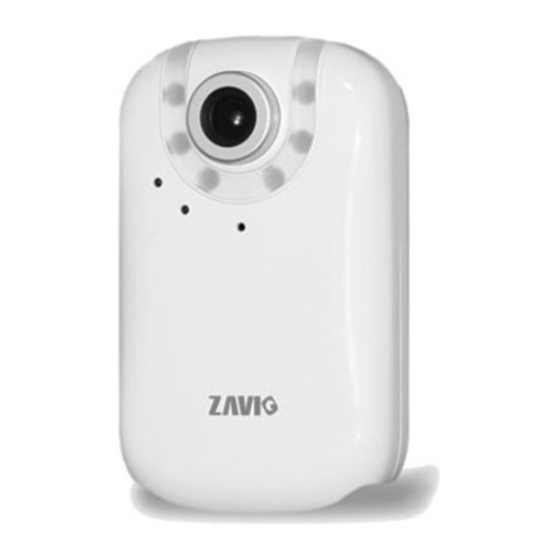

Camera
Quick Installation Guide
Software CD
Mounting Bracket
Antenna
Adaptor

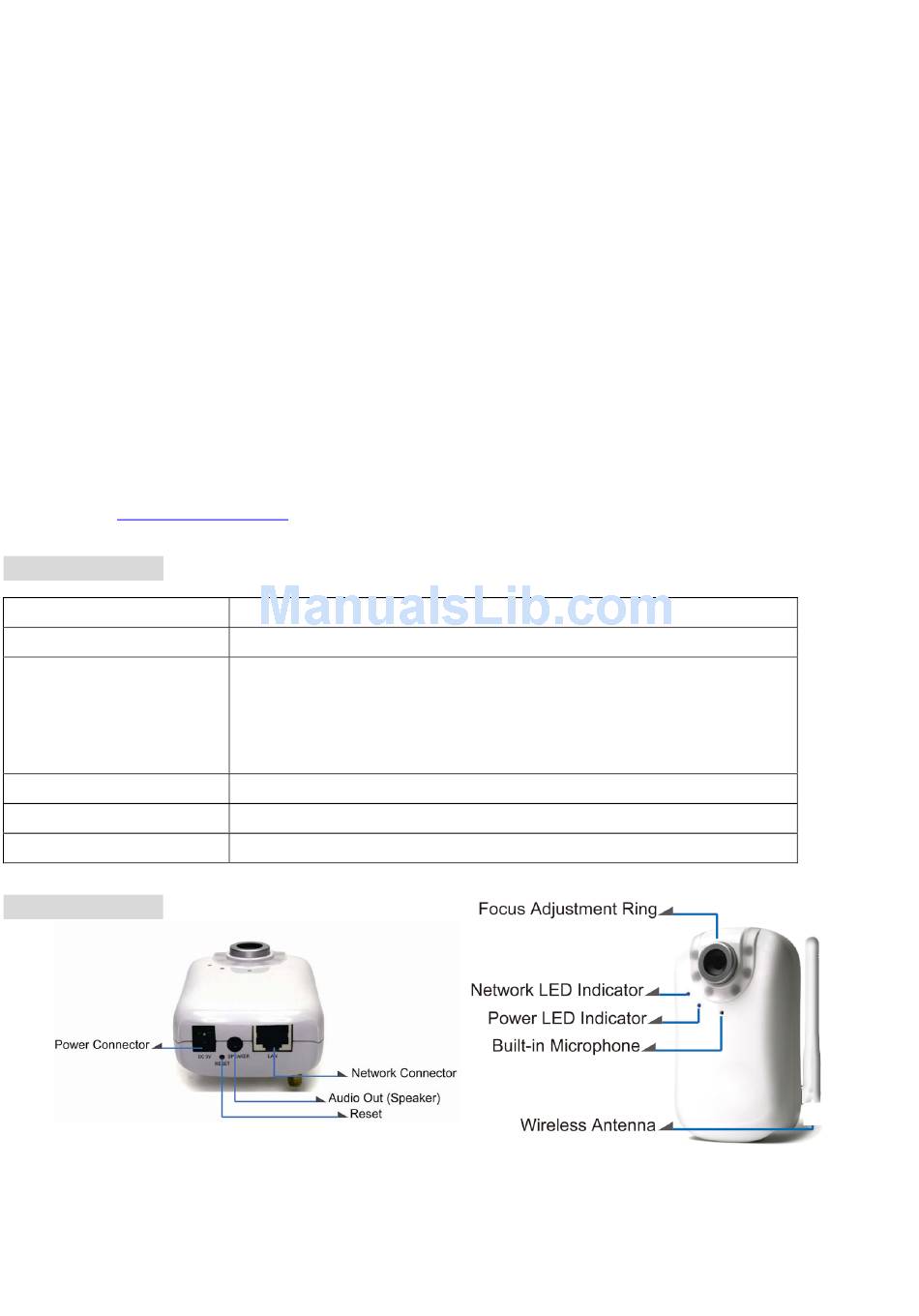

Physical overview
Focus Adjustment Ring: Adjust the focus ring to get a clear image.
Reset: When the device is powered, press the Reset Button to reboot the device, or hold the Reset Button for 10
seconds to set the settings back to factory default
Zavio F3100 / F3105 Quick Installation Guide
F3100 / F3105 IP Camera
Brief product information and quick installation
IP Surveillance Software
Intelligent IP Installer
User Manuals
Language Packs
(2) screws, (2) plastic wall anchors, and (1) camera bracket
For connection of IEEE 802.11 b / g wireless network (F3105 model)
12V DC, max 12W
See P.2
(F3105)
1
Advertisement
Table of Contents
Related Manuals for Zavio F3100
Summary of Contents for Zavio F3100
-
Page 1: Table Of Contents
Zavio F3100 / F3105 Quick Installation Guide Please follow the installation steps below to set up F3100 / F3105 IP Camera. Check the package contents against the list below. See P.1 Physical overview. See P.1 Install the hardware and connect all cables. See P.2 Use the software CD to install Intelligent IP Installer. -
Page 2: Install The Hardware And Connect All Cables. See
Install the hardware and connect all cables a. Wall mounting and Ceiling mounting 1. Use the 3 supplied screws to fix the base plate to a flat surface. 2. Loosen the lock ring to adjust the desired angle of the camera. 3. - Page 3 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’. 5. Click the information bar, and select Install ActiveX control.
-
Page 4: Mac Os Using Safari Browser. See
7. Live video displays in the centre of your web browser. Mac OS using Safari Browser 2. Click Bonjour function and select the camera 1. Select Safari icon you wish to access. 3. Enter name and password to login to the IP 4. -
Page 5: Change The Web Interface Into Your Preferred Language. See
Select Safari function → Enter IP address in the web link → enter username and password (default value admin/admin) → The Zavio user interface and Live Image will show up in the middle of the screen. 2. Mobile phone viewing a. -
Page 6: Wireless Setting(For F3105). See
Wireless Setting( For F3105) Power the IP Camera and connect an Ethernet network cable to the IP Camera’s LAN port. Using Intelligent IP Installer and entering the camera’s setting page. Please go to “Setting → Basic → System → Network → Wireless”, set the wireless option to “On” 1. -
Page 7: Image Setup
7. The IP Camera will send you a message with its Public IP and Private IP if the IP Notification Option is enabled. 8. Click on the small camera icon. Then, choose “View a new contact's webcam”. Camera at home says: 9. - Page 8 Access to the Internet a. Internet connectivity of the IP camera can be established by inputting the cameras IP information within the Information section. (Please go to Setting → Basic → Network→ Information) Internet Connectivity of the IP Camera can be established through PPPoE (Point-to-Point Protocol over the Ethernet) by inputting the username and password from your Internet Service Provider (ISP) within the PPPoE section (Please go to Setting →...
- Page 9 c. Internet Connectivity of the IP Camera can be established if your router is UPnP (Universal Plug and Play) enabled. The IP camera is automatically detected and added to “My Network Places” on your computer. Please note that only Home Routers manufactured after 2006 support the UPnP function. c1.
-
Page 10: Application Of Ip Camera. See
Application of IP Camera... - Page 11 Memo ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. …………………………………………………………………………………..
- Page 12 Memo ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. …………………………………………………………………………………..
