Summary of Contents for Zavio D4210
- Page 1 D4210 PN: 86085A2000010...
-
Page 3: Table Of Contents

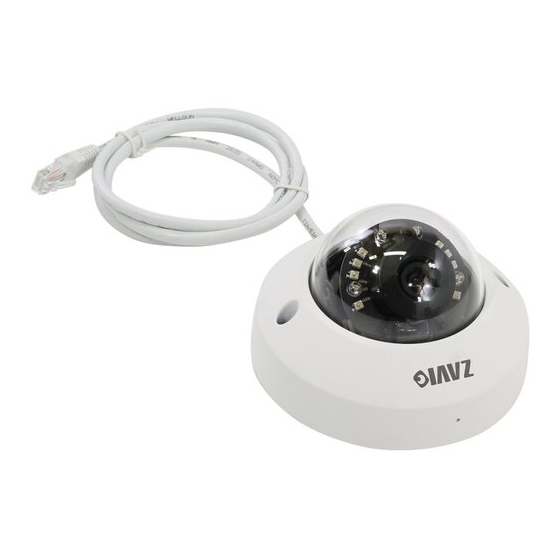

Zavio D4210 Quick Installation Guide Please follow the installation steps below to set up D4210 IR Dome IP Camera. Check the package contents against the list below. See P.1 Physical overview. See P.2 I/O Terminal Block Circuit. See P.3 I/O Terminal Block Pin Definition. See P.3 LED Indicator Definition. -
Page 4: Physical Overview. See
Physical overview Top cover Dome bubble Slide cover Leave the slide cover if you would like to plug in cables through the side of top cover and through a hole on the ceiling or wall. Built-in Microphone External I/O connector Routing hole DC 12V/1A Lens... -
Page 5: I/O Terminal Block Circuit. See
I/O Terminal Block Circuit I/O Terminal Block Pin Definition This Camera provides an external I/O terminal block which is used to connect input/ output devices. The pin definitions are described below. Definition Description Max. V/A Ground 12V DC + 12V DC 1.2W Connect the wires of the audio input device to GND (Pin 1) and Audio Input... -
Page 6: Led Indicator Definition. See
LED Indicator Definition Color Indication Network Blue Flash blue while Network activity. Steady red for booting up process Blue Steady blue for booting up completion Power Flash purple during firmware upgrading; when reset button pressed for at least 5 sec. Purple to factory default Unlit... - Page 7 c. Connect all cables c1. Without Power over Ethernet (PoE) connection 1. Connect the power adaptor to the IP Camera. 2. Connect the IP Camera to a normal Hub / Switch / Router. c2. Power over Ethernet (PoE) 1. Connect the IP Camera to a PoE-enabled Hub / Switch / Router. Note: If using a non-PoE switch, please use a PoE power injector to connect the camera.
- Page 8 d. To adjust the view angle- 3 axis Mechanism Design 1. Turn the lens module right and left to your desired pan position. 2. Turn the lens module up and down to your desire tile position. 3. Turn the lens module to adjust the image orientation to satisfied angle. Important: Do not rotate the IR LEDs so that it gets blocked by the housing as it will affect the IR performance (as shown below).
- Page 9 e. Completion 1. Clean the dome bubble to remove the dust and finger print. 2. Fix the tamper-proof screws using supplied special hex. Be careful do not scratch the cover glass. 3. The installation is complete now. Microsoft OS: Use the software CD to install Intelligent IP Installer Power on your PC and insert the CD-ROM.
-
Page 10: Access The Ip Camera Using Intelligent Ip Installer. See
Access the IP Camera using Intelligent IP Installer 1. Please check two settings before using Intelligent IP Installer . b. Browser’s Internet Properties → Privacy a. Browser’s Internet Properties → Security → Uncheck Pop-up Blocker → Default Level 2. Click the Intelligent IP Installer Icon on your desktop. The main page will show up listing all active camera and video server devices. - Page 11 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’. 5. Click the information bar, and select Install ActiveX control.
-
Page 12: Mac Os Using Safari Browser. See
Mac OS using Safari Browser 2. Click Bonjour function and select the camera 1. Select Safari icon you wish to access. 3. Enter name and password to login to the IP 4. The monitor image will be displayed in your browser. camera. -
Page 13: Change The Web Interface Into Your Preferred Language. See
Lighting environment setting The default setting of lighting environment is Auto. However, you may also select 50 or 60 Hz upon the lighting environment of your country. Go to “Setting > Live View > Camera Setting > Image Setting”, select the environment setting you wish. Change the Web Interface into your preferred language Use the settings screen to set the language of the Web Interface. -
Page 14: Application Of Ip Camera. See
Application of IP Camera... - Page 15 Memo ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. …………………………………………………………………………………..
