Vision VN7XFHD Instruction Manual

Full hd motorized zoom ir outdoor bullet camera 12vdc vht-hcl 1.0
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

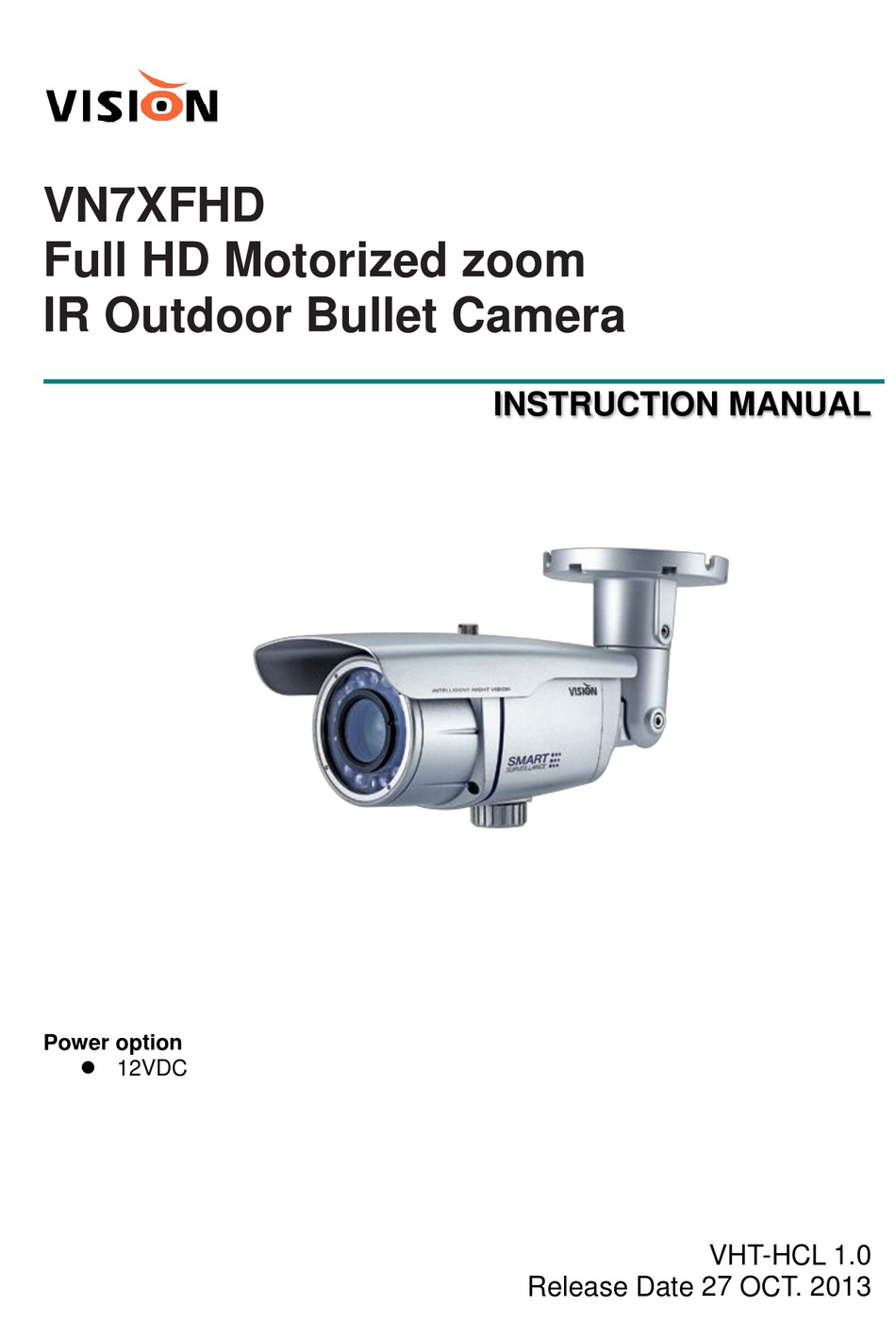

VN7XFHD
Full HD Motorized zoom
IR Outdoor Bullet Camera
INSTRUCTION MANUAL
Power option
 12VDC
VHT-HCL 1.0
Release Date 27 OCT. 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VN7XFHD and is the answer not in the manual?

Questions and answers

Related Manuals for Vision VN7XFHD

Summary of Contents for Vision VN7XFHD

  • Page 1 VN7XFHD Full HD Motorized zoom IR Outdoor Bullet Camera INSTRUCTION MANUAL Power option  12VDC VHT-HCL 1.0 Release Date 27 OCT. 2013...
  • Page 2 Dear Customers! By selecting this product, you have decided to use a professional device that guarantees highest quality and reliability. We would like to thank you very much for your confidence and kindly ask you to read the following instructions carefully before Installation and operation in order to take full advantage of all quality features regarding this product.

  • Page 3: Table Of Contents

    Table of contents 1. Precautions ------------------------------------------------------------------------------------------------------ 4 2. Limitation of liability ------------------------------------------------------------------------------------------ 4 3. Disclaimer of warranty --------------------------------------------------------------------------------------- 4 4. Package ----------------------------------------------------------------------------------------------------------- 5 5. Installation -------------------------------------------------------------------------------------------------------- 6 5-1. How to mount to Ceiling 5-2. How to install to Wall 5-3. 3-Axis adjustment 5-4.

  • Page 4: Precautions

    1. Precautions Please read the manual carefully before installation in order to set up and use the camera correctly with best image quality. Please keep the manual in good condition for your future reference and service application. Installation and services should be carried out only by authorized personnel according to local safety regulations.

  • Page 5: Package

    Any damage and loss, including without limitation, direct or indirect, special, consequential or exemplary, arising out of or relating to the product. Personal injury or any damage caused by inappropriate use or negligent operation of the user. Unauthorized disassemble, repair or modification of the product by the user’ Inconvenience or any loss arising when images are not displayed, due to any reason or cause including any failure or problem of the product.

  • Page 6: Installation

    5. Installation 5-1. How to mount to Ceiling ① Drill three screw holes on the ceiling plate to fix three anchors (supplied) in the holes. ② Fix the plastic anchors in the holes. ③ Position the mounting bracket on the screw points. ④...

  • Page 7: Lens External Adjustment, Ext-Video

    ① Pan 360˚ Slightly loosen Pan bolt then adjust pan of the camera using a serration on the bracket and tighten the bolt firmly . ② Tilt 180˚ Slightly loosen Tilt bolt then adjust tilt of the camera using a serration on the bracket and tighten the bolt firmly.

  • Page 8: Waterproof Processing Of Cable And Connection

    Push up or down the Tack SW (OSD Key) by finger for a second. Up  Zoom in Down  Zoom out Left/Right  Focus in/out 5-6. Waterproof processing of cable end connection Make sure to use a butyl tape. (Do not use a sealing material on those parts) ①...

  • Page 9: Setting Up The Menu

    6-1. On Screen Display Menu MAIN MENU VIDEO OUT VIDEO OUTSIZE FRAME RATE CVBS OUT MODE SAVE/ RETURN AUTO MENU 50HZ INDOOR 60HZ INDOOR OUTDOOR NORMAL RETURN DAY/NIGHT D TO N LEVEL D TO N TIME D/N RESET AUTO/COLOR/IR RETURN N TO D LEVEL N TO D TIME RETURN...

  • Page 10: Video Out

    Please keep the selection until you get to the mode you wish to operate. 4. When completed, move the bar indicator to ‘EXIT’ and press the button to finish the setting. 6-3. VIDEO OUT (1) VIDEO OUTSIZE - VIDEO OUTSIZE can be set to 1080P, 1080i, 720P according to Local Regulation.

  • Page 11: Day/Night

    initial factory reset. 6-5. DAY/NIGHT You can display pictures in Color/IR MODE/AUTO. (1) DAY/NIGHT MODE 1. Please position the cursor on ‘DAY/NIGHT’ on the SETUP menu by using the UP and DOWN selections. 2. Please select the mode you wish to operate by using the LEFT and RIGHT selections.
  • Page 12 This is useful when the cameras are installed in different artificial lighting conditions where a standard ‘White Balance’ condition is not suitable for all. (1) AWB MODE 1. Please position the cursor on ‘AWB’ on the SETUP menu by using the UP and DOWN selections. 2.
  • Page 13 - Resets all setting of AWB menu into initial factory reset value. (9) RETURN - Returns to the MAIN MENU. 6-7.AE (Auto Exposure) (1) IRIS MODE - DC : Selects DC drive auto iris lens. - ESC : Selects manual iris lens - AE HOLD : Fixes the change of the brightness.

  • Page 14: Privacy

    Enables a user to directly select a desired area from a picture, and to view the area more clearly even under backlight environment. - BLC : Used for backlight environment.(Indoor objects can be seen.) - FLC : Compensates the saturation of image when camera faces toward the same direction as sunlight.

  • Page 15: System

    (1) COLOR ADJUST - COLOR GAIN : Adjusts the COLOR GAIN level in 00 ~ 50(Default 25) - COLOR HUE : Adjusts the COLOR HUE level in 00 ~ 50(Default 25) ☞ NOTE This function enables user to adjust the variation of Color Gain on the monitor when installing camera.
  • Page 16 (1) CAMERA ID : Determinds the camera ID number in 001 ~ 255 (Default 001) (2) ID DISPLAY : Defines the location where camera ID is displayed on the screen. 4 location of top, bottom, left and right can be selected.

  • Page 17: Initialize

    - Shows firmware version of this camera unit. (6) 485 TERM - RS485 Function ON/OFF (7) BAUD RATE - Selects baud rate for RS485 communication among 2400/ 4800/ 9600. (Default:9600) (8) SYSTEM RESET - Resets all setting of SYSTEM menu. CAMERA ID, 485 TERM settings are not initialized.

  • Page 18: Dimension

    If there are problems in operating, please refer to the checklist below. If the problem persists, please contact the agent where this product is purchased. Problems Troubleshooting  Please check that the power cord and line connection between the camera and the monitor are fixed properly. Nothing appears on the screen.

  • Page 19: Specification

    9. Specification MODEL Full HD CCTV IR Bullet Camera Sony 1/2.8” progressive scan CMOS, 3MegaPixel Sensor Device Total Pixels 2144(H) x 1588(V) 3.4 Megapixel Effective Pixels 2096(H) x 1561(V) 3.27 Megapixel Scanning System Progressive Scan Horizontal More than 1100 TVL S/N Ratio More than 52dB Min.
