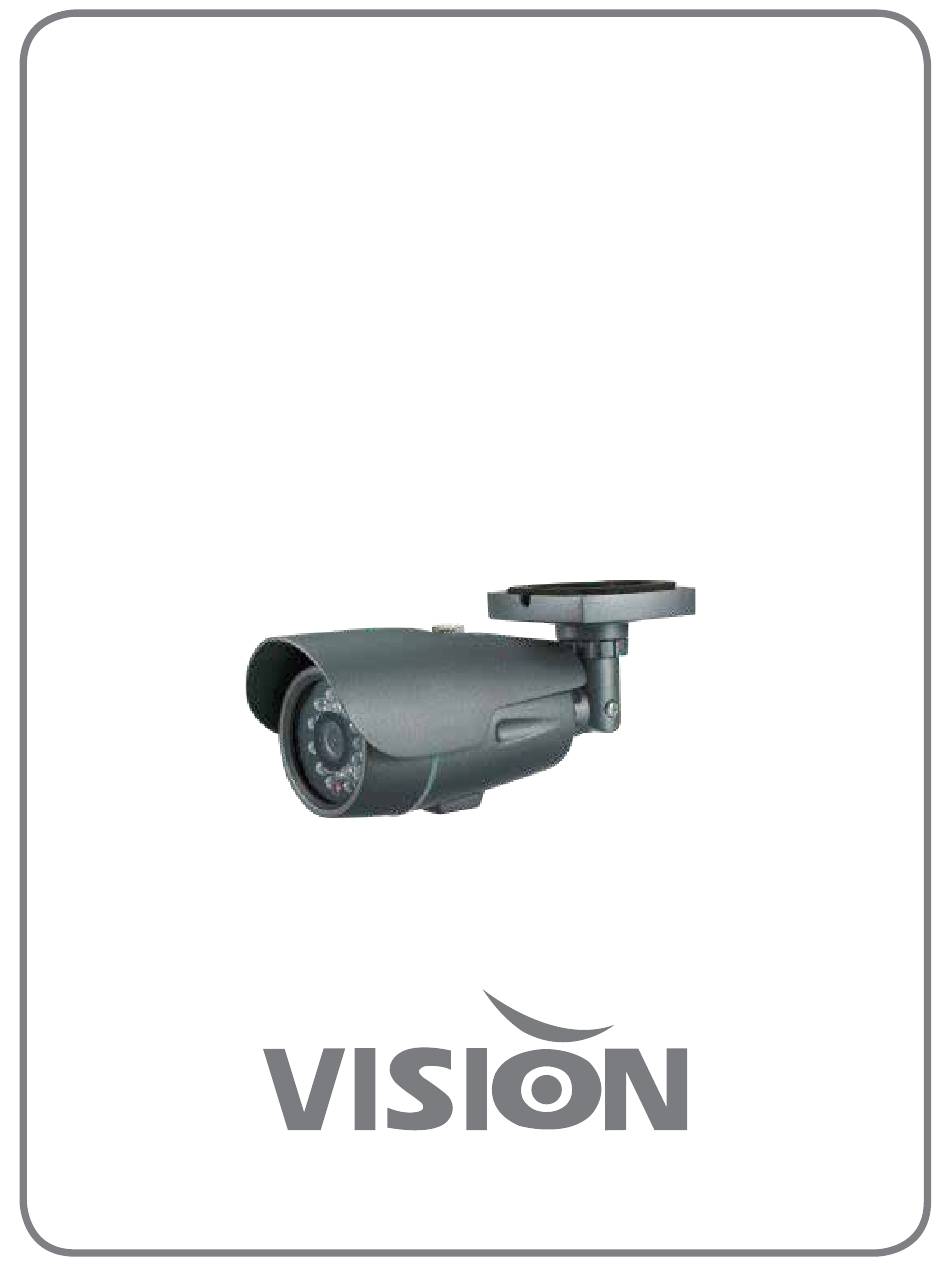

- Page 1 High Resolution indoor / outdoor Compact Night Vision Bullet Camera VN101PN Night Vision Camera STALLATION GUIDE Quick Installation Guide Standard Cable-through type bracket atures RESOLUTION SUPER SENSITIVE CCD s(Color)/ 750TV Lines(B/W) d Demoire ead pixel compensation of Auto White Balance...
- Page 2 Night Vision Camera Compact Night Vision Camera High Resolution indoor / outdoor TALLATION GUIDE QUICK INSTALLATION GUIDE Compact Night Vision Bullet Camera QUICK INSTALLATION GUIDE Standard Cable-through type bracket Standard Cable-through type bracket Special features 1/3” HIGH RESOLUTION SUPER SENSITIVE CCD ●...
- Page 3 Dear Customers! By selecting this product, you have decided to use a professional device that guarantees highest quality and reliability. We would like to thank you very much for your confidence and kindly ask you to read the following instructions carefully before installation and operation in order to take full advantage of all quality features regarding this product.
-
Page 4: Limitation Of Liability
1. Precautions • Please read the manual carefully before the installation in order to make use the camera to be set up correctly and to have the best picture quality. • Please keep the manual in good condition for your future reference and service application. -
Page 5: Disclaimer Of Warranty
2. Limitation of liability This publication is provided “AS IS” without warranty of any kind, either express or implied, including but not limited to, the implied warranties of merchantability, fitness for any particular purpose, or non-infringement of the third party's right. This publication could include technical inaccuracies or typographical errors. -
Page 6: Installation
4. Package Compact Night Vision Camera QUICK INSTALLATION GUIDE S ta n d a r d C a b le - th r o u gh ty p e b r a c k e t + Special features ● 1 /3 ” H IG H R E S O L U TIO N S U P E R S E N S I TIV E C C D ●... - Page 7 5. Installation 5-1. How to install on the Wall / Ceiling (Standard) ◆ Wall Plastic anchor Screw (3-Ø4*30L) L-Wrench ◆ Celling Plastic anchor L-Wrench Screw (3-Ø4*30L) ① Drill three screw holes on the wall / ceiling plate to fix three anchor (supplied) in the holes.
- Page 8 5. Installation (Option: Cable-through type bracket) ◆ Wall ◆ Celling ① Drill three screw holes on the wall / ceiling plate to fix three anchor (supplyed)
- Page 9 ① Drill three screw holes on the wall / ceiling plate to fix three anchor (supplyed) in the holes. ② Fix the plastic anchors in the holes. ③ Position the mounting bracket on the screw points. ® Fix the mounting bracket by tightening the screws. ®...
-
Page 10: Troubleshooting
6. Troubleshooting If there are problems in operating, please refer to the checklist below. If the problem persists, please contact the agent where this product is purchased. Problems Troubleshooting · Please check that the power cord and line connection Nothing appears on the between the camera and monitor are fixed properly. -
Page 11: Specification
7. Dimension (mm) (Option: Cable-through type bracket) 69.7 67.7 178.5 144.6 8. Specification MODEL Compact Night Vision Camera... - Page 12 7. Dimension (mm) (Standard) 69.7 123.6 120°...
- Page 13 8. Specification MODEL Compact Night Vision Camera Model Standard Cable-through type bracket Image Device 1/3" HIGH RESOLUTION SUPER SENSITIVE CCD Effective Pixels NTSC : 976(H)X494(V), PAL : 976(H)X582(V) NTSC 525 Lines PAL 625 Lines 2:1 Interlaced Scanning System Synchronization Internal H.Resolution...
