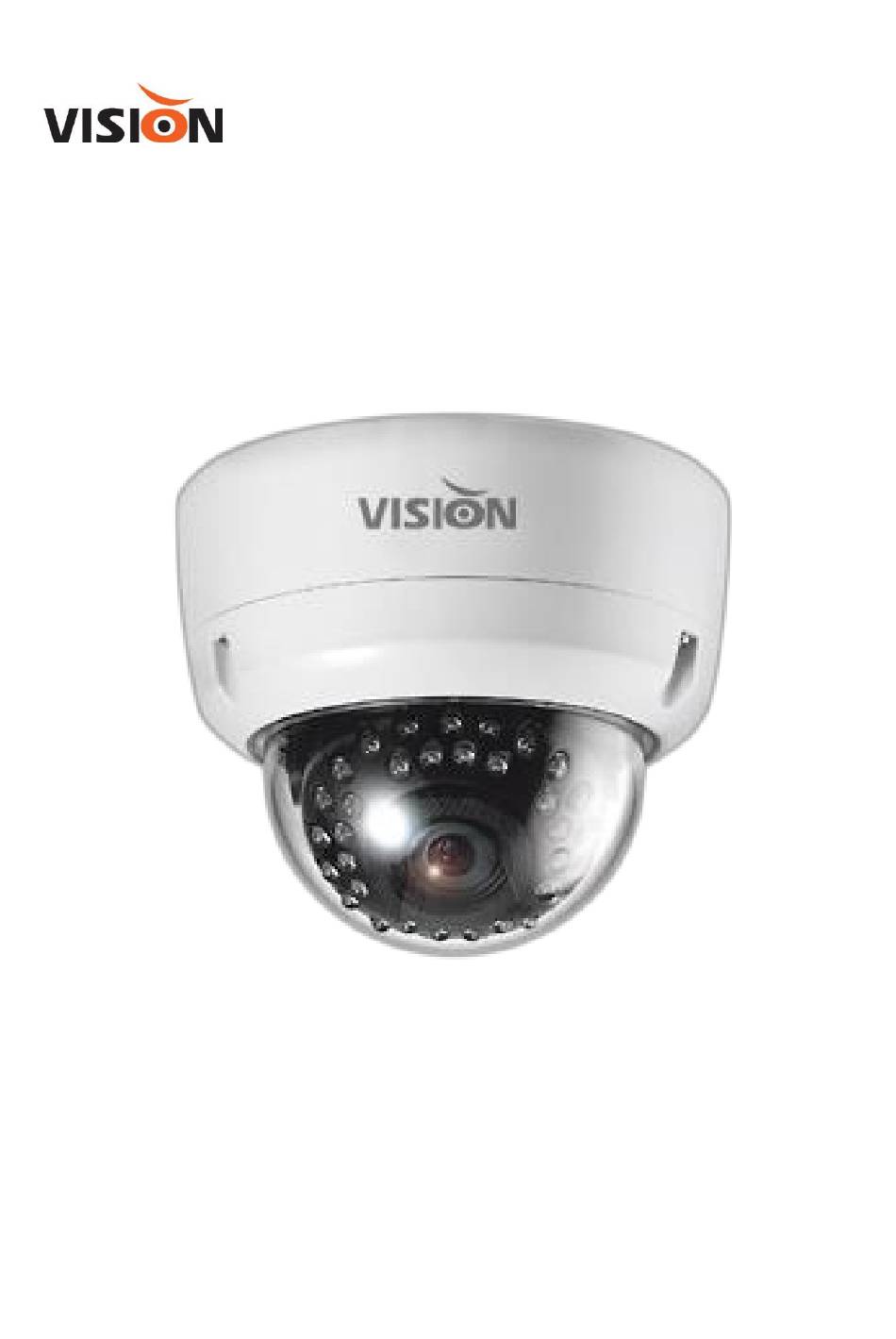

- Page 1 VDA100SII IR Outdoor Dome Camera Version 1.0.0 Released on July.22, 2013 Page 1 / 21...
- Page 2 Page 2 / 21...
- Page 3 PRECAUTIONS By selecting this product, you have decided to use a professional device that guarantees highest quality and reliability. We would like to thank you very much for your confidence and kindly ask you to read the following instructions carefully before installation and operation in order to take full advantage of all quality features regarding this product.
-
Page 4: Table Of Contents
Table of content 1. Precautions ------------------------------------------------------------------------------- 4 2. Limitation of liability -------------------------------------------------------------------- 4 3. Disclaimer of warranty----------------------------------------------------------------- 4 4. Package ----------------------------------------------------------------------------------- 5 5. Installation------------------------------------------------------------------------------ 6~7 5.1. How to mount to Ceiling 5.2. Waterproof processing of cable end connection 5.3. 3-Axis Adjustment 5.4. -
Page 5: Precautions
1. Precautions Please read the manual carefully before the installation in order to set up the camera correctly and to obtain the best picture quality. Please keep the manual in good condition for your future reference and service application. ... -
Page 6: Package
(4) Inconvenience or any loss arising when images are not displayed, due to any reason or cause including any failure or problem of the product; Any problem, consequential inconvenience, or loss or damage, arising out of the system combined by the devices of third party. (6) Any claim or action for damages, brought by any person or organization being photogenic subject, due to violation of privacy with the result of that surveillance-camera's picture, including saved data, for some reason, becomes public or is used for the purpose other than surveillance. -
Page 7: Installation
5. Installation 5-1. How to mount to ceiling ① Paste a Drilling Template on the ceiling or wall and drill screw points which will be done for installation. ② Fix a Surface Mounting Base by using Tapping Screws with Ø4 provided. ③... -
Page 8: Waterproof Processing Of Cable End Connection
5-2. Waterproof processing of cable end connection Make sure to use a butyl tape. (Do not use a sealing material on those parts) ① It is useful to connect the cable ends from camera to the extension cable for waterproof. ②... -
Page 9: 3-Axis Adjustment
5-3. 3-Axis Adjustment Tool-free 3-Axis mounting mechanism Perfect Tri-axis! · Panning axis up to 360˚ degree · Tilting axis up to 180˚ degree · Rotation axis up to 360˚ degree No need to use a tool for adjustment! All adjustments are done quick and easy by hand! ☞... -
Page 10: Functions And Operation
6. Functions and operation 6-1. On Screen Display (OSD) Menu Configuration 6-2. Setting up the menu 1. Press the Tact SW to enter <MAIN MENU>. 2. Move the arrow to a specific menu by pushing the Tact SW up or down. 3. - Page 11 ☞ Note · If ‘ ‘ ‘ indication appears on a selected sub-menu, press the Tact SW to get into a following menu. · If ‘ --- ‘ indication appears on any sub-menu, it means the function with this mark is deactivated. (Ex : When SENS-UP is OFF, 3-DNR becomes deactivated ‘---‘...
- Page 12 ※ When D&N mode is set as ‘AUTO’, AGC is fixed as HIGH. ※ The higher the gain level, the brighter the screen becomes while the higher the noise as well. (2) SHUTTER A. AUTO : The shutter speed is Limit. - SHUT.
- Page 13 ☞ Note · There is 2 Lux gap between D→N and N→D changing value. · Hence, D→N changing value starts from 0Lux while N→D from 2Lux. - DAY : The image is always displayed in color. - NIGHT : The image is always displayed in black and white. ●...
- Page 14 - ECLIPSE: Can mask the head lights to view car license number plate more clearly. ● GAIN : Level 0 ~ 100.(※ Default 50) ● MODE : NIGHT ONLY/ALL DAY.(※ Default NIGHT ONLY) ● MASK LEVEL : Level 0 ~ 100.(※ Default 70) ●...
- Page 15 6-8. DEFOG This function enhances visible distance and object color in a specific environment such as fog, yellow sands, etc. which hinders viewing. Under those environment, it is difficult to clarify object or color and DEFOG function overcomes this limitation somehow. - MANUAL ●...
- Page 16 · SENSITIVITY : Level 0 ~ 100(※ Default 80) · TIME : Level 0 ~ 15(※ Default 1) · RETURN : Return to ‘EFFECT.’ ☞ Note - D-ZOOM and SMART DZOOM cannot be used simultaneously. If one of the two function is selected, the other will be shown as ‘---‘.
- Page 17 ☞ Note When a wrong name has been input, - If you press the button after moving the cursor to CLR, all letters will be erased. - If you want to correct a letter, please move the cursor to the arrow at the bottom left of the screen and press the button.
- Page 18 - STABILIZER (DIS) This function mitigates any picture movement due to external factors such as wind. ☞ Note · The camera’s resolution is decreased because STABILIZER function uses the digital zoom. · STABILIZER doesn’t operate when background illumination is too low. ·...
-
Page 19: Troubleshooting Guide
7. Troubleshooting If there are problems in operating, please refer to the checklist below. If the problem persists, please contact the agent where this product is purchased. Troubleshooting Problems Nothing appears * Please check that the power cord and line connection on the screen. -
Page 20: How To Use Coaxial Remote Controller(Option)
9. How to use Coaxial Remote Controller(Option) ①Video signal output connector (BNC) ②Video signal input connector (BNC) ③DC12V connector : When DC12V is being connected, battery power is automatically cut off. ④Battery : Battery power On/Off button. Battery power is automatically being off in 5 minutes after battery is being used. -
Page 21: Specification
10. Specification MODEL VDA100SII 1/3" Sony 960H Super HAD CCDⅡ Image sensor Effective Pixels NTSC : 976(H) x 494(V), PAL : 976(H) x 582(V) 700TV Lines(Color) / 750TV Lines(B/W) H. Resolution Synchronizing system Internal Scanning system NTSC : 525 Lines PAL : 625 Lines 2:1 Interlaced 1.0Vp-p Composite 75 Ohms...
