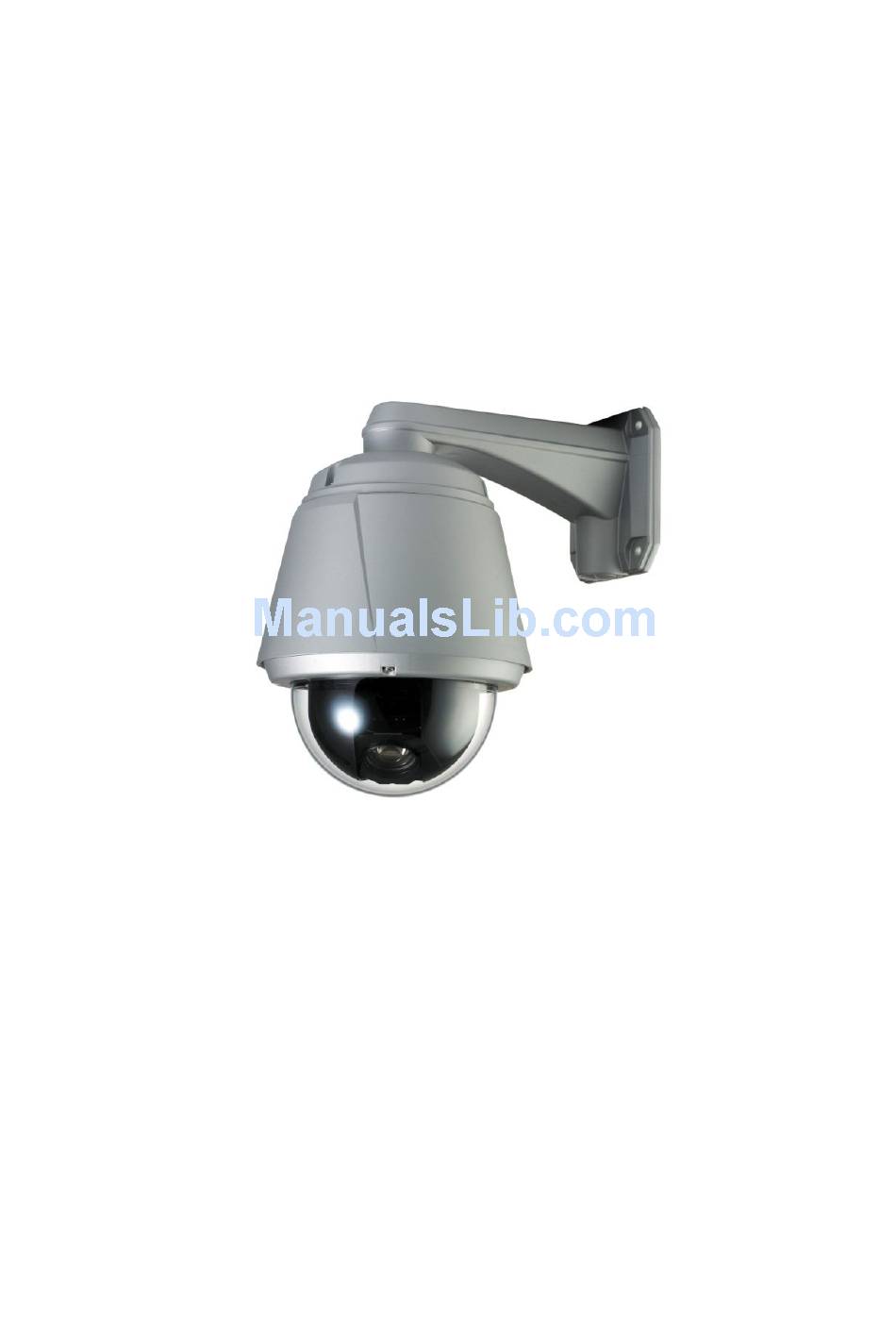

- Page 1 HARDWARE INSTALLATION GUIDE VPD200SM2Ti / VPD200PM2Ti FULL HD NETWORK PTZ Camera Version 1. 0. 3 Released on 1 of June., 2013 Page 1 / 16...
- Page 2 By selecting this product, you have decided to use a professional device that guarantees highest quality and reliability. We would like to thank you very much for your confidence and kindly ask you to read the following instructions carefully before installation and operation in order to take full advantage of all quality features regarding this product.
-
Page 3: Table Of Contents
---------------------------------------------------------------------------------------- 4 3. Disclaimer of warranty ------------------------------------------------------------------------------------- 4 4. Package Contents --------------------------------------------------------------------------------------------- 5 5. Cable Connection --------------------------------------------------------------------------------------------- 6 6. Installation ----------------------------------------------------------------------------------------------7~13 7. Dimension (mm) ----------------------------------------------------------------------------------------------- 14 8. Specification ----------------------------------------------------------------------------------------------------- 14 VPD200SM2Ti ------------------------------------------------------------------------------------------- 15 VPD200PM2Ti ------------------------------------------------------------------------------------------- 16 Page 3 / 16... -
Page 4: Precautions
1. Precautions Please read the manual carefully before the installation in order to set up the camera correctly and to obtain the best picture quality. l Please keep the manual in good condition for your future reference and service application. l Installation and services should be only carried out by an authorized personnel according to local safety regulations. -
Page 5: Package Contents
(2) Personal injury or any damage caused by inappropriate use or negligent operation of the user; (3) Unauthorized disassemble, repair or modification of the product by the user; (4) Inconvenience or any loss arising when images are not displayed, due to any reason or cause including any failure or problem of the product;... -
Page 6: Cable Connection
5. Cable Connection Dome Cover Do not detach protection vinyl from dome cover before finishing all • installation process to protect dome cover from scratches or dust. DIP Switch Sets up camera ID and protocol. • Drop Prevention This part keeps the camera from dropping during installation and •... -
Page 7: Installation
6. Installation DIP Switch Setup When you control the camera through RS-485, before installation, you should set the DIP switches to configure the camera ID, communication protocol. Camera ID setup l ID numbers of camera are set up with binary numbers.. See the examples shown below ID Value ex) ID=5... - Page 8 Communication Protocol Setup l Select the appropriate Protocol with DIP switch combination. Switch State Protocol/Baud rate (Pin 1) (Pin 2) (Pin 3) PELCO-D, 2400 bps PELCO-D, 9600 bps PELCO-P, 4800 bps PELCO-P, 9600 bps Otherwise Reserved l If you want to control using DVR or P/T controller, their protocol must be identical to camera.
- Page 9 Installation Camera with Brackets Installation using Ceiling Mount Bracket ② Hook up “Drop Prevention Spring” on main ① Remove the ceiling tile from the ceiling and body to prevent camera from unexpected drop and cut a hole whose diameter is 30~40mm on the pull the wire(s) and cable(s) for the system as ceiling tile to pass the wire(s) and cable(s) below...
- Page 10 Installation using Wall Mount Bracket ① Make a hole whose diameter is 30~40mm on ② Hook up “Drop Prevention Spring” on main the mounting surface to pass the wire(s) and body to prevent camera from unexpected cable(s) through the mounting surface. (In case of drop and pull the wire(s) and cable(s) for the the wiring and cabling through the mounting surface only) Then prepare the wall mount...
- Page 11 Wiring/Cabling & Connecting Port Description Main Cable Port Pin Number (RJ45) Connector / Wire Color Signal BLACK DC 12V BROWN ORANGE ALARM OUT/COM WHITE OUT 2 YELLOW OUT1 GREEN SENSOR IN/COM BLUE IN 1 GRAY IN 2 Audio Cable Port Pin Number Connector/ Wire Color Signal RCA (Yellow)
-
Page 12: Connecting Network
permanently damaged by wrong DC input. In case that the length of the power wire is very long, there may be voltage drop and the system may not work properly. Make the length of the power wire as short as possible. Connecting Network 1. -
Page 13: Dimension (Mm)
Maximum allowable electrical load of relay is shown bellow table. Drive Power DC Power AC Power Max. Load Max DC 24V, 1A Max AC 125V, 0.5A 7. Dimension (mm) 56.4 56.4 1.5" NPT 158.2 118.6 4- 8 Page 13 / 16... -
Page 14: Specification
8. Specification 8.1. VPD200SM2Ti Model Specification 1/2.8" 3.27M SONY Progressive scan CMOS image sensor for excellent image quality Image sensor Day & Night Auto/Color/BW OUTDOOR(IP66) Environment Optical Zoom Digital Zoom Lens 20x AF zoom ( f4.7~94mm (F1.6~F3.5)] [color] ICR off: 1.7Lux Min. -
Page 15: Vpd200Pm2Ti
Software Included Software NVR Lite (16 Channel), IP Installer (Windows Only) Package Contents Network Camera, Main Cable, Audio Cable, Lan Cable, Software CD 8.2. VPD200PM2Ti Model Specification 1/3" 2.1M Progressive scan CMOS image sensor for excellent image quality Image sensor Day &... - Page 16 Data Rate 64Kbps Audio input Microphone input /1 x Line-In (Mono) Audio output Line output/ 1 x Line-Out (Mono) Network Security Password protection User access log HTTPS encryption Supported HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, protocol ICMP, DHCP System...
