Vision VPD270 User Manual

Speed domes
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

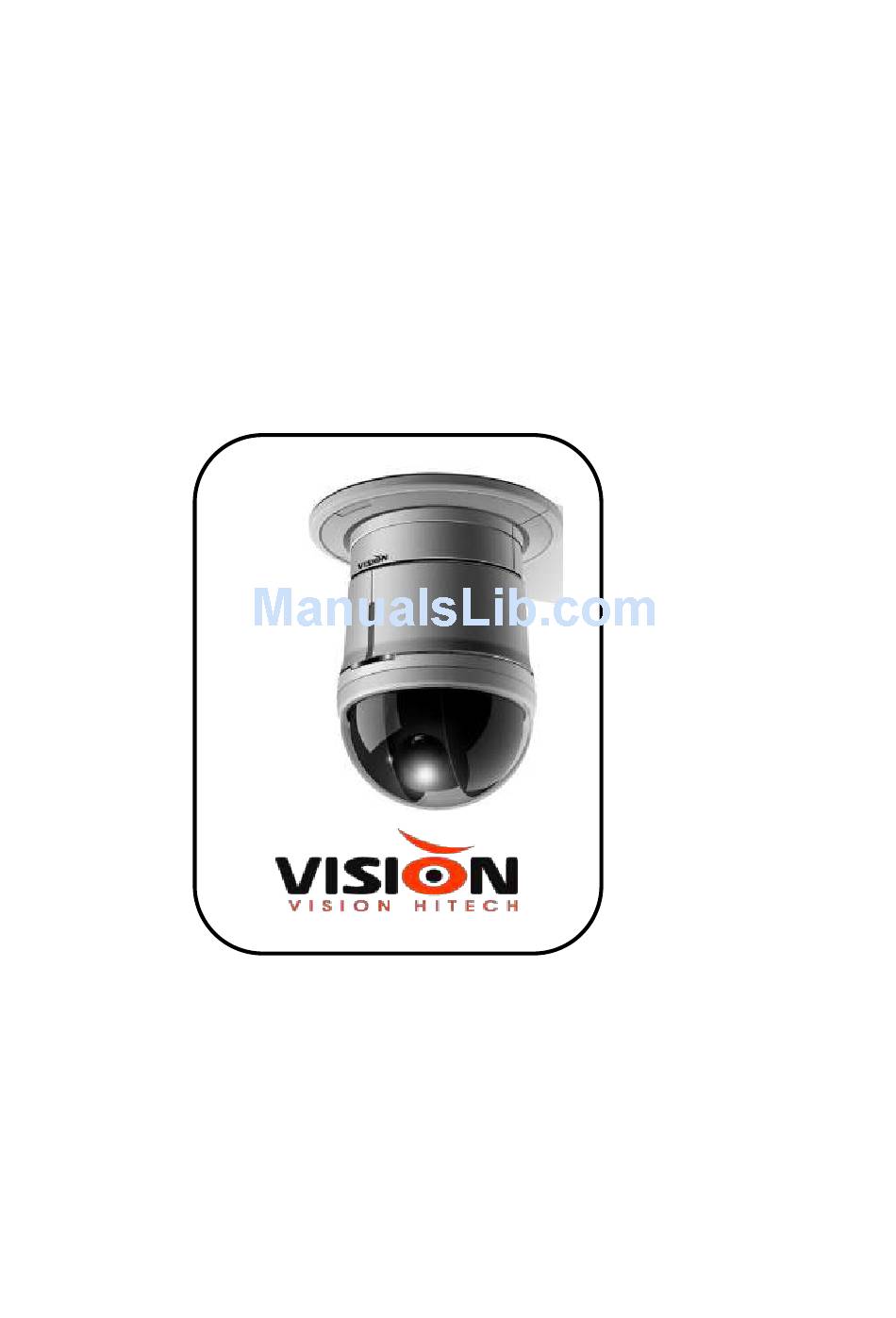

User's Manual of Speed Domes
VPD270, VPD330WD & VPD370WD Series
Please read this manual carefully before installation and operation of the product.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VPD270 and is the answer not in the manual?

Questions and answers

Related Manuals for Vision VPD270

Summary of Contents for Vision VPD270

  • Page 1 User’s Manual of Speed Domes VPD270, VPD330WD & VPD370WD Series Please read this manual carefully before installation and operation of the product.

  • Page 2: Table Of Contents

    Rev. 0_August 30, 201 Table of contents 1. Features ----------------------------------------------------------------------------- Precaution --------------------------------------------------------------------------- 3. Part Names and Functions ---------------------------------------------- ■ Body ■ Package ■ Camera cable connection ■ DIP Switch setting ■ Camera ID setting ■ RS-485 Comminication setting Installation ------------------------------------------------------------------------ 5.

  • Page 3: Features

    1. Features * Dynamic and precise AF control The camera can trace and pick up the object, moving fast from the scene with powerful 324 times(Optical 27x, Digital 12x), 396 times(Optical 33x, Digital 12x), 444 times(Optical 37x, Digital 12x) zoom by greatly improved Auto Focus control.

  • Page 4: Precaution

    2. Precaution Safety Precautions * The purpose of this information is to ensure proper use of this product to prevent danger to damage to property. Please be sure to observe all precautions * The precautions are divided into “Warnings” and “Cautions” as distinguished below; Warning : Ignoring these warnings may result in death or serious injury.
  • Page 5 7. Do not install the unit in humid, dirty, or sooty locations (Doing so may cause fire or electrical shock.) 8. If any unusual smell or smoke comes from the unit, stop using the product. In such case, immediately disconnect the power source and contact the store of purchase. (Continued use in such a condition may cause fire or electrical shock.) 9.

  • Page 6: Part Names And Functions

    3) Part Names and Functions ■ Body Video output Camera Mounting Base Power(24VAC) Alarm Input Relay output RS-485 DATA Safety Wire Decorative Cover(provided) Dome Anchor Ring Dome Cover Rotate the dome anchor ring to the left to remove it. The dome cover is easily damaged And should be handled with care Lenz Lens...

  • Page 7: Package

    Relay Output Cable COM2 YELLOW OUT2 BLUE COM1 BLACK OUT1 WHITE RS-485 Cable TRX+ TRX- ■Package...

  • Page 9: Camera Cable Connection

    ■ Camera cable connection ■ DIP SWITCH SETTINGS In a configuration where the camera’s RS485 data port is used for Camera control(pan, tilt, etc.) by the system controller, the camera’s DIP switches must be configured to specify the camera ID and communication parameters. The camera mounting base needs to be removed to access the DIP switches.

  • Page 10: Camera Id Setting

    ■ Camera ID setting The factory default settings of these DIP switches are ID 1 (1-ON,0-OFF) SW1~SW8 DIP SW DIP SW DIP SW 10000000 10101000 10010100 01000000 01101000 01010100 11000000 11101000 11010100 00100000 00011000 00110100 10100000 10011000 10110100 01100000 01011000 01110100 11100000 11011000...
  • Page 11 01100010 00110110 01001001 11100010 10110110 11001001 00010010 01110110 00101001 10010010 11110110 10101001 01010010 00001110 01101001 11010010 10001110 11101001 00110010 01001110 00011001 10110010 11001110 10011001 01110010 00101110 01011001 11110010 10101110 11011001 00001010 01101110 00111001 10001010 11101110 10111001 01001010 00011110 01111001 11001010 10011110 11111001 00101010...

  • Page 12: Rs-485 Comminication Setting

    01101101 10001011 00110111 11101101 01001011 10110111 00011101 11001011 01110111 10011101 00101011 11110111 01011101 10101011 00001111 11011101 01101011 10001111 00111101 11101011 01001111 10111101 00011011 11001111 01111101 10011011 00101111 11111101 01011011 10101111 00000011 11011011 01101111 10000011 00111011 11101111 01000011 10111011 00011111 11000011 01111011 10011111 00100011...
  • Page 13 Installation ■ Preparing the Camera and Decorative Cover for Side Cable Exit The camera and decorative cover should be prepared as shown below when mounting the camera on a ceiling or wall with its cables(power, video output, RS485, alarm in Relay out) exiting from the side. The camera mounting base needs to be removed in order to prepare the camera.
  • Page 14 After loosening the screw, press upwards on the camera and then remove it 2. Rotate the camera base unit in the direction indicated by the arrow and remove it. Step 2 Rotate otate Pull the camera Mounting base Up to remove it 3.
  • Page 15 4. Affix the camera mounting base onto the ceiling. Use screws(M4) at the locations you marked above to secure the mounting base to the ceiling. Screws Screw (M4, available separately) 5. Attach the safety wire for securing the camera to the mounting base. Pull on the safety wire to make sure its ring is securely connected to the mounting base.
  • Page 16 * Is the camera free to looseness? * Does the fixed part of the camera remain in place when you try to rotate it? Rotate Back Camera Mounting Base Camera Camera 9. Separate the two parts of the decorative cover(that comes with camera) Press upwards on the decorative cover at the points marked ■(indicated by the arrows in the illustration below) to unlock the two parts from each other.
  • Page 17 Back Align Press Press Hook Press 11. In case that the cable exits on the ceiling, fix the decorative cover to the ceiling firmly. In case that the cable exits to the side, align the cutout in the decorative cover with the cable and slide the decorative cover up firmly against the ceiling.

  • Page 18: Installation

    * Quick and easy to install. * Neat design suitable for interior/exterior decoration Precautions * Note that you need to read carefully all contents related to safety and application methods before application. * Be sure to use the Safety Wire Ring. * Fasten the bracket strong enough to support the camera weight(approx.
  • Page 19 2. After removing the mounting fix screw(M3), rotate the camera mounting base clockwise to remove it. 3. Fix the camera mounting base to the inside of the outdoor main body with the four screws(M4x8) 4. Attach the wall mount bracket to the wall and run cables. Be sure to line up it with for holes in the wall. 5.
  • Page 20 6. After attaching the indoor camera to the camera mounting base, turn and fix it clockwise. And tighten the mounting fix screw with screw driver. 7. Insert the M4 x 10 bolt screws to secure the outdoor dome cover to the outdoor main body. Specification Operating -40°C ~ +50°C...

  • Page 21: Functional Description

    IP rating IP66 AC24V Operating at over 40°C Heater AC24V/18W Operating at below 4°C Weight 5,500g Dimension(mm) Ø260 x 367(H) Functional Description ■ Setup Menu Overview In this chapter, we will look over the overall structure of the Setup Menu and then look at the functions of each menu →...
  • Page 22 → 1~44 AREA LEFT → 5~48 AREA RIGHT → ATW/MANUAL/<HOLD> ATW MODE OUTDOOR/INDOOR MANUAL RED → 0~200 MANUAL BLUE→ 0~200 → FOCUS FOCUS MODE MANUAL/AUTO/ZOOMTG ZOOM TRK MODE→OFF/ON /ZOOM ZOOM TRK SPD → FAST/SLOW →OFF/ON DIGITAL ZOOM → ZOOM MAG 2X/4X/6X/8X/10X/12X →...
  • Page 23 → <SET> →1~5 TOUR TOUR NO → OFF/<ON> TOUR NO DEF → TOURGROUP1 NAME TOUR NAME DEF → OFF/<ON> → 1~120 DWELL TIME →1~5 SCAN SCAN NO → OFF/ON SCAN DEFINE → SCANGROUP1 NAME SCAN NAME DEFINE→ OFF/<ON> →<180> PAN START POS →<350>...

  • Page 24: Main Menu

    CAMERA INIT AUTOSEQ INIT PRIVACY ZONE INIT FACTORY INIT System INFO This diagram shown above illustrates the overall structure of the setup menu. In this section, a description of the setup menu features will enable users to tailor it to their personal needs. MAIN MENU 1.
  • Page 25 ■ DIGITAL FLIP OFF : It operates TILT below 90°. ON : It operates TILT over 90°. ■ FREEZE When you move to Preset, the screen displays the frozen image of the current displayed preset. OFF : It displays the current image. ON : It displays the frozen image.
  • Page 26 2. CAMERA SET 1. BACKLIGHT----------OFF/<WDR>/USER 2. MOTION DET -----<SET> 3. ATW ----------------<SET> 4. FOCUS/ZOOM ------<SET> 5. AE ----------------------<SET> 6. DAY&NIGHT ---------<SET> 7. SPECIAL --------------<SET> 2.1. BACK LIGHT WDR(for Optical 33x/ 37x zoom only), USER AREA & HLC are selectable. * WDR * It is an ideal set up for the most of different levels of backlit or contrast lighting situations and provides no darker subjects when there are a dark portion and a bright portion on the screen simultaneously.
  • Page 27 2.1.2. BLC USER SETUP 1. WINDOW OFF/ON 2. LEVEL LOW/HIGH 3. WINDOW TOP 1~100 1~100 WINDOW BOTTOM 1~100 5. WINDOW LEFT 1~100 6. WINDOW RIGHT Above menu is selectable and adjustable by controller. 2.1.3. HLC LEVEL SETUP 1. HLC LEVEL LOW/HIGH 2.
  • Page 28 If the sensitivity gets higher, there is a possibility to have incorrect workings. <Caution> 1. Motion Detection doesn’t work in SCAN & PATTERN setting. 2. When user uses MD, DWELL TIME should be set over 3 seconds at least in TOUR setting. 3.
  • Page 29 1. FOUCS MODE: MANUAL/AUTO/ZMTRG 2. ZOOM TRK MODE: ON/OFF FAST/SLOW 3. ZOOM TRK SPEED: 4. DIGITAL ZOOM: OFF/ON 5. ZOOM MAG: 2X/4X/6X/8X/10X/12X ■ FOCUS MODE * MANUAL FOCUS is adjustable manually. * AUTO FOCUS is adjustable automatically. * ZMTRG Whenever ZOOM is changed, FOCUS is also readjusted. ■...
  • Page 30 ■ BRIGHTNESS : Brightness on the screen is adjustable. ■ IRIS The brightness on the screen can be adjustable depending on the amount of light through exposure meter. AUTO : The exposure meter is adjusted automatically. MANUAL : User can adjust the exposure meter manually to optimize the brightness on the screen. ■...
  • Page 31 4.DURATION: FAST/SLOW 5. FILTER DELAY: 5/7/10/15/20/30/40/60SEC B/W mode with removed IR cut filter offers crystallized clear image under low light condition. On the contrary, Color mode with replaced IR cut filter works at daytime. ■ D/N MODE AUTO : Color mode at daytime and B/W mode at nighttime. It is switchable automatically according to the designated lux condition.
  • Page 32 ■ SHARPNESS Overall sharpness on the screen is adjustable. ■ COLOR Overall color density on the screen is adjustable. 3. AUTOSEQ SET 1. PRESET <SET> 2. TOUR <SET> 3. SCAN <SET> 4. PATTERN <SET> 5. AUTORUN OFF/SEQ/TOUR/SCAN/PATT Menu Shift : UP, DOWN, LEFT, RIGHT KEY Menu Open : IRIS OPEN KEY Menu Close : IRIS CLOSE KEY PRESET : Location of the current PAN/TILT and ZOOM can be programmed.
  • Page 33 Menu Close : IRIS CLOSE KEY ■ PRESET NO Total 128 presets can be set up. Change of PRESET NO is done by LEFT and RIGHT KEY. ■ PRESET DEFINE OFF : PRESET doesn’t work ON : Applicable PRESET is workable. Location change of PAN/TILT/ZOOM in PRESET is as follows.
  • Page 34 1. When setting PRESET by the shortcut key, PRESET can be set in No.1-No.64 and, regarding over No.65, it should be set up by OSD Menu. 2. Default set up value of BRIGHT, BLC and ATW in PRESET is decided by Factory Default. 3.2.
  • Page 35 ■ DWELL TIME It is a waiting time between PRESET execution and next PRESET. <Caution> 1. If TOUR GOURP1 PRESET is set up as follows. 1. PRESET NUMBER 2. PRESET NUMBER 3. PRESET NUMBER 4. PRESET NUMBER 5. PRESET NUMBER After operating as PRESET1 ->...
  • Page 36 How to change is as follows. 1. After changing SCAN NAME DEF from OFF to <ON>, press IRIS OPEN KEY. 2. How to change the SCAN name is the same as “1.2 CAMERA NAME DISPLAY”. ■ PAN START POS It sets up the initialized location of SCAN. Controllable angle is 0~ 360°...
  • Page 37 MENU Shift : UP, DOWN, LEFT, RIGHT KEY MENU Open : IRIS OPEN KEY MENU Close : IRIS CLOSE KEY ■ PATT DEFINE OFF : PATTERN is cancelled ON : PATTERN is set up. If operating it in AUTO RUN, PATT DEFINE should to be ON. ■...
  • Page 38 4.TOP/BOTTOM-1 5.TOP/BOTTOM-2 6.LEFT/RIGHT-1 7.LEFT/RIGHT-2 MENU Shift : UP, DOWN, LEFT, RIGHT KEY MENU Open : IRIS OPEN KEY MENU Close : IRIS CLOSE KEY ■ AREA SEL Up to 8 PRIVACY AREAs can be set up. ■ AREA DEFINE OFF : PRIVACY ZONE is not activated.. ON : PRIVACY ZONE is activated.
  • Page 39 MENU Close : IRIS CLOSE KEY ■ POWER ON RESET The unit is initialized. ■ PAN/TILT INIT 1. PAN/TILT MENU is initialized. 2. PAN/TILT location is initialized. ■ CAMERA INIT Only CAMERA setting menu is initialized.. ■ AUTO SEQ INIT 1.
  • Page 40 be set up by OSD Menu. ※ WTX-1200A – Simple PRESET Shift ※ It works when OSD MENU is not activated. Press F1 key shortly after pressing RRESET number. And then, it moves to the corresponding PRESET. However, it is valid only up to PRESET no.

  • Page 41: Product Structure

    ※ WTX-1200A - Simple Sequency operation ※ It works when OSD MENU is not activated Press F1 key shortly after pressing Keypad No. 70. It works when PRESET is set up. ※ Quick Operation Key Table ※ [PELCO D /P PROTOCOLS] Number Function Setting Preset...

  • Page 42: Specifications

    Outdoor 7. Specification Model 27x/ 33x/ 37x Speed Domes Image sensor 1/4” Super HAD CCD(27x)/ Color Vertical Double Density CCD(33x, 37x) Effective Pixels NTSC : 768(H) x 494(V), PAL : 752(H) x 582(V) H. Resolutions 550TVL(Color)/ 680TVL(B/W) Synchronizing system Internal Scanning system 2:1 Interlaced Video output...
  • Page 43 Gain Control Low/ Middle/ High/ Off Sens-up On/ Off(2x ~ 256x) 3D Noise Filter Low/ Middle/ High/ Off Privacy On/ Off(8 Programmable zones) Preset 256 Points Digital Flip On/ Off Focus control Auto/ Manual/ One Push Iris control Auto/ Manual Motion Detection On/ Off(Built-in Alarm output connector) Protocol...
