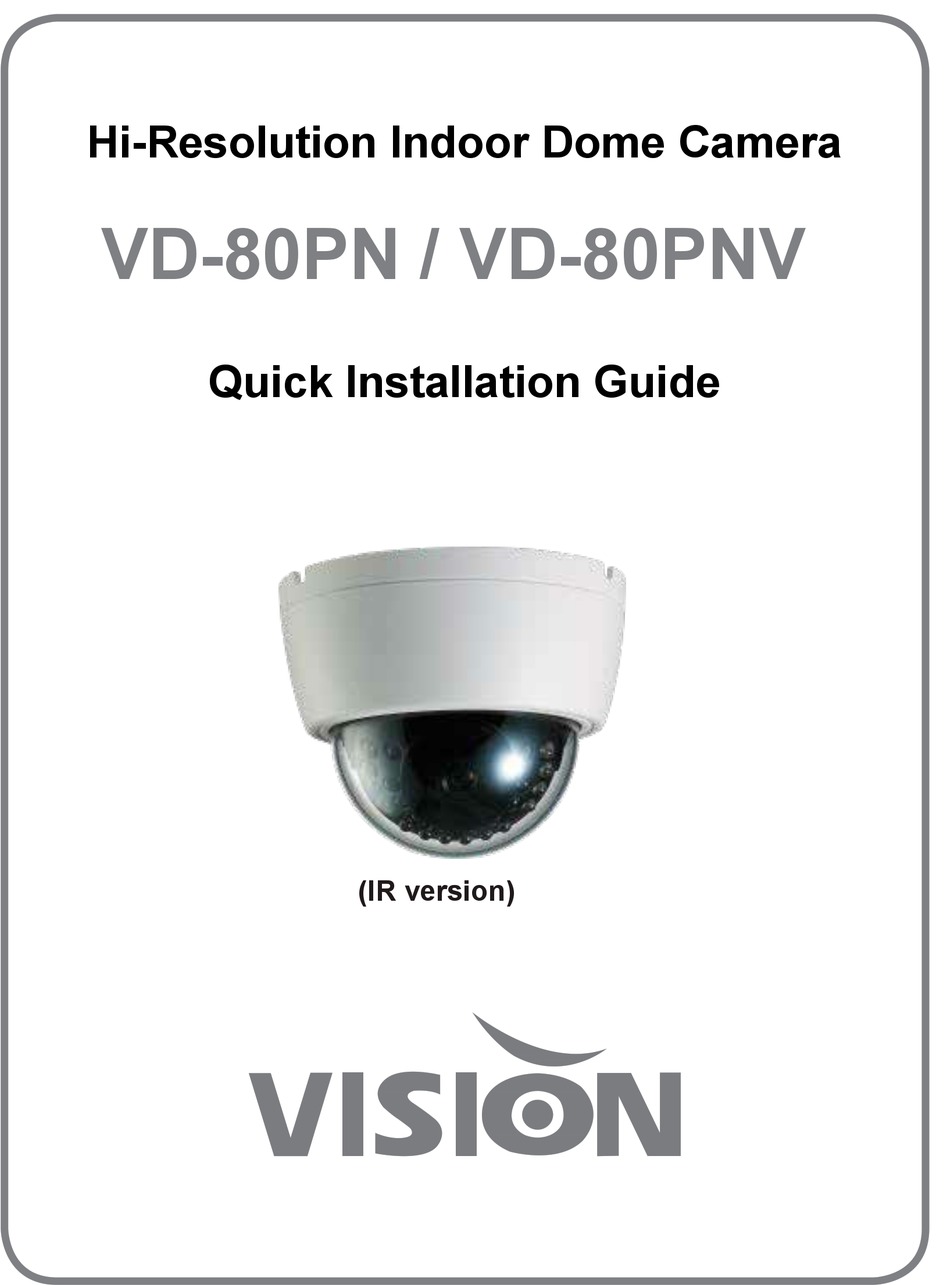

- Page 1 Hi-Resolution Indoor Dome Camera VD-80PN / VD-80PNV ndoor Dome Camera STALLATION GUIDE Quick Installation Guide (IR version) eatures RESOLUTION SUPER SENSITIVE CCD es(Color) / 750TV Lines(B/W) Dead pixel compensation e of Auto White Balance IR version)
- Page 3 oor Dome Camera TALLATION GUIDE Hi-Resolution Indoor Dome Camera Hi-Res Indoor Dome Camera QUICK INSTALLATION GUIDE QUICK INSTALLATION GUIDE (IR version) (IR version) Special features tures 1/3” HIGH RESOLUTION SUPER SENSITIVE CCD ● 700TV Lines(Color) / 750TV Lines(B/W) ESOLUTION SUPER SENSITIVE CCD ●...
-
Page 4: Limitation Of Liability
1. Precautions • Please read the manual carefully before the installation in order to make use the camera to be set up correctly and to have the best picture quality. • Please keep the manual in good condition for your future reference and service application. -
Page 5: Disclaimer Of Warranty
2. Limitation of liability This publication is provided “AS IS” without warranty of any kind, either express or implied, including but not limited to, the implied warranties of merchantability, fitness for any particular purpose, or non-infringement of the third party's right. This publication could include technical inaccuracies or typographical errors. -
Page 6: Installation
4. Package Indoor Dome Camera QUICK INSTALLATION GUIDE S p e c ia l f e a t u r e s ● 1/3” HIG H RE S O LU T IO N S UP E R S E NS IT IV E C CD 650T V Lines (C olor)/ 7 00T V Lines (B /W ) ●... - Page 7 5. Installation 5-1. How to open the dome Plastic Key Insert supplied plastic key into the narrow flat hole on the dome body and twist to open the dome cover. 5-2. Tool-free 3-Axis mounting mechanism -Perfect 3-axis ▪ Panning axis up to 360° degree ▪...
- Page 8 5. Installation *OPTION: Varifocal Lens (2.8~12mm) - Varifocal Lens adjustment - Zoom (Tele-Wide) Unlock the zoom lever by turning Focus Knob counterclockwise. Zoom Knob Move the lever to adjust the zoom. Lock the lever by turning clockwise. LED COVER - Focus (Near-Far) Unlock the focus lever by turning counterclockwise.
- Page 9 5-3. How to mount to Celling DC JACK Female BNC or RCA Female Driling template Plastic anchor (3EA) Camera set Tapping Screw (3EA) Dome Cover Ass'y Fix the supplied drilling template on the wall. ① Drill holes and Insert plastic anchors into the hole ②...
-
Page 10: Troubleshooting
6. Troubleshooting If there are problems in operating, please refer to the checklist below. If the problem persists, please contact the agent where this product is purchased. Problems Troubleshooting · Please check that the power cord and line connection Nothing appears on the between the camera and monitor are fixed properly. - Page 11 7. Dimension (mm) Ø81.4 Ø113.8...
-
Page 12: Specification
8. Specification Model Mod D e E l L Hi-Res Indoor Dome Camera Image Device 1/3" HIGH RESOLUTION SUPER SENSITIVE CCD Effective Pixels NTSC : 976(H)X494(V), PAL : 976(H)X582(V) NTSC 525 Lines PAL 625 Lines 2:1 Interlaced Scanning System Synchronization Internal H.Resolution 700TV Lines(Color)/ 750TV Lines(B/W)
