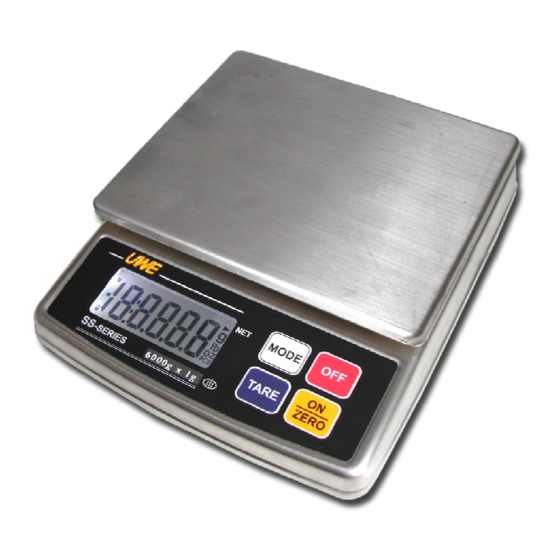

- Page 1 Intelligent Weighing Technology, Inc. ZS Series ELECTRONIC WEIGHING SCALE OPERATION MANUAL A Higher Level of Precision… A higher Level of Performance™...
-
Page 2: Table Of Contents
INDEX Installation Specifications Keyboard Layout & Functions Internal Functions Initial Setup Instructions for Use Error Codes / Troubleshooting Daily Care & Maintenance © Intelligent Weighing Technology, Inc. All rights reserved worldwide. -
Page 3: Installation
INSTALLATION 1. Check and make sure that the following accessories are included: Operation Manual X 1 ZS Scale X 1 Stainless Steel Platter X 1 Power Adaptor X 1 Contact your dealer if any item is missing. 2. Install stainless steel platter. 3. -
Page 4: Specifications
SPECIFICATIONS Model Capacity Division ZS-600 600g/1lb 5.195oz 0.1g/0.005oz ZS-3000 3000g/6lb 9.98oz 0.5g/0.02oz ZS-6000 6000g/13.4lb.00oz 1g/0.05oz Power 9V battery or External Power Adaptor Source Max. Zero 2% of Rated capacity Range Max. Tare 100% of Rated capacity (Subtractive) Range Weight Units (Note Metric (g), Avoirdupois (lb &... -
Page 5: Keyboard Layout & Functions
KEYBOARD LAYOUT & FUNCTIONS OFF KEY Press this key to turn scale off. ON/ZERO KEY Press this key to turn scale on or set weight to zero. TARE KEY Press this key to tare off the weight of a container. MODE KEY Press this key to switch between weight units. - Page 6 KEYBOARD LAYOUT & FUNCTIONS ZERO INDICATOR This indicator appears to indicate zero weight status. MINUS INDICATOR This indicator appears to indicate negative weight values. LO-BAT INDICATOR When this indicator appears, change the battery. WEIGHT INDICATOR Displays the weight of the item placed on the scale. NET INDICATOR This indicator appears to indicate the tare function is in operation and weight shown is net weight.
-
Page 7: Internal Functions
INTERNAL FUNCTIONS The scale is equipped with 13 internal functions, which are: FUNCTION FUNCTION DESCRIPTION NUMBER Fun 0 For Qualified Technical Personnel Only Fun 1 For Qualified Technical Personnel Only Fun 2 Check Display Segment Fun 3 Select Auxiliary Weight Units and offset value Fun 4 Select Auto Power Off **Fun 5... - Page 8 INTERNAL FUNCTIONS Do not alter any parameters set in Fun 0, 1 & 19, which may cause system instability, error, or non accurate weighing result. If entered by mistake, press OFF immediately. Contact your dealer for more information.
-
Page 9: Initial Setup
INITIAL SETUP How to select internal functions a. Turn scale off b. Press and hold TARE, then press ON/ZERO c. Scale displays Fun-0 d. Press TARE until scale displays the desired internal function number e. Press MODE to enter and trigger various setting values. Press TARE to select g. - Page 10 INITIAL SETUP The example below 600.1 is the capacity and division of ZS-600 (600g x 0.1g), which is used for illustration. 600.1 g (metric only) 600.1 g lb/oz (metric and Avoirdupois weight unit enable) 6.0.0.1 g lb/oz (metric, Avoirdupois and Taiwanese weight units all enable) Select Auto Power Off Function 5 parameters are available: -...
- Page 11 INITIAL SETUP Select Digital Motion Filtering Function 3 parameters are available: Filt.0 (filtering function disable) Filt.1 (filter 1) Filt.2 (filter 2) Use digital motion filtering function when the operating environment is subject to disturbances like vibration, wind flow, etc. Select higher filter values for worse environments.
-
Page 12: Instructions For Use
INSTRUCTION FOR USE Before Weighing Make sure that The scale is placed on a level and stable surface. The stainless steel platter is placed correctly on top of load receptor. The scale is turned on. The ZERO INDICATOR is on. If not, press ON/ZERO to set display to zero. -
Page 13: Instruction For Use
INSTRUCTION FOR USE Selecting Weight Unit Press MODE to shift among various weight units (gram, lb/oz and Taiwanese) with or without backlight if required. Refer to page 8 for internal setting procedures. (For backlight, just keep pressing the mode until the display is backlit) The weight unit used before power off will be employed when the scale is turned on again. - Page 14 INSTRUCTION FOR USE After TARE is pressed, the NET INDICATOR and then a zero weight value are displayed. In this case, the ZERO INDICATOR will not appear even though a zero weight is displayed. Refer to page 11 for weighing procedures. Weight displayed is the net weight of the subject matter.
- Page 15 INSTRUCTION FOR USE Lo-Bat Indicator When the LO-BAT INDICATOR appears, it means that the battery is power is low. Replace the battery with a new one, or ap ply the external power adaptor immediately. The power adaptor jack is inside the battery compartment. Caution When the power adaptor is being used, remove all batteries from the battery pack.
-
Page 16: Error Codes / Troubleshooting
ERROR CODES / TROUBLESHOOTING Error Codes Error Code Description Nostbl Calibration weight is not stable Err_1 IC U2(93C46) failure Err_2 Offset Value too low Err_3 Offset Value too high Troubleshooting Syndrome Scale cannot be turned on Check: Is the scale power supply or battery power too low? Action: Replace the battery with a new one or apply... - Page 17 ERROR CODES / TROUBLESHOOTING Syndrome Scale turned off automatically Is the AUTO POWER OFF FUNCTION being employed? Refer to page 9 in the Select Auto Power Off Function to disable the Auto Power Off Function. Check: Is the LO-BAT INDICATOR on? Action: Replace the battery with a new one, or apply the power adaptor immediately.
-
Page 18: Daily Care & Maintenance
DAILY CARE & MAINTENANCE Clean the scale with a soft and damp cloth. If necessary, apply a mild detergent. Do not allow water anywhere near the scale. Do not use any harsh, abrasive material, acetone, volatile solvent, thinner or alcohol for cleaning. Verify accuracy scale... - Page 19 Intelligent Weighing Technology has more than 50 years combined experience in the weighing industry, both in the USA and worldwide. With contacts in over 50 countries including the USA, we provide you with the weighing equipment you need. When you invest in weighing equipment from Intelligent Weighing Technology, you’re really buying...
