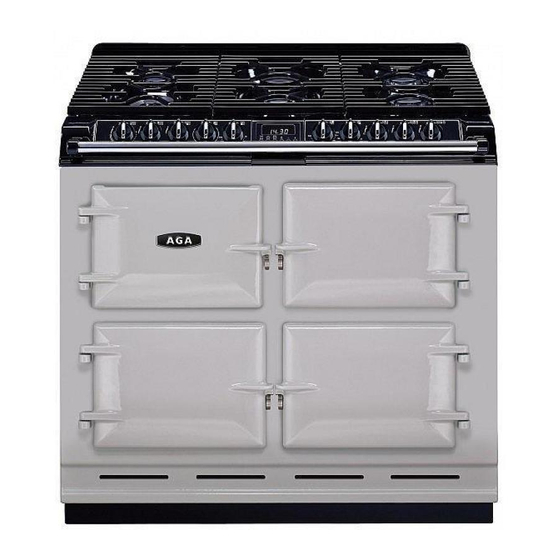

AGA DC6 SIX-FOUR SERIES Owner's Manual

L.p.g. stove
Hide thumbs Also See for DC6 SIX-FOUR SERIES:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual and Installation Instructions, User Manual

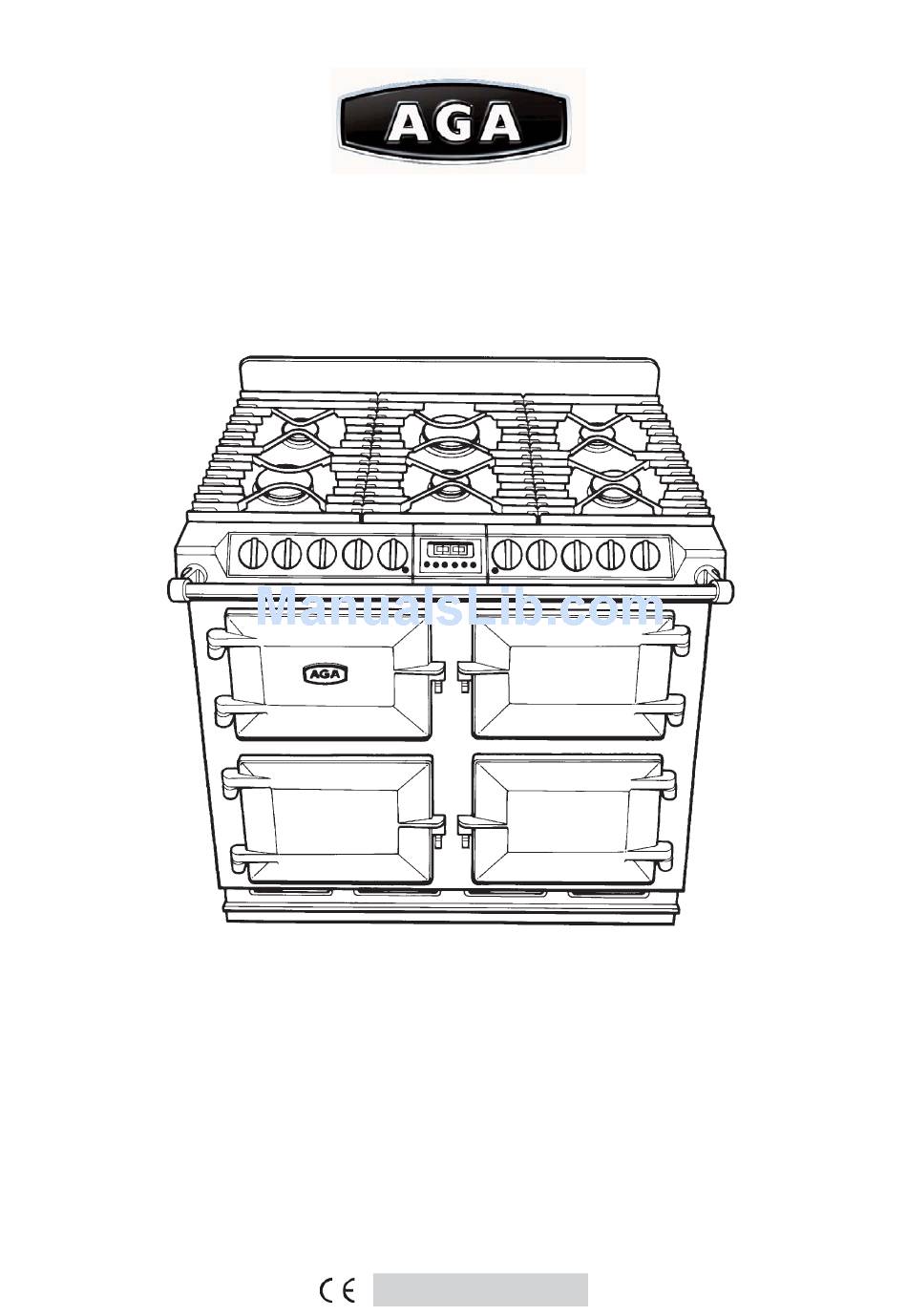

AGA SIX-FOUR SERIES - DC6 (FFD)

OWNERS MANUAL

(L.P.G.)
DESN 512387 A
Comprising
Servicing, Installation & Users
Instructions
&

Cooking Guide

Remember, when replacing a part on this appliance, use only spare parts that you can be
assured conform to the safety and performance specification that we require. Do not use
reconditioned or copy parts that have not been clearly authorised by Aga.
PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE
For use in GB and IE
05/07 EINS 512453

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC6 SIX-FOUR SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGA DC6 SIX-FOUR SERIES

Summary of Contents for AGA DC6 SIX-FOUR SERIES

  • Page 1: Owners Manual

    Remember, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by Aga. PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE...

  • Page 2: Table Of Contents

    CONTENTS SECTION PAGE INSTALLATION SECTION INSTALLATION TECHNICAL DATA FITTING AND PRODUCT DIMENSIONS ELECTRICAL CONNECTION CONNECTING TO GAS 9-11 PRESSURE TESTING LEVELLING AND MOBILITY WHEELS FITTING OF HOTPLATE CASTINGS AND PAN 13-17 SUPPORTS SPLASHBACK USERS GUIDE GENERAL INFORMATION HEALTH AND SAFETY PRODUCT VIEW CONTROL PANEL GAS HOTPLATE...

  • Page 3: Installation Section

    Remember, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by Aga.

  • Page 4: Installation

    INSTALLATION WARNING: THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE REGULATIONS IN FORCE AND ONLY USED IN A WELL VENTILATED SPACE, READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE. PRIOR TO INSTALLATION, ENSURE THAT THE LOCAL DISTRIBUTION CONDITIONS (TYPE OF GAS AND GAS PRESSURE) AND THE ADJUSTMENTS OF THE APPLIANCE ARE COMPATIBLE.

  • Page 5: Technical Data

    TECHNICAL DATA HOTPLATE PROPANE G30/G31 - (APPLIANCE CATEGORY I L.H.F. R.H.F. R.H.R. L.H.R. CENTRE CENTRE FRONT REAR BURNER TYPE ULTRA-RAPID RAPID RAPID SEMI-RAPID SEMI-RAPID ULTRA-RAPID MAXIMUM HEAT 4.0 kW 3.0 kW 3.0 kW 1.75 kW 1.75 kW 5.0 kW INPUT (287g/h) (215g/h) (215g/h)

  • Page 6: Fitting And Product Dimensions

    FITTING AND PRODUCT DIMENSIONS Any side wall above the cooker on either side shall be not less than 60mm horizontally from the cooker (Fig. 1). Surfaces over the top of the cooker must not be closer than 650mm. A minimum clearance of 1000mm must be available at the front of the cooker to enable it to be serviced.

  • Page 7: Electrical Connection

    ELECTRICAL CONNECTION ELECTRICAL CONNECTION IS LOCATED AT THE TOP RIGHT HAND SIDE OF THE APPLIANCE, BEHIND SIDE PANEL. DURING INSTALLATION REMOVE THE RIGHT HAND SIDE PANEL TO CONNECT ELECTRICAL SUPPLY. Remove 6 screws securing side panel to gain access to mains terminal. See Fig. 3 for location of cover.
  • Page 8 THREE PHASE CONNECTION - MINIMUM 2.5mm AND MUST COMPLY WITH THE LATEST EDITIONS OF THE LOCAL AND NATIONAL WIRING REGULATIONS. Fig. 2b DESN 513313 A...

  • Page 9: Connecting To Gas

    CONNECTING TO GAS To allow ease of servicing and cooker mobility, an approved flexible 4ft hose should be fitted. Supply piping should not be less than R 1/2 (1/2” BSP). Connection is made to the R 1/2 (1/2” BSP) female threaded entry in the inlet block located just below the hotplate level on the rear right hand side of the cooker.
  • Page 10 COOKER STABILITY A stability bracket shall be secured firmly to the fabric of the building, when the appliance is connected to the gas supply by a flexible hose. For positioning of bracket (See Fig. 3). A safety chain must also be anchored firmly to the wall and cooker to prevent the flexible hose from straining, when the cooker is withdrawn for servicing.

  • Page 11: Pressure Testing

    POSITION OF GAS BAYONET ON WALL (locate in shaded areas) IMPORTANT: THE GAS SUPPLY CONNECTION AT THE WALL MUST NOT PROJECT OUT FROM THE WALL BY MORE THAN 45MM, SO THAT IT DOES NOT FOUL WITH THE BACK OF THE COOKER. Fig.

  • Page 12: Levelling And Mobility Wheels

    LEVELLING AND MOBILITY WHEELS INSTALLATION/LEVELLING The DC6 is designed to stand on a flat and level surface, however, any unevenness may be overcome by adjusting the four levelling feet, one at each corner of the base plate. The adjusting screws are accessed by removing left and right hand hotplate castings (See section ‘To Remove Hotplate Castings - Servicing Section Page 50).

  • Page 13: Fitting Of Hotplate Castings And Pan

    FITTING OF HOTPLATE CASTING AND PAN SUPPORTS HOTPLATE CASTINGS 1. Attach earth cable from centre casting to cooker chassis and locate over burner bodies. Repeat for LH and RH castings and that the gaskets are fitted where the outer castings overlap centre castings.
  • Page 14 3. Fit and secure six burner rings using M4 screws on rear left hand, front centre, front right hand and rear right hand burners. Use No.6 3/8 screw on front left hand and centre rear burners. (See Fig. 6C). NOTE: The fitting of LH and centre burners are the same as shown in Fig. 6B. Fig.
  • Page 15 ASSEMBLY OF RAPID AND SEMI-RAPID BURNERS BURNER CAP BURNER HEAD ELECTRODE Fig. 7B DESN 511618 FITTING BURNER CAP - RAPID AND SEMI-RAPID BURNERS BURNER CAP RETAINING LUGS Fig. 7C DESN 511617...
  • Page 16 It is very important for the performance and reliability of the hob that the pan supports are fitted in accordance with the AGA SIX-FOUR SERIES - DC6 OWNERS MANUAL. To help identify the correct location of the pan supports, the centre rear pan support has been uniquely designed with a tag, as shown.

  • Page 17: Splashback

    Fig. 8C DESN 513716 TO ADJUST PAN SUPPORT LEVEL Loosen retaining nut using 8mm spanner. (See Fig. 8C). To prevent rocking adjust the pan support foot using 2.5mm allen key. Check pan support is level with opposing pan supports. Retighten retaining nut. HANDRAIL FITTING Position handrail assembly onto locating studs at each end of facia.

  • Page 18: Users Guide

    Users Guide...

  • Page 19: General Information

    Any alteration that is not approved by Aga could invalidate the approval of the appliance, operation of the warranty and could affect your statutory rights. In the interests of safety and effective use, please read the following before using your new Aga appliance.

  • Page 20: Health And Safety

    HEALTH & SAFETY APPLIANCE YOUNG CHILDREN SHOULD BE KEPT AWAY FROM THE APPLIANCE AS SOME SURFACES CAN BECOME HOT TO TOUCH. During use the appliance can become hot. Care should be taken to avoid touching heating elements inside the oven. Deep Fat Frying Use a deep pan, large enough to completely cover the appropriate heating area.

  • Page 21: Product View

    Fig. 10 DESN 513710...

  • Page 22: Control Panel

    CONTROL PANEL The GAS HOTPLATE CONTROL KNOBS can only be rotated anti-clockwise from the OFF position. Symbol - Ignition Setting Large Flame Symbol - High Setting Small Flame Symbol - Low Setting (See ‘HOTPLATE’ section). Fig. 11 DESN 513715 The GRILL ELEMENT CONTROL KNOB can be rotated in either direction. Clockwise Full on, with both elements on Anti-clockwise...

  • Page 23: Gas Hotplate

    GAS HOTPLATE The hotplate has six gas burners: front left - ultra rapid (wok) burner - rated at 4.0 kW rear left and front centre - semi-rapid burners - each rated at 1.75 kW rear right and front right - rapid burner - each rated at 3.0 kW centre rear - ultra rapid burner - rated at 5.0 kW The semi rapid burners are especially suited for use with small pans and gentle simmering or poaching.
  • Page 24 SOME SAFETY POINTS Simmering aids such as asbestos or mesh mats are not recommended. They can impede burner performance, damage the pan supports and waste fuel. Commercially available foil spillage aids are unnecessary on this cooker and could effect the combustion. Some ‘Wok’...

  • Page 25: Fitting Of Pan Supports

    It is very important for the performance and reliability of the hob that the pan supports are fitted in accordance with the AGA SIX-FOUR SERIES - DC6 OWNERS MANUAL. To help identify the correct location of the pan supports, the centre rear pan support has been uniquely designed with tag, as shown.

  • Page 26: Setting Up The Cooker For Use

    SETTING UP THE COOKER FOR USE Before you can use the lower left hand oven of the appliance it will be necessary to set the ‘time of day’ clock. This is a 24 hour clock, and when the power supply is initially switched on, or after an interruption in supply, the clock will show AUTO and 0.00 alternately.

  • Page 27: Simmering Oven

    SIMMERING OVEN THE SIMMERING OVEN This is used for long, slow cooking over 6-8 hours, keeping food warm and warming plates for short periods. EXTRA CARE MUST BE TAKEN WHEN WARMING BONE CHINA - USE THE LOWEST SETTING. The slow cooking setting is the area marked between 110ºC - 120ºC on the oven control knob. USING THE SLOW COOKING SETTING Points to bear in mind when preparing food.

  • Page 28: Simmering Oven Recipes

    Simmering Oven Simmering Oven • Simmering Oven • Simmering Oven • Simmering Oven • Simmering Oven • IDEAS FOR THE SIMMERING OVEN Many favourite recipes can be adapted for this type of cooking. Check that chosen ovenware will fit into the oven. Meal 1 6 - 8 hours cooking Ragout of Beef in Ale...
  • Page 29 Slow Cooking Oven • Slow Cooking Oven • Slow Cooking Oven • Slow Cooking Oven • Slow Cooking Oven • Slow Cooking Oven • Meal 2 6 - 8 hours cooking Roast Fillet of Lamb Dauphinoise Potatoes Bread and Butter Pudding Recipes Roast fillet of Lamb 900g - 1.25 kg (2-2...
  • Page 30 Slow Cooking Oven • Slow Cooking Oven • Slow Cooking Oven • Slow Cooking Oven • Slow Cooking Oven • Slow Cooking Oven • Meal 3 6 - 8 hours cooking Gammon and Apricot Pie Braised Red Cabbage St. Clements Pudding Recipes Gammon and Apricot Pie 2 gammon rashers approx 15mm (...
  • Page 31 Slow Cooking Oven • Slow Cooking Oven • Slow Cooking Oven • Slow Cooking Oven • Slow Cooking Oven • Slow Cooking Oven • Meal 4 Chilli Con Carne Frangipane and Apple Pudding Recipes Chilli Con Carne 450g (1lb) minced beef Brown the minced beef in a flame proof casserole dish.

  • Page 32: The Grill

    THE GRILL THE GRILL COMPARTMENT DOOR MUST BE KEPT OPEN WHEN THE GRILL IS ON. CAUTION: Accessible parts may be hot when the grill is in use. Young children should be kept away. The very high speed instant grill is divided into two areas to save energy and to suit individual grilling requirements.

  • Page 33: The Ovens

    THE OVENS General The ovens and grill compartment are fitted with side and back self cleaning panels. The roof of the oven is also self-cleaning enamel. The shelves are designed to be non-tilt. To remove a shelf, lift clear of the side notches and slide forward. To replace a shelf, insert into the oven with the short prongs at the rear, facing upwards.

  • Page 34: Oven Cooking Guide

    OVEN COOKING GUIDE Cooking Hints Shelf positions are counted from the bottom. Put dishes in the centre of the shelf. When using the fan oven, reduce conventional oven settings by 10ºC - 20ºC and in some cases, cooking time by up to 10 minutes for every hour. It is important to check that food is piping hot before serving.
  • Page 35 Conventional Oven Conventional Oven • Conventional Oven • Conventional Oven • Conventional Oven The right hand upper oven is a conventional oven which means that the heating elements are in the top and under the base of the oven compartment. The cooking charts are a general guide but times and temperatures may vary according to individual recipes.
  • Page 36 • Conventional Oven • Conventional Oven • Conventional Oven • Conventional Oven • Conventional Oven • Conventional Oven • SHELF FOOD SETTING °C APPROXIMATE COOKING TIME POSITION Meringue Toppings 140 - 150 1 or 2 45 mins Meringues 100 - 110 3 - 4 hours - Turn meringues over as soon as they are set Yeast Mixture Bread - loaves...
  • Page 37 Fan Oven • F a n O v e n • F a n O v e n • F a n O v e n • F a n O v e n • F a n O v e n • F a n O v e n • F a n O v e n • The left hand lower oven is a fan oven, which means that the air is circulated to create an even temperature throughout.
  • Page 38 Fan Oven • Fan Oven • Fan Oven • Fan Oven • Fan Oven • Fan Oven • Fan Oven • Fan Oven • Fan Oven • Fan Oven • APPROXIMATE COOKING TIME FOOD SETTING °C Meringue Toppings 45 mins Meringues 80 - 90 3 - 4 hours - Turn meringues over as soon as they are set...

  • Page 39: The Minute Timer

    THE MINUTE TIMER The minute timer works separately from the time of day clock and can be set to time periods from 1 minute to 23:59 hours. Only a one handed operation is required. SETTING THE MINUTE TIMER 1. Press the MINUTE TIMER button the bell symbol and 0.00 will be displayed.

  • Page 40: Automatic Cooking Control

    AUTOMATIC COOKING CONTROL This can be used to set an automatic cooking programme in the bottom left fan oven only. It switches the electricity on or off at the pre-set times. The maximum length of cooking programme which can be set is 23 hours and 59 minutes e.g. delay time + cooking time = maximum 23 hours and 59 minutes.
  • Page 41 KEY LOCK - If this mode is activated, a program can be set but it will not be activated, i.e. ON and OFF times can be set, but timer will not switch the ovens on. TO ACTIVATE KEY LOCK FUNCTION Ensure the timer is in manual mode (no active programs).

  • Page 42: Cleaning And Caring For Your Cooker

    THE FOLLOWING PARTS ARE NOT DISHWASHER SAFE: Aluminium burner heads (LHR, CF, RHR, RHF). IMPORTANT: Aga recommend Vitreous Enamel Association approved cleaners for cleaning the vitreous enamelled surfaces of this product. But they are unsuitable for use on: chrome and stainless steel components, handrails and their brackets.
  • Page 43 CLEANING & CARING FOR YOUR COOKER COOKER PART AND FINISH CLEANING METHOD Vitreous Enamel Clean with a damp cloth and hot soapy water. Stubborn stains can be removed with Grill - base only mild cream, paste or liquid cleaners, or by Hotplate gently rubbing with a well moistened, Control panel...
  • Page 44 COOKER PART AND FINISH CLEANING METHOD Self-Clean Enamel This special enamel has a continuous cleaning action, which works best if a pattern Fan Oven, Conventional Oven, Simmering of low and high temperature cooking is Oven: sides, top and back followed. By using low temperature roasting, Grill Compartment: sides and back excessive fat splashes can be avoided.
  • Page 45 Oven Shelves - These shelves are designed to slide out STOP ON SHELF MUST PROJECT UPWARDS SHELF STOP AND ANTI TILT BRACKET DESN 511867 Refit as follows: Locate in guide as above. DESN 511866 Please Note: Shelf slides out to stop position. Fig.
  • Page 46 ASSEMBLY OF RAPID AND SEMI-RAPID BURNER BURNER CAP BURNER HEAD ELECTRODE Fig. 18 DESN 511618 FITTING BURNER CAP - RAPID AND SEMI-RAPID BURNER BURNER CAP RETAINING LUGS Fig. 19 DESN 511617...
  • Page 47 WOK BURNER Fig. 20A DESN 513512 ULTRA RAPID BURNER Fig. 20B DESN 513714...

  • Page 48: Servicing Section

    Remember, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by Aga.

  • Page 49: Servicing

    SERVICING In the event of your appliance requiring maintenance, please call Aga Service or contact your authorised distributor/stockist. Your cooker must only be serviced by a Qualified CORGI Engineer from an Authorised Distributor or Stockist. Do not alter or modify the cooker.
  • Page 50 WARNING: WHEN SERVICING OR REPLACING GAS CARRYING COMPONENTS, DISCONNECT GAS SUPPLY TO APPLIANCE AND AFTER COMPLETION CHECK APPLIANCE FOR GAS SOUNDNESS. WARNING: WHEN SERVICING OR REPLACING COMPONENTS, ISOLATE THE APPLIANCE FROM THE ELECTRIC SUPPLY AND BEFORE RECONNECTING, CHECK FOR ELECTRICAL SUPPLY. TO REMOVE HOTPLATE Isolate from electric supply.
  • Page 51 Fig. 23 DESN 512407 B TO REMOVE SIDE PANELS Isolate from electric supply. Lower the cooker onto the rollers by turning the adjusting feet fully anti-clockwise. NOTE: It may be necessary to disconnect the flexible gas connection to allow the cooker to be withdrawn from between the kitchen units.
  • Page 52 TO REMOVE HANDRAIL (SEE FIG. 24) Loosen 2 grub screws, one at each end of hand rail (see fig. 24) using 2 mm socket key. Slide handrail forwards, off locating studs. TO REMOVE TIMER Isolate from electric supply. Proceed as ‘TO REMOVE HOTPLATE CASTINGS’. Remove fixing screws (4).
  • Page 53 TO REMOVE GAS TAPS/IGNITION SWITCHES Isolate from electric and gas supply. Proceed as ‘TO REMOVE HOTPLATE’. Proceed as ‘TO REMOVE FACIA’. Disconnect gas rail feed pipe (19mm nut). (See Fig. 27). Disconnect all gas connections to taps (5 nuts - 13mm, 14mm and 19mm). Remove (4) screws fixing gas rail.
  • Page 54 TO REMOVE GRILL REGULATOR Isolate from electric supply. Proceed as ‘TO REMOVE FACIA CASTINGS’. Remove two screws securing control to control mounting panel. Withdraw control and cables taking care not to strain the cables. Disconnect cables from the control. NOTE: Take care to identify terminations. Re-assemble in reverse order.
  • Page 55 TO REMOVE ELECTRODES (LHR, CF, CR, RHR, RHF BURNERS) Isolate from electric supply. Proceed as ‘TO REMOVE THE HOTPLATE’. Proceed as ‘TO REMOVE SPARK GENERATOR’ disconnect the appropriate electrode lead. Withdraw clip securing electrode to burner and withdraw lead and electrode (See Fig. 29). Re-assemble in reverse order.
  • Page 56 Fig. 30 DESN 513530 TO REMOVE THERMOCOUPLE (LHF BURNER) Isolate from electric supply. Proceed as ‘TO REMOVE HOTPLATE’. Undo the nut fixing the thermocouple in place. Push the thermocouple down and pull out from under the burner. Disconnect the other end of the thermocouple cable from the gas valve. This is a push on jack connector.
  • Page 57 TO REMOVE THERMOCOUPLE (LHR, RHR AND RHF BURNERS) Isolate from electric supply. Proceed as ‘TO REMOVE THE HOTPLATE’. Undo the nut fixing the thermocouple in place. Push the thermocouple down and slide to the side to remove from the burner. Disconnect the other end of the thermcouple cable from the gas valve, this is a push on electrical terminal.
  • Page 58 TO REMOVE ELEMENTS (RH OVENS) Isolate from electrical supply. Proceed as ‘TO REMOVE OVEN AND GRILL LINERS’. Remove oven base panel (1) screw at the rear of the oven. Lift out base panel. Remove oven element fixing screws (2) at the rear of the oven and flex elements to remove from location bracket, pull forwards to expose terminal connections.

  • Page 59: Wiring Diagram

    WIRING DIAGRAM - AGA DC6...
  • Page 60 For further advice or information please contact your local distributor/stockist With Aga’s policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliance described at any time. Manufactured by Station Road Ketley Telford...
