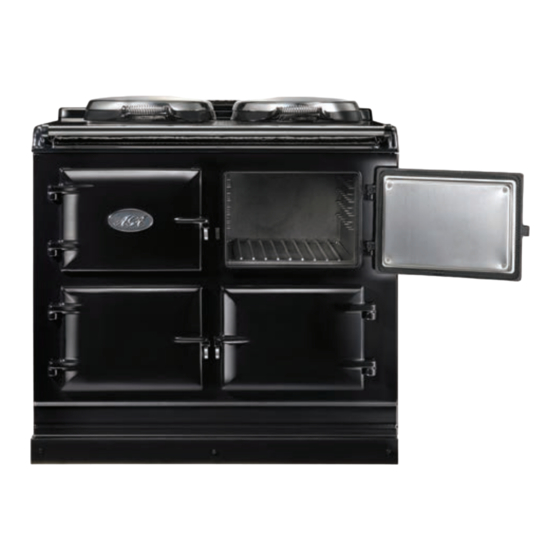

AGA DUAL CONTROL
Model No. - DC3 & DC5
Installation
Guide
PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING SITE SURVEY
OR INSTALLING THIS APPLIANCE.
IMPORTANT :
SAVE INSTRUCTIONS FOR FUTURE REFERENCE
IMPORTANT :
CONSERVER CES INSTRUCTIONS POUR REFERENCE FUTURE
For use in USA/Canada
09/14 EINS 516664

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGA DC3

Summary of Contents for AGA DC3

  • Page 1 AGA DUAL CONTROL Model No. - DC3 & DC5 Installation Guide PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING SITE SURVEY OR INSTALLING THIS APPLIANCE. IMPORTANT : SAVE INSTRUCTIONS FOR FUTURE REFERENCE IMPORTANT : CONSERVER CES INSTRUCTIONS POUR REFERENCE FUTURE For use in USA/Canada...

  • Page 2: Table Of Contents

    APPLIANCE DIMENSIONS - AGA DC3 APPLIANCE DIMENSIONS - AGA DC5 INSTALLATION 7 - 8 CONNECTION TO THE POWER SUPPLY - AGA DC3 POWER SUPPLY - HOT CUPBOARD AGA DC5 MAINS SUPPLY LOCATION - AGA DC3 MAINS SUPPLY LOCATION - AGA DC5...

  • Page 3: Product Safety

    PRODUCT SAFETY MEANING/DESCRIPTION SYMBOL SIGNIFICATION/DESCRIPTION WARNING/CAUTION AVERTISSEMENT An appropriate safety instruction Une consigne de sécurité should be followed or caution to a appropriée doivent être suivies potential hazard exists. ou garde d’un danger potentiel exists. DANGEROUS VOLTAGE TENSION DANGEREUSE To indicate hazards arising from Pour indiquer les dangers dangerous voltages.

  • Page 4: General Notes

    (740mm). A wooden template (skate with castor wheels) of dimensions 39 ” (1005mm) x ” (740mm) could be used to check if the AGA Dual Control fully built appliance is able to fit through the property grounds and doors into its installation position in the kitchen. It must also be considered that the height of the appliance is 37 ”...

  • Page 5: Appliance Dimensions - Aga Dc3

    In particular the width across the appliance recess could be critical. APPLIANCE WEIGHT (Excludes Packaging) Model: AGA Dual Control (DC3) - 978 lbs DATA PLATE LOCATED BEHIND BOTTOM PLINTH.

  • Page 6: Appliance Dimensions - Aga Dc5

    In particular the width across the appliance recess could be critical. APPLIANCE WEIGHT (Excludes Packaging) Model: AGA Dual Control (DC5) - 978 lbs Hotcupboard - 242 lbs DATA PLATE LOCATED BEHIND BOTTOM PLINTH.

  • Page 7: Installation

    It is essential that the base or hearth on which the range stands should be level and be capable of supporting the total weight of the range. The base of the built-in AGA plinth must be level and sit above finished floor height for service access.
  • Page 8 Fig. 3 DESN 51668...

  • Page 9: Connection To The Power Supply - Aga Dc3

    CONNECTION TO THE POWER SUPPLY - AGA DC3 Electric Shock Hazard Rating Plate is located behind removable plinth, see Fig. 4. Electrical Grounding is required on this appliance. DO NOT connect to the electrical supply until the appliance is permanently grounded.

  • Page 10: Power Supply - Hot Cupboard Aga Dc5

    POWER SUPPLY - HOTCUPBOARD (AGA DC5) The hotcupboard attachment requires an independent single phase supply. It has a maximum load of 6 amps, protected by an appropriate branch circuit supply. 110/120V 60 Hz FLEXIBLE CORD and PLUG PARALLEL TYPE (NEMA 5-15P). The appliance when installed must be electrically grounded in accordance with local or regional codes.

  • Page 11: Mains Supply Location - Aga Dc3

    MAINS SUPPLY LOCATION - AGA DC3 MAINS CABLE FED FROM CONTROL TRAY LEFT OR RIGHT EXIT THROUGH DUCTING DEPENDENT UPON POSITION OF SUPPLY SOCKET Fig. 3 DESN 516643 RATING LABEL LOCATED BEHIND PLINTH, PULL TO REMOVE THE MAINS SUPPLY CONNECTION AND ISOLATION POINT MUST BE WITHIN THE ZONE SHOWN Fig.

  • Page 12: Mains Supply Location - Aga Dc5

    MAINS SUPPLY LOCATION - AGA DC5 (HOTCUPBOARD OPTION) HOTCUPBOARD POWER SUPPLY MAINS CABLE FED FROM CONTROL TRAY LEFT OR RIGHT EXIT THROUGH DUCTING DEPENDENT UPON POSITION OF SUPPLY Fig. 5 DESN 516562 SOCKET RATING LABEL LOCATED BEHIND PLINTH, PULL TO REMOVE, THE MAINS SUPPLY CONNECT POINT MUST BE WITHIN THE ZONES SHOWN Fig.

  • Page 13: Hotcupboard Installation

    NOTE: The AGA DC5 hotcupboard should arrive with the top plate in a jacked up position. This is to allow the complete range to be slid onto its plinth when alongside the AGA DC3 without the top plates clashing. The hotcupboard top plate should then be wound down to its correct height once the appliance is in its final position.
  • Page 14 2. Position the plinth alongside the AGA Dual Control leaving no gap between the two plinths (See Fig. 8). Check with a spirit level that the plinth level is correct, and also check height differential between the hotcupboard plinth and Dual Control plinth is correct ”...
  • Page 15 4. Run a straight edge along the front of the AGA Dual Control plinth, to ensure the front face of both plinths sit squarely against the straight edge. (See Fig. 10) When satisfied both plinths sit squarely, jacking screws can be tightened until they just make contact with the AGA Dual Control plinth, and locking screws can now be tightened.
  • Page 16 DESN 516552 7. The hotcupboard top plate is set ” (5mm) higher than the AGA Dual Control top plate. This is to prevent damage to the enamel during installation. Lower the top plate using the adjusters (See Figs. 13 & 14).
  • Page 17 8. Using the stay rod nut adjusting tool, carefully lower the top plate adjusting nuts until the top plate sits at the required height, making sure that the top sits level and matches the height of the AGA DC3. (See Fig. 14). Fig. 14 DESN 516555 9.
  • Page 18 10. Next the handrail, endcaps and handrail require assembly. Slide the handrail through the handrail brackets. AGA DC3 HANDRAIL CONNECTION Fig. 16 DESN 516880 11. On 5 oven ranges, fit allthread stud into the insert located in the one end of the...
  • Page 19 AGA Dual Control plinth facia leaving no gap between. Make sure that the plinth facias are centrally located and do not overhang either range. (See Fig. 17) Commission the AGA Dual Control, as stated in the relevant Installation Instructions and carry out functional test on each of the features of the AGA Dual Control.

  • Page 20: Wiring Diagram - Aga Dc3

    WIRING DIAGRAM - AGA DC3 Fig. 18...

  • Page 21: Wiring Diagram - Aga Dc5

    WIRING DIAGRAM - AGA DC5 (HOTCUPBOARD OPTION) COLOUR KEYS/COLLEURS CAUTION: LABEL ALL WIRES PRIOR TO BR - BROWN/MARRON DISCONNECTION, WHEN SERVICING CONTROLS BL - BLUE/BLEU WIRING ERRORS CAN CAUSE IMPROPER AND GR - GREEN/VERT DANGEROUS OPERATION. OR - ORANGE/ORANGE BK - BLACK/NOIR...

  • Page 22: Instructions

    When replacing a part on this range, use only replacement parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by AGA.
  • Page 24 For further advice or information contact your local AGA Specialist With AGA Marvel’s policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliance described and illustrated at any time Supplied by AGA Marvel 1260 E.
