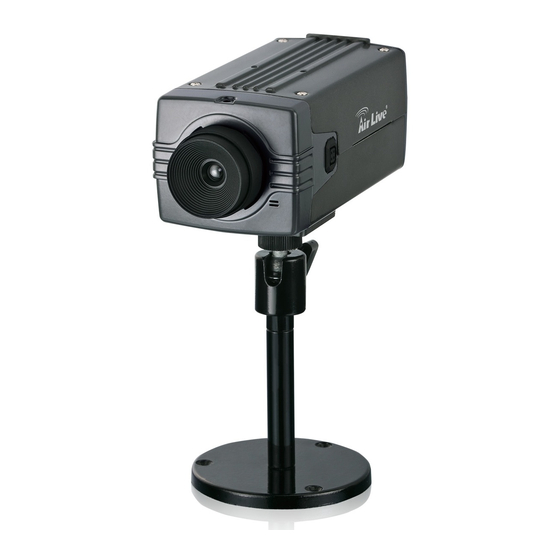

AirLive POE-100HD
/POE-100HD-ICR
PoE DC Iris MegaPixel IP Camera
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POE-100HD and is the answer not in the manual?

Questions and answers

Related Manuals for AirLive POE-100HD

Summary of Contents for AirLive POE-100HD

  • Page 1 AirLive POE-100HD /POE-100HD-ICR PoE DC Iris MegaPixel IP Camera User’s Manual...
  • Page 2 However, we are not liable for the inaccuracies or errors in this guide. Please use with caution. All information is subject to change without notice This product contains some codes from GPL. In compliance with GPL agreement, AirLive will publish the GPL codes on our website. Please go to www.airlive.com...

  • Page 3: Table Of Contents

    5.1.9 Event Server: Setup FTP/TCP/HTTP/SAMBA server configuration...46 5.1.10 Event Schedule: Configure the event schedule ........51 Appendix A: Alarm I/O Connector ..............56 Appendix B: Frequently Asked Questions ..........58 Appendix C: PING IP Address ..............64 Appendix D: Bandwidth Estimation ............65 AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 4 Table of Contents Appendix E: Specifications.................66 Appendix F: Configure Port Forwarding Manually ........69 Appendix G: DDNS Application ..............72 Appendix H: Power Line Frequency............79 Appendix I: 3GPP..................81 Appendix J: Enable UPnP of Windows XP ..........82 AirLive POE-100HD/ POE-100HD-ICR User’s Manual...

  • Page 5: Overview

    15 fps for Mega-pixel mode Digital zoom External microphone Audio line out Two-way audio Intelligent motion detection up to 10 zones Go to preset once motion triggered Image transmission using an FTP or e-mail for event DDNS and PPPoE AirLive POE-100HD/ POE-100HD-ICR User’s Manual...

  • Page 6: Minimum System Requirements

    Microsoft Internet Explorer 6.0 or later Microsoft Media Player 11.0 or later (to playback recorded file) VGA Monitor resolution 1280 x 1024 or higher Pentium-4 2.0 GHz or higher Memory Size: 512MB or more Windows XP, Vista AirLive POE-100HD/ POE-100HD-ICR User’s Manual...

  • Page 7: Package Contents

    If any of the above items are missing, please contact your dealer immediately. Note: Using a power supply with a different voltage than the one included with the Network Camera will cause damage and void the warranty for this product. AirLive POE-100HD /POE-100HD-ICR User’s Manual...

  • Page 8: Connections

    DI/ DO: Connect to sensor in and alarm out devices Cable for I/O connectors: Name Cable Color Function 12VDC Brown/White DC 12V (50mA maximum) Blue/White Purple/White Do not connect Gray Do not connect Green/White Digital signal input Orange/White Digital signal output AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 9 5. MIC in (audio in) Connect a microphone to the network camera. 6. Line out (audio out) Connect a loud speaker to the network camera. This function is for voice alerting and two-way audio. AirLive POE-100HD /POE-100HD-ICR User’s Manual...

  • Page 10: Mounting The Camera

    The power LED turned on, it means the system is booting up successfully. Furthermore, if you have a proper network connection, and access to the camera, the LAN LED (green) will fl AirLive POE-100HD/ POE-100HD-ICR User’s Manual...

  • Page 11: Preparation

    When you installed the Camera on a LAN environment, you have two easy ways to search your Cameras by IPWizard II or UPnP™ discovery. Here is the way to execute IPWizard II to discover Camera’s IP address and set up related parameter in a Camera. Search AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 12 View button. Then you could see the video from camera directly. Furthermore you could double click the left button of mouse to link to the network device by browser. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 13 LAN button. Relative settings will be carried out as below. You could modify the relative settings of the selected device. Click “<<” button will quit the LAN setting procedure and click “>>” button will move to next page as below. AirLive POE-100HD /POE-100HD-ICR User’s Manual...

  • Page 14: Using Upnp Of Windows® Xp Or Vista

    UPnP enabled device. If the operating system, Windows XP or Vista, of your PC is UPnP enabled, the Network Camera will be very easy to be found. Please refer to Appendix J to enable UPnP settings only if your operating system of PC is running Windows XP. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...

  • Page 15: Install The Device Behind A Nat Router

    However, if your NAT router supports UPnP feature, it can be very easy to achieve NAT traversal automatically. To do this, enable the NAT-traversal feature, which will attempt to automatically configure the router to allow access to the camera. AirLive POE-100HD /POE-100HD-ICR User’s Manual...

  • Page 16: Access The Device From The Internet Explorer For The First Time

    Access the device from the Internet Explorer for the first time Start the web browser on the computer and type the IP address of the Network Camera you want to monitor as below: The Login Window of the Camera is prompted: AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 17 Password: airlive That’s, type in “admin” on the “USERNAME” as a default name and leave PASSWORD textbox airlive. Click “OK” button to start the main menu. According your browser’s security setting, the IE Web Page may prompt the “Security Warning” window. If so, select “Yes” to install and run the ActiveX control into your PC.

  • Page 18: Operating The Network Camera

    The Network Camera support multi-profile for both MEPG4 and JPEG simultaneously. User can chose the proper and/or preferred profile here. 3. Streaming Protocol User can select proper streaming protocol according to networking environment. 4. Language AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 19 Hide PTZ control Camera direction Camera speed Preset Go tour Tour Auto pan (1) Hide PTZ control: Click the icon will hide the PTZ control function. (2) Camera direction: Control camera up/down/left/right and home position. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 20 On the ActiveX control icon, click the LeftMouseButton, then a menu pop-up. This menu provides features that are unique to the ActiveX control. These features include: • “Digital Zoom”, • “Record”, • “Snapshot”, • “Voice”, • “Statistics”, • “About” AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 21 After stop recording, list the files, this file is named as Video_yyyymmddhhmmss.avi The ASF files can be display by the standard Windows Media Player, but it needs the DixectX 9.0 or later version to be installed. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 22 Click Volume to activate this function. There are two control bars for speaker and microphone volume respectively. Scroll these control bars to adjust the audio attribute. Check the volume mute will mute the speaker output. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 23 Click Statistics to activate this function. A window will be popup to show the statistics information of the streaming status. Note that this information is the statistics between the device and your local PC. (6) About Click About to show this ActiveX information. AirLive POE-100HD /POE-100HD-ICR User’s Manual...

  • Page 24: Administrating The Device

    Configure audio parameters User Setup user name, password and login privilege E-Mail Setup E-Mail configuration Object Setup Object detection Detection Event Server Setup FTP/TCP/HTTP server for event Event Schedule Configure the schedule while event triggered AirLive POE-100HD/ POE-100HD-ICR User’s Manual...

  • Page 25: Network

    IP address within limited tries, the device will assign a default IP address, 192.168.0.100, by itself as the default IP address. IP address, Subnet mask, and Gateway: If you do not select Obtain an IP address automatically, then you need to enter these network parameters manually. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 26 WAN IP address is when you want to access your device over the Internet. One of the possible solutions to the dynamic IP address problem comes in the form of a dynamic DNS service. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 27 IP addresses. If users want to set up a web or a FTP server, then the Dynamic Domain Name Server is necessary. DDNS: To enable or disable the DDNS service here. Server name: Choose the built-in DDNS server. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 28 Power on again, then the device will dial on to the ISP connect to the WAN through the xDSL modem. The procedures are • Connect to a LAN by DHCP or Fixed IP • Access the device; enter Setting Network PPPoE as image next page AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 29 RTP, multicast and Unicast, and for negotiating codecs. RTSP can be considered a "remote control" for controlling the media stream delivered by a media server. RTSP servers typically use RTP as the protocol for the actual transport of audio/video data. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 30 (LAN) and you wish to make it available from the other (WAN) side of a NAT router. With NAT traversal properly configured, all HTTP traffic to an external HTTP port in the NAT router will be forwarded to the device. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 31 Show the IP address and port for WAN access through Internet. If NAT traversal is configured successfully, user can use this IP address and port to access this device. The external IP address is not shown in case NAT traversal function is failed. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 32 If enable this function, then the “Send to“and “Subject” fields need to be filled. Send To: Type the receiver’s e-mail address. This address is used for reply mail. Subject: Type the subject/title of the E-mail. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 33 The message will be sent to FTP server. HTTP Notification: If enable this function, then the fields below need to be filled. URL: Type the server name or the IP address of the HTTP server. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 34 Type the user name for the HTTP Proxy. Proxy Login Password: Type the password for the HTTP Proxy. Custom parameter: User can set specific parameters to HTTP server. Message: The message will be sent to HTTP server. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...

  • Page 35: Camera: Adjust Camera Parameters

    : Adjust Camera parameters Use this menu to set the functions of the camera parameters of the device. Picture Rotation: Turn the “Mirror” and “Vertical Flip” On or OFF. The image will be overturned as below. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 36 This is the camera ID set in PTZ camera or speed dome camera. Note that please DO NOT change the default value if unnecessary. If so, user needs to check and set value properly for both sides. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 37 Note If need to change these parameters, user needs to check and set value properly for both, network module and P/T scanner. Preset Setting This page provides the edit tool to modify or delete the “Preset Setting” item by item. Tour Setting AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 38 Wait Time: Type a period of time during which the camera is to stay at each preset point, between 0 to 36000 seconds. To use the camera tour function, user must preset some camera positions first. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...

  • Page 39: System: Configure And Maintain System

    Software Version: This information shows the software version of the device. Network LED: To turn on or off Network LED. Power LED (Wireless LED): To turn on or off Power LED (wireless LED if WLAN model). AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 40 NTP server Time zone: Set the time difference from Greenwich Mean Time in the area where the device is installed. Daylight Saving: Disable or enable the daylight saving adjustment. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 41 Setting” button. The settings will be restored to the previous configuration. Firmware Upgrade: The device supports new firmware upgrade (the software that controls the operation in the device). Please contact your dealer for the latest version if necessary. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 42 System Restart: The device is restarted without changing any of the network settings. It means the IP address of the device will not change after firmware upgrade. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...

  • Page 43: Video: Configure Profile

    On the other hand, Mega-pixel mode, in addition to VGA resolution, it can serve H.264/Mega and JPEG/Mega two more streams simultaneously. H264 It’s H.264 encoder mode in this profile. Resolution: There are four resolutions in this profile: SXGA, VGA, QVGA and QQVGA. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 44 GOP Control: Defines the Intra/Inter-frame (I/P) ratio of this profile. For example, set the GOP to 30, then the video stream will have one Intra-frame every 30 frames. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 45 Defines the targeted frame rate of this profile. For example, set the frame rate to 15 fps, then the image will be updated for 15 frames per second as possible. User need to set reasonable max frame rate versus video quality under the limited bandwidth. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 46 Defines the targeted frame rate of this profile. For example, set the frame rate to 15 fps, then the image will be updated for 15 frames per second as possible. User need to set reasonable max frame rate versus video quality under the limited bandwidth. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...

  • Page 47: Audio: Audio Parameters

    Access right: Administrator can access every function in this device. However, Viewers only can view the video and access limited function. Add, update, and remove of Users account: Manage the user’s account of viewer user. AirLive POE-100HD /POE-100HD-ICR User’s Manual...

  • Page 48: E-Mail: Setup E-Mail Configuration

    SMTP Server: Type the SMTP server name or the IP address of the SMTP server. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...

  • Page 49: Object Detection : Setup Object Detection

    These windows can be specified as Included or Excluded type. Included windows target specific areas within the whole video image Excluded windows define areas within an Include window that should be ignored (areas outside Include windows are automatically ignored) AirLive POE-100HD /POE-100HD-ICR User’s Manual...

  • Page 50: Event Server: Setup Ftp/Tcp/Http/Samba Server Configuration

    You may setup FTP parameters for further operation of Event Schedule. That’s, if users want to send the alarm message to an FTP server, it will need to configure parameters here and also add at least one event schedule to enable event triggering as SMTP. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 51 Check the FTP server whether this account is available or not. FTP Login name: Type the user name for the FTP server. FTP Login Password: Type the password for the FTP server. FTP Port: Set port number of FTP service. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 52 TCP Server: Type the server name or the IP address of the TCP server. TCP Port: Set port number of TCP server. HTTP Server The device also can send event message to specified HTTP server. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 53 HTTP Login name: Type the user name for the HTTP server. HTTP Login Password: Type the password for the HTTP server. Proxy Address: Type the server name or the IP address of the HTTP Proxy. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 54 Name: User can specify multiple HTTP servers as wish. Therefore, user needs to specify a name for each HTTP server setting. SAMBA Server: Type the server name or the IP address of the SAMBA server. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...

  • Page 55: Event Schedule: Configure The Event Schedule

    This menu is used to specify the schedule of Event or Schedule Trigger and activate the some actions provided by this device. Where the Schedule Trigger will be activated by user-define interval without event happened. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 56 Name of the Event or Schedule. Enable: Enable or disable this Event or Schedule. Type: Event trigger or Schedule trigger. Enable Time: Define the feasible time slot. Trigger by: Select the triggered sources. Action: Define the actions once event triggered. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 57 Trigger by : Motion Area (Added in Object Detection page) Action : Send e-mail (Add in E-Mail page) To email address: You need to input the receiver email address. Subject: You could specify the email subject. iii. Message: You could specify the email content. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 58 Enable time: Select Monday to Friday, and set start time fr om 18:00 and keep work in 6 hours. Trigger by : You do not need to choose it, because this will be triggered every minute Action : Voice Alert AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 59 User can choose the type of record file for event or schedule application. Record File Type: Choose AVI or JPEG file format. Record File Prefix: Define the prefix of recorded filename. JPEG Picture Numbers: Define the picture numbers of JPEG to be sent out. AirLive POE-100HD /POE-100HD-ICR User’s Manual...

  • Page 60: Appendix A: Alarm I/O Connector

    Green/White Digital signal input Orange/White Digital signal output User can refer to the schematic below to make a proper connection between I/O connector and external sensor and output device. Explanation of External I/O Circuit Diagram: AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 61 REQUIRE LARGE AMOUNTS OF CURRENT. IN SOME CASES, A CUSTOM INTERFACE CIRCUIT (CUSTOMER PROVIDED) MAY HAVE TO BE USED. SERIOUS DAMAGE TO NETWORK CAMERA MAY RESULT IF A DEVICE IS CONNECTED TO THE EXTERNAL I/O THAT EXCEEDS ITS ELECTRICAL CAPABILITY. AirLive POE-100HD /POE-100HD-ICR User’s Manual...

  • Page 62: Appendix B: Frequently Asked Questions

    The HTTP port and RTSP port need to be firewall exists on the opened on the firewall or NAT router. network. username Username = admin and leave password airlive. password for the first Note that it’s all case sensitivity. time or after factory default reset AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 63 To confirm this possible web pages of the problem, disconnect the Network Camera from the network first, Network Camera from and then run the PING utility to check it out. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 64 • The first time the PC connects to Network Camera, a pop-up not appear in the main Security Warning window will appear to download ActiveX page. Controls. When using Windows XP, or Vista, log on with an appropriate account that is authorized to install applications. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 65 • Check the bandwidth of Internet connection. If the Internet bandwidth is lower than target bit rate, the video streaming will not work correctly. • Ethernet switching hub can smooth the frame rate. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 66 Camera brighter. Noisy images occur. The video images might be noisy if the device is located in a very low light environment. Make the condition around the camera brighter or turn the White-light LED on. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 67 Appendix B Miscellaneous Can not play the Have installed Microsoft®’s DirectX 9.0 or later and use the recorded ASF file Windows Media Player 11.0 or later to play the AVI filed recorded by the Device. AirLive POE-100HD /POE-100HD-ICR User’s Manual...

  • Page 68: Appendix C: Ping Ip Address

    The replies, as illustrated below, will provide an explanation to the problem. If you want to detect any other devices conflicts with the IP address of Network Camera, also can utilize the PING command but you must disconnect the Network Camera from the network first. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...

  • Page 69: Appendix D: Bandwidth Estimation

    128 kbps or lower connection. Even though the upload speed is more than 128kbps, for optimal video performance, disabling audio streaming will get better video performance. AirLive POE-100HD /POE-100HD-ICR User’s Manual...

  • Page 70: Appendix E: Specifications

    Controllable frame rate and bandwidth Constant and variable bit rate (MPEG4 / H.264) Audio Audio Encoder RTSP: G.711 64kbps, G.726 32kbps 3GPP: AMR Audio Streaming One-way or two-way External microphone input Microphone Audio Output Line level out AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 71 Indication LED Two LEDs on the LAN socket Protection Class Indoor use Construction 3-axis mechanical design Operating 0°C to 40°C (32°F to 104°F) Temperature Operating Humidity 20% ~ 80% (non-condensing) Dimension HxWxD:144x144x110 mm Viewing System AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 72 Browser IE 6.0 or latter / Firefox 2.0 or later With 3GPP player Cell Phone Video Player VLC, Quick Time, Real Player Software Search & Installation IPWizard II Bundled NVR CamPro Express 32 Channel Program AirLive POE-100HD/ POE-100HD-ICR User’s Manual...

  • Page 73: Appendix F: Configure Port Forwarding Manually

    Reset IP address at next boot button at the top of the screen after modifying the IP address. Failure to do so will reset the IP address when you restart your computer. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 74 Internet. This is accomplished using the Virtual Server function on the router. The Virtual Server ports used by the camera must be opened through the router for remote access to your camera. Virtual Server is accessed by clicking on the Advanced tab of the router screen. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 75 Enter valid ports in the Virtual Server section of your router. Please make sure to check the box on this line to enable settings. Then the device can be access from WAN by the router’s WAN IP Address. By now, you have finished your entire PC configuration for this device. AirLive POE-100HD /POE-100HD-ICR User’s Manual...

  • Page 76: Appendix G: Ddns Application

    DDNS and PPPoE of the Networked Device in order to let the outside administrator be able to access through internet. 3. Application Steps—DDNS & Domain Name (1). Visit the following web site: http://www.dyndns.org/ (2). Click “Account” AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 77 (3). After the columns show up at the left side, click “Create Account” (4). Fill the application agreement and necessary information. a. Username b. E-mail address and confirmation c. Password and confirmation d. Submit all the input information and finish creating an account AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 78 Appendix G Click these two options AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 79 Account Information“. Click the hyperlink address to confirm the DDNS service that you just applied. Then DDNS you applied activated. Click to confirm (6). Enter the web page http://www.dyndns.org/ again. Input your username and password that you just applied to login administration interface of DDNS server. AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 80 Appendix G Input your account (7). If the correct username and password are input, you can see the following picture at the top-right of the login page. (8). Click the “Services”. (9). Click the “Dynamic DNS”. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 81 (Pink No.1) Then we pick a domain that is easy to remember. (Pink No.2) The 3 step is to click “Offline Hostname” from Service Type. (Pink No.3) Finally, click the “Create Host” to submit the domain name information and finish DDNS application. (Pink No.4) AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 82 DDNS and PPPoE after the application of DDNS service. Please check the user manual to access the DDNS and PPPoE pages. After saving the modification, restart the device. Then the external users could browse the Networked Device by the input of their domain name. AirLive POE-100HD/ POE-100HD-ICR User’s Manual...

  • Page 83: Appendix H: Power Line Frequency

    50 Hz India 230V 50 Hz Italy 230V 50 Hz *Eastern Japan 50 Hz (Tokyo, Kawasaki, Sapporo, Yokohoma, and Japan 100V 50/60 Hz* Sendai); Western Japan 60 Hz (Osaka, Kyoto, Nagoya, Hiroshima) Malaysia 240V 50 Hz AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 84 50 Hz *Outlets typically controlled by adjacent switch. Though nominal voltage has been United Kingdom 230V* 50 Hz officially changed to 230V, 240V is within tolerances and commonly found. United States of America 120V 60 Hz AirLive POE-100HD/ POE-100HD-ICR User’s Manual...

  • Page 85: Appendix I: 3Gpp

    2. Use the following URL to access: rtsp://host/mpeg4/media.3gp Where host is the host name or IP address of the camera. Compatible 3G mobile phone: Please contact your dealer to get the approved list of compatible 3G phone. AirLive POE-100HD /POE-100HD-ICR User’s Manual...

  • Page 86: Appendix J: Enable Upnp Of Windows Xp

    Appendix J: Enable UPnP of Windows Use the following steps to enable UPnP settings only if your operating system of PC is running Windows XP. Go to Start > Settings Click Control Panel Click Add or Remove Programs AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 87 Appendix J Click Add/Remove Windows Components The following screen will appear: Select Networking Services AirLive POE-100HD /POE-100HD-ICR User’s Manual...
  • Page 88 Appendix J Click Details Select Universal Plug and Play Click Ok AirLive POE-100HD/ POE-100HD-ICR User’s Manual...
  • Page 89 Appendix J Click Next Please wait while Setup configures the components. Click Finish AirLive POE-100HD /POE-100HD-ICR User’s Manual...
