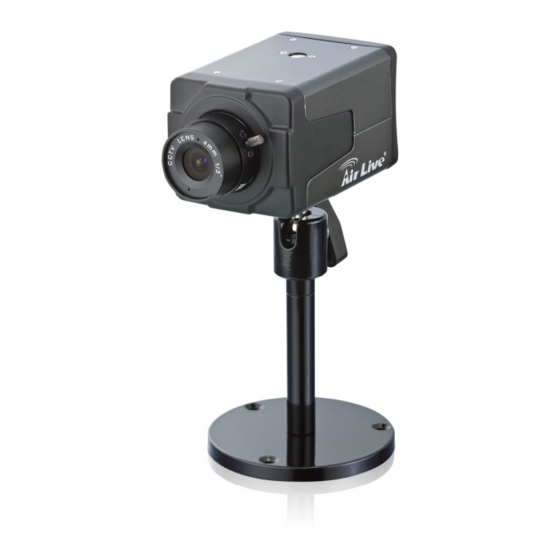

AirLive POE-100CAMV2 User Manual

1/3 cmos dual stream poe ip camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual






POE-100CAM v2


1/3 CMOS Dual Stream

PoE IP Camera


User's Manual





























AirLive WL‐2000CAM User's Manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POE-100CAMV2 and is the answer not in the manual?

Questions and answers

Related Manuals for AirLive POE-100CAMV2

Summary of Contents for AirLive POE-100CAMV2

  • Page 1 1/3 CMOS Dual Stream   PoE IP Camera     User’s Manual                                                           AirLive WL‐2000CAM User’s Manual  0 ...

  • Page 2: Before You Use This Product

    • Locations subject to strong vibration or shock Ventilation To prevent heat buildup, do not block air circulation around the device. Transportation When transporting the camera, repack it as originally packed at the factory or in materials of equal quality. AirLive POE‐100CAM v2 User’s Manual  1 ...
  • Page 3 • Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry. • Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the surface. AirLive POE‐100CAMv2 User’s Manual  2 ...

  • Page 4: Table Of Contents

    Chapter 7 CamPro Express User’s Manual ..........53 Getting Started..............................53 Running the Installation Wizard ........................55 Start Service Program ............................59 Admin Program..............................60 Monitor Program..............................91 Web Monitor..............................100 Multi Playback..............................101 Chapter 8 Technical Specifications ............125 Chapter 9 Glossary ..................126 AirLive POE‐100CAM v2 User’s Manual  3 ...

  • Page 5: Chapter 1 Installation

      Chapter 1 Installation 1.1 Installation Steps Follow these steps to install the POE-100CAMV2 on your Ethernet: 1. Check the package contents against the list below. 2. Set the device. See IP Installer User Manual on the available methods. 1. Install Ethernet Cable 2.

  • Page 6: Package Contents

      1.2 Package Contents Item Description IP Camera POE-100CAMv2 IP Camera Power Adapter Country-specific User Manual / IP Installer and Document Camera Stand Supplied with mounting screw Printed Document Quick Installation Guide                ...

  • Page 7: Overviews

    NO    COM    D‐    D+            Ground      Switch    12V    Alarm out device      Ground    12V  Note Max. 30W  Hold the Reset Button for 10 seconds to restore the camera to default AirLive POE‐100CAMv2 User’s Manual  6 ...
  • Page 8 4  Tool 3  7  1  Note: Additional User’s Manual can be found in the setup disk or it can be downloaded from www.airlive.com Once you have everything, you can begin setting up the camera     Mounting the IP Camera To mount the camera to the wall or ceiling, you will need some addition tools as follow:  ...
  • Page 9 If you are mounting onto a wooden surface, you do not need the anchor. Use a 1/8 drill bit instead of a 3/16” drill bit when you are mounting onto a wooden surface AirLive POE‐100CAMv2 User’s Manual  8 ...
  • Page 10                 Fasten the mounting connector to the back of the camera   Step 6                   Fasten the mounting shaft onto the mounting base AirLive POE‐100CAM v2 User’s Manual  9 ...
  • Page 11   Step 7 Fasten the camera (using the other end of the connector) to the shaft Step 9 Adjust the camera to your desire position and tighten the screw AirLive POE‐100CAMv2 User’s Manual  10 ...
  • Page 12   Step 10 Step 11 If you are using LAN instead of WI-FI, Attach the power cord to the camera connect the LAN cable to the camera And you are done. AirLive POE‐100CAM v2 User’s Manual  11 ...
  • Page 13 Step 3 Step 4 Follow the on screen instructions to Click “Yes” to begin installation install the software. You must install the Xvid Codec if you had not previously installed the codec. AirLive POE‐100CAMv2 User’s Manual  12 ...
  • Page 14 You can also open the application from create on your desktop. Click on the the Start Menu shortcut to open the Camera Setup application Step 2 The application will begin to search for IP Camera in the network AirLive POE‐100CAM v2 User’s Manual  13 ...
  • Page 15 If the text listing your IP Camera is show in red, you will need to initialize your camera. Click on the Setup button on the right Step 4 You will be prompt for username and password. The default username and password for AirLive IP Camera are as follows:   Step 5 After you enter the username and password, the next screen shows the Product Name and the firmware version.
  • Page 16 If you are using PPPoE services to static IP, enter the IP address here. access your Internet, enter the Otherwise leave it as automatic. information here. You can obtain Click “Next” to continue your PPPoE details from your Internet Service Provider AirLive POE‐100CAM v2 User’s Manual  15 ...
  • Page 17 Copy down the IP address of your IP Camera. You will be prompt for username and Click “Link to IE” to access the configuration password. These will be the username page of your camera and password you had create during the setup process AirLive POE‐100CAMv2 User’s Manual  16 ...
  • Page 18 If you see a yellow bar on the top of the page, click “OK” and install the ActiveX control Step 15 If you have firewall turn on, click on “Unblock” to allow the IP Camera to access your network AirLive POE‐100CAM v2 User’s Manual  17 ...
  • Page 19   Congratulation, you have successfully setup your IP Camera. Next, we will see how to setup your IP Camera with a Wireless network. AirLive POE‐100CAMv2 User’s Manual  18 ...

  • Page 20: Chapter 2 Using Ip Camera Via Mobile Phone

    2.5G Mobile Phone Viewing For 2.5G mobile phone viewing, type “<IP>/mobile.wml” into your 2.5G web browser. <IP> is the IP address of your IP camera.                                 AirLive POE‐100CAM v2 User’s Manual  19 ...

  • Page 21: Chapter 3 Using Ip Camera Via Web Browser

    •If you can’t view the recorded video file (missing video decoder), please install Xvid codec while installing Intelligent IP Installer. (For Windows 98, ME or 2000 server, the codec might not work properly. You’ll need to download Xvid codec 1.0 from the internet. AirLive POE‐100CAMv2 User’s Manual  20 ...

  • Page 22: Chapter 4 Initial Accessing The Ip Camera

      Initial accessing the IP camera Chapter 4 1. Start your web browser, and enter the IP address or host name of the AIRLIVE IP camera in the Location / Address field of your browser.   Note： • If you only want to view the video without setting page, enter “http://<IP>/index2.htm” as your web URL.

  • Page 23: Chapter 5 How To Use

    Note： • If you only want to view the video without setting page, enter “http://<IP>/index2.htm” as your web URL. 2. Use the default account “admin” and default password “airlive”. Note： • The default user name “admin” and the password are set at the factory for the administrator. You can change them in the Account Menu under Setting on page 25.

  • Page 24: Configuration Of Main Menu

    Video Buffer: Turn the Video Buffer function On/Off. The Video Buffer function makes the streaming more smoothly in unsteady network environment, but might cause a little delay in live viewing. 5.2.3 Image Setup You can use the tool bar to optimize video brightness, contrast, and saturation. AirLive POE‐100CAM v2 User’s Manual  23 ...
  • Page 25 It means the speakers of your computer are turned on to transmit the sounds from the connected IP camera(s). Similarly, means you can broadcast to the connected IP camera(s) via the Ethernet using your microphone. Video play buttons: ：Pause the current video ：Play the video. ：Stop the current video. ：Record the current video. AirLive POE‐100CAMv2 User’s Manual  24 ...

  • Page 26: Chapter 6 Setting

    Click on the “Basic” folder to display the sub folders, including System, Camera, Network, and Security. 6.1.1 System Information The Information page provides you with product factory information, including Product name, Firmware version, and Web version. Day & Time AirLive POE‐100CAM v2 User’s Manual  25 ...
  • Page 27 Factory default：Click this button to reset the device to the factory default settings. A confirmation dialogue will appear. Click OK to proceed; the network indicator on the device will start to blink. After completing adjustments to the default settings, the device will reboot automatically. Do not turn off the device until the device reboots. AirLive POE‐100CAMv2 User’s Manual  26 ...
  • Page 28 Overlay：Select to add Text Overlay or Privacy Mask on/off the display screen. Text Overlay：Enables users to see some information on the display screen, including Date/Time and user-defined text. You can also change the background color. Privacy Mask：Enables users to conceal an area of the video image. AirLive POE‐100CAM v2 User’s Manual  27 ...
  • Page 29 Multicast address: Specify the multicast server address. Video / Audio Port: Specify the transmission port number of the video data. Specify an even number from 1024 to 65534. Time-To-Live: Set the maximum TTL that multicast can pass through. AirLive POE‐100CAMv2 User’s Manual  28 ...
  • Page 30 512, 768, 1024, 1280, 1536 and 2048 kbps. Note： • The selected frame rate and bit rate are a tentative value. The actual frame rate and bit rate may be different according to the image size, the shooting scene or the network condition. AirLive POE‐100CAM v2 User’s Manual  29 ...
  • Page 31 Frame rate：Set the frame rate of the MPEG4 image. Selectable values are 5, 10, 15, 20 fps. The unit “fps” stands for “frames sent per second”. Quality Fixed Bit rate：Set the bit rate of MPEG4 image transmission for a line. Selectable values are 64, 32, and 16kbps.   AirLive POE‐100CAMv2 User’s Manual  30 ...
  • Page 32 Frame rate：Set the frame rate of the MJPEG image. Selectable values are 5, 10, 15 fps. The unit “fps” stands for “frames sent per second”. Quality Auto：The quality will be automatically decided. Fixed quality：The selectable values are Medium, Standard, Good, Detailed and Excellent. AirLive POE‐100CAM v2 User’s Manual  31 ...
  • Page 33 • When you have set the HTTP port number to a number other than 80 on the Network setting page or in the Setup Program, access the device by typing the IP address of the device on the web browser as follows: Example: when HTTP port number is set to 2000 http://192.168.1.100:2000/ 　 AirLive POE‐100CAMv2 User’s Manual  32 ...
  • Page 34 Use the following DNS server address：Select this when you set the fixed address as the IP address of DNS server. Primary DNS server：Enter the IP address of the primary DNS server. Secondary DNS server：Enter the IP address of the secondary DNS server. AirLive POE‐100CAM v2 User’s Manual  33 ...
  • Page 35 Password：Enter the password for authentication necessary for DDNS connections. Type it up to 32 characters. Re-type password：Re-type the password to confirm. Host name：Enter the host name that is registered to the DDNS server. Note： • When you want to use DDNS function, you need to register an account in DDNS server first. AirLive POE‐100CAMv2 User’s Manual  34 ...
  • Page 36 MJPEG viewer port：Enter the MJPEG viewer port number and default MJPEG viewer port is 8070. MJPEG viewer port (SSL): Enter the MPEG4 SSL viewer port and default is 8071. MPEG4 RTSP port: Enter the MPEG4 RTSP port, default value is 8050 for computer view, 8030 for mobile view. AirLive POE‐100CAM v2 User’s Manual  35 ...
  • Page 37 Subject：Type the subject/title of the e-mail up to 64 characters. With respect to mail which is sent according to the IP notification. Message Type the text of the e-mail up to 384 characters. Default value provides network information including IP, Port, MAC, Model, Firmware Version and Web Version. AirLive POE‐100CAMv2 User’s Manual  36 ...
  • Page 38 User name：Set a user name between 5 and 16 characters. Password：Set a password between 5 and 16 characters. Re-type password：Re-type the password to confirm. Viewer Mode：Set a user to Admin, Operator or Viewer mode. Viewer authentication：Allows any viewer direct access to Live View. AirLive POE‐100CAM v2 User’s Manual  37 ...
  • Page 39 HTTPS function, then set up the connection policy for different users, and click “Set Policy” to apply the settings. Create & Install: Create a self-signed certificate for HTTPS to recognize. Installed Certificate: Display or remove the properties of the installed certificate. HTTPS Connection Policy: Set HTTPS connection policy for different level of users. AirLive POE‐100CAMv2 User’s Manual  38 ...

  • Page 40: Advance

    Retype password：To confirm the password, type the same characters as you typed in the Password box. Passive mode：Set whether you use the passive mode of FTP server or not when connecting to FTP server. Select On to connect to FTP server using the passive mode. AirLive POE‐100CAM v2 User’s Manual  39 ...
  • Page 41 Effective period：Set the period when the periodical sending is effective. Always：The periodical sending is always effective. Schedule：You can specify the period when the periodical sending is effective in the schedule setting in the other section. Click Schedule and the setting menu for the effective period is displayed. AirLive WL‐2000CAM User’s Manual  40 ...
  • Page 42 Effective period：Set the period when the periodical sending is effective. Always：The periodical sending is always effective. Schedule：You can specify the period when the periodical sending is effective in the schedule setting in the other section. Click Schedule and the setting menu for the effective period is displayed. AirLive POE100CAMv2 User’s Manual  41 ...
  • Page 43 Authentication：Select the authentication required when you send an e-mail. Off: Select if no authentication is necessary when an e-mail is sent. On: When authentication is necessary an e-mail is sent, select one of the authentication methods from the followings. AirLive POE100CAMv2 User’s Manual  42 ...
  • Page 44 Alarm sending of the alarm tab is set to On, the characters standing for the sensor type added to the subject. Message：Type the text of the e-mail up to 384 characters. (A line break is equivalent to 2 characters.) 6.2.2.2 Alarm Sending AirLive POE100CAMv2 User’s Manual  43 ...
  • Page 45 • Motion Detection works only when the Video mode is set to MPEG4 and the Cropping is set to Off. 6.2.2.3 Periodical Sending You can set to send an image file by SMTP server periodically by selecting On to send the image file by SMTP server linked with setting period. AirLive POE100CAMv2 User’s Manual  44 ...
  • Page 46 HTTP server. HTTP client setting menu is composed of two tabs, General and Alarm sending. 6.2.3.1 General HTTP event: Set up the HTTP server URL, port, user ID, password, and proxy server settings. AirLive POE100CAMv2 User’s Manual  45 ...
  • Page 47 Effective period：Set the period when the periodical sending is effective. Always：The periodical sending is always effective. Schedule：You can specify the period when the periodical sending is effective in the schedule setting in the other section. Click Schedule and the setting menu for the effective period is displayed. AirLive POE100CAMv2 User’s Manual  46 ...
  • Page 48 When this is checked, the Start time and End time set to Mon (Monday) are applied to all days. In this case, the Start time and End time of the other days than Mon (Monday) cannot be input. AirLive POE100CAMv2 User’s Manual  47 ...
  • Page 49 Threshold：You can use the tool bar to set up-limit value. When detecting zone signals are over setting value, it would carry on assigned work. Sensitivity：You can use the tool bar to set down-limit value. When detecting zone signals are over setting value, it would carry on assigned work. Carry out the following steps： AirLive POE100CAMv2 User’s Manual  48 ...
  • Page 50 • Be careful! Motion Detection function don’t work with Patrol function at same time. 6.2.6 System Log The System Log function allows users to review any changes and events happened. The system starts logging automatically after started. Remote Log: Enables user to send the log data to a specified log server. AirLive POE100CAMv2 User’s Manual  49 ...
  • Page 51 When you click Alarm Input on the Advance mode menu, the Alarm input setting menu appears. You can set in this menu to control the external alarm input of I / O port on the rear of the device linked to FTP, SMTP, and HTTP sending function. 6.2.8 Setting AirLive POE100CAMv2 User’s Manual  50 ...
  • Page 52 When you do not use the Alarm output function, select Off. Recording capacity Pre-alarm period: Display the maximum recording capacity of image/audio before the alarm detection. Post-alarm period: Display the maximum recording capacity of image/audio after the alarm detection. AirLive POE100CAMv2 User’s Manual  51 ...
  • Page 53 Post alarm period: Type it with recording time of the image/audio after the alarm detection. Note：The value of Recording capacity differs depending on Image size, Bitrate (for MPEG4) and Image quality (for MPEG4 and MJPEG) in the camera setting menu. AirLive POE100CAMv2 User’s Manual  52 ...

  • Page 54: Chapter 7 Campro Express User's Manual

    AirLive CamPro Express includes the following programs: 1. Start Service: This program manages video recording, input/output events and alarm triggering; it is running as a background program of AirLive CamPro Express comes with PC boot up, for detail please refers to Section C.
  • Page 55 1024 x 768 (XVGA) or above Display Card Networking Suggestion AirLive CamPro Express is optimized for small-scale project, simple LAN or simple WAN environment. Place the system behind firewall or IP sharing device to efficiently protect this system from hackers’ attack. AirLive POE100CAMv2 User’s Manual ...

  • Page 56: Running The Installation Wizard

    【Step 3】The Installshield Wizard will check if IIS is installed at your system. If not, you can continue installing AirLive CamPro Express, but you will not be able to use the WEB monitoring feature without IIS. To Install IIS, do the following, Click “Start”.
  • Page 57   【Step 4】Click “Next” to begin the installation process. 【Step 5】Please read the License Statement and select “Yes” to accept and continue. 【Step 6】Choose Setup type and click “Next” to continue. AirLive POE100CAMv2 User’s Manual  56 ...
  • Page 58 If you would like to view video image via a browser from remote locations, select Web Component. 【Step 9】Select Program Folder Specify the Program Folder where AirLive CamPro Express icons will be installed to. Click “Next” to continue. AirLive POE100CAMv2 User’s Manual  57 ...
  • Page 59 【Step 11】Click “Next” to continue 【Step 12】Installshield Wizard Complete; click “Finish” to complete the setup. The system should start AirLive CamPro Express in 1 to 3 minutes, and the icon of AirLive CamPro Express ( ) appear in task bar of screen’s lower-right corner.

  • Page 60: Start Service Program

      Please insert AirLive CamPro Express CD into CD-ROM drive. Go to AirLive CamPro Express\Client directory to execute Setup.exe. 【Note】 (1) You may freely install Client version to whichever computer you want. (2) The rest steps are same as installing Server version.

  • Page 61: Admin Program

    7.4 Admin Program 7.4.1 Running the Admin Program 【Step1.】Select Start \All Programs \AirLive CamPro Express \ Admin 【Step2】 System Log on window. Server Location: “127.0.0.1” is the default for local server. If you want to access server from client, then please enter the IP of server to this text box.
  • Page 62 If your system does not display the screen properly, please check if your display resolution is at least 1024 x 768, and that the font size is Windows system default. AirLive CamPro Express does not support font sizes larger than the Windows system default one.
  • Page 63 Rotation: Set the interval for image rotation in Monitor split screen. Motion Rectangle: Set the square size of motion detection. Video Format Setting: Set video format corresponding to the device format. Playback Setting: For accessing and searching multiple schedule recording files. AirLive POE100CAMv2 User’s Manual  62 ...
  • Page 64 China Telecom is the default SMS service provider. If you wish to add a local SMS provider, please consult your local distributor for information on SMS providers that are able to provide service for AirLive CamPro Express 【Step1】Click “Add” to bring up the SMS window and enter the related information about your SMS provider.
  • Page 65 DNS Setting It is designed for the DNS resolution between AirLive CamPro Express server and IP device. Your video IP device will connect server via IP address of server if you did not enable DNS Resolution. But your IP device will connect server via Domain Name which your server registered, so that alarm action could be executed.
  • Page 66 IP changes periodically due to the policy of your network administrator, please check “Enable DNS resolution”, so any alert message could be delivered to AirLive CamPro Express from camera no matter what IP your server is assigned. Enter the Domain Name your computer registered to “DNS of this PC”...
  • Page 67 Allocation: The storage allocation should be no less than 2 GB. Threshold: When the image data exceeds 90% of allocation, AirLive CamPro Express will trigger a warning message to related parties. Threshold no less than 1.8 GB. Reservation: AirLive CamPro Express will overwrite historical data when it reaches 80% of allocation.
  • Page 68 Alarm Ring Setting: there are 4 sounds effect to be selected. Any system event will trigger alarm action, please refers to Section 7.6.8.1.2 LanCam Setting – Alarm Action for detail.                 AirLive POE100CAMv2 User’s Manual  67 ...
  • Page 69       Motion Rectangle By selecting Motion Rectangle button from the Menu Bar, you can set the square size of detected area.           AirLive POE100CAMv2 User’s Manual  68 ...
  • Page 70 【Step 1】Select User icon in the System Setup area, then click the New User button the Menu Bar. 【Step2】Enter user information in the “General” Tab. 【Note】For security concern, it is recommended to assign Password and tick the box for password changing and validation. AirLive POE100CAMv2 User’s Manual  69 ...
  • Page 71 Then click the Edit User button in the Menu Bar. 【Step2】Modifying user Information You may change the information by modifying the general information or user belongs of that user.                 AirLive POE100CAMv2 User’s Manual  70 ...
  • Page 72 【Step1】 Select the User icon in the System Setup area, then click Add User Group button the Menu Bar to add the user group’ s data. 【Step2】 Give a name to the new group and group the selected users here in one step. AirLive POE100CAMv2 User’s Manual  71 ...
  • Page 73 Then click the Edit User button in the Menu Bar. 【Step2】Modify User group Information. You may change the information by modifying the general information or function of that user group.                 AirLive POE100CAMv2 User’s Manual  72 ...
  • Page 74 7.4.5 Area and eMap management   Area refers to the geography and device scope of AirLive CamPro Express. Area is a prerequisite of any device setting (device includes: video server, LanCam, camera image, relay or sensor), AirLive CamPro Express provides multi-areas to meet user different requirement.
  • Page 75 Auto Add Device: This button allows you to automatically search all IP cameras/Video server that are located at the same subnet within a LAN environment. Auto add device just support   the IP cameras/Video server with UPnP supported. AirLive POE100CAMv2 User’s Manual  74 ...
  • Page 76 【Step2】Click Add Area button from the Menu Bar. An Area Setting window will pop up. Enter the name to the “Area Name” textbox. 【Step3】Click “Create” to save setting, a newly created area demonstrate as following: Before Add Area After Add Area AirLive POE100CAMv2 User’s Manual  75 ...
  • Page 77 Resize eMap Icon 【Step1】 Select Device Ratio button in the Menu Bar. A Resize eMap icon window pops up. 【Step2】Select the ratio of device and click “OK”, the icon display in eMap interface will change it’s ratio accordingly. AirLive POE100CAMv2 User’s Manual  76 ...
  • Page 78 New device should be added and configured in AirLive CamPro Express Admin program. The following section will explain the details of LanCam, video server, and I/O Controller setting. The supported H/W manufactures and models for each device can be found in the AirLive CamPro Express Hardware Support list.
  • Page 79 【Note】 You can edit the device information through LanCam/Video Server/IO Controller setting. LanCam Select LanCam icon When select LanCam icon in System Setup area, the buttons display in Menu Bar as left bar. AirLive POE100CAMv2 User’s Manual  78 ...
  • Page 80 Remove LanCam: to remove the configuration of a selected LanCam including the image under it. HW Password: to change the User Name or Password of selected LanCam from AirLive CamPro Express or to sync with the direct change in device.

  • Page 81: Image Setting

    Save Location Schd1: here display the alias of recorded path. For detail, please refer to Section D.3.5. Storage. Recording Type: Schedule recording could be activated by clicking to select “Always” or “Schedule”, and check Recording Type of “Motion Detection” to significantly reduce the storage of schedule recording.   AirLive POE100CAMv2 User’s Manual  80 ...
  • Page 82 【Step1】Select the Image icon and click Image Setting button to bring up the Image setting window. 【Step2】Select “Recording Type” Check the Schedule in Recording Type first, and   you will find that the Schedule Setting button is enabled. AirLive POE100CAMv2 User’s Manual  81 ...
  • Page 83 If an error message pops up, please check if any related device is unable to connect due to the information described in Error Message window. Solve the problem, and then go back to LanCam Setting button to configure this device again. AirLive POE100CAMv2 User’s Manual  82 ...
  • Page 84 【Step5】Click “Add”… to add new Alarm Action.(Detail please refers to Section 7.6.8.1.2 LanCam Setting – Image Alarm) 【Step6】Click “OK” to save all alarm action configuration (including “Add”, “Modify”, “Remove” and “Copy”) and dismiss this window. Click “Cancel” to ignore all configurations and dismiss this window. AirLive POE100CAMv2 User’s Manual  83 ...
  • Page 85 Set alarm triggered by Camera-image 1 and records the video of Camera-image 2: Select Camera-image 1 icon in System setup Area and click Image Alarm button from Menu bar, then select “Alarm action” by Recording and “Acting Device” by “Camera-image 2”.         AirLive POE100CAMv2 User’s Manual  84 ...

  • Page 86: Preset Setting

    [Note] This will also overwrite the previous setting stored in this preset location. Preset locations can not be removed. Set the other preset locations in the same process. Click “Exit” to leave this dialog. AirLive POE100CAMv2 User’s Manual  85 ...

  • Page 87: Motion Detection

    【Note】The size of red frame is configurable in Motion Detection Granularity, details please refer to Section D.3.8. Motion Rectangle. Different camera may have different interface for motion detection adjustment. Some may require you to install Active-X components. AirLive POE100CAMv2 User’s Manual  86 ...
  • Page 88 Current UserName/Password： The default value for current username and current password is same as device default. New UserName/Password： Change information and save to both AirLive CamPro Express and Web configuration of selected device. 【Step2】Click OK to save the setting. AirLive POE100CAMv2 User’s Manual  87 ...

  • Page 89: Sensor Setting

      【Note】When to configure? AirLive CamPro Express system default are same as device default, only when you want to change PW from AirLive CamPro Express or when you find the PW of device has been changed in web configuration program Sensor (Digital Input) Many video gateways and LAN cameras has GPIO port.
  • Page 90 System Setup tree, the toolbar becomes: The button on the right will only appear if you select a configured relay. Relay Settings Click [Relay Setting] button and the Relay Setting dialog will appear, as shown below: AirLive POE100CAMv2 User’s Manual  89 ...
  • Page 91 (b) Area Zoom：to enlarge background from the specified area selected by mouse (c) eMap Shift：to move the background (d) Center Zoom In：to enlarge background from the center (e) Center Zoom Out：to downsize background from the center (f) Default Size：back to the default size and location AirLive POE100CAMv2 User’s Manual  90 ...

  • Page 92: Monitor Program

      7.5 Monitor Program AirLive CamPro Express Monitor program could be selected from the Program Path; user may log on monitor program through Monitor.exe or Web monitor. You may access AirLive CamPro Express server thru IE browsing by entering the URL. (Format is: IP address of server and \Web. Example are:127.0.0.1\Web) 7.5.1...
  • Page 93 Video display area display video of single camera or split screen of multiple cameras, when you want to control a camera in your monitor program, you may click the split-ed screen and it will be covered by a red-frame. AirLive POE100CAMv2 User’s Manual  92 ...
  • Page 94 Live video could be manually recorded in the local computer by clicking the Local Record button, so that user could record live video easily and save in any local computer. Start Local Record 【Step1】 Select a camera from display area by a red frame. 【Step2】Click “Local Record” button to start the recording. AirLive POE100CAMv2 User’s Manual  93 ...
  • Page 95 Click “Pause” button to get a still image first, then click “Snapshot” button to save the image in JPG format (please refer to Section 7.7.5.4 Snapshot) Transfer to AVI Click the “Record AVI” to export the image to the AVI format. Assign a file name, a location, and a vide compression option. AirLive POE100CAMv2 User’s Manual  94 ...
  • Page 96 7.5.6 PT Control Interface If your IP camera or analogue camera under Video Server has PTZ function, you may use AirLive CamPro Express control interface to view different angle of Camera by clicking button on PT Control Interface. AirLive POE100CAMv2 User’s Manual ...
  • Page 97 Control facility via “Relay Setting” may involve electronic danger, please consult your system integrator and get their professional support. “Relay Setting” button use the same button of Cancel Alarm, the text varies according to alarm 【Note】 status. AirLive POE100CAMv2 User’s Manual  96 ...
  • Page 98 【Step3】 Click the “Query”, a query result will appear in the upper left table. 【Step4】Select the file you want to display. Take a Snapshot (For detail, please refer to 7.7.5.4 Snapshot) Record AVI (For detail, please refer to Section 7.7.5.2 Local Play – Transfer to AVI) AirLive POE100CAMv2 User’s Manual  97 ...
  • Page 99 【Step4】You can print out the query by clicking the “Print” or “Export” button. 【Step5】Select the Export support list, assign export format and destination support. Text, Excel and Word are all supported. 【Step6】Select an alarm log and click it to bring up a window to get the alarm action detail. AirLive POE100CAMv2 User’s Manual  98 ...
  • Page 100 When the image rotation is enabled. 7.8 Alarm eMap An E-Map with the device that triggered the alarm will pop up in the E-Map display area. 7.9 Alarm Notification Log The most up-to-date alarm was logged in the alarm notification log. AirLive POE100CAMv2 User’s Manual  99 ...

  • Page 101: Web Monitor

    Logon Web Monitor Log on Web Monitor from server Start Program Files AirLive CamPro Express Web Monitor。 Log on Web Monitor from client You may open IE browser and entering the URL in the format of server IP and “\Web”. (Example http://localhost/Web/) 【Step1】System will bring up IE and...

  • Page 102: Multi Playback

    Multi Playback is a program designed for quickly accessing and searching multiple schedule recording files. Since this program will consume a large amount of memory and CPU time, it is strongly recommended that this program only run on a remote computer, not on the server itself. AirLive POE100CAMv2 User’s Manual  101 ...
  • Page 103   7.7.1 Running Multi Playback Program 【Step1】Select Start/All Programs/AirLive CamPro Express/ Multi playback. 【Step2】System Log on window. If this is the first time you login, use Administrator as default user name and leave the password blank, then click OK to log into the system.
  • Page 104 【Step 1】Click “Recording history query” button   from the Function Area. Then click to bring up the Playback Group configuration window. 【Step 2】Playback Group Setting. Add a new playback group. Click [Add] button at the group window.           AirLive POE100CAMv2 User’s Manual  103 ...
  • Page 105 Modify an existing playback group by first select a playback group and then click “Modify”. The system will show the window to modify group. Use the split screen to select playback location and to select/unselect cameras in the group.   AirLive POE100CAMv2 User’s Manual  104 ...
  • Page 106 The system will playback all recordings shown in the query result window. During the multiple playback, double clicking any screen will switch the display to single channel mode. The playback can be controlled with the following.       AirLive POE100CAMv2 User’s Manual  105 ...
  • Page 107 Move the slider toward “slow” will slow down the playback. Move the slider toward fast will increase the playback speed. Playback Control: Use the pointer in the control area to operate the   video. AirLive POE100CAMv2 User’s Manual  106 ...
  • Page 108 Video Display and Query Result Area Depending on the function in use and query criteria selected, this area will show either query result for recording history or multiple channel playback for historical recordings AirLive POE100CAMv2 User’s Manual  107 ...
  • Page 109   Query Criteria Area Query criteria area provides user ability to specify query criteria for searching historical recording. 7.7.3 Exiting the Multi Playback Click the “Exit” button to exit the Multi Playback program. AirLive POE100CAMv2 User’s Manual  108 ...
  • Page 110   Case Study Setting up your home surveillance system     In order to set up AirLive WL-2000CAM and WMU-6500FS as a surveillance system for   your home or office, you need to do the following configurations      ...
  • Page 111 Selection Panel will now be displayed. Leave it as it is and click on the “User Configuration” button Step 5  If you are prompt to create a private directory first, click “OK” and continue with steps 6 - 9. Otherwise, skip to step AirLive POE100CAMv2 User’s Manual  110 ...
  • Page 112 Once you are ready, click “Apply” Step 7  Step 8  Click “OK” to confirm the reformatting of your The hard disk will now reformat hard disk NOTE: Please ensure you back up all data before you proceed, as this will erase your hard disk. AirLive POE100CAMv2 User’s Manual  111 ...
  • Page 113 Step 10 Select Storage Configuration Access Control and click on the “User Configuration” button Step 11 Enter a username and password to access the private data. Leave the quota blank and click “Add” when done AirLive POE100CAMv2 User’s Manual  112 ...
  • Page 114 Step 2 Enter the following FTP Server Name (this is the IP address of your WMU-6500FS) User name and password (this is the user name and password you set for private partition) Leave the Passive Mode as “On” AirLive POE100CAMv2 User’s Manual  113 ...
  • Page 115 You must first create the folder from your file browser) Enter a file name to be use for your images/footage (this can be any name you desire) Click on the “Motion Detection” checkbox and click on the “Motion Detection” button AirLive POE100CAMv2 User’s Manual  114 ...
  • Page 116 Step 7 Define the capture zone by resizing the red box. Set the Threshold to the middle and adjust the sensitivity level that you prefer Repeat the same for the 2 capture zone Step 8 Click “OK” when done AirLive POE100CAMv2 User’s Manual  115 ...
  • Page 117   Step 9 Click “OK” to save the setting and you are done. Step 10 If your Motion Detection is being activated, you will be able to see the capture images store in the WMU-6500FS AirLive POE100CAMv2 User’s Manual  116 ...
  • Page 118           Click “Continue”. STEP 1:               STEP 2: Start Control Panel Program and Features Click Turn Windows features on or off. The Windows Features dialog box opens. AirLive POE100CAMv2 User’s Manual  117 ...
  • Page 119 “IIS 6 Management Compatibility”, then select the “IIS 6 Management Console, IIS 6 Scripting Tools, IIS 6 WMI Compatibility, IIS Metabase and IIS 6 Configuration Compatibility“ check box.                     AirLive POE100CAMv2 User’s Manual  118 ...
  • Page 120 Double-click (or expand) World Wide Web Services, double-click Application Development Features, then select the ASP and ISAPI Extensions check box.                                         AirLive POE100CAMv2 User’s Manual  119 ...
  • Page 121 APPENDIX b. Security Setting in Web Monitor under Vista   STEP 1: Launch Internet Explorer Browser Select Internet Options Select Security tab Choose Trusted sites and click Sites button. STEP 2: Input the web server IP, example: http://127.0.0.1.     AirLive POE100CAMv2 User’s Manual  120 ...
  • Page 122               STEP 3: Select Trusted sites then click “Custom level…” button.           STEP 4: Find Initialize and script ActiveX controls not marked as safe option, then select “Enable”. AirLive POE100CAMv2 User’s Manual  121 ...
  • Page 123 1536 1600 320*240 1024 1000 320*240 1024 1000 320*240 320*240 160*120 1024 160*120 1024 160*120 160*120 160*120 160*120 A.3 MJPEG @ 15fps / kbps Quality 640*480 320*240 160*120 Excellent 4000 1500 Detailed 2400 Good 1600 Standard 1300 Medium AirLive POE100CAMv2 User’s Manual  122 ...
  • Page 124 4000 640*480 Excellent 1600 640*480 Good 1600 640*480 Good 640*480 Medium 640*480 Medium 320*240 Excellent 1500 320*240 Excellent 320*240 Good 320*240 Good 320*240 Medium 160*120 Medium 160*120 Excellent 160*120 Excellent 160*120 Good 160*120 Good 160*120 Medium 160*120 Medium AirLive POE100CAMv2 User’s Manual  123 ...
  • Page 125 22.2 640*480 1536 18.5 640*480 1536 17.9 640*480 1024 10.5 640*480 1024 10.5 640*480 640*480 320*240 1536 15.8 320*240 1536 16.9 320*240 1024 10.5 320*240 1024 10.5 320*240 320*240 160*120 1024 10.0 160*120 1024 160*120 160*120 160*120 160*120 AirLive POE100CAMv2 User’s Manual  124 ...

  • Page 126: Chapter 8 Technical Specifications

    External microphone input or line input Pack), mounting and connector kits, Audio compression: G.711 PCM, 8kHz, power supply 12V DC 64 kbit/s Airlive Intelligent IP Installer_ Video Multiple user access levels with Video management Security management software, for viewing, password protection,...

  • Page 127: Chapter 9 Glossary

    JPEG are examples of image file types that contain bitmaps. Because a bitmap uses this fixed raster method, it cannot easily be rescaled without losing definition. Conversely, a vector graphic image uses geometrical shapes to represent the image, and can thus be quickly rescaled. AirLive POE100CAMv2 User’s Manual  126 ...
  • Page 128 CCD sensors, which are also much more expensive to produce. Codec - In communications engineering, a codec is usually a coder/decoder. Codecs are used in integrated circuits or chips that convert for example, analog video and audio signals into a digital format for AirLive POE100CAMv2 User’s Manual  127 ...
  • Page 129 Ethernet is the most widely installed local area network technology. An Ethernet LAN typically uses special grades of twisted pair wires. The most commonly installed Ethernet systems are 10BASE-T and 100BASE-T10, which provide transmission speeds up to 10 Mbps and 100 Mbps respectively. AirLive POE100CAMv2 User’s Manual  128 ...
  • Page 130 A gateway is often associated with both a router, which knows where to direct a given packet of AirLive POE100CAMv2 User’s Manual  129 ...
  • Page 131 2.4 GHz band. IEEE 802.11b specifies an 11 Mbit/s data rate on the 2.4 GHz band, while 802.11a allows up to 54 Mbit/s on the 5 GHz band. Image compression - Image compression minimizes the file size (in bytes) of an image. Two of the most common compressed image formats are JPEG and GIF. AirLive POE100CAMv2 User’s Manual  130 ...
  • Page 132 '.jpg' or ".jpeg." When creating a JPEG image, it is possible to configure the level of compression to use. As the lowest compression (i.e. the highest quality) results in AirLive POE100CAMv2 User’s Manual  131 ...
  • Page 133 The Moving Picture Experts Group develops standards for digital video and audio compression. It operates under the auspices of the International Organization for Standardization (ISO). The MPEG standards are an evolving series, each designed for a different purpose. AirLive POE100CAMv2 User’s Manual  132 ...
  • Page 134 PAL is the dominant television standard in Europe. PAL delivers 625 lines at 50 half-frames/second. PEM (Privacy Enhanced Mail) - An early standard for securing electronic mail. The PEM-format is often used for representing an HTTPS certificate or certificate request. AirLive POE100CAMv2 User’s Manual  133 ...
  • Page 135 A high-quality monitor is required to get the best from progressive scan. See also Interlacing. Protocol - A special set of rules governing how two entities will communicate. Protocols are found at many levels of communication, and there are hardware protocols and software protocols. AirLive POE100CAMv2 User’s Manual  134 ...
  • Page 136 RTSP is a control protocol, and a starting point for negotiating transports such as RTP, multicast and Unicast, and for negotiating codecs. RTSP can be considered a "remote control" for controlling the media stream delivered by a media server. RTSP servers typically use RTP as the protocol for the actual transport of audio/video data. AirLive POE100CAMv2 User’s Manual  135 ...
  • Page 137 Sockets are a method for communication between a client program and a server program over a network. A socket is defined as "the endpoint in a connection." Sockets are created and used with a set of programming requests or "function calls" sometimes called the sockets application programming interface (API). AirLive POE100CAMv2 User’s Manual  136 ...
  • Page 138 These two protocols (SSL is succeeded by TSL) are cryptographic protocols that provide secure communication on a network. SSL is commonly used over HTTP to form HTTPS, as used for example, on the Internet for electronic financial transactions. SSL uses public key certificates to verify the identity of the server. AirLive POE100CAMv2 User’s Manual  137 ...
