AirLive WL-2600CAM User Manual

Wireless pan-tilt night vision ip camera
Hide thumbs Also See for WL-2600CAM:
Table of Contents

Advertisement

Quick Links

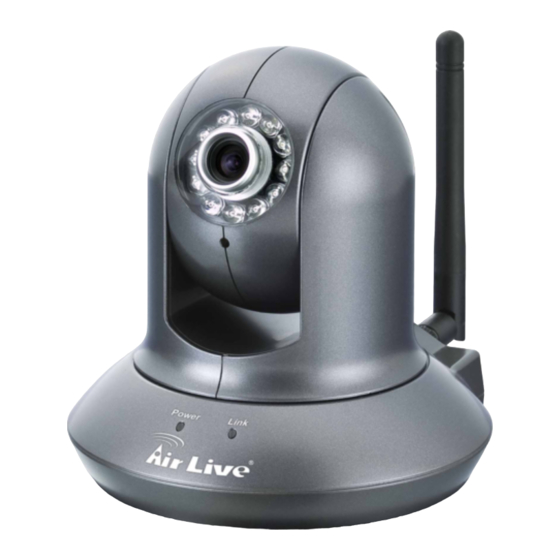

WL-2600CAM
Wireless Pan-Tilt Night Vision
IP Camera
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL-2600CAM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AirLive WL-2600CAM

Summary of Contents for AirLive WL-2600CAM

  • Page 1 WL-2600CAM Wireless Pan-Tilt Night Vision IP Camera User’s Manual...
  • Page 2 BEFORE YOU USE THIS PRODUCT This AirLive product has been designed with safety in mind. However, if not used properly electrical products can cause fires which may lead to serious body injury. To avoid such accidents, be sure to heed the following.

  • Page 3: Table Of Contents

    7.3 Patrol................................. 56 7.4 FTP Client ..............................57 7.5 SMTP................................. 64 7.6 HTTP event ............................... 73 7.7 Alarm Output ............................79 7.8 Schedule..............................83 7.9 Alarm Input ............................... 85 7.10 Motion Detection............................ 86 7.11 System Log............................. 88 AirLive WL-2600CAM User’s Manual...

  • Page 4: Chapter 1 : Minimum System Requirement

    (For Windows 98, ME or 2000 server, the codec might not work properly. You’ll need to download Xvid codec 1.0 from the internet. 3. Please always update the latest Windows component. (.Net Framework, Windows Media Player, Enhance ActiveX Security) AirLive WL-2600CAM User’s Manual...

  • Page 5: Chapter 2 : Using Ip Camera Via Web Browser

    If you only want to view the video without setting page, enter “http://<IP>/index2.htm” as your web URL. 2. Use the default account “admin” and default password “airlive”. Note : The default user name “admin” and the password are set at the factory for the administrator.
  • Page 6 3. The monitor image will be displayed in your browser. In the far left side of main configuration are Setting, Client Setting, and Image Setup and PT control. For more details, you can check Chapter 6.2、Chapter 6.3、Chapter 6.4 and Chapter 6.5. AirLive WL-2600CAM User’s Manual...

  • Page 7: Mac Web Browser

    1. Click the Safari icon, and enter the IP address of the IP camera in the Location / Address field of your browser. Note : If you only want to view the video without setting page, enter “http://<IP>/index2.htm” as your web URL. AirLive WL-2600CAM User’s Manual...
  • Page 8 2. Use the default account “admin” and default password “airlive”. Note : The default user name “admin” and the password are set at the factory for the administrator. You can change them in the Account Menu (Please check “Setting → Basic → Security → Account”)
  • Page 9 3. The monitor image will be displayed in your browser. In the far left side of main configuration are Setting, Client Setting, and Image Setup and PT control. For more details, you can check Chapter 6.2、Chapter 6.3、Chapter 6.4 and Chapter 6.5. AirLive WL-2600CAM User’s Manual...

  • Page 10: Chapter3: Setting Up Wireless Configuration

    3. Then click “Refresh”. All access points (AP) around you will show up. 4. Select the AP you wish to connect. 5. Enter password at active transmit key if you need. If you don't know the setting of the wireless AP, please ask your network administrator. AirLive WL-2600CAM User’s Manual...
  • Page 11 6. Choose the option of Obtain an IP address automatically (DHCP). 7. Choose the option of Obtain DNS server address automatically. AirLive WL-2600CAM User’s Manual...
  • Page 12 Primary DNS server: Enter the IP address of the primary DNS server. Secondary DNS server: Enter the IP address of the secondary DNS server, if necessary. 8. Connect to the IP camera with wireless IP address, then you can remove the Ethernet connection. AirLive WL-2600CAM User’s Manual...

  • Page 13: Chapter 4: Using Ip Camera Via Mobile Phone

    Chapter 4 : Using IP Camera via Mobile Phone 4.1. Using IP Camera via iPhone You can use AirLive Web User Interface via iPhone. Please follow the setting process below. Then you can use AirLive web UI via iPhone. 1. Select Safari function 2.

  • Page 14: Mobile Phone Viewing

    <IP> is the Public IP address of your IP camera. 4.2.3. 2.5G Mobile Phone Browser Viewing For 2.5G mobile phone viewing, type “ <IP>/mobile.htm ” into your 2.5G Web Browser. <IP> is the Public IP address of your IP camera. AirLive WL-2600CAM User’s Manual...

  • Page 15: Chapter 5: Configuration Of Main Menu

    Video Play Audio button In your right hand side, you can use Live View in your main Browser. There are Snapshot, Zoom and Audio and Video Play four different function. You can see more details as follow. AirLive WL-2600CAM User’s Manual...

  • Page 16: Live View

    Pull the to adjust the digital zoom range, and it will be showed on the above window. You can use the left click of your mouse to move the to any where on the window. AirLive WL-2600CAM User’s Manual...
  • Page 17 Speakers turned on transmit the sounds from the connected IP camera(s) Speakers turned off mean you can broadcast to the connected IP camera(s) Microphone turned on via the Ethernet using your microphone Microphone turned off Volume control bar AirLive WL-2600CAM User’s Manual...

  • Page 18: Setting

    Click Advance folder, there are four sub-folders including PT control, Preset position, Patrol, FTP Client, SMTP, HTTP event, Alarm output, Schedule, Alarm input, Motion Detection, and System Log. Fore more information, you can see Chapter 8.1、Chapter 8.2、Chapter 8.3、Chapter 8.4、Chapter 8.5、Chapter 8.6、Chapter 8.7、Chapter 8.8、Chapter 9.9、Chapter 8.10 and Chapter 8.11. AirLive WL-2600CAM User’s Manual...

  • Page 19: Client Setting

    Select the transferring protocol from TCP, UDP, HTTP and Multicast. 5.3.4 Video Buffer Turn the Video Buffer function ON / OFF. The Video Buffer function makes the streaming more live viewing. smoothly in unsteady network environment, but might cause a little delay in AirLive WL-2600CAM User’s Manual...

  • Page 20: Image Setup

    Hue is one of the three main attributes of perceived color, affected by different wavelength of color. With higher value of hue, color will be much more vivid. 5.4.5 Default After the adjustment of all setting, you can still click Default to make the setting back to the original setting. AirLive WL-2600CAM User’s Manual...

  • Page 21: Pt Control

    Click the arrow button of the direction you want the IP camera to move. 5.5.2 Other camera control functions Preset: Move the camera toward the preset direction. Patrol: Before you start this function, you need to specify Guard tour settings in the Setting Menu under Advance / Patrol setting. AirLive WL-2600CAM User’s Manual...

  • Page 22: Chapter 6: Setting-Basic

    Chapter 6 : Setting-Basic Click the folder of Basic to display the sub folders including System, Camera, Network, and Security. AirLive WL-2600CAM User’s Manual...

  • Page 23: System

    6.1 System Click the folder of System to display the sub-folders including Information, Date / Time, and Initialize. AirLive WL-2600CAM User’s Manual...
  • Page 24 6.1.1 Information The Information page provides the product factory information which includes Product Name, Firmware Version and Web Version. AirLive WL-2600CAM User’s Manual...
  • Page 25 The NTP server (Network Time Protocol) is the time server which is an Internet standard protocol built on the top of TCP / IP. This assures accurate synchronization to the millisecond of computer clock times in a network of computers. AirLive WL-2600CAM User’s Manual...
  • Page 26 Upload Language Pack: Upgrade the device language pack. Click “Browse” and select the file for upgrading. A confirmation dialogue will appear. Click “OK” to start upgrading. The upgrade is applied immediately. The default language is “English.” AirLive WL-2600CAM User’s Manual...

  • Page 27: Camera

    6.2 Camera Click the folder of Camera to display the sub folders including General, MPEG4 and MJPEG. AirLive WL-2600CAM User’s Manual...
  • Page 28 Text Overlay: You can see some information on the display screen which includes Date / Time and user-defined text. Also, you can change the background color. Privacy Mask: You can cover a specific area of the video image. AirLive WL-2600CAM User’s Manual...
  • Page 29 Image Size: Specify the image size when the network camera transmits. You can choose among 640 x 480, 320 x 240 and 160 x 120. Frame Rate: Set the frame rate of the MPEG4 image. You can choose values from 5, 10, 15, 20, AirLive WL-2600CAM User’s Manual...
  • Page 30 It is initially set to 8090. You can specify an even number from 1024 to 65534. If you change the setting of Video / Audio Port Number, the setting of Video / Audio Port Number (SSL) will change automatically. AirLive WL-2600CAM User’s Manual...
  • Page 31 Frame Rate: Set the frame rate of the MPEG4 image. You can choose values from 5, 10, 15, 20 fps. The unit “fps” stands for “frames sent per second”. Quality: Fixed Bitrate: Set the bitrate of MPEG4 image transmission for a line. You can select the value from 64, 32, 16 kbps. AirLive WL-2600CAM User’s Manual...
  • Page 32 Frame Rate: Set the frame rate of the MJPEG image. You can choose values from 5, 10, 15 fps. The unit “fps” stands for “frames per second”. Quality: Auto: The quality will be automatically decided. Fixed Quality: You can select the value of quality among Medium, Standard, Good, Delicate and Excellent AirLive WL-2600CAM User’s Manual...

  • Page 33: Network

    6.3 Network Click the folder of Network to display the sub folders including Information, PPPoE, DDNS, UPnP, Bonjour, IP Notification, Wireless and Messenger. AirLive WL-2600CAM User’s Manual...
  • Page 34 Obtain an IP address automatically (DHCP): If a DHCP server is installed on the network, to select this while the IP address is assigned by the DHCP server. Obtain DNS server address automatically: Select this to obtain the address of DNS server automatically. AirLive WL-2600CAM User’s Manual...
  • Page 35 Note: The IP Camera needs to be rebooted after it finishes changing the network setting completely. Note: If you connect the IP Camera with your computer directly, the default network domain of camera is 192.168.1.x AirLive WL-2600CAM User’s Manual...
  • Page 36 Password: Enter the password for authentication necessary for PPPoE connections. Type it up to 32 characters. Re-type password: Re-type the password to confirm. Obtain DNS server address automatically: Select this to obtain the address of DNS server automatically. AirLive WL-2600CAM User’s Manual...
  • Page 37 ADSL, VDSL or SDSL) 2. The IP Camera needs to be rebooted after it finishes changing the network completely. 3. The IP Camera with Intelligent IP Installer can’t be founded after turning on the PPPoE and reboot. AirLive WL-2600CAM User’s Manual...
  • Page 38 Password: Enter the password for authentication necessary for DDNS connections. Type it up to 32 characters. Re-type password: Re-type the password to confirm. Host name: Enter the host name that is registered to the DDNS server. AirLive WL-2600CAM User’s Manual...
  • Page 39 How to apply DDNS username and Host name?? You can apply DDNS username and Host name by the following steps: 1. Login http://www.dyndns.org, click the Create Account 2. Input all information and follow step by step with DynDNS AirLive WL-2600CAM User’s Manual...
  • Page 40 3. Login with new account and click Account → My Hosts → Add Host Services 4. Type domain in the Hostname field and select sub-domain AirLive WL-2600CAM User’s Manual...
  • Page 41 5. After typing information, check your DDNS service. 6. Type your DDNS User ID, Password and Host name in Setting → Network → DDNS. After completing setting, reboot IP Camera. AirLive WL-2600CAM User’s Manual...
  • Page 42 MJPEG viewer port: Enter the MJPEG viewer port number and default MJPEG viewer port is 8070. MJPEG viewer port (SSL): Enter the MPEG4 SSL viewer port and default is 8071. MPEG4 RTSP port: Enter the MPEG4 RTSP port, default value is 8050 for computer view, 8030 for mobile view. AirLive WL-2600CAM User’s Manual...
  • Page 43 “My Network Place” if it also enables on your computer. It provides Port Forwarding for opening a port in a router or firewall in a private network in order to let a party from the outside world contact a inside user. AirLive WL-2600CAM User’s Manual...
  • Page 44 IP addresses or configure DNS servers. Device Name: Enter Device Name you wish. Note: How to use Bonjour in your Windows Browser UI? Please check the link below: http://www.apple.com/support/downloads/bonjourforwindows.html AirLive WL-2600CAM User’s Manual...
  • Page 45 Authentication: Select the authentication required when you send an email. Off: Select if no authentication is necessary when an email is sent. On: When authentication is necessary an e-mail is sent, there are SMPT, POP before SMPT or both three options. AirLive WL-2600CAM User’s Manual...
  • Page 46 Subject: Type the subject/title of the e-Mail up to 64 characters. With respect to mail which is sent according to the IP notification. Message: Type the text of the E-mail up to 384 characters. Default value provides network AirLive WL-2600CAM User’s Manual...
  • Page 47 Note that the bit rate shown is the current rate, and that this value may vary over time. Wireless Setting These settings control how the camera interacts with the wireless network. It is also possible to AirLive WL-2600CAM User’s Manual...
  • Page 48 2. WEP (Wired Equivalent Protection) the original security standard used in wireless networks that provides a minimal level of security that can deter minor trespasses. The administrator can select the key length among 64 or 128 bit 64bits is the default setting. AirLive WL-2600CAM User’s Manual...

  • Page 49: Security

    6.4 Security Click the folder of Security to display the sub folders including Account and HTTPS. AirLive WL-2600CAM User’s Manual...
  • Page 50 6.4.1 Account The device fault account and password setting is “admin / airlive”. That means everyone who knows IP address can access the device including all configuration. It is necessary to assign a password if the device is intended to be accessed by others.
  • Page 51 When enable HTTPS with RTSP on mode, the IP Camera only protect the setting such as username and password and do not protect video and audio. When enable HTTPS with RTSP off mode, the IP Camera will protect all setting including video and audio. AirLive WL-2600CAM User’s Manual...

  • Page 52: Chapter 7: Setting-Advance

    Chapter 7 : Setting-Advance Click the folder of Advance to display the sub folders including PT control, Preset position, Patrol, FTP client, SMTP, HTTP event, Alarm output, Schedule, Alarm input, Motion detection and System Log. AirLive WL-2600CAM User’s Manual...

  • Page 53: Pt Control

    7.1.1 Setting Pan speed: Use it to move bar from 0 to 100. Tilt speed: Use it to move bar from 0 to 100. Auto Pan speed: Use it to move bar from 0 to 100. AirLive WL-2600CAM User’s Manual...

  • Page 54: Preset Position

    Delete All: Be careful! When pressing Delete All, all Preset Position information will be deleted. Delete: Select a preset number from 1 to 32 in the list box. Use it to delete specific number preset position setting. AirLive WL-2600CAM User’s Manual...

  • Page 55: Preset Position

    1. Click Order to choose one of eight orders. 2. Click Select Pos. to set the preset position. 3. Click the SET. The tour position is saved. 4. Follow the steps to set the other orders. 5. Click the OK to save the tour. AirLive WL-2600CAM User’s Manual...

  • Page 56: Ftp Client

    FTP server. FTP client setting menu is composed of two tabs, General, Alarm sending and Periodical sending. AirLive WL-2600CAM User’s Manual...
  • Page 57 Retype password: To confirm the password, type the same characters as you typed in the Password box. Passive mode: Set whether you use the passive mode of FTP server or not when connecting to FTP server. Select On to connect to FTP server using the passive mode. AirLive WL-2600CAM User’s Manual...
  • Page 58 Sequence number: A consecutive number of 10 digits between 0000000001 and 4294967295 and two fixed digits 00 is added to the Image file name. Sequence number clear: Click Clear and the suffix of the sequence number returns to 1. AirLive WL-2600CAM User’s Manual...
  • Page 59 Note: You can set motion detection at motion detection page. (Please go “Setting → Advance →Motion detection → Setting”) For more details, you can check Chapter 8.10. AirLive WL-2600CAM User’s Manual...
  • Page 60 Schedule: You can specify the period when the periodical sending is effective in the Schedule setting in the other section. Note: You can set schedule function at schedule page. (Please go “Setting → Advance → Schedule → Setting”) For more details, you can check Chapter 8.8. AirLive WL-2600CAM User’s Manual...
  • Page 61 Sequence number: A consecutive number is added to the Image file name. Sequence number clear: Click Clear and the suffix of the sequence number returns to 1. Interval: Set the periodical sending is effective interval. Min value is 1 min and Max value is 24 hour. AirLive WL-2600CAM User’s Manual...
  • Page 62 Please check “Setting → Advance→ Schedule →Setting”. Note: You can set schedule function at schedule page. (Please go “Setting → Advance → Schedule → Setting”) For more details, you can check Chapter 8.8. AirLive WL-2600CAM User’s Manual...

  • Page 63: Smtp

    The image file can also be sent periodically. E-Mail (SMTP) setting menu is composed of three tabs, General, Alarm sending and Periodical sending. AirLive WL-2600CAM User’s Manual...
  • Page 64 Authentication: Select the authentication required when you send an email. Off: Select if no authentication is necessary when an email is sent. On: When authentication is necessary an e-mail is sent, select one of the authentication methods from the followings. AirLive WL-2600CAM User’s Manual...
  • Page 65 Subject: Type the subject/title of the e-Mail up to 64 characters. With respect to mail which is sent according to the alarm detection when Alarm sending of the alarm tab is set to On, the characters AirLive WL-2600CAM User’s Manual...
  • Page 66 Message: Type the text of the E-mail up to 384 characters. (A line break is equivalent to 2 characters.) AirLive WL-2600CAM User’s Manual...
  • Page 67 Sequence number: A consecutive number of 10 digits between 0000000001 and 4294967295 and two fixed digits 00 is added to the Image file name. Sequence number clear: Click Clear and the suffix of the sequence number returns to 1. AirLive WL-2600CAM User’s Manual...
  • Page 68 Note: You can set motion detection at motion detection page. (Please go “Setting → Advance → Motion detection → Setting”) For more details, you can check Chapter 8.10. AirLive WL-2600CAM User’s Manual...
  • Page 69 Schedule: You can specify the period when the periodical sending is effective in the Schedule setting in the other section. Note: You can set schedule function at schedule page. (Please go “Setting → Advance → Schedule → Setting”) For more details, you can check Chapter 8.8. AirLive WL-2600CAM User’s Manual...
  • Page 70 Sequence number: A consecutive number is added to the Image file name. Sequence number clear: Click Clear and the suffix of the sequence number returns to 1. Interval: Set the periodical sending is effective interval. Min value is 30 min and Max value is 24 hour. AirLive WL-2600CAM User’s Manual...
  • Page 71 Please check “Setting → Basic → Advance → Schedule → Setting.” Note: You can set schedule function at schedule page. (Please go “Setting → Advance → Schedule → Setting”) For more details, you can check Chapter 8.8. AirLive WL-2600CAM User’s Manual...

  • Page 72: Http Event

    HTTP server. HTTP client setting menu is composed of two tabs, General and Alarm sending. AirLive WL-2600CAM User’s Manual...

  • Page 73: Http Event

    7.6.1 General HTTP event: Set up the HTTP server URL, port, User ID, Password, and Proxy server settings. For example: URL: 192.168.1.7/cgi-bin/operator/ptzset Note: The setting of URL should be the same as CGI AirLive WL-2600CAM User’s Manual...
  • Page 74 7.6.2 Alarm sending Set to send the mail with connection to the alarm detection by the external sensor input or by the built-in motion detection function. Select “On“ to send the image and audio file to HTTP server linked with the alarm detection.
  • Page 75 Advance → Motion detection → Setting”) For more details, you can check Chapter 8.10. Note： Motion Detection works only when the MPEG4 function is On. Parameter: the parameter of CGI (defined in URL of HTTP → General) is from your AirLive WL-2600CAM User’s Manual...
  • Page 76 target device. For example, move=down. Message: message will show up in the form of Message = PTZ down. If your target device didn’t support the parameter of message, you can’t see the message. So you can just take the message as a note. For example: PTZ down. Alarm Input: Select the connected alarm.
  • Page 77 Schedule: You can specify the period when the periodical sending is effective in the Schedule setting in the other section. Note: You can set schedule function at schedule page. (Please go “Setting → Advance → Schedule → Setting”) For more details, you can check Chapter 8.8. AirLive WL-2600CAM User’s Manual...

  • Page 78: Alarm Output

    7.7 Alarm Output When you click Alarm output on the Advance mode menu, the Alarm output setting menu appears. You can set in this menu to control the alarm out of I / O port on the rear of the device linked to the alarm detection and the timer.

  • Page 79: Alarm Output

    Alarm: Controls alarm output by synchronizing with an external sensor input or the built-in activity detection function. Motion Detection: Click it on for using Motion Detection function as a sensor. You can set motion detection function at the motion detection function page. AirLive WL-2600CAM User’s Manual...
  • Page 80 Note: You can set motion detection at motion detection page. (Please go “Setting → Advance → Motion detection → Setting”). For more details, you can check Chapter 8.10. Note：Motion Detection works only when the Video mode is set to MPEG4 and the Cropping is set to Off.
  • Page 81 Schedule: You can specify the period when the periodical sending is effective in the Schedule setting in the other section. Note: You can set schedule function at schedule page. (Please go “Setting → Advance → Schedule → Setting”) For more details, you can check Chapter 8.8. AirLive WL-2600CAM User’s Manual...

  • Page 82: Schedule

    7.8 Schedule When you click Schedule on the Advance mode menu, the Schedule setting menu appears. This is the same menu as the setting menu which is displayed when you click Schedule to set Effective period and Schedule in FTP client setting menu, e-Mail (SMTP) setting menu, Alarm out setting menu and so on. Example: When setting e-Mail (SMTP) (the alarm sending) in the Schedule setting menu.
  • Page 83 Use the same time schedule every day: When this is checked, the Start time and End time set to Mon (Monday) are applied to all days. In this case, the Start time and End time of the other days than Mon (Monday) cannot be input. AirLive WL-2600CAM User’s Manual...

  • Page 84: Alarm Input

    7.9 Alarm Input When you click Alarm Input on the Advance mode menu, the Alarm input setting menu appears. You can set in this menu to control the external alarm input of I / O port on the rear of the device linked to FTP, SMTP, and HTTP sending function.

  • Page 85: Motion Detection

    There are three Motion Detection functions as sensors to set for different detecting zones. Each one has Threshold and Sensitivity inputs which you can adjust to specific zone sequentially. Motion Detection function can support to FTP, SMTP and Alarm output for capturing and sending images or starting alarm output. AirLive WL-2600CAM User’s Manual...
  • Page 86 7.10.1 Setting Threshold: It means the extent which the alarm will be triggered. Sensitivity: It means that how often the sensor will scan the image different. The higher sensitivity it is and the more frequently it scans. Motion Detection 1: Click it on for using Motion Detection 1 function as a sensor. You can adjust and move the detecting zone by using mouse.

  • Page 87: System Log

    The System Log function allows users to review any changes and events happened. The system starts logging automatically after started. 7.11.1 Setting Enable remote log: Enables user to send the log data to a specified log server. AirLive WL-2600CAM User’s Manual...
  • Page 88 CHAPTER 8 : APPENDIX APPENDIX A – FRAME RATE & BIT RATE TABLE This chapter provides tables that help you to optimize your IP camera with your network environment. Base on your network upload environment to choose the best Image-Quality setting. For example, if the network environment is ADSL 256Kb(upload) / 2Mb(download), the most fluent Image-Quality needs to set up under 256 Kb situation.
  • Page 89 Excellent 1600 640*480 Good 1600 640*480 Good 640*480 Medium 640*480 Medium 320*240 Excellent 1500 320*240 Excellent 320*240 Good 320*240 Good 320*240 Medium 160*120 Medium 160*120 Excellent 160*120 Excellent 160*120 Good 160*120 Good 160*120 Medium 160*120 Medium AirLive WL-2600CAM User’s Manual...
  • Page 90 APPENDIX B – STORAGE REQUIREMENT TABLE This chapter provides tables that help you set your recording storage system. Please refer to the following table to find out the capability for recording into your hard disk. B.1 MPEG4 Storage Requirement GB / channel / day @ 30fps Quality 640*480 320*240...
