AirLive POE-200CAM User Manual

1/3 sharp ccd dual stream dom ip camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

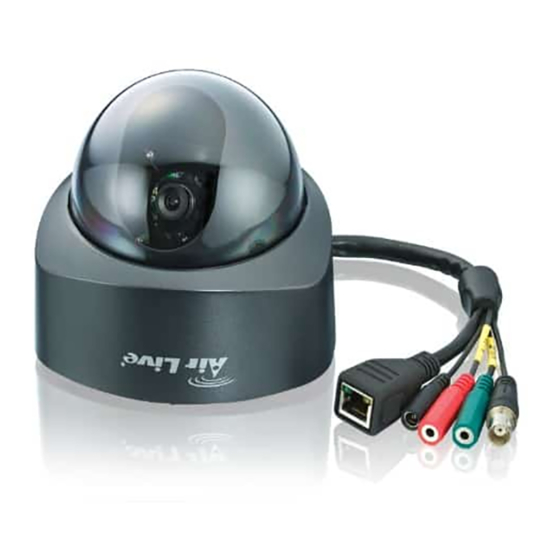

POE-200CAM
1/3 Sharp CCD Dual Stream
DOM IP Camera
User's Manual
AirLive POE-200CAM User's Manual
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POE-200CAM and is the answer not in the manual?

Questions and answers

Related Manuals for AirLive POE-200CAM

Summary of Contents for AirLive POE-200CAM

  • Page 1 POE-200CAM 1/3 Sharp CCD Dual Stream DOM IP Camera User’s Manual AirLive POE-200CAM User’s Manual...

  • Page 2: Declaration Of Conformity

    5F., NO.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County, Taiwan Declare that the product 1/3 Sharp CCD Dual Stream DOM IP Carema AirLive POE-200CAM is in conformity with In accordance with 2004/108/EC Directive and 1999/5 EC-R & TTE Directive Clause Description ■...
  • Page 3 Directiva disposiciones aplicables o exigibles de la 1999/5/CE. Directiva 1999/5/CE. ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ OvisLink Corp. ΔΗΛΩΝΕΙ OvisLink Corp izjavlja, da je ta AirLive POE-200CAM Ελληνική [Greek] ΟΤΙ AirLive POE-200CAM ΣΥΜΜΟΡΦΩΝΕΤΑΙ Slovensko v skladu z bistvenimi zahtevami in ostalimi ΠΡΟΣ...

  • Page 4: Before You Use This Product

    Before you use this Product This AirLive product has been designed with safety in mind. However, if not used properly electrical products can cause fires which may lead to serious body injury. To avoid such accidents, be sure to heed the following.

  • Page 5: Table Of Contents

    Schedule ......................37 4.2.5 Alarm Buffer ....................38 4.2.6 Motion Detection .................... 39 4.2.7 System Log..................... 41 Appendix A – Frame Rate & Bit Rate Table ..........42 Appendix B – Storage Requirement Table ........... 46 AirLive POE-200CAM User’s Manual...

  • Page 6: Chapter 1: Installation

    Chapter 1: Installation Installation Steps Follow these steps to install the AirLive POE-200CAM on your Ethernet: 1. Check the package contents against the list below. 2. Set the device. See IP Installer User Manual on the available methods. Package Contents...

  • Page 7: Chapter 2: Using Ip Camera Via Mobile Phone

    • You can also use RTSP clients (RealPlayer, MPlayer, Windows Media Player, Quicktime…etc.) to view RTSP streaming, just type in “rtsp://<IP>:<PORT>/video.3gp” as the Player’s URL 2.5G Mobile Phone viewing For 2.5G mobile phone viewing, type “<IP>/mobile.wml” into your 2.5G web browser. <IP> is the IP address of your IP camera. AirLive POE-200CAM User’s Manual...

  • Page 8: Chapter 3: Using Ip Camera Via Web Browser

    •If you can’t view the recorded video file (missing video decoder), please install Xvid codec while installing Intelligent IP Installer. (For Windows 98, ME or 2000 server, the codec might not work properly. You’ll need to download Xvid codec 1.0 from the internet. AirLive POE-200CAM User’s Manual...

  • Page 9: Camera Installation

    4. The Software scans the network and finds the IP Camera, then list in the dialog box. 5. If the Camera’s IP address is in the same IP segment as your LAN, select the founded IP Camera and click “Link to IE” to proceed. AirLive POE-200CAM User’s Manual...
  • Page 10 Note that the text color of the listed IP Camera is red if it is not in same the IP segment with your PC. 7. Follows setup instruction to change the IP address of the IP Camera. Change IP Here AirLive POE-200CAM User’s Manual...

  • Page 11: Initial Accessing The Ip Camera

    If you need a public IP for your Router, please contact your ISP for the service. Initial accessing the IP camera 1. Start your web browser, and enter the IP address or host name of the AIRLIVE IP camera in the Location / Address AirLive POE-200CAM User’s Manual...
  • Page 12 Note： • If you only want to view the video without setting page, enter “http://<IP>/index2.htm” as your web URL. Use the default account “admin” and default password “airlive”. Note： • The default user name “admin” and the password are set at the factory for the administrator. You can change them in the Account Menu under Setting.

  • Page 13: Configuration Of Main Menu

    Mode: Click the pulldown box to choose between MPEG4 and MJPEG video compression mode. Note：MJPEG streaming is unavailable if RTSP mode is ON. View Size: Select the desired display image resolution to 640X480 or 320X240. Protocol: Select the transferring protocol from TCP, UDP, HTTP and Multicast. AirLive POE-200CAM User’s Manual...

  • Page 14: Image Setup

    2. Pull the to adjust the digital zoom range, and it will be showed on the above window. 3. You can use the left click of your mouse to move the to any where on the window. AirLive POE-200CAM User’s Manual...

  • Page 15: Audio Buttons

    It means the speakers of your computer are turned on to transmit the sounds from the connected IP camera(s). Similarly, means you can broadcast to the connected IP camera(s) via the Ethernet using your microphone. Video play buttons: ：Pause the current video ：Play the video. ：Stop the current video. ：Record the current video. AirLive POE-200CAM User’s Manual...

  • Page 16: Chapter 4: Setting

    Basic Click the “Basic” folder to display the sub folders, including System, Camera, Network, and Security. 4.1.1 System Information The Information page provides you with product factory information, including Product name, Firmware version, and Web version. AirLive POE-200CAM User’s Manual...
  • Page 17 NTP server name：Type the host name or IP address of the NTP server, up to 64 characters. Time zone：Select the time zone and time difference from Greenwich Mean Time in the area where the device is installed from the pulldown box. AirLive POE-200CAM User’s Manual...
  • Page 18 • Do not turn off the device power or disconnect the network until the upgrading is completed. Upload language pack：Upgrade the device language pack. Click Browse and select the file for upgrading. A confirmation dialogue will appear. Click OK to start upgrading. The upgrade is applied immediately. The default language is “Englsh” AirLive POE-200CAM User’s Manual...

  • Page 19: Camera

    Overlay：Select to add Text Overlay or Privacy Mask on/off the display screen. Text Overlay：Enables users to see some information on the display screen, including Date/Time and user-defined text. You can also change the background color. Privacy Mask：Enables users to conceal an area of the video image. AirLive POE-200CAM User’s Manual...
  • Page 20 Multicast address: Specify the multicast server address. Video / Audio Port: Specify the transmission port number of the video data. Specify an even number from 1024 to 65534. Time-To-Live: Set the maximum TTL that multicast can pass through. AirLive POE-200CAM User’s Manual...
  • Page 21 512, 768, 1024, 1280, 1536 and 2048 kbps. Note： • The selected frame rate and bit rate are a tentative value. The actual frame rate and bit rate may be different according to the image size, the shooting scene or the network condition. AirLive POE-200CAM User’s Manual...
  • Page 22 Image Size: The Image size of Mobile view is fixed at 176x120. Frame rate：Set the frame rate of the MPEG4 image. Selectable values are 5, 10, 15, 20 fps. The unit “fps” stands for “frames sent per second”. Quality AirLive POE-200CAM User’s Manual...
  • Page 23 Fixed Bitrate：Set the bit rate of MPEG4 image transmission for a line. Selectable values are 64, 32, and 16kbps.. AirLive POE-200CAM User’s Manual...
  • Page 24 Frame rate ： Set the frame rate of the MJPEG image. Selectable values are 5, 10, 15 fps. The unit “fps” stands for “frames sent per second”. Quality Auto：The quality will be automatically decided. Fixed quality：The selectable values are Medium, Standard, Good, Detailed and Excellent. AirLive POE-200CAM User’s Manual...

  • Page 25: Network

    HTTP port number：Select 80 in general situations. If you want to use a port number other than 80, select the text box and enter a port number between 1024 and 65535. Note： • When you have set the HTTP port number to a number other than 80 on the Network setting page or in AirLive POE-200CAM User’s Manual...
  • Page 26 Use the following DNS server address：Select this when you set the fixed address as the IP address of DNS server. Primary DNS server：Enter the IP address of the primary DNS server. Secondary DNS server：Enter the IP address of the secondary DNS server. DDNS AirLive POE-200CAM User’s Manual...
  • Page 27 “My Network Places.” It provides port forwarding for opening a port in a router or firewall in a private network in order to let a party from the outside world contact a user inside. AirLive POE-200CAM User’s Manual...
  • Page 28 MJPEG viewer port：Enter the MJPEG viewer port number and default MJPEG viewer port is 8070. MJPEG viewer port(SSL): Enter the MPEG4 SSL viewer port and default is 8071. MPEG4 RTSP port: Enter the MPEG4 RTSP port, default value is 8050 for computer view, 8030 for mobile view. AirLive POE-200CAM User’s Manual...
  • Page 29 SMTP server which sends e-mails performs authentication. Recipient e-mail address：Type the recipient e-Mail address up to 64 characters. You can specify up to three recipient E-mail addresses. Administrator e-mail address：Type the Administrator e-Mail address up to 64 characters. This address is used AirLive POE-200CAM User’s Manual...
  • Page 30 Subject：Type the subject/title of the e-Mail up to 64 characters. With respect to mail which is sent according to the IP notification. Message Type the text of the E-mail up to 384 characters. Default value provides network information including IP, Port, MAC, Model, Firmware Version and Web Version. AirLive POE-200CAM User’s Manual...

  • Page 31: Security

    Security Account The device default account and password setting is “admin/airlive”. That means everyone might access the device including the configuration as long as the IP address is known. It is necessary to assign a password if the device is intended to be accessed by others. Use this menu to set the user names and passwords of Administrator and up to 9 different users (User 1 to User 9), and the access right of each user.
  • Page 32 HTTPS function, then set up the connection policy for different users, and click “Set Policy” to apply the settings. Create & Install: Create a self-signed certificate for HTTPS to recognize. Installed Certificate: Display or remove the properties of the installed certificate. HTTPS Connection Policy: Set HTTPS connection policy for different level of users. AirLive POE-200CAM User’s Manual...

  • Page 33: Advance

    Password：Type the password for the FTP server. Retype password：To confirm the password, type the same characters as you typed in the Password box. Passive mode：Set whether you use the passive mode of FTP server or not when connecting to FTP server. AirLive POE-200CAM User’s Manual...
  • Page 34 (pre-alarm, post-alarm). If you do not select it, only the image of the moment of the alarm detection is forwarded. Click Alarm buffer to display the Alarm buffer setting menu. For details, see “Setting the Alarm AirLive POE-200CAM User’s Manual...
  • Page 35 Sequence number：A consecutive number is added to the Image file name. Sequence number clear：Click Clear and the suffix of the sequence number returns to 1. Interval：Set the periodical sending is effective interval. Min value is 1 min and Max value is 24 hour. AirLive POE-200CAM User’s Manual...

  • Page 36: Smtp

    General, Alarm sending and Periodical sending. 4.2.2.1 General Select On when you use the SMTP function. The common setting options are displayed below. If you do not wish to use the e-Mail (SMTP) function, select Off and click OK. Note： AirLive POE-200CAM User’s Manual...
  • Page 37 Alarm sending of the alarm tab is set to On, the characters standing for the sensor type added to the subject. Message：Type the text of the E-mail up to 384 characters. (A line break is equivalent to 2 characters.) AirLive POE-200CAM User’s Manual...
  • Page 38 (pre-alarm, post-alarm). If you do not select it, only the image of the moment of the alarm detection is forwarded. Click Alarm buffer to display the Alarm buffer setting menu. For details, see “Setting the Alarm AirLive POE-200CAM User’s Manual...
  • Page 39 Schedule：You can specify the period when the periodical sending is effective in the schedule setting in the other section. Click Schedule and the setting menu for the effective period is displayed. (“Setting the Schedule — Schedule setting Menu” on page 34) AirLive POE-200CAM User’s Manual...

  • Page 40: Http Event

    HTTP server. HTTP client setting menu is composed of two tabs, General and Alarm sending. 4.2.3.1 General HTTP event: Set up the HTTP server URL, port, user id, password, and proxy server settings. AirLive POE-200CAM User’s Manual...
  • Page 41 Always：The periodical sending is always effective. Schedule：You can specify the period when the periodical sending is effective in the schedule setting in the other section. Click Schedule and the setting menu for the effective period is displayed. AirLive POE-200CAM User’s Manual...

  • Page 42: Schedule

    When this is checked, the Start time and End time set to Mon (Monday) are applied to all days. In this case, the Start time and End time of the other days than Mon (Monday) cannot be input. AirLive POE-200CAM User’s Manual...

  • Page 43: Alarm Buffer

    Post alarm period：Type it with recording time of the image/audio after the alarm detection. Note： • The value of Recording capacity differs depending on Image size, Bitrate (for MPEG4) and Image quality (for MPEG4 and MJPEG) in the camera setting menu. AirLive POE-200CAM User’s Manual...

  • Page 44: Motion Detection

    Threshold ： You can use the tool bar to set up-limit value. When detecting zone signals are over setting value, it would carry on assigned work. Sensitivity：You can use the tool bar to set down-limit value. When detecting zone signals are over setting value, it would carry on assigned work. AirLive POE-200CAM User’s Manual...
  • Page 45 3. Use tool bar to set Threshold and Sensitivity value. 4. Follow the steps to set the other Motion Detection. 5. Click the OK to save the setting. Note： • Be careful! Motion Detection function don’t work with Patrol function at same time. AirLive POE-200CAM User’s Manual...

  • Page 46: System Log

    System Log The System Log function allows users to review any changes and events happened. The system starts logging automatically after started. Remote Log: Enables user to send the log data to a specified log server AirLive POE-200CAM User’s Manual...

  • Page 47: Appendix A - Frame Rate & Bit Rate Table

    1536 1500 704*480 1536 1700 704*480 1024 1050 704*480 1024 1100 704*480 704*480 352*240 1536 1500 352*240 1536 1600 352*240 1024 1100 352*240 1024 1100 352*240 352*240 176*120 1024 1000 176*120 1024 176*120 176*120 176*120 176*120 AirLive POE-200CAM User’s Manual...
  • Page 48 704*480 Good 1500 704*480 Medium 1300 704*480 Medium 352*240 Excellent 2800 352*240 Excellent 1200 352*240 Good 1000 352*240 Good 352*240 Medium 176*120 Medium 176*120 Excellent 1000 176*120 Excellent 176*120 Good 176*120 Good 176*120 Medium 176*120 Medium AirLive POE-200CAM User’s Manual...
  • Page 49 1600 704*576 1536 1700 704*576 1024 1100 704*576 1024 1200 704*576 704*576 352*288 1536 1500 352*288 1536 1600 352*288 1024 1100 352*288 1024 1100 352*288 352*288 176*144 1024 1000 176*144 1024 1000 176*144 176*144 176*144 176*144 AirLive POE-200CAM User’s Manual...
  • Page 50 704*576 Good 2500 704*576 Good 1200 704*576 Medium 1000 704*576 Medium 352*288 Excellent 1700 352*288 Excellent 352*288 Good 352*288 Good 352*288 Medium 352*288 Medium 176*144 Excellent 176*144 Excellent 176*144 Good 176*144 Good 176*144 Medium 176*144 Medium AirLive POE-200CAM User’s Manual...

  • Page 51: Appendix B - Storage Requirement Table

    2048 23.0 704*480 2048 22.1 704*480 1536 18.5 704*480 1536 17.9 704*480 1024 11.1 704*480 1024 11.6 704*480 704*480 352*240 1536 15.8 352*240 1536 16.9 352*240 1024 11.6 352*240 1024 11.6 352*240 352*240 176*120 1024 10.5 AirLive POE-200CAM User’s Manual...
  • Page 52 704*480 Good 15.8 704*480 Medium 13.7 704*480 Medium 352*240 Excellent 29.5 352*240 Excellent 12.7 352*240 Good 10.5 352*240 Good 352*240 Medium 176*120 Medium 176*120 Excellent 10.5 176*120 Excellent 176*120 Good 176*120 Good 176*120 Medium 176*120 Medium AirLive POE-200CAM User’s Manual...
