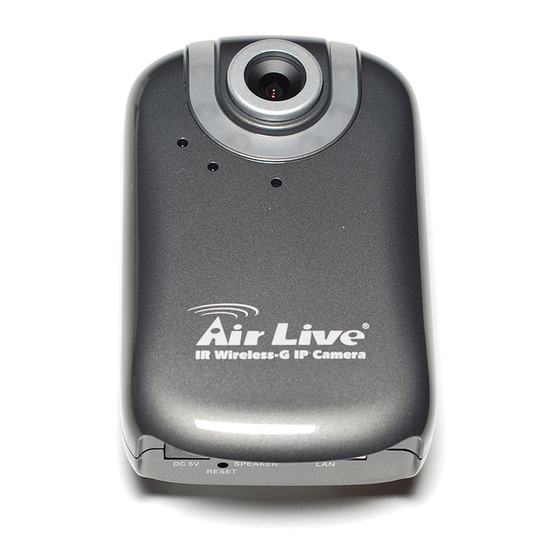

- Page 1 WL-2000CAM IR Wireless-G Dual Stream IP Camera User’s Manual AirLive WL-2000CAM User’s Manual...
-
Page 2: Declaration Of Conformity
5F., NO.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County, Taiwan Declare that the product IR Wireless G Dual Stream IP Camera AirLive WL-2000CAM is in conformity with In accordance with 2004/108/EC Directive and 1999/5 EC-R & TTE Directive Clause Description ■... - Page 3 Directiva 1999/5/CE. disposiciones aplicables o exigibles de la Directiva 1999/5/CE. ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ OvisLink Corp. ΔΗΛΩΝΕΙ OvisLink Corp izjavlja, da je ta AirLive WL-2000CAM Ελληνική [Greek] ΟΤΙ AirLive WL-2000CAM ΣΥΜΜΟΡΦΩΝΕΤΑΙ Slovensko v skladu z bistvenimi zahtevami in ostalimi ΠΡΟΣ...
-
Page 4: Before You Use This Product
• Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry. • Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the surface. AirLive WL-2000CAM User’s Manual... -
Page 5: Table Of Contents
6-2-3 HTTP Event ..............................34 6-2-4 Schedule ................................35 6-2-5 Motion Detection ............................36 6-2-6 System Log ..............................37 APPENDIX A – FRAME RATE & BIT RATE TABLE ........................ 38 APPENDIX B – STORAGE REQUIREMENT TABLE ....................... 40 AirLive WL-2000CAM User’s Manual... -
Page 6: Chapter 1 Installation
Chapter 1 Installation 1-1 Installation Steps Follow these steps to install the WL-2000CAM on your Ethernet: 1. Check the package contents against the list below. 2. Set the device. See IP Installer User Manual on the available methods. 1-2 Package Contents... - Page 7 Bottom: Power In Network Reset Audio Out Note Press the Reset Button to reboot the camera. Hold the Reset Button for 10 seconds to restore the camera to default AirLive WL-2000CAM User’s Manual...
-
Page 8: Chapter 2 Using Ip Camera Via Mobile Phone
• You can also use RTSP clients (RealPlayer, MPlayer, Windows Media Player, QuickTime…etc.) to view RTSP streaming, just type in “rtsp://<IP>:<PORT>/video.3gp” as the Player’s URL. 2-2 2.5G Mobile Phone Viewing For 2.5G mobile phone viewing, type “<IP>/mobile.wml” into your 2.5G web browser. <IP> is the IP address of your IP camera. AirLive WL-2000CAM User’s Manual... -
Page 9: Chapter 3 Using Ip Camera Via Web Browser
•If you can’t view the recorded video file (missing video decoder), please install Xvid codec while installing Intelligent IP Installer. (For Windows 98, ME or 2000 server, the codec might not work properly. You’ll need to download Xvid codec 1.0 from the internet. AirLive WL-2000CAM User’s Manual... -
Page 10: Chapter 4 Setting Up Wireless Configuration
AP, please ask your network administrator.) 4. If you’re using DHCP, the new IP address will show up after wireless setup succeeds. 5. Connect to the IP Camera with the new IP. You can remove the Ethernet connection now AirLive WL-2000CAM User’s Manual... -
Page 11: Chapter 5 How To Use
• The default user name “admin” and the password are set at the factory for the administrator. You can change them in the Account Menu under Setting on page 25. 3. The monitor image will be displayed in your browser. AirLive WL-2000CAM User’s Manual... -
Page 12: Configuration Of Main Menu
Video Buffer: Turn the Video Buffer function On/Off. The Video Buffer function makes the streaming more smoothly in unsteady network environment, but might cause a little delay in live viewing. 5-2-3 Image Setup You can use the tool bar to optimize video brightness, contrast, and saturation. AirLive WL-2000CAM User’s Manual... -
Page 13: Live View
It means the speakers of your computer are turned on to transmit the sounds from the connected IP camera(s). Similarly, means you can broadcast to the connected IP camera(s) via the Ethernet using your microphone. Video play buttons: ：Pause the current video ：Play the video. ：Stop the current video. ：Record the current video. AirLive WL-2000CAM User’s Manual... -
Page 14: Chapter 6 Setting
Click on the “Basic” folder to display the sub folders, including System, Camera, Network, and Security. 6-1-1 System Information The Information page provides you with product factory information, including Product name, Firmware version, and Web version. Day & Time AirLive WL-2000CAM User’s Manual... - Page 15 Do not turn off the device until the device reboots. Backup setting data：Save the setting data of the device to a file. Click Save, and follow the instructions on the AirLive WL-2000CAM User’s Manual...
-
Page 16: Camera
Lighting：Choose the lighting environment among 50Hz, 60Hz and Outdoor. White Balance：Choose the White Balance to Auto, Fluorescent, Incandescent and Black&White. IR: Turn LEDs ON/OFF, or Select auto mode. In auto mode, provide threshold adjustment for LEDs auto-ON and auto-OFF respectively. AirLive WL-2000CAM User’s Manual... - Page 17 Multicast streaming: Multicast address: Specify the multicast server address. Video / Audio Port: Specify the transmission port number of the video data. Specify an even number from 1024 AirLive WL-2000CAM User’s Manual...
- Page 18 512, 768, 1024, 1280, 1536 and 2048 kbps. Note： • The selected frame rate and bit rate are a tentative value. The actual frame rate and bit rate may be different according to the image size, the shooting scene or the network condition. AirLive WL-2000CAM User’s Manual...
-
Page 19: Mobile View
Frame rate：Set the frame rate of the MPEG4 image. Selectable values are 5, 10, 15, 20 fps. The unit “fps” stands for “frames sent per second”. Quality Fixed Bit rate：Set the bit rate of MPEG4 image transmission for a line. Selectable values are 64, 32, and 16kbps. AirLive WL-2000CAM User’s Manual... - Page 20 Frame rate：Set the frame rate of the MJPEG image. Selectable values are 5, 10, 15 fps. The unit “fps” stands for “frames sent per second”. Quality Auto：The quality will be automatically decided. Fixed quality：The selectable values are Medium, Standard, Good, Detailed and Excellent. AirLive WL-2000CAM User’s Manual...
-
Page 21: Network
• When you have set the HTTP port number to a number other than 80 on the Network setting page or in the Setup Program, access the device by typing the IP address of the device on the web browser as follows: Example: when HTTP port number is set to 2000 http://192.168.1.100:2000/ AirLive WL-2000CAM User’s Manual... - Page 22 Use the following DNS server address：Select this when you set the fixed address as the IP address of DNS server. Primary DNS server：Enter the IP address of the primary DNS server. Secondary DNS server：Enter the IP address of the secondary DNS server. AirLive WL-2000CAM User’s Manual...
- Page 23 Re-type password：Re-type the password to confirm. Host name：Enter the host name that is registered to the DDNS server. Note： • When you want to use DDNS function, you need to register an account in DDNS server first. AirLive WL-2000CAM User’s Manual...
- Page 24 MJPEG viewer port：Enter the MJPEG viewer port number and default MJPEG viewer port is 8070. MJPEG viewer port (SSL): Enter the MPEG4 SSL viewer port and default is 8071. MPEG4 RTSP port: Enter the MPEG4 RTSP port, default value is 8050 for computer view, 8030 for mobile view. AirLive WL-2000CAM User’s Manual...
- Page 25 Subject：Type the subject/title of the e-mail up to 64 characters. With respect to mail which is sent according to the IP notification. Message Type the text of the e-mail up to 384 characters. Default value provides network information including IP, Port, MAC, Model, Firmware Version and Web Version. AirLive WL-2000CAM User’s Manual...
- Page 26 •Bit rate - Shows the bit rate in Mbit/s. This can only be shown for the access point currently in use. Note that the bit rate shown is the current rate, and that this value may vary over time. AirLive WL-2000CAM User’s Manual...
- Page 27 WEP (Wired Equivalent Protection) The original security standard used in wireless networks that provides a minimal level of security that can deter minor trespasses. The administrator can select the key length among 64 or 128 bits. 64bits is the default setting. AirLive WL-2000CAM User’s Manual...
-
Page 28: Security
User name：Set a user name between 5 and 16 characters. Password：Set a password between 5 and 16 characters. Re-type password：Re-type the password to confirm. Viewer Mode：Set a user to Admin, Operator or Viewer mode. Viewer authentication：Allows any viewer direct access to Live View. AirLive WL-2000CAM User’s Manual... - Page 29 HTTPS function, then set up the connection policy for different users, and click “Set Policy” to apply the settings. Create & Install: Create a self-signed certificate for HTTPS to recognize. Installed Certificate: Display or remove the properties of the installed certificate. HTTPS Connection Policy: Set HTTPS connection policy for different level of users. AirLive WL-2000CAM User’s Manual...
-
Page 30: Advance
Retype password：To confirm the password, type the same characters as you typed in the Password box. Passive mode：Set whether you use the passive mode of FTP server or not when connecting to FTP server. Select On to connect to FTP server using the passive mode. AirLive WL-2000CAM User’s Manual... - Page 31 Always：The periodical sending is always effective. Schedule：You can specify the period when the periodical sending is effective in the schedule setting in the other section. Click Schedule and the setting menu for the effective period is displayed. AirLive WL-2000CAM User’s Manual...
- Page 32 Always：The periodical sending is always effective. Schedule：You can specify the period when the periodical sending is effective in the schedule setting in the other section. Click Schedule and the setting menu for the effective period is displayed. AirLive WL-2000CAM User’s Manual...
-
Page 33: Snmp
Authentication：Select the authentication required when you send an e-mail. Off: Select if no authentication is necessary when an e-mail is sent. On: When authentication is necessary an e-mail is sent, select one of the authentication methods from the AirLive WL-2000CAM User’s Manual... - Page 34 Alarm sending of the alarm tab is set to On, the characters standing for the sensor type added to the subject. Message：Type the text of the e-mail up to 384 characters. (A line break is equivalent to 2 characters.) AirLive WL-2000CAM User’s Manual...
- Page 35 Motion Detection：Click it on for using Motion Detection function as a sensor. You can set the motion detection function page. Note： • Motion Detection works only when the Video mode is set to MPEG4 and the Cropping is set to Off. AirLive WL-2000CAM User’s Manual...
- Page 36 Always：The periodical sending is always effective. Schedule：You can specify the period when the periodical sending is effective in the schedule setting in the other section. Click Schedule and the setting menu for the effective period is displayed. AirLive WL-2000CAM User’s Manual...
-
Page 37: Http Event
HTTP event: Set up the HTTP server URL, port, user ID, password, and proxy server settings. 6-2-3-2 Alarm Sending Set to send the mail with connection to the alarm detection by the external sensor input or by the built-in motion detection function. AirLive WL-2000CAM User’s Manual... -
Page 38: Schedule
Periodical, FTP – Alarm, FTP – Periodical, HTTP event – Alarm, Alarm output – Alarm or Alarm output – Timer, can be selected. Mon (Monday) to Sun (Sunday) The time period on the right of the checked day is the effective period of the schedule. AirLive WL-2000CAM User’s Manual... -
Page 39: Motion Detection
Threshold：You can use the tool bar to set up-limit value. When detecting zone signals are over setting value, it would carry on assigned work. Sensitivity：You can use the tool bar to set down-limit value. When detecting zone signals are over setting value, it would carry on assigned work. AirLive WL-2000CAM User’s Manual... -
Page 40: System Log
6-2-6 System Log The System Log function allows users to review any changes and events happened. The system starts logging automatically after started. Remote Log: Enables user to send the log data to a specified log server. AirLive WL-2000CAM User’s Manual... -
Page 41: Appendix A - Frame Rate & Bit Rate Table
320*240 1024 1000 320*240 1024 1000 320*240 320*240 160*120 1024 160*120 1024 160*120 160*120 160*120 160*120 A.3 MJPEG @ 15fps / kbps Quality 640*480 320*240 160*120 Excellent 4000 1500 Detailed 2400 Good 1600 Standard 1300 Medium AirLive WL-2000CAM User’s Manual... - Page 42 Excellent 1600 1600 640*480 Good 640*480 Good 640*480 Medium 640*480 Medium 320*240 Excellent 1500 320*240 Excellent 320*240 Good 320*240 Good 320*240 Medium 160*120 Medium 160*120 Excellent 160*120 Excellent 160*120 Good 160*120 Good 160*120 Medium 160*120 Medium AirLive WL-2000CAM User’s Manual...
-
Page 43: Appendix B - Storage Requirement Table
1536 18.5 17.9 640*480 1536 640*480 1024 10.5 640*480 1024 10.5 640*480 640*480 15.8 320*240 1536 320*240 1536 16.9 320*240 1024 10.5 320*240 1024 10.5 320*240 320*240 160*120 1024 10.0 160*120 1024 160*120 160*120 160*120 160*120 AirLive WL-2000CAM User’s Manual...
