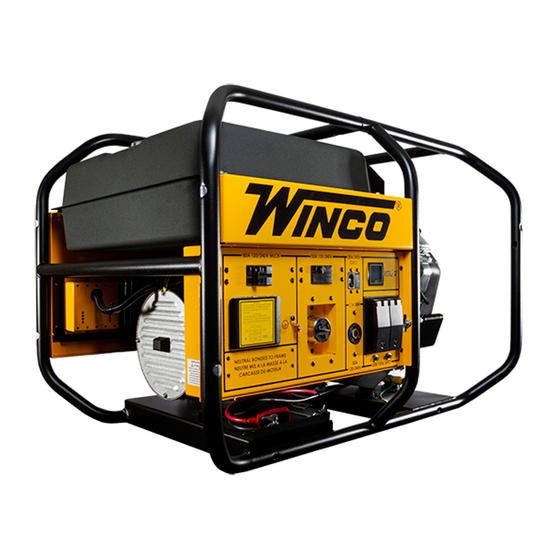

WL22000VE/A
GENERATOR
INSTALLATION & OPERATORS
MANUAL
COPY YOUR MODEL AND SERIAL NUMBER HERE
No other WINCO generator has the same serial number as yours.
If you should ever need to contact us concerning this unit, it will
help us to respond to your needs faster.
MODEL _________________________________________________
16200-011
SERIAL NUMBER _________________________________________
PURCHASE DATE _________________________________________
DEALER NAME ___________________________________________
DEALER PHONE # ________________________________________
www.wincogen.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winco WL22000VE
Summary of Contents for Winco WL22000VE
- Page 1 MANUAL COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as yours. If you should ever need to contact us concerning this unit, it will help us to respond to your needs faster.
-
Page 2: Table Of Contents
PREPARING THE UNIT “Troubleshooting Tables” near the end of this manual. UNPACKING The warranty listed in the manual describes what you can LUBRICATION expect from WINCO should you need service assistance in the future. OIL RECOMMENDATIONS OIL ALERT SYSTEM GASOLINE... -
Page 3: Specifications
SPECIFICATIONS GENERATOR Model WL22000E/A Surge Watts 22,000 Continuous Watts 19,000 Volts 120/240 Amps 166.6/83.3 Generator Manufacturer Mecc Alte Generator Model Number AME3 Part Number 16346-031 Rotor Resistance 9.743 Ohms @ 20°C Stator Resistance 0.366 Ohms @ 20°C Exciter Rotor Resistance 1.453 Ohms @ 20°C Exciter Stator Resistance 15.71 Ohms @ 20°C... -
Page 4: Safety
SAFETY This engine generator set has been designed and WARNING: FIRE HAZARD manufactured to allow safe, reliable performance. Poor Gasoline and other fuels present a hazard of possible maintenance, improper or careless use can result in explosion and/or fire. potentially deadly hazards; from electrical shock, exhaust A. -
Page 5: Introduction
INTRODUCTION TESTING POLICY Before any generator is shipped from the factory, it is fully checked for performance. The generator is loaded to its full capacity, and the voltage, current, and frequency are carefully checked. Rated output of generator is based on engineering tests of typical units, and is subject to, and limited by, the temperature, altitude, fuel, and other conditions specified by the manufacturer of applicable engines. -
Page 6: Unit Capabilities
UNIT CAPABILITIES GENERATOR CONNECTIONS WL22000VE: 120 Volt and 240 Volt receptacles are provided for connection to various loads. The following diagram represents this 19,000 watt (rated output) generator. A & B represent the 120 volt output legs of this generator. Up to 9500 watts at 120 volts (79 Amps) can be drawn from the receptacles attached to either A or B output legs. -
Page 7: Preparing The Unit
1. As you receive your unit, it is critical to check it for any damage. If any damage is noted, it is always easiest to refuse the shipment and let WINCO take care of the freight claim. If you sign for the unit, the transfer of the ownership requires that you file the freight claim 2. -
Page 8: Battery Installation
BATTERY CHARGING Never use gasoline that has been stored for an extended period of time as the fuel will lose its volatile properties and you will be left with varnish residue. The varnish Units have a small flywheel charger built into the engine like substance will clog the carburetor and will not burn flywheel assembly for recharging the starting battery. -
Page 9: Initial Start Up
INITIAL START UP STOPPING AND STORING The throttle control on these generators is preset and locked to operate at 3600 RPM (nominal) with no load 1. Move the key to the “OFF” position. speed set at 3690 RPM. Only a trained service technician should be allowed to adjust this speed setting. -
Page 10: Connecting The Loads
STANDARD PORTABLE GENERATOR accumulate. Your WINCO portable generator ships with a bonded neutral. You can safely use this generator without external grounding as long as all loads are powered through the receptacle panel. - Page 11 power applications requiring 120/240 Volt power. Consult a licensed electrician for wiring the TemPower plug and connecting it as temporary service. To connect these units directly to an un-powered, isolated construction site TemPower panel, have your electrician connect to the control panel using a 120/240 Volt, 4-wire twist-lock plug (14-60P).
-
Page 12: Yourgen
YOURGEN The speed of the engine was carefully adjusted at the The WINCO YourGen meter allows you to see useful factory so that the generator produces the proper voltage information about your generator from the front panel and frequency. For normal usage, the speed setting should by displaying RPMs, Voltage, frequency, load, hours, and not be changed. - Page 13 120 Volt and 240 Volt receptacles are provided for the backside of the YourGen meter. Gently pry the back connection to various loads. plate off using the slot located on top. The following diagram represents this 19,000 watt (rated output) generator. A & B represent the 120 volt output legs of this generator.
-
Page 14: Engine Care
ENGINE CARE 6. Replace oil drain bolt making sure the sealing washer is MAINTENANCE SCHEDULE in place. If major engine service or repair is required, contact an 7. Remover the oil filter plug and refill with new oil. Make authorized engine service center. The manufacturer of sure to use the proper grade oil based on your these engines has established an excellent world-wide operating temperature. -
Page 15: Spark Plug
SPARK PLUG Replace annually or every 300 hours of operation. Always replace with the same spark plug that came in the engine and check gap before installing. Spark plug gap is 0.030”. Poor spark will also occur if spark plug wire does not fit firmly on spark plug. -
Page 16: Avr Wiring
AVR WIRING Automatic Voltage Regulator The following is a list of connections on the AVR. These have been factory set and other than voltage adjustment, should never be changed. VOLT: Voltage. Rotate clockwise to increase voltage. STAB: Stability. HZ: Low Frequency. AMP: Overload. -
Page 17: Generator Care
GENERATOR CARE Proper care and maintenance of the generator is necessary to ensure a long trouble free life. EXERCISING THE GENERATOR The generator should be operated every three to four weeks. It should be operated for a period of time sufficient to warm the unit up and to dry out any moisture that has accumulated in the windings. -
Page 18: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Won’t start Low oil level Fouled spark plug Out of fuel Start switch in OFF position Fuel Valve turned off Plugged fuel filter Blown fuse in key switch Voltage too low Engine speed is too low Generator overloaded Defective stator Defective rotor (field) -
Page 19: Receptacle Wiring Diagram
RECEPTACLE WIRING DIAGRAM OPM-110/D... -
Page 20: Ca Evap Emission Control
WINCO written instructions and applicable codes. WINCO’s sole liability, and Purchaser’s sole remedy for a failure under this warranty, shall be limited to the repair of the product. At WINCO’s option, material found to be defective in material or workmanship under normal use and service will be repaired or replaced.
