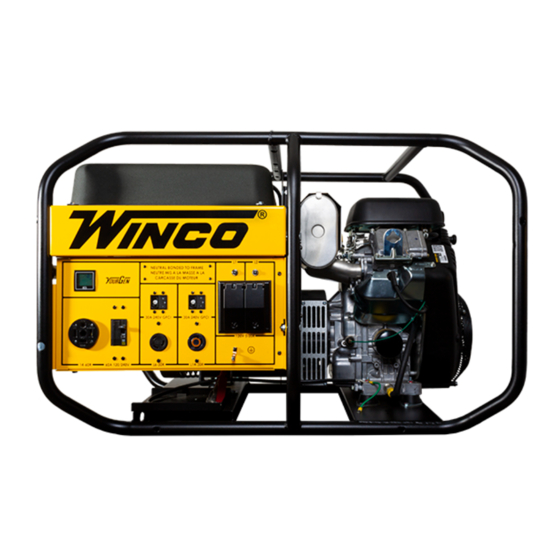

- Page 1 WL18000VE-03/B WL18000VE-03/C GENERATORS GENERATORS AN AMERICAN COMPANY INSTALLATION AND OPERATORS MANUAL 16200-011 www.wincogen.com...
-
Page 2: Table Of Contents
OIL ALERT SYSTEM FUELING COPY YOUR MODEL AND SERIAL NUMBER HERE BATTERY INSTALLATION No other WINCO generator has the same serial number as BATTERY CHARGING yours. If you should ever need to contact us concerning this OPTIONAL DOLLY KIT unit, it will help us to respond to your needs faster. -
Page 3: Safety Information
SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS WARNING: FIRE HAZARD This engine generator set has been designed and Gasoline and other fuels present a hazard of possible manufactured to allow safe, reliable performance. Poor explosion and/or fire. maintenance, improper or careless use can result in potentially deadly hazards;... -
Page 4: Specifications
SPECIFICATIONS Model WL18000VE-03/B WL18000VE-03/C Surge Watts 18,000 Continuous Watts 16,500 Volts 120/240 Amps 137.5/68.75 Surge Watts: The amount of inrush amps available for starting motors. Running Watts: Maximum generator output. To use this maximum output requires a variable load that does not apply the maximum load continuously. -
Page 5: Introduction
INTRODUCTION TESTING POLICY Before any generator is shipped from the factory, it is fully checked for performance. The generator is loaded to its full capacity, and the voltage, current, and frequency are carefully checked. Rated output of generator is based on engineering tests of typical units, and is subject to, and limited by, the temperature, altitude, fuel, and other conditions specified by the manufacturer of applicable engines. -
Page 6: Unit Capabilities
UNIT CAPABILITIES GENERATOR CONNECTIONS seconds of time. If difficulty is experienced in starting motors, turn all other electrical loads off and if possible reduce the load on the electric motor. WL18000VE-03/B: 120 Volt and 240 Volt receptacles are provided for connection to various loads. The diagram below represents this 16,500 watt (rated output) generator. -
Page 7: Preparing The Unit
If any damage is noted, it is always easiest to correct model and review the specification pages in refuse the shipment and let WINCO take care of the this manual to insure that this unit meets your job requirements. -
Page 8: Battery Installation
Never use gasoline that has been stored for an extended WARNING: PERSONAL INJURY period of time as the fuel will lose its volatile properties Lead acid batteries produce explosive hydrogen gas and you will be left with varnish residue. The varnish when charging. -
Page 9: Initial Start Up
INITIAL START UP The throttle control on these generators is preset and CAUTION: EQUIPMENT DAMAGE locked to operate at 3600 RPM (nominal) with no load Never permit the choke to remain on after the engine speed set at 3690 RPM. Only a trained service technician has run for a short time. -
Page 10: Storing
Allow the engine to warm up for two or three minutes Half 3600 60.0 120V before applying any load. This will allow the engine to Full 3510 58.5 115V reach normal operating temperature and oil to circu- late throughout the engine. A short warm-up time will The speed of the engine was carefully adjusted at the permit the engine to work more efficiently when the factory so that the generator produces the proper volt-... -
Page 11: Connecting The Loads
STANDARD PORTABLE GENERATOR gas could accumulate. Your WINCO portable generator ships with a bonded neutral. You can safely use this generator without external APPLYING THE LOADS grounding as long as all loads are powered through the receptacle panel. - Page 12 use in temporary power applications requiring 120/240 Volt power. Consult a licensed electrician for wiring the TemPower plug and connecting it as temporary service. To connect these units directly to an un-powered, isolated construction site TemPower panel, have your electrician connect to the control panel using a 120/240 Volt, 4-wire twist-lock plug (14-60P).
-
Page 13: Yourgen
YOURGEN and frequency. For normal usage, the speed setting should The WINCO YourGen meter allows you to not be changed. If the generator is being run continuously see useful information about your generator on a very light load, it is often advisable to lower the from the front panel by displaying RPMs, operating speed slightly. - Page 14 120 Volt and 120/240 Volt receptacles are provided for spark plug wire and then open the receptacle panel. Locate connection to various loads. the backside of the YourGen meter. Gently pry the back plate off using the slot located on top. WL18000VE-03/B: 120 Volt and 240 Volt receptacles are provided for connection to various loads.
-
Page 15: Engine Care
C. Remove the air filter (‘E’). Outdoor temperatures determine the proper oil viscosity for D. Remove the pre-cleaner (‘F’) the engines. Winco recommends our 5W-30 fully synthetic from the air filter. oil to give you excellent protection in cold temperatures while maintaining excellent performance in warmer E. -
Page 16: Spark Plug
NOTE: Do NOT use pressurized air or solvents to clean the filter. Pressurized air can damage the filter and solvents will dissolve the filter. F. Wash the pre-cleaner in liquid detergent and water. Then allow it to thoroughly air dry. DO NOT oil the pre- cleaner. -
Page 17: Generator Care
GENERATOR CARE Proper care and maintenance of the generator is necessary to ensure a long trouble free life. EXERCISING THE GENERATOR The generator should be operated every three to four weeks. It should be operated for a period of time sufficient to warm the unit up and to dry out any moisture that has accumulated in the windings. -
Page 18: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Won’t start Low oil level Fouled spark plug Out of fuel Start switch in OFF position Fuel Valve turned off Plugged fuel filter Blown fuse in key switch Voltage too low Engine speed is too low Generator overloaded Defective stator Defective rotor (field) -
Page 19: Receptacle Wiring Diagram
RECEPTACLE WIRING DIAGRAM OPM-153/B... -
Page 20: Limited Warranty
Air cooled units purchased for stock have 1 year to be sold. The warranty to the original retail customer commences on the date of sale of the product to them. All liquid cooled units have 180 days from the Winco invoice to submit a start up date. - Page 21 Standby use is defined as an application where utility power is present -and- the generator set is used as emergency backup during utility power outages. WINCO reserves the right to change or improve it’s products without incurring any obligations to make such changes or improvements on products purchased previously.
- Page 22 22. Travel time or service calls unless specifically authorized by Winco, Inc. in writing. GENERAL INFORMATION The WINCO, Inc. Service Department is open from 7:30 AM to 4:30 PM Central Standard time. It is located at 225 South Cordova Ave., Le Center, MN, 56057-1805. Phone Numbers: Service Department - 507-357-6831 FAX Line - 507-357-4857.
-
Page 23: Ca Evaporative Emission
2020 generator. In California, new equipment that uses small off-road engines must be designed, built, and equipped to meet the State’s stringent anti-smog standards. WINCO must warrant the evaporative emission control system on your generator for the period listed below provided there has been no abuse, neglect or improper maintenance of your equipment leading to the failure of the evaporative emission control system. - Page 24 GENERATORS AN AMERICAN COMPANY 225 S. CORDOVA AVE • LE CENTER, MN 56057 Sales: 507-357-6821 • sales@wincogen.com Service: 507-357-6831 • service@wincogen.com www.wincogen.com OPM-153/B...
