Installation and Operation
1. Install Single-Port Transmitter ADE-8201 and DVI Signal Receiver ADE-8001/8002:
(1) Basic Function Test: In the beginning, please connect your DVI monitor to your PC
or DVI player to confirm the basic display function and remain these devices turned
on for next installation sequence.
(2) Install Single-Port Transmitter ADE-8201: Please connect ADE-8201 to your PC or
DVI player's DVI output port while the device is turned ON, the LED of ADE-8201
should all turn ON, the orange LED indicates the power ON status and the green
LED indicates the DDC2B activity of DVI port. Please notice that the ADE-8201 has
pre-set an EDID with a maximum DVI supporting frequency of 1920x1200 and can
simulate the behavior of DVI monitor, so the PC's DVI port will remain activate even
when you re-boot the PC without plug actual DVI monitor.
(3) Install ADE-8001: Please connect ADE-8001 to your DVI display device's DVI port
directly. The DVI monitor can be PDP, LCD TV, projector or LCD. The supported
DVI resolutions are 800x600@20m, 1024x768@15m, 1280x1024@10m.

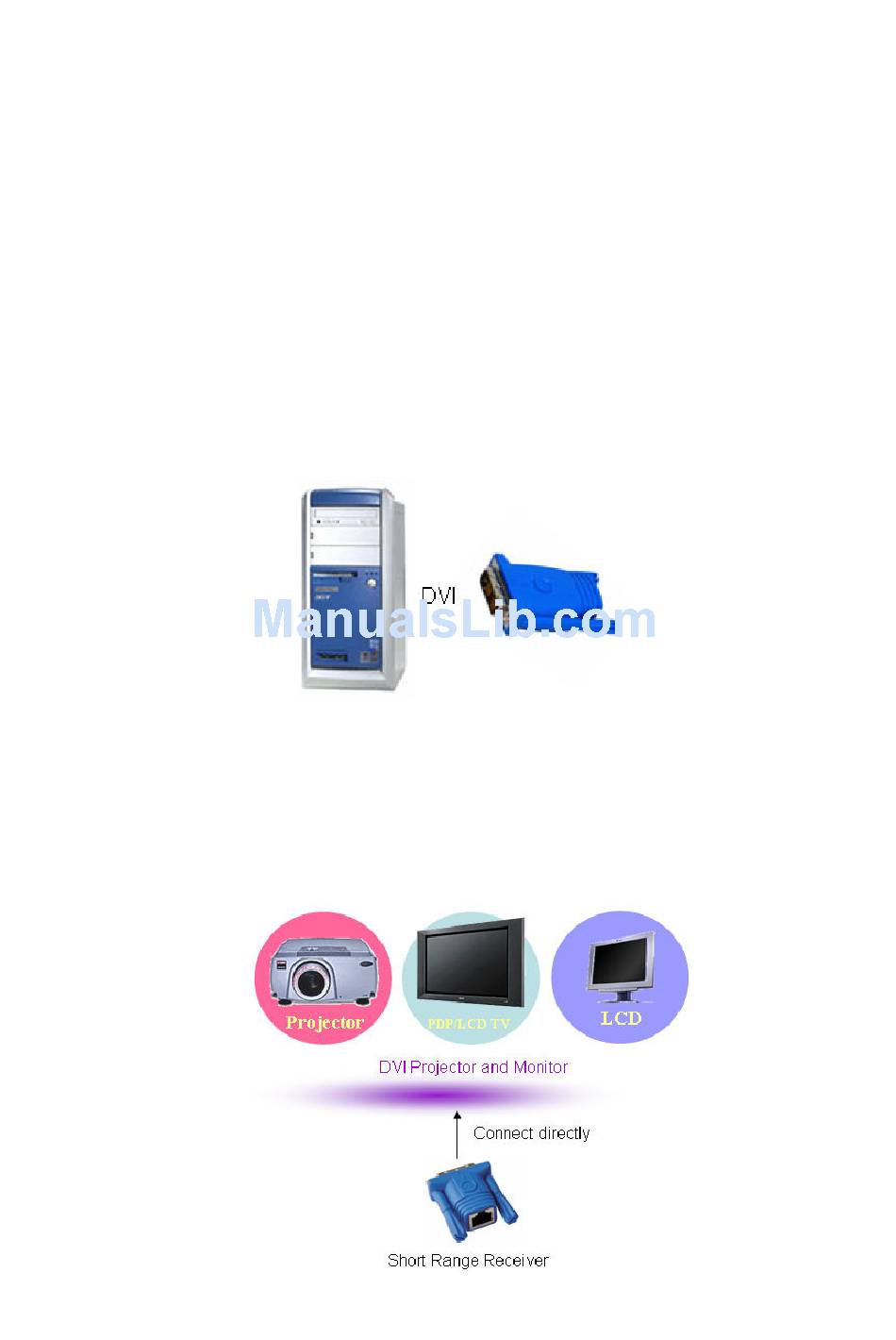

Connect ADE-8201 to PC
Connect Short Range Receiver ADE-8001 to DVI Monitor
