Page 1: User Manual

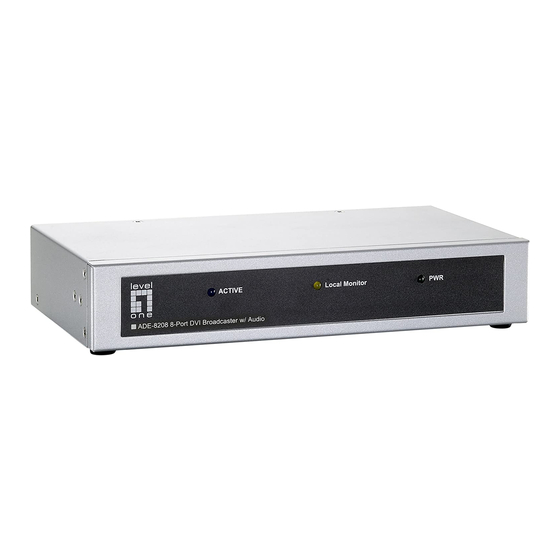

LevelOne DVI Broadcaster Series ADE-8001 ADE-8002 ADE-8011 ADE-8201 ADE-8202 ADE-8204 ADE-8208 User Manual V 1.0... - Page 2 DVI-D and audio signal over Cat5/5e/6 and 4-wire phone cable. If you are using short range receiver (ADE-8001) to receive the DVI-D signal, the extended distance is up to 15m with 1024x768 resolution; and if using long range receiver (ADE-8002), the extended DVI-D distance can reach the distance up to 70m with 1024x768 resolution.
-
Page 3: Key Features
RJ-45 and RJ-11 connections to transmit DVI-D and audio signal using Cat5/5e/6 and 4-wire phone cable. (Audio function not included in ADE-8201) 7. RJ-45 to DVI-D receiver (ADE-8001 or ADE-8002) to receive the DVI-D signal from Cat5/5e/6 cable, and RJ-11 Audio Transmitter/Receiver (ADE-8011) to receive the audio signal from 4-wire phone cable (Audio function not included in ADE-8201) 8. -
Page 4: Panel Description
Panel Description 1. ADE-8201 1-Port DVI Transmitter 1. Connect to PC’s DVI Port 2. Power indicator (Orange LED) 3. Active (Green LED) 4. RJ-45 DVI-D output 2. ADE-8202 2-Port DVI Broadcaster with Audio Active : DDC2B activity Local Monitor : link of local monitor Power : Power Indicator Power Jack : Connect to power adapter DVI/AUDIO IN : Connect to DVI and audio source... - Page 5 3. ADE-8204 4-Port DVI Broadcaster with Audio Active : DDC2B activity Local Monitor : link of local monitor Power : Power Indicator Power Jack : Connect to power adapter DVI/AUDIO IN : Connect to DVI and audio source DVI/AUDIO OUT : Connect to local monitor and speaker VIDEO OUT : RJ-45 DVI output AUDIO OUT : RJ-11 Audio output 4.
- Page 6 5. ADE-8001 DVI-D Short Range Receiver 1. DVI output (To monitor) 2. RJ-45 DVI input 6. ADE-8002 DVI-D Long Range Receiver Auto : Auto EQ is selected FOCUS : EQ adjust (Auto or manual) Power Jack : Connect to power adapter...
- Page 7 7. ADE-8011 Audio Transmitter/Receiver 1. Connect to audio jack 2. RJ-11 audio input/output...
-
Page 8: Installation And Operation
PC without plug actual DVI monitor. Connect ADE-8201 to PC (3) Install ADE-8001: Please connect ADE-8001 to your DVI display device’s DVI port directly. The DVI monitor can be PDP, LCD TV, projector or LCD. The supported DVI resolutions are 800x600@20m, 1024x768@15m, 1280x1024@10m. - Page 9 (4) Install ADE-8002: Plug power adaptor to ADE-8002, the orange LED above RJ-45 should be ON to indicate the power on status. The other LED should turn off, since there is no input of video signal from “LINK IN” port. The “Auto”...
- Page 10 (6) Connect Cat5/5e/6 cable: Plug two ends of cable to Transmitter and Receiver’s RJ-45 port, the monitor connected to the Receiver should display now and the green LED above ADE-8002’s RJ-45 port should be ON to reflect the DVI signal activation.
- Page 11 (1) You can refer to previous section for Receiver to install and prepare the cable to be connected. (2) RJ-45 VIDEO with ADE-8001: The RJ-45 ports in the back of Transmitter can only support DVI-D signal. For each connector, please prepare one Cat5/5e/6 cable and make the cable as 568B-568B type [more details about Cat5/5e/6 cable, please refer to previous section of 1.
- Page 12 “DVI/AUDIO IN” port of the second layer’s Transmitter. (2) From “VIDEO OUT and AUDIO OUT”: Similar to the way of connecting monitor and speaker, you connect ADE-8001 and ADE-8011 to the “DVI/AUDIO IN” port of the second layer’s Transmitter. The length for this extension should between 10...
- Page 13 to 25 meters and the total extended length and resolution is about 800x600@20m, 1024x768@15m, 1280x1024@10m. Previous range can be applied in most of the application, but in some cases it might change. It will be appropriate to test the capacity of display before installation. Diagram of Connecting another Layer of Cat5/5e/6 DVI Transmitter 2.
-
Page 14: Specification
Input Transmitting over standard DVI cable, DVI resolution Output 1920x1200@10m. Distance Transmitting over Cat5/5e/6 cable, Resolution DVI resolution for ADE-8001 is 800x600@20m, 1024x768@15m, 1280x1024@10m; RJ45 Output for ADE-8002 is 800x600@80m, 1024x768@70m, 1280x1024@60m, 1920x1200@35m Signal Type DVI-D Power Consumption DC 9V, 250mA... - Page 15 ADE-8001 ADE-8002 ADE-8011 Model Short range DVI Function DVI Video Receiver Audio Transmitter/Receiver Receiver Input RJ-45 x 1 RJ-45 x 1 RJ-11 x 1 Audio Jack x 1 Output DVI Female x 1 DVI Female x 1 Audio Jack x 1...
