LevelOne ADE-8001 Brochure & Specs

Short range DVI-D
Receiver / Long Range
DVI-D Receiver
H/W Version: 2
LevelOne DVI-Receivers
LevelOne provides a complete range of short and long
range DVI-D Receivers to extend transmission of DVI
signals from a controlling unit to remote locations.
The short range DVI Receiver (ADE-8001) is able to
receive a maximum 1280 x 1024 resolution signal
from a controlling unit rack from 10m away while the
long range ADE-8002 DVI receiver is able to manage
maximum resolution of up to 1920 x 1200 over 35m
ADE-8001
Key Features
ADE-8001 Short range DVI-D Receiver
- Receive DVI signal from up to 25meters at 1024 x 768
resolution when working with ADE-8202/8204/8208
- Receive DVI signal from up to 15 meters at 1024 x
768 resolution when working with ADE-8021
ADE-8002 Long range DVI-D Receiver
- Extends Distance from DVI Source to Monitor up to
80m
- Pure Digital Signal Transmission Provides
Undistorted Image Quality
- Included Detachable Base for Easy Installation and
Wall mounting

1 2

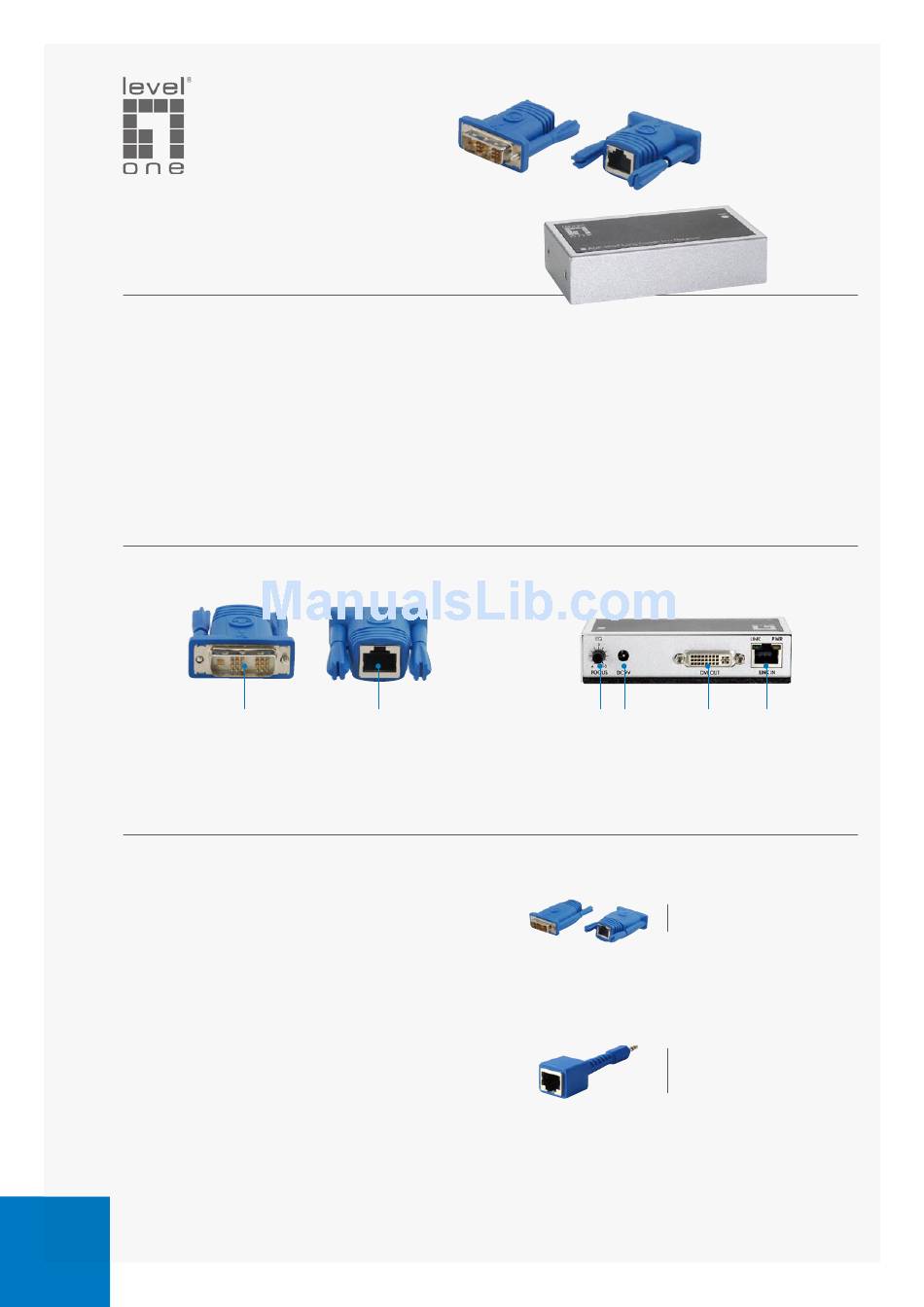

1. DVI Output Port
2. RJ-45 Input Port
ADE-8002
3 4
3. EQ Knob
4. Power Jack
5. DVI Output Port
6. RJ-45 Input Port
Works Well With
ADE-8201
1-Port DVI Transmitter
ADE-8011
Cat.5 Audio Transmitter/
Receiver
ADE-8001
ADE-8002
5 6
