to 25 meters and the total extended length and resolution is about 800x600@20m,
1024x768@15m, 1280x1024@10m. Previous range can be applied in most of the
application, but in some cases it might change. It will be appropriate to test the
capacity of display before installation.

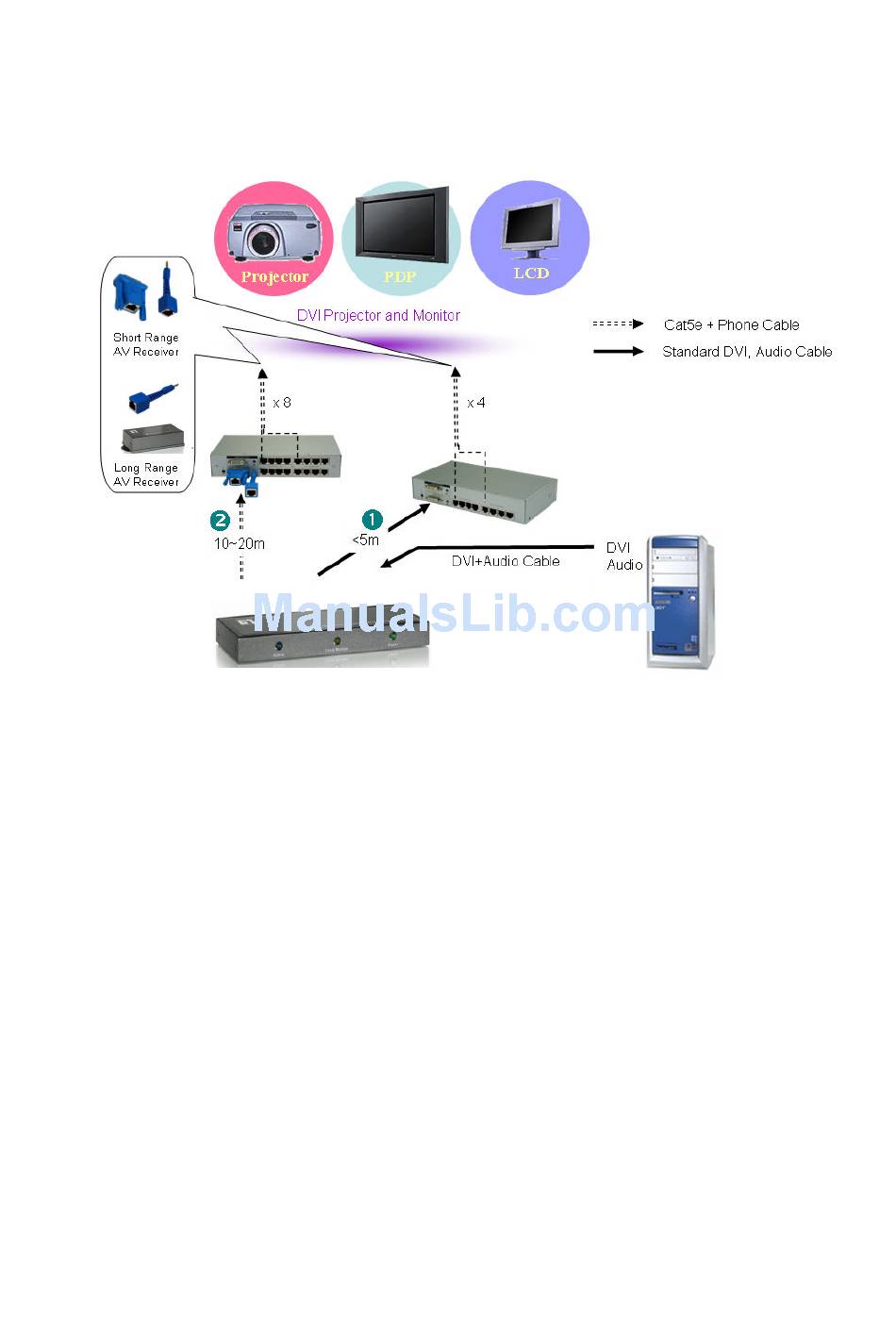

Diagram of Connecting another Layer of Cat5/5e/6 DVI Transmitter
2. To ensure the transmitting quality of DVI-D signal, more than two layer of stacking is not
recommended.
3. The transmitter can be 2, 4, or 8 port model.
