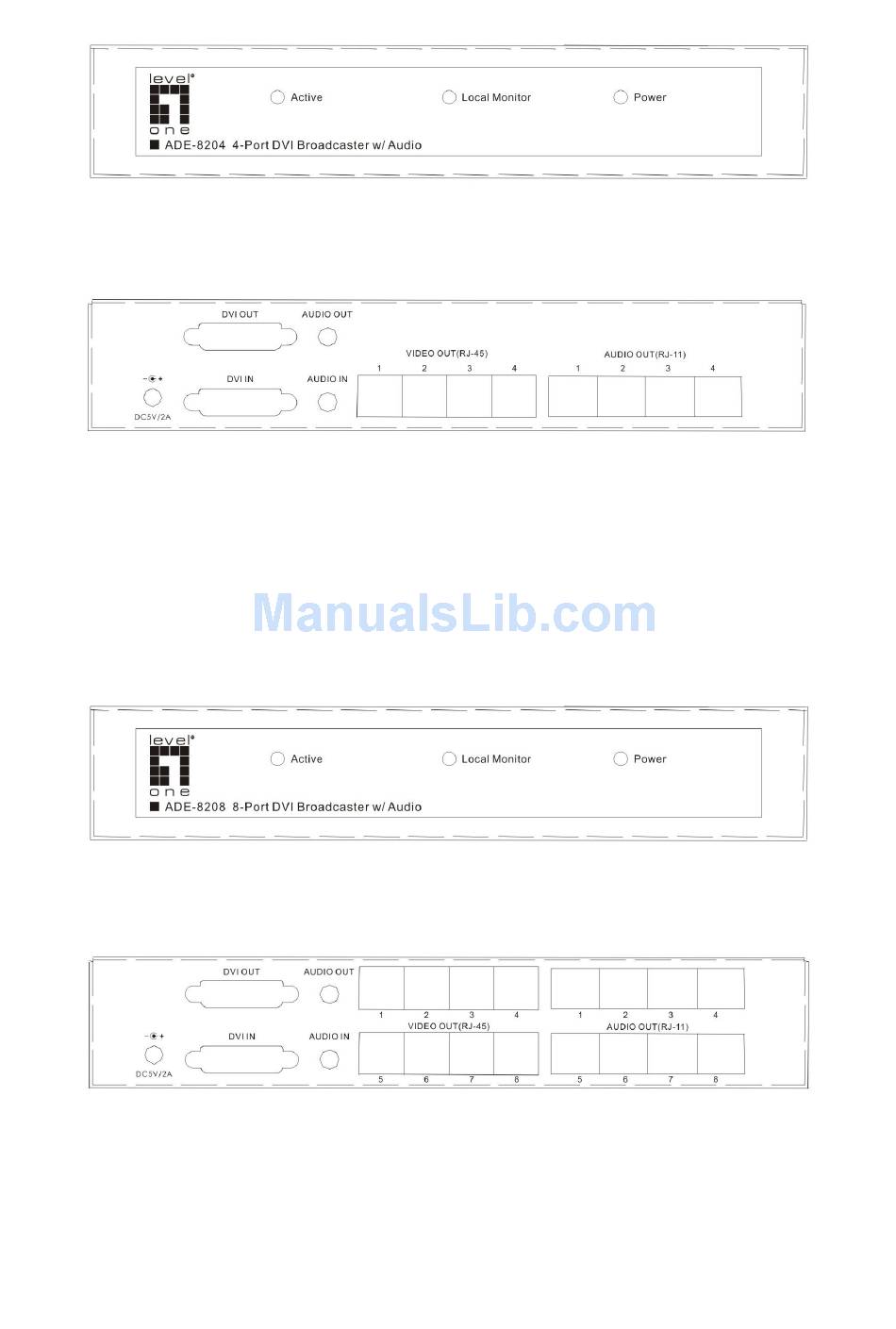

3. ADE-8204 4-Port DVI Broadcaster with Audio
Active : DDC2B activity
Local Monitor : link of local monitor
Power : Power Indicator
Power Jack : Connect to power adapter
DVI/AUDIO IN : Connect to DVI and audio source
DVI/AUDIO OUT : Connect to local monitor and speaker
VIDEO OUT : RJ-45 DVI output
AUDIO OUT : RJ-11 Audio output
4. ADE-8208 8-Port DVI Broadcaster with Audio
Active : DDC2B activity
Local Monitor : link of local monitor
Power : Power Indicator
Power Jack : Connect to power adapter
DVI/AUDIO IN : Connect to DVI and audio source
DVI/AUDIO OUT : Connect to local monitor and speaker
VIDEO OUT : RJ-45 DVI output
AUDIO OUT : RJ-11 Audio output
