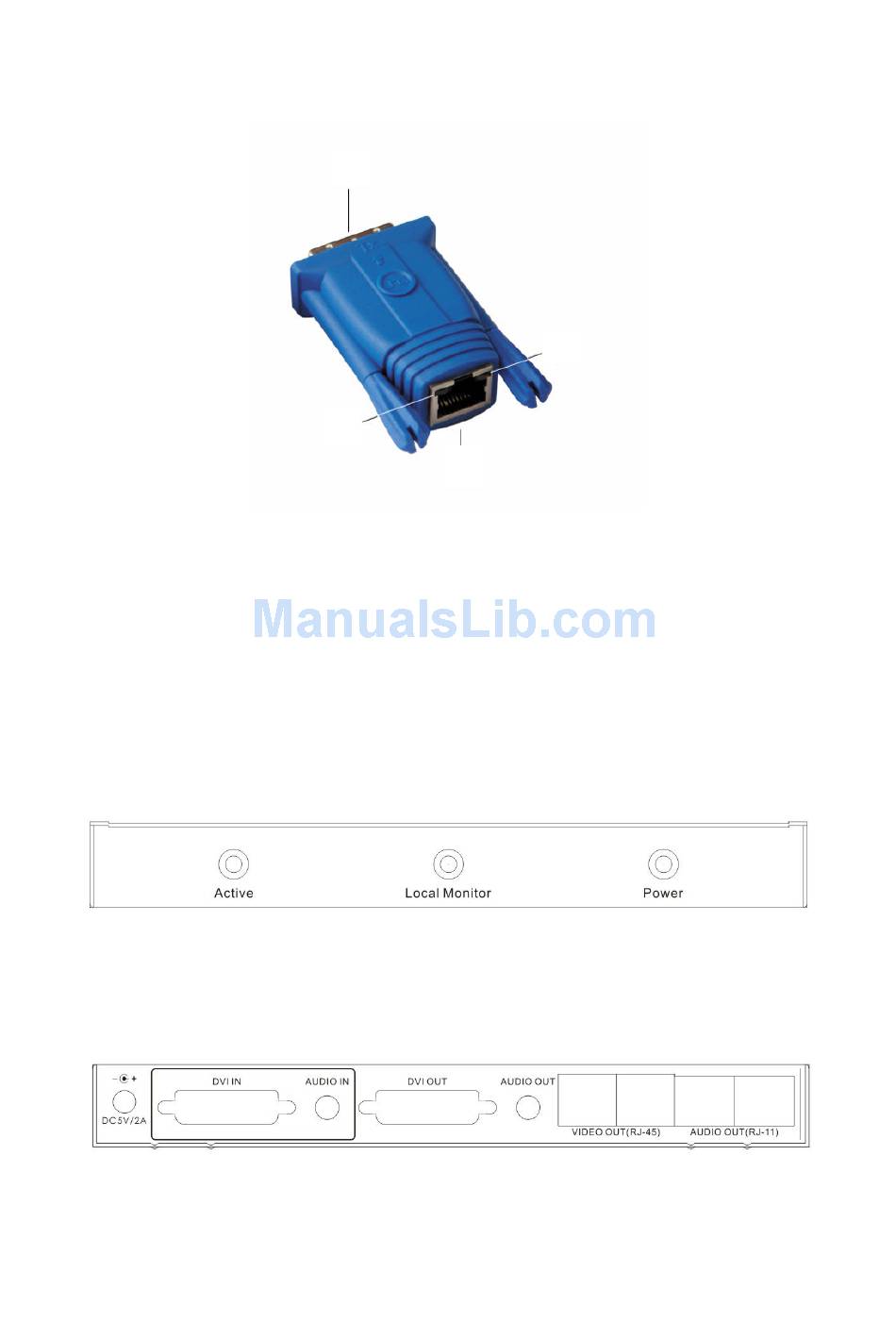

Panel Description

1. ADE-8201 1-Port DVI Transmitter
1. Connect to PC's DVI Port
2. Power indicator (Orange LED)
3. Active (Green LED)
4. RJ-45 DVI-D output
2. ADE-8202 2-Port DVI Broadcaster with Audio
Active : DDC2B activity
Local Monitor : link of local monitor
Power : Power Indicator
Power Jack : Connect to power adapter
DVI/AUDIO IN : Connect to DVI and audio source
DVI/AUDIO OUT : Connect to local monitor and speaker
VIDEO OUT : RJ-45 DVI output
AUDIO OUT : RJ-11 Audio output
1
3
4
2
