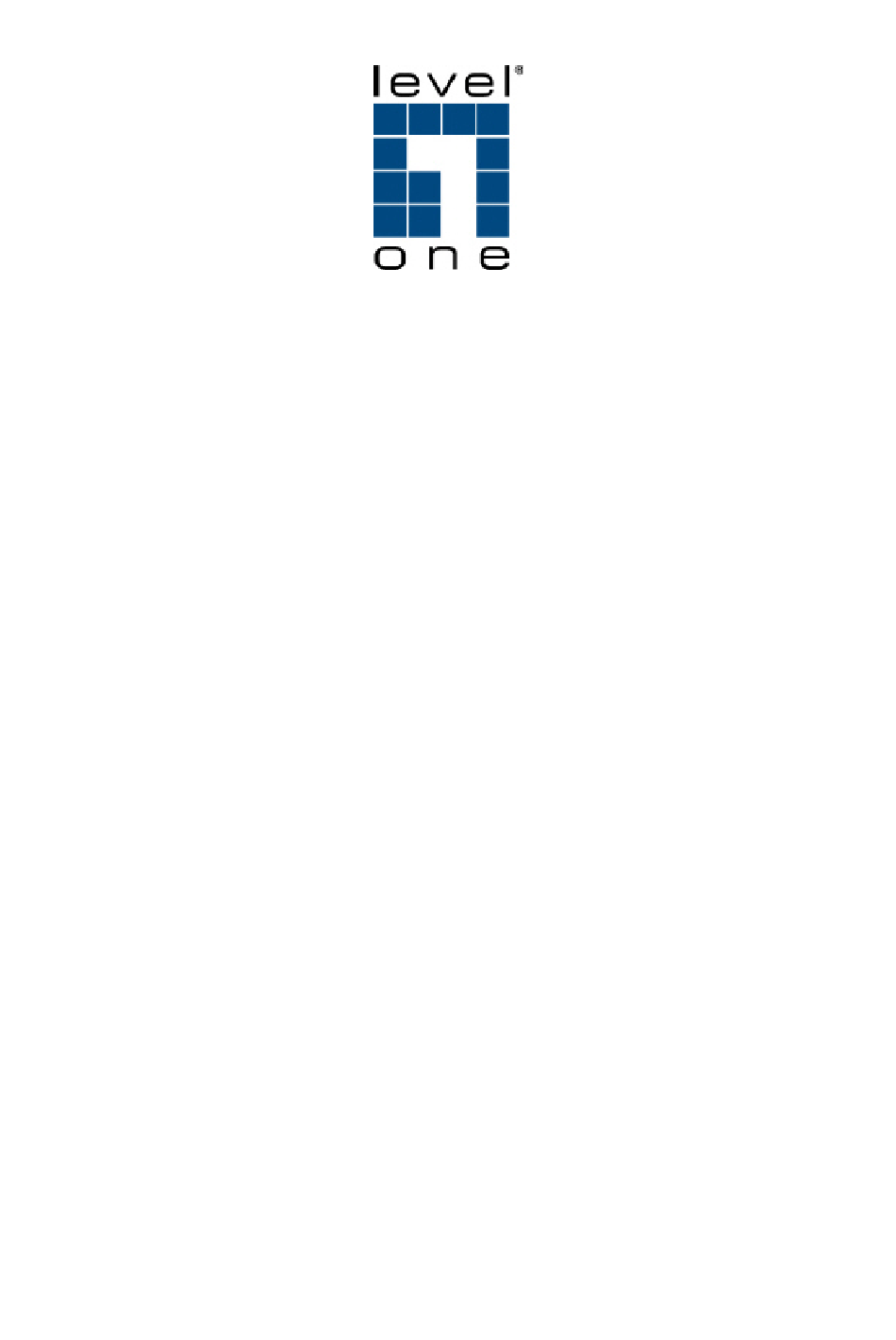

CAT5 A/V Extender
AVE-9300
AVE-9301
AVE-9304
AVE-9304A
AVE-9308
AVE-9316
User Manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVE-93xx Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LevelOne AVE-93xx Series

  • Page 1 CAT5 A/V Extender AVE-9300 AVE-9301 AVE-9304 AVE-9304A AVE-9308 AVE-9316 User Manual...
  • Page 2 Remarks Introduction AVE-93xx series is a broadcast system to transmit Audio and Video signals over Cat5/5e/6 cable, it can reach the distance up to 300m and by stacking more Repeaters, the whole system can extend A/V signals up to 900m. You can use different cable kit to broadcast VGA, Component, Composite, or S-video from multimedia output devices.
  • Page 3 (3) Built in one RJ-45 port for system output which can be connected by Cat5/5e/6 cable and send signal to Receiver (4) Take power from power adaptor 2. 4/8/16-Port Transmitter AVE-9304, AVE-9308, AVE-9316: (1) Built in one set of A/V inputs (2) Built in one set of A/V output to monitor the A/V signal broadcasted (3) Built in 4/8/16 R-J45 ports for system output which can be connected by Cat5/5e/6 cable and send signal to Receiver or Repeater...
  • Page 4 Panel Description 1. AVE-9301 Single-Port A/V Transmitter 2. AVE-9300 Single-Port A/V Receiver 3. AVE-9304 / AVE-9308 / AVE-9316 Multi-Port A/V Transmitter...
  • Page 5 4. AVE-9304A Multi-Port A/V Repeater 5. Cable Kits VGA-0010 1M A/V Cable for Transmitter Fig. VGA-0010...
  • Page 6 AVC-0010 1M A/V Cable for Receiver Fig. AVC-0010 RCA-9007 0.7M RCA Cable for Player Fig. RCA-9007...
  • Page 7 RCA-9018 1.8M RCA Cable for Display Fig. RCA-9018 YCC-9007 0.7M YCBCR Cable for Player Fig. YCC-9007...
  • Page 8 YCC-9018 1.8M YCBCR Cable for Display Fig. YCC-9018...
  • Page 9 Installation and Operation AVE-93XX supports different video format by using different cable kit. Section 1 will describe how to extend VGA and Audio signals by PC cable kit and in Section 2&3, you should find the description of how to use HDTV(YCC-9007, YCC-9018) and TV(RCA-9007, RCA-9018) cable kit: Section 1: Extend VGA Video and Audio by PC Cable Kit 1.
  • Page 10 Receiver’s connected monitor and speaker. (5) Problem and Solving: If you find unstable image or audio problems after installation, please confirm following list or contact your direct vendor for further assistance: Check if PC’s VGA resolution and frequency over the limit of monitor display, if so, please change the VGA configuration from Windows Control panel.
  • Page 11 Expansion Diagram of Transmitter and Repeater (6) System Expansion through UTP: This series can stack into maximum three layers of UTP section to reach more A/V outputs and depends on the display devices; you may reach a lower VGA solution than single layer. The suggested range of VGA broadcasting is 800x600@900m, 1280x1024@600m, and 2048x1536@300m.
  • Page 12 Section 2: Extend Component Video and Audio by HDTV Cable Kit For connecting player in the Transmitter, please use YCC-9007 cable; for connecting monitor in the Transmitter, Repeater, and Receiver, please use YCC-9018 cable. Please refer to Fig.YCC-9007 and Fig YCC-9018. Section 3: Extend Composite, S-Video and Audio by TV Cable Kit For connecting player in the Transmitter, please use RCA-9007 cable;...
  • Page 13 Order Information Order Details Part Number 1-Port LR Cat.5 A/V Transmitter AVE-9301 4-Port LR Cat.5 A/V Transmitter AVE-9304 8-Port LR Cat.5 A/V Transmitter AVE-9308 16-Port LR Cat.5 A/V Transmitter AVE-9316 4+1-Port LR Cat.5 A/V Repeater AVE-9304A 1-Port LR Cat.5 A/V Receiver AVE-9300 AV Cable Kit 1M A/V Cable for Transmitter...
