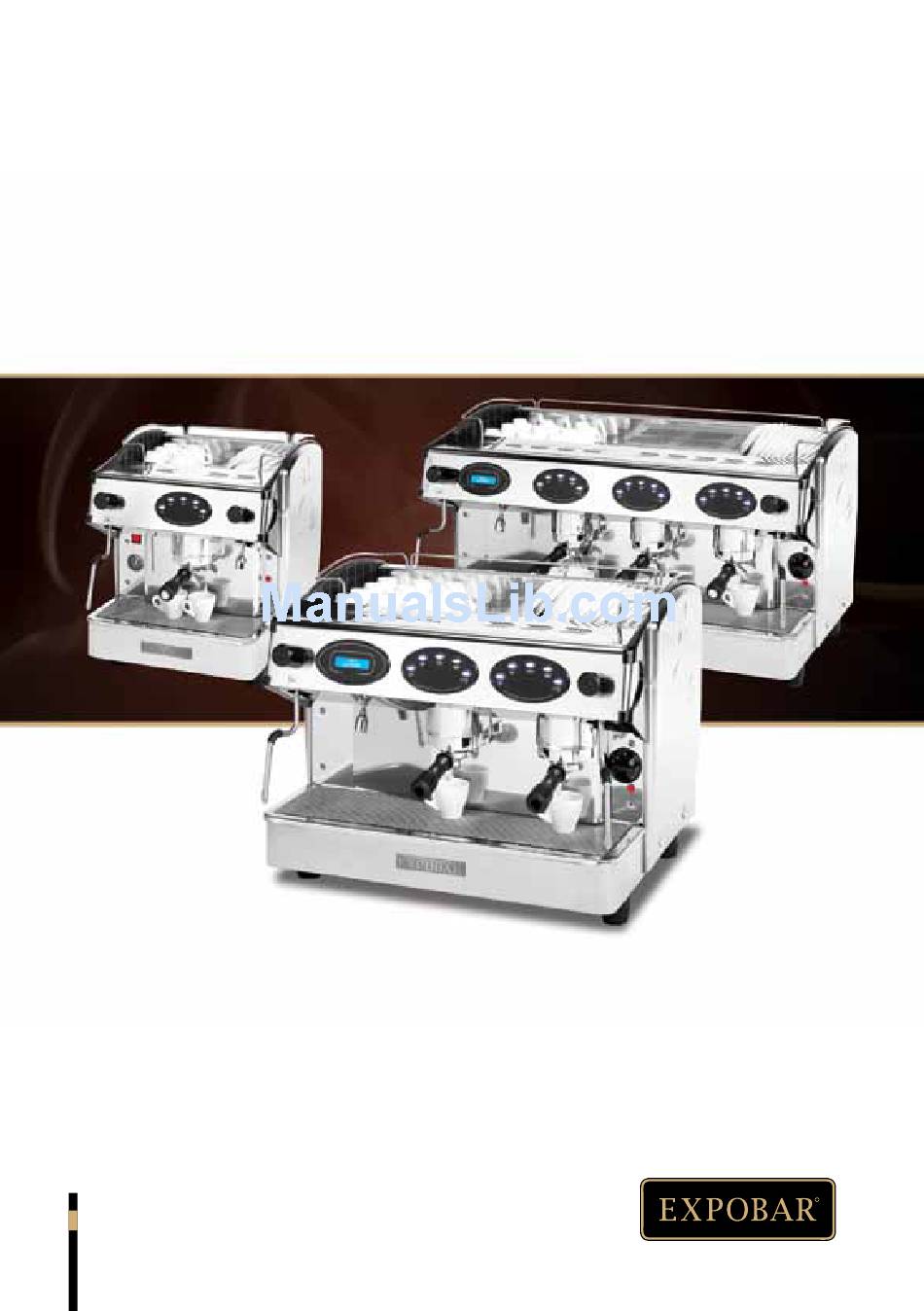

- Page 1 ELEN USER MANUAL UM_EN Date: 1764216_01 Original instruction...
-
Page 2: Table Of Contents
Warnings ....................................5 Precautions .....................................6 Intended use ...................................6 TECHNICAL SPECIFICATIONS ........................7 Elen mini ....................................7 Accessories.....................................7 Elen display control 2GR ..............................8 Accessories.....................................8 Elen display control 3GR ..............................9 Accessories.....................................9 OVERVIEW OF COMPONENTS ........................10 Elen mini control ................................10 Elen display control 2GR ..............................11 Elen display control 3GR ..............................12... - Page 3 CONTENT Elen Steaming and frothing milk ...............................21 Dispensing hot water .................................22 CLEANING AND MAINTENANCE ......................23 Coffee machine cleaning ..............................23 Daily cleaning ..................................23 Weekly cleaning ..................................23 Cleaning the brewing group and porta-filter ........................24 Cleaning the gasket and shower plate ...........................25 Additional handling of the machine..........................26 STORAGE AND DISPOSAL OF MACHINE ..................26...
-
Page 4: Symbol Description
SYMBOL DESCRIPTION Elen Notification intensity levels There are four different levels of notification intensity within this manual, as identified by signal words DANGER, WARNING, IMPORTANT, and NOTE. The level of risk and importance of the notification is determined by the following definitions. Always observe the warnings to ensure safety and prevent potential injury and product damage. -
Page 5: General
GENERAL Elen Introduction Thank you for choosing an Elen espresso machine. We hope you enjoy it ! Read the user manual before using the machine. Keep this manual close to hand for future This manual contains important instructions on reference. If damaged or lost, request a copy intended and safe use of the coffee machine. -
Page 6: Precautions
GENERAL Elen In case of emergency, (e.g., the machine catches units high of the same model. Do not place fire or becomes unusually hot or noisy), other heavy items on top of the box. disconnect the power immediately and turn off If the machine is likely to be exposed to the water supply. -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS Elen Elen MINI Control Elen MINI SPECIFICATIONS Mini control 1GR Mini control 2GR Machine model, Standard Machine model, Take Away Steam wand 1 unit 1 unit Hot water outlet 1 unit 1 unit Temperature control Regulated by pressure switch... -
Page 8: Elen Display Control 2Gr
TECHNICAL SPECIFICATIONS Elen Elen Display Control 2GR Elen 2GR SPECIFICATIONS Display control 3 Boilers display control EBEE-D41B-12AE Machine model, Standard 220-240V 1N~ 3350W EBEE-D41B-22AE Machine model, Take Away 220-240V 1N~ 3350W Steam wand 2 units 2 units Hot water outlet... -
Page 9: Elen Display Control 3Gr
TECHNICAL SPECIFICATIONS Elen Elen Display Control 3GR Elen 3GR SPECIFICATIONS Display control 3 Boilers display control Machine model, Standard Machine model, Take Away Steam wand 2 units 2 units Hot water outlet 1 unit 1 unit Temperature control PID regulation... -
Page 10: Overview Of Components
OVERVIEW OF COMPONENTS Elen Front view Elen mini control ON/OFF switch Drink buttons Steam tap Hot water tap Hot water outlet Steam wand Porta-filter Boiler pressure gauge Heater element lamp Brewing group... -
Page 11: Elen Display Control 2Gr
OVERVIEW OF COMPONENTS Elen Front view Elen display control 2GR Steam tap display Drink buttons Steam tap ON/OFF switch Steam Porta-filter Steam wand wand Heater Hot water outlet Brewing element group lamp... -
Page 12: Elen Display Control 3Gr
OVERVIEW OF COMPONENTS Elen Front view of the machine Elen display control 3GR Display Steam tap Steam tap Drink buttons ON/OFF switch Steam Porta-filter Heater element wand lamp Hot water outlet Brewing group Steam wand... -
Page 13: Dimension Sketch
DIMENSION SKETCH Elen Elen mini MODEL Elen mini 1Gr 550 mm 460 mm 590 mm 74 mm Elen mini 1Gr 550 mm 460 mm 590 mm 124 mm Tall Cup Elen mini 2Gr 550 mm 460 mm 590 mm 74 mm... -
Page 14: Elen Display Control 2Gr
DIMENSION SKETCH Elen Elen display control 2GR Model Elen 2Gr 550 mm 680 mm 590 mm 74 mm Elen 2Gr 550 mm 680 mm 590 mm 124 mm Tall Cup Elen 2Gr 3 Boilers 550 mm 680 mm 590 mm... -
Page 15: Elen Display Control 3Gr
DIMENSION SKETCH Elen Elen display control 3GR Model Elen 3Gr 550 mm 980 mm 590 mm 74 mm Elen 3Gr 550 mm 980 mm 590 mm 124 mm Tall Cup Elen 3Gr Boilers 550 mm 980 mm 590 mm 74 mm... -
Page 16: Transport
TRANSPORT Elen Packaging The machine is shipped in a custom-designed carton which utilizes model-specific polystyrene cushions to protect it from damage. The machine’s carton features standardized handling symbols to explain proper shipping and storage methods. The machine must remain in a horizontal position during the transport. Do not store or handle the machine except on its feet. -
Page 17: Electrical Installation
INSTALLATION Elen Electrical installation The machine should only be connected to the power supply by qualified personnel. The following safety instructions should be obeyed at all times: Ensure that the electrical requirements stated on the TECHNICAL SPECIFICATIONS (pages 7 - 8) match the specifications of the power supply at the outlet. -
Page 18: Water Connection
INSTALLATION Elen Water connection Connecting the machine to the domestic water supply must be performed by a qualified person. Purge at least 20 liters of water from the domestic water supply before connecting the machine to it to flush out any debris that may be in the plumbing sytem that would otherwise accumulate inside the boilers. -
Page 19: The Porta-Filter Set
INSTALLATION Elen The porta-filter sets Filter basket locking spring Filter basket Porta-filter spring slot Porta-filter and filter basket for single espresso (7g) Porta-filter Porta-filter & filter basket for double espresso (14g) Inserting the porta-filter into the group Align the porta-filter's two flanges with Insert the porta-filter and rotate it counterclockwise the two slots in the group housing. -
Page 20: Operation
OPERATION Elen Espresso brewing Important: Always keep the porta-filter inserted in the group to keep it warm. This is important to maintain an optimal temperature when the espresso is dispensing. Unlock and remove the porta-filter Fill the filter basket with from the group head. -
Page 21: Steaming And Frothing Milk
OPERATION Elen Steaming and frothing milk with the manual steam wand Steaming Frothing Place the steam wand over the drip tray and Immerse the steam wand into the milk, open the steam lever for a few seconds to allow making sure the wand tip is submerged. -
Page 22: Dispensing Hot Water
OPERATION Elen Dispensing hot water Place a pitcher (or other heat resistant vessel) under the hot water outlet. Press the hot water button (A) for 3 seconds to begin dispensing. Wait until the machine stops dispensing hot water automatically, or press the button again to stop hot water dispensing at any time. -
Page 23: Cleaning And Maintenance
CLEANING AND MAINTENANCE Elen Machine cleaning Important: To keep the machine looking and working like new, you should always follow the cleaning and care instructions provided in this manual. Always turn off the main power switch when cleaning the exterior of the machine. -
Page 24: Cleaning The Brewing Group And Porta-Filter
CLEANING AND MAINTENANCE Elen Cleaning the brewing group and porta-filter Unlock and remove the portafilter from the group head. Place the blind gasket in the filter basket. Fill the blind basket with cleaning powder for espresso coffee machines. Lock the portafilter into the group head. -
Page 25: Cleaning The Gasket And Shower Plate
CLEANING AND MAINTENANCE Elen Cleaning the gasket and shower plate Cleaning the gasket While making espresso, coffee grounds will naturally accumulate on the group’s sealing surface. Allowing an excessive amount of grounds to build up can prevent the porta-filter from properly sealing to the group head. -
Page 26: Additional Handling Of The Machine
CLEANING AND MAINTENANCE Elen Additional handling of the machine Important: Always remove and insert the porta-filters Do not place wet cups directly on the gently. Never use excessive force to try to cup shelf. Allowing water to drip into the close the porta-filter. -
Page 27: Programming
PROGRAMMING Elen Buttons functions Here is some of the additional functions that the electronics offers: Volume control of four different espresso drinks per brewing group. Time-controlled hot water dispensing. (if available) Automatic filling and level control of the boiler. Automatic switch off of the heating element if not enough water. -
Page 28: Programming The Coffee Dosage
PROGRAMMING Elen Programming the coffee dosage Use the following steps to program the espresso brew dosages for each Brewing Group and Drink Button (each button can be programmed for a different dosing time if desired): 1. Place a Porta-filter filled with fresh espresso grounds in the Brewing Group. -
Page 29: Programming Using The Display
PROGRAMMING USING THE DISPLAY Elen Machine status Machines equipped with a display include the following additional functions: Automatic daily on/off timer (stand-by function). Clock settings (current time and date). Promotional display. Number of coffees/infusions dispensed. Digital boiler-temperature display and control. -
Page 30: Accessing The Second Menu Level
PROGRAMMING USING THE DISPLAY Elen Accessing the second menu level Doses setting With the machine on, press the Continuous Dispensing button Select within 30s the Left-hand drink buttons and hold it down (for over 8 seconds) until fig. 06 the dose-programming menu is displayed. All the drink buttons lights will be turned on and the Continuous Dispensing button light will flash. -
Page 31: Auto On/Off
PROGRAMMING USING THE DISPLAY Elen Auto On/Off After accepting the changes made in the “set clock” menu, pressing the 2 Auto On/Off Short Espressos button accesses the coffee machine’s auto on/off hh.mm programming menu (see fig. 09). fig. 9 To change the auto on/off time, increase/decrease the values (hours) using... -
Page 32: Messages And Alarms
MESSAGES AND ALARMS Elen Flow meter Fault in flow meter X Gr. X Flow fault detected in counter X Time-out alarm Check that the machine is receiving water. Boiler filling up Probe unconnect Temperature sensor fault Service the machine. To disable the alarm and reset the counter:... -
Page 33: Troubleshooting
TROUBLESHOOTING Elen The following checks can be carried out by users once the machine has been turned off and disconnected from the power supply. For all other unspecified machine faults, disconnect the machine from the power supply and immediately contact authorised and qualified service personnel. - Page 34 For the warranty to be valid the conditions for maintenance must have been followed according to our instructions, proper precautions have been taken, and warranty claim has been issued without delay. The affected equipment shall not be used while awaiting service if there is any risk that the damage or defect could worsen.
