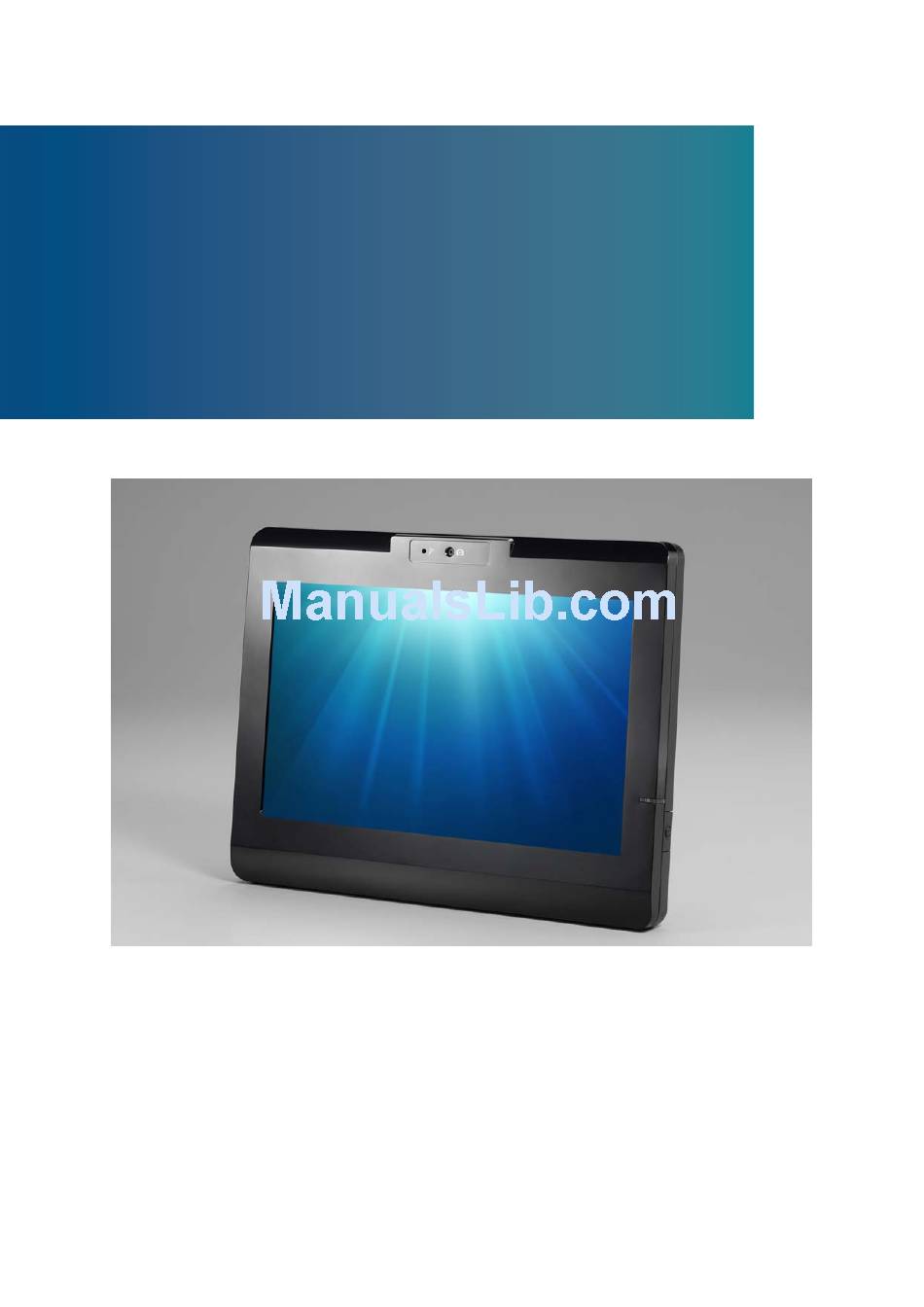

- Page 1 HPC-1000 10.1” Home Automation Panel PC with Intel® Atom N270 + Intel® 945GSE/ ICH7-M User’s Guide HPC-1000 User’s Manual...
- Page 2 © 2009 Quanmax Inc. All rights reserved. The information in this user’s guide is provided for reference only. Quanmax does not assume any liability arising out of the application or use of the information or products described herein. This user’s guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Quanmax, nor the rights of others.
-
Page 3: Table Of Contents
Chapter 2 Getting Started ..................20 Power Connection Turning on the system .......... 20 VESA Mounting................... 20 Wall Mount Kit..................21 Desktop Stand ..................22 Operating System and Drivers............22 Maintenance and Prevention .............. 23 HPC-1000 User’s Manual... -
Page 4: Figures
Figure 2 Mechanical Layout - I/O Panel............. 16 Figure 3 Mechanical Dimensions ............... 19 Figure 4 Turning on the system..............20 Figure 5 Mounting hole locations on the HPC-1000........20 Figure 6 Wall Mounting Demonstrations ............ 21 Figure 7 Install Desktop Stand ..............22... -
Page 5: Tables
Table 3 LAN (10/100/1000 Ethernet RJ-45 Connector)......17 Table 4 Digital I/Os (DB9 Female Connector) ..........17 Table 5 COM1 (RS-232/422/485 DB-9 Connector) ........17 Table 6 KB/MS (PS/2 KB/MS Mini-DIN Connector)........18 Table 7 DVI-I (DVI-I Connector) ..............18 HPC-1000 User’s Manual... -
Page 6: Safety Instructions
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support. WARNING High voltages are present inside the chassis when the unit’s power cord is plugged into... -
Page 7: Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. -
Page 8: Instructions For Lithium Battery
(e.g. to the collecting points for disposal of batteries) Voltage Ratings The external power adaptor of the HPC-1000 has the following voltage ratings: Input: 100-240 VAC, 50-60 Hz Output: 30W, +12Vdc, 2.5A Power Supplies: Touch Electronic Co. -
Page 9: Preface
Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify Quanmax customer service immediately. Refer to “Warranty Policy” for the return procedure. -
Page 10: Warranty Policy
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. -
Page 11: Maintaining Your Computer
Quanmax. Limitation of Liability In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. -
Page 12: Power Protection
AC power cord. Surge protectors, however, do not offer protection against brownouts, which occur when the voltage drops more than 20 percent below the normal AC line voltage level. Line Conditioner HPC-1000 User’s Manual... - Page 13 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. HPC-1000 User’s Manual...
-
Page 14: Chapter 1 Introduction

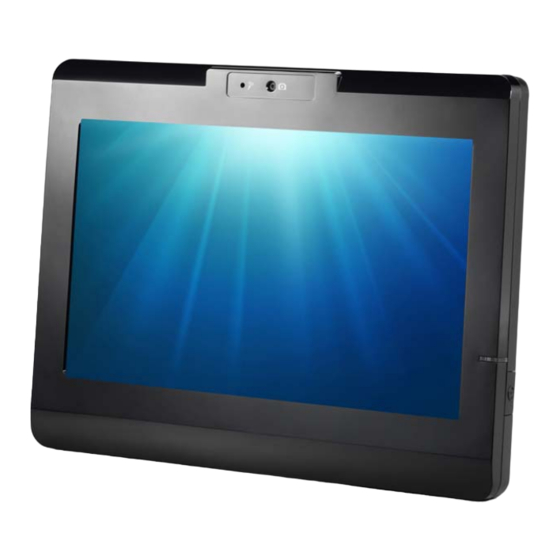

The HPC series provide a compact, high performance human-machine interface for home automation demands. Check list Take out the HPC-1000 from the carton box, check if the unit is properly secure in the plastic bag. Check the contents of the carton box:... -
Page 15: Product Specifications
68-2-6 Fc): 5-500Hz, 2 g (rms) / 3-axes Size and weight Dimensions 262 x 200 x 74mm (W x H x D) Weight 1.7kg Power Input DC12V Mounting Type VESA Compliant CE, FCC Class B Table 1 Specifications HPC-1000 User’s Manual... -
Page 16: System Tour
Chapter 1 System Tour Front and Side Panel Figure 1 Mechanical Layout - Front and Side Rear and I/O Panel Figure 2 Mechanical Layout - I/O Panel HPC-1000 User’s Manual... -
Page 17: External Connectors
GND, ground DSR, Data set ready RTS, Request to send CTS, Clear to send RI, Ring indicator (+5V / +12V ) ： Note Selected by BIOS Setting *COM1 Function Type RS232/422/485 can be selected from BIOS setting. HPC-1000 User’s Manual... -
Page 18: Table 6 Kb/Ms (Ps/2 Kb/Ms Mini-Din Connector)
Table 7 DVI-I (DVI-I Connector) Signal Name Signal Name TX2N TX2P TX5N TX5P SD_CLK SD_DATA VSYNC TX1N TX1P TX4N TX4P VGA_PWR VGA_EN TX0N TX0P TX6N TX6P TCLP TXLN Signal Name Analog red Analog green Analog blue Analog horizontal sync Analog ground HPC-1000 User’s Manual... -
Page 19: Mechanical Dimensions
Chapter 1 Mechanical Dimensions Figure 3 Mechanical Dimensions HPC-1000 User’s Manual... -
Page 20: Chapter 2 Getting Started
Chapter 2 Getting Started Power Connection Turning on the system Secure the power adapter cable to the DC jack (DC IN) of the HPC-1000 Connect the power cable to the power adapter Connect the power cable to a power outlet... -
Page 21: Wall Mount Kit
Chapter 2 Wall Mount Kit Below are the demonstrations of how to use Quanmax wall-mount kits Step1 Secure the VESA kit to the panel PC using the 4 screws. (M4x5L flat head) Step2 Install the wall-mount kit to the proper place of the wall by using the 6 screws. -
Page 22: Desktop Stand
You can download the drivers for the product from the Quanmax website at www.quanmax.com and install as instructed there. For other operating systems, please contact Quanmax. -
Page 23: Maintenance And Prevention
2. If your system goes into suspend mode, please push the power button for 2 seconds to wake up the system. Maintenance and Prevention Your HPC-1000 system requires minimal maintenance and care to keep it operating correctly. Occasionally wipe the system with a soft dry cloth.
