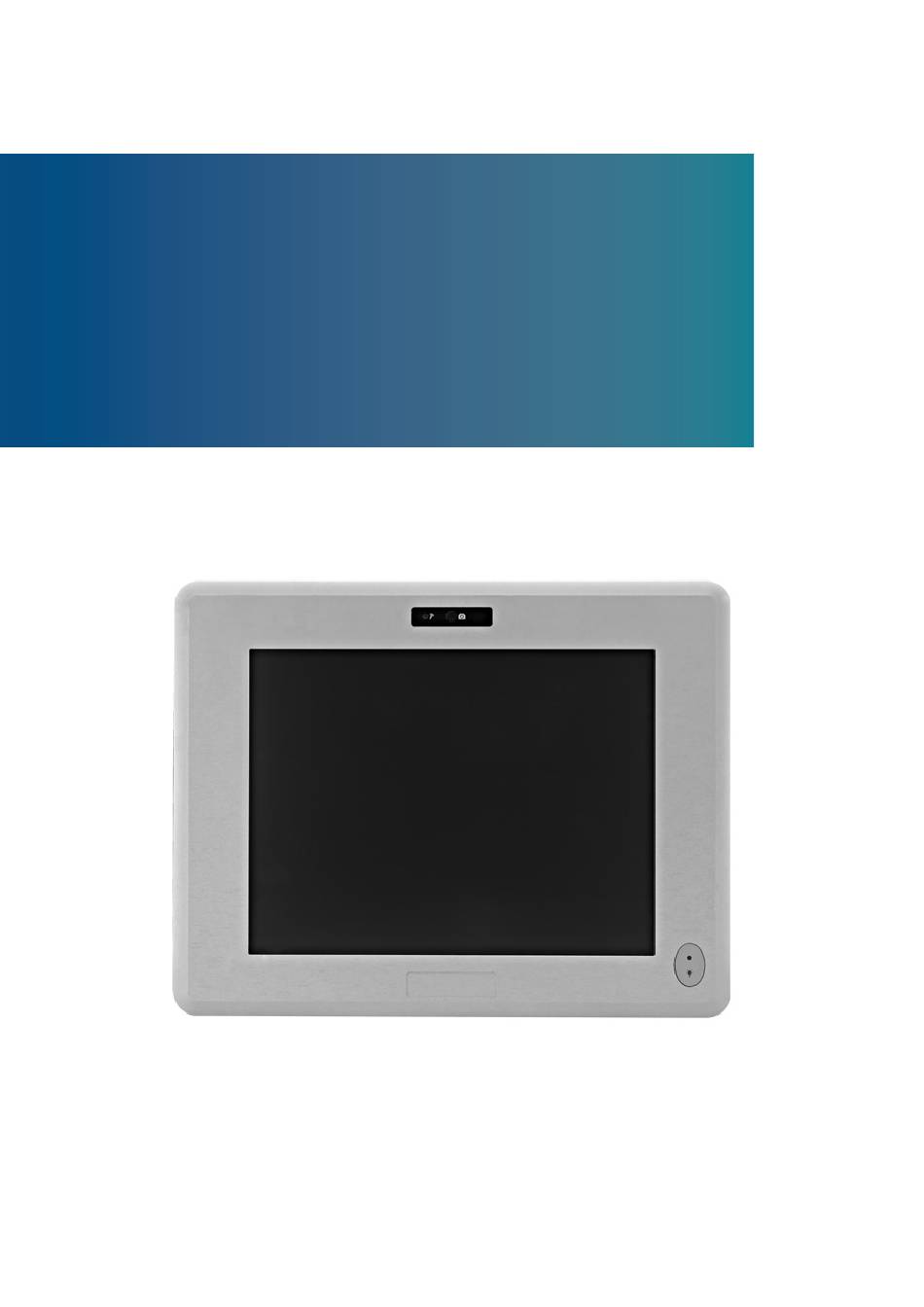

- Page 1 KPC-1250 12.1” Industrial Panel PC with Intel® GM45 + ICH9-M User’s Guide KPC-1250 User’s Manual...
- Page 2 © 2010 Quanmax Inc. All rights reserved. The information in this user’s guide is provided for reference only. Quanmax does not assume any liability arising out of the application or use of the information or products described herein. This user’s guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Quanmax, nor the rights of others.
-
Page 3: Table Of Contents
Advanced Menu ................28 Boot Menu ..................32 Chipset Menu ................... 33 Power Menu ..................35 Security Menu .................. 36 Exit Menu ..................37 Chapter 4 Driver Installation .................. 39 KPC-1250 User’s Manual... -
Page 4: Figures
Figure 9 Panel Mount Cut-Out Hole and Maximum Panel Thickness ...... 23 Figure 10 Panel Mounting ..................24 Tables Table 1 KPC-1250 product specifications ..............14 Table 2 BIOS Main Menu ..................26 Table 3 IDE Device Setting Menu ................26 Table 4 System Information .................. -
Page 5: Safety Instructions
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support. Access can only be gained by service persons or by users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken;... -
Page 6: When Working Inside A Computer
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. -
Page 7: Instructions For Lithium Battery
(e.g. to the collecting points for disposal of batteries) Voltage Ratings The external power adaptor of the KPC-1250 has the following voltage ratings: KPC-1250: 100-240Vac±10%,+12V/6.7A,80W or 100-240Vac±10%,+24V/3.75A,90W... -
Page 8: Preface
Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify our customer service immediately. Refer to “Warranty Policy” for the return procedure. -
Page 9: Warranty Policy
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. -
Page 10: Maintaining Your Computer
Quanmax. Limitation of Liability In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. - Page 11 20 percent below the normal AC line voltage level. Line Conditioner Line conditioners go beyond the overvoltage protection of surge protectors. KPC-1250 User’s Manual...
- Page 12 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. KPC-1250 User’s Manual...
-
Page 13: Chapter 1 Introduction
Introduction Overview KPC-1250 Panel PC is supporting the latest Intel® 45nm Core 2 Duo processor with the high integration of the Intel® GM45/ ICH9M chipset. Featuring DDR3 SODIMM up to 8GB, Intel® GMA 4500MHD supports DirectX 10 and Shader Model 4.0. - Page 14 Resolution: XGA (1024x768) LCD Display Brightness: 500 cd/m² Touch Screen: 5-wire Resistive Type Wireless LAN 802.11b/g/n (optional) Network 2x Gigabit Ethernet On-board LAN CPU and System Fan Cooling KPC-1250: 100-240Vac±10%,+12V/6.7A,80W or Power Unit 100-240Vac±10%,+24V/3.75A,90W Temperature / Operating: KPC-1250 User’s Manual...
-
Page 15: Table 1 Kpc-1250 Product Specifications
Chapter 1 0°C to 60°C (CF, SSD), 0°C to 50°C (2.5” HDD) Humidity Storage: 0°C to 85°C, 10%-85% rel. hum., non-condensing VESA, Panel Mount Mounting CE, FCC Class A, IP65 front bezel Certifications Table 1 KPC-1250 product specifications KPC-1250 User’s Manual... -
Page 16: System Tour
MIC-IN The microphone jack is designed to connect the microphone used for video conferencing, voice narrations, or simple audio recordings. Line-IN The Line-in jack is designed to take input from a higher-powered sound source. KPC-1250 User’s Manual... -
Page 17: Figure 2 Side View
HDMI HDMI connector for display output DVI-I DVI-I connector for DVI-D or VGA output D-Sub 15 pin VGA connector for display output D-Sub 9 pin connector for RS-232 connection Side View Figure 2 Side View KPC-1250 User’s Manual... -
Page 18: Mechanical Dimensions
Chapter 1 Mechanical Dimensions KPC-1250 Dimension: 343 x 269 x 64.8 mm (W x H x D) Figure 3 Mechanical Dimensions of KPC-1250 KPC-1250 User’s Manual... -
Page 19: Chapter 2 Getting Started
Figure 4 Connecting the display cable NOTE When the system reboots without connecting the VGA/DVI-I/HDMI, there might be no image on screen when you insert these cables. Please pressing <Ctrl>+<Alt>+<F4> simultaneously to show the image on screen. KPC-1250 User’s Manual... -
Page 20: Figure 5 Connecting Usb Mouse & Keyboard
Chapter 2 Connecting USB mouse & keyboard Your KPC-1250 does not come with a keyboard and mouse connector, but you can use any USB keyboard or mouse with your computer. Figure 5 Connecting USB mouse & keyboard NOTE Using a third-party USB mouse or keyboard may require software drivers. -
Page 21: Turning On The System
Chapter 2 Turning on the system Connect the power adapter cable to the DC jack (DC IN) of the KPC-1250 Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power switch on the front panel to turn on the system Figure 7 Turing on the System KPC-1250 User’s Manual... -
Page 22: Vesa Mounting
Chapter 2 VESA Mounting The product comes with VESA FDMI 75/100 standard mounting holes as shown below. Use 4 screws with the appropriate length for your mounting bracket. Figure 8 VESA Mounting Hole Locations – KPC-1250 KPC-1250 User’s Manual... -
Page 23: Panel Mounting
The Panel PC can be panel mounted and comes with brackets and screws for this purpose. The required cutout for panel mounting and maximum panel thickness is shown below. Figure 9 Panel Mount Cut-out hole and maximum panel thickness KPC-1250 User’s Manual... -
Page 24: Figure 10 Panel Mounting
Chapter 2 Below are the demonstrations of how to do panel mounting. Step1 Tightening the screws as shown right. Step2 Done Figure 10 Panel Mounting KPC-1250 User’s Manual... -
Page 25: Chapter 3 Ami Bios Setup
It is possible for the CMOS battery to fail, which will cause data loss in the CMOS only. If this happens you will need to reconfigure your BIOS settings. KPC-1250 User’s Manual... -
Page 26: Main Menu
LBA Mode disabled. LBA/ Large Mode [Auto] Select Screen DMA Mode [Auto] ↑↓ Select Item S.M.A.R.T [Auto] +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit V02.67 (C)Copyright 1985-2006, American Megatrends, Inc. KPC-1250 User’s Manual... -
Page 27: Table 4 System Information
Select Screen Genuine Intel® CPU 575 @ 2.00 GHz ↑↓ Select Item Speed :2000MHz F1 General Help F10 Save and Exit Physical Memory ESC Exit Size : 1024MB Sped ; 667MHz V02.67 (C)Copyright 1985-2006, American Megatrends, Inc. KPC-1250 User’s Manual... -
Page 28: Advanced Menu
Options: 3, 4, 10, 11 COM1 Function Type Options: RS-232, RS-422, RS-485 COM2 Address Options: Disabled, 2F8, 3E8, 2E8 COM2 IRQ Options: 3, 4, 10, 11 COM3 Address Options: Disabled, 3F8, 2F8, 3E8, 2E8, 2F0, 2E0 COM3 IRQ KPC-1250 User’s Manual... -
Page 29: Table 6 Onboard Peripherals Configuration Settings
On-Chip ATA Devices ↑↓ Select Item +- Change Field F1 General Help F10 Save and Exit ESC Exit V02.67 (C)Copyright 1985-2006, American Megatrends, Inc. USB Functions Options: Disabled, 2/4/6/8/10/12 USB Ports Legacy USB Support Options: Enabled, Disabled, Auto KPC-1250 User’s Manual... -
Page 30: Table 7 On-Chip Ata Configuration
[IDE] Enhanced Select Screen ↑↓ Select Item +- Change Option F1 General Help F10 Save and Exit ESC Exit V02.67 (C)Copyright 1985-2006, American Megatrends, Inc. On-Chip ATA Configuration Options: Disabled, Compatible, Enhanced Configure SATA Options: IDE, AHCI KPC-1250 User’s Manual... -
Page 31: Table 8 Hardware Health Configuration
Input :11.868 V ESC Exit V02.67 (C)Copyright 1985-2006, American Megatrends, Inc. CPU Warning Temperature Options: Disabled, 80°C/ 176°F, 85°C/ 185°F, 90°C/ 194°F, 95°C/ 203°F CPU Shutdown Temperature Options: Disabled, 80°C/ 176°F, 85°C/ 185°F, 90°C/ 194°F, 95°C/ 203°F KPC-1250 User’s Manual... -
Page 32: Boot Menu
When set to Enabled, the system waits for F1 key to be pressed when error occurs. Options: Disabled, Enabled Hit ‘DEL’ Message Display [Enabled] When set to Enabled, the system displays the message ‘Press DEL to run Setup’ during POST Options: Disabled, Enabled KPC-1250 User’s Manual... -
Page 33: Chipset Menu
V02.67 (C)Copyright 1985-2006, American Megatrends, Inc. Boots Graphic Adapter Priority Options: IGD, PCI/IGD, PCI/PEG, PEG/IGD, PEG/PCI Internal Graphics Mode Select Select the amount of system memory used by the Internal graphics device. Options: Disabled, Enabled 32MB, Enabled 64M, Enabled 128M KPC-1250 User’s Manual... -
Page 34: Table 11 Video Function Configurtion
DVMT/FIXED Memory Options: 128MB, 256MB, Maximum DVMT Boot Display Device Options: CRT, DVI, CRT+DVI, LVDS, CRT+LVDS Panel Type Options: 1024x768 24Bit 1CH Panel BackLight Voltage (V) Options: 0.0, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0 KPC-1250 User’s Manual... -
Page 35: Power Menu
Options: Power OFF, Power ON, Last State Resume By PS/2 KB/MS from S3 Options: Disabled, Enabled Resume From S3 By USB Device Options: Disabled, Enabled Resume On Ring Options: Disabled, Enabled Resume By PME# Options: Disabled, Enabled Resume By PCI-E Device KPC-1250 User’s Manual... -
Page 36: Security Menu
Change User Password Select this item to set or change the user password. The User Password item on top of the screen displays the default Not Installed. After you have set a password, this item displays Installed. KPC-1250 User’s Manual... -
Page 37: Exit Menu
After selecting this option, a confirmation appears. Select [Yes] to discard any changes and load the previously saved values. Load Optimal Defaults Load Optimal Default values for all the setup values. This option allows you to load KPC-1250 User’s Manual... - Page 38 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. KPC-1250 User’s Manual...
-
Page 39: Chapter 4 Driver Installation
Chapter 4 Driver Installation If your KPC-1250 does not come with an operating system pre-installed, you will need to install an operating system and the necessary drivers to operate it. After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system.
