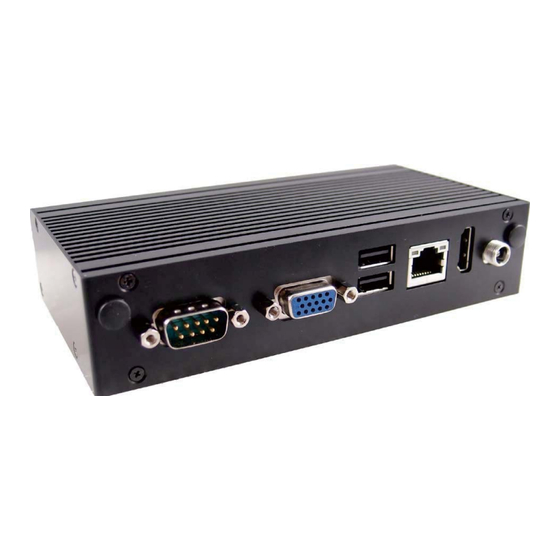

- Page 1 QBOX-200S Series Standard / Extended Temperature Fanless BOX PC with Intel® BayTrail SoC Processor, Atom™ E3825 User’s Guide QBOX-200S Series User’s Manual...
-
Page 2: Table Of Contents
Mounting your PC to a monitor..............23 Chapter 3 AMI BIOS Setup..................24 Overview ....................24 Main Menu....................25 Advanced Menu..................27 Boot Menu ....................35 Security Menu.................... 36 Save & Exit Menu ..................36 Chapter 4 Driver Installation .................. 38 QBOX-200S Series User’s Manual... -
Page 3: Figures
Figure 5 Connect USB mouse & keyboard ..........19 Figure 6 RJ45 connector................20 Figure 7 Com ports ..................21 Figure 8 Turning on the system..............22 Figure 9 VESA mounting (1) ..............23 Figure 10 VESA mounting (2) ..............23 QBOX-200S Series User’s Manual... -
Page 4: Tables
Tables Tables Table 1 QBOX-200S Series Specification ..........13 Table 2 QBOX-200S BIOS Main Menu ............25 Table 3 QBOX-200T BIOS Main Menu............26 Table 4 Advanced Menu................27 Table 5 Advanced Menu – Display Configuration........28 Table 6 Advanced Menu – Super IO Configuration ........29 Table 7 Advanced Menu –... -
Page 5: Safety Instructions
The product chassis may be hot when the system is working. Please do not touch the surface before turn off the system power and wait for about 5 minutes until the system cools down. QBOX-200S Series User’s Manual... -
Page 6: When Working Inside A Computer
Also, before connecting a cable, make sure both connectors are correctly oriented and aligned. CAUTION Do not attempt to service the system yourself except as explained in this user’s guide. Follow installation and troubleshooting instructions closely. QBOX-200S Series User’s Manual... -
Page 7: Preventing Electrostatic Discharge
Handle components and boards with care. Don’t touch the components or contacts on a board. Hold a board by its edges or by its metal mounting bracket. Do not handle or store system boards near strong electrostatic, electromagnetic, magnetic, or radioactive fields. QBOX-200S Series User’s Manual... -
Page 8: Instructions For Lithium Battery
Do not dispose of lithium batteries in domestic waste. Dispose of the battery according to the local regulations dealing with the disposal of these special materials (e.g. to the collecting points for disposal of batteries) QBOX-200S Series User’s Manual... -
Page 9: Preface
(take adequate measures) at their own expense. The user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. QBOX-200S Series User’s Manual... -
Page 10: Maintaining Your Computer
Buildings in which climate is controlled usually maintain an acceptable level of humidity for system equipment. However, if a system is located in an unusually QBOX-200S Series User’s Manual... - Page 11 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. QBOX-200S Series User’s Manual...
-
Page 12: Chapter 1 Introduction
Chapter 1 Introduction Overview The QBOX-200S Series is a standard / extended temperature fanless digital signage player ideal for space critical applications. This embedded hardware platform features Intel® BayTrail Processor, Atom™ E3825, and DDR3L SO-DIMM. It comes with 1x HDMI, 1x VGA, 2x USB2.0, 1x USB 3.0, 1x GbE LAN, 1x mSATA, 1x Micro SD card cage, 1x COM. -
Page 13: Product Specifications
Storage: -20°C ~ 80°C / -4°F ~ 176°F Humidity: 0% ~ 90% Dimensions 150.6 x 80.8 x 33 mm / 5.93" x 3.18" x 1.30" (W x D x H) Certifications CE, FCC Class A Table 1 QBOX-200S Series Specification QBOX-200S Series User’s Manual... -
Page 14: System Tour
The hard disk LED blinks when data is being written into or read from the HDD. Phone Jack Audio Out The green stereo headphone jack is used to connect the system’s audio out signal to amplified speakers or headphones. QBOX-200S Series User’s Manual... - Page 15 The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards, mouse devices, cameras, and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs. QBOX-200S Series User’s Manual...
-
Page 16: Figure 2 Rear Panel
The eight-pin RJ-45 LAN port supports a standard Ethernet cable for connection to a local network. HDMI HDMI connector for display output D-Sub 15 pin VGA connector for display output Antenna 2x reserved holes for wireless antenna connections. QBOX-200S Series User’s Manual... -
Page 17: Mechanical Dimensions
Chapter 1 Mechanical Dimensions Dimension: 150.6 x 80.8 x 33mm ( W x D x H ) Figure 3 Mechanical Dimensions QBOX-200S Series User’s Manual... -
Page 18: Chapter 2 Getting Started
Figure 4 VGA/ HDMI NOTE When the system reboots without connecting the VGA/HDMI, there might be no image on screen when you insert the VGA/HDMI cable. Please pressing <Ctrl>+<Alt>+<F4> simultaneously to show the image on screen. QBOX-200S Series User’s Manual... -
Page 19: Figure 5 Connect Usb Mouse & Keyboard
Chapter 2 Connect USB mouse & keyboard Your QBOX-200S Series does not come with a keyboard and mouse connector, but you can use any USB keyboard or mouse to connect with your computer. USB 3.0 Figure 5 Connect USB mouse & keyboard NOTE Using a third-party USB mouse or keyboard may require software drivers. -
Page 20: Figure 6 Rj45 Connector
Chapter 2 Connect LAN port Connect one end of a network cable to the LAN port on the system rear panel and the other end to a hub or switch. RJ45 Figure 6 RJ45 connector QBOX-200S Series User’s Manual... -
Page 21: Figure 7 Com Ports
Chapter 2 COM Ports COM ports with the pin definitions. COM 1 COM1 RS-232/422/485 Port 1 D-SUB 9P Figure 7 Com ports QBOX-200S Series User’s Manual... -
Page 22: Figure 8 Turning On The System
Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power switch on the front panel to turn on the system DC Jack Power Switch Figure 8 Turning on the system QBOX-200S Series User’s Manual... -
Page 23: Mounting Your Pc To A Monitor
NOTE To fasten the metal shelf, your monitor must comply with VESA75 or VESA100 standard. Place the QBOX-200S Series onto the monitor and secure it with the four screws properly on both sides of VESA mount kit as shown below. -
Page 24: Chapter 3 Ami Bios Setup
It is possible for the CMOS battery to fail, which will cause data loss in the CMOS only. If this happens you will need to reconfigure your BIOS settings. QBOX-200S Series User’s Manual... -
Page 25: Main Menu
F2: Previous Values Total Size 2048 MB (DDR3L) F3: Optimized Defaults Frequency 1066 MHz F4 Save & Exit System date [Wed 01/01/2014] ESC Exit System time [13:23:12] Access Level Administrator Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. QBOX-200S Series User’s Manual... -
Page 26: Table 3 Qbox-200T Bios Main Menu
F2: Previous Values Total Size 2048 MB (DDR3L) F3: Optimized Defaults Frequency 1066 MHz F4 Save & Exit System date [Wed 01/01/2014] ESC Exit System time [13:23:12] Access Level Administrator Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. QBOX-200S Series User’s Manual... -
Page 27: Advanced Menu
> H/W Monitor F4 Save & Exit ESC Exit Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. Onboard LAN 1 Controller Options: Disabled, Enabled Onboard LAN 1 Boot Options: Disabled, Enabled Audio Controller Options: Disabled, Enabled QBOX-200S Series User’s Manual... -
Page 28: Table 5 Advanced Menu - Display Configuration
Options: 128MB, 256MB, 512MB DVMT Pre-Allocated Options:64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M, 352M, 384M, 416M, 448M, 480M, 512M DVMT Total Gfx Mem Options: 128M, 256M, MAX Primary IGFX Boot Display Options: VBIOS Default, CRT, HDMI, LVDS QBOX-200S Series User’s Manual... -
Page 29: Table 6 Advanced Menu - Super Io Configuration
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Serial Port Type Options: RS232, RS422, RS485 QBOX-200S Series User’s Manual... -
Page 30: Table 8 Advanced Menu -Cpu Advanced Configuration
Empty F4 Save & Exit Port 1 [ Enabled ] ESC Exit Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. SATA Options: Disabled, Enabled SATA Mode Options: IDE Mode, AHCI Mode Port 1 Options: Disabled, Enabled QBOX-200S Series User’s Manual... -
Page 31: Table 10 Advanced Menu -Usb Configuration
Legacy USB Support Options: Disabled, Enabled, Auto XHCI Legacy Support Options: Disabled, Enabled XHCI hand-off Options: Disabled, Enabled EHCI hand-off Options: Disabled, Enabled USB Mass Storage Driver Support Options: Disabled, Enabled XHCI hand-off Options: Smart Auto, Enabled QBOX-200S Series User’s Manual... -
Page 32: Table 11 Advanced Menu -Tpmconfiguration
[ Disabled ] +- Change Opt. F1: General Help Current Status Information F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. Security Device Support Options: Disabled, Enabled QBOX-200S Series User’s Manual... -
Page 33: Table 12 Advanced Menu -H/W Monitor
F1: General Help +VCORE : +0.789 V F2: Previous Values +VIN : +11.644 V F3: Optimized Defaults : +5.106 V F4 Save & Exit +VMEN : +1.349 V ESC Exit Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. QBOX-200S Series User’s Manual... -
Page 34: Table 13 Power Configuration
Options: Power Off, Power On, Last State Resume By PCIE Device Options: Disabled, Enabled Resume By RTC Alarm Options: Disabled, Enabled EUP Power Saving Mode Options: Disabled, Enabled Watchdog Timer Configuration WDT Function [Disabled] Options: Disabled, Enabled QBOX-200S Series User’s Manual... -
Page 35: Boot Menu
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc. Full Screen LOGO Display Options: Disabled, Enabled Bootup Numlock State Options: On, Off Keyboard Detect Warning Options: Disabled, Enabled CSM Support Options: Disabled, Enabled Boot Option Filter Options: UEFI and Legacy, Legacy only, UEFI only QBOX-200S Series User’s Manual... -
Page 36: Security Menu
Enter: Select Save Options +- Change Opt. Save Changes F1: General Help Discard Changes F2: Previous Values F3: Optimized Defaults Restore Defaults F4 Save & Exit ESC Exit Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. QBOX-200S Series User’s Manual... - Page 37 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. QBOX-200S Series User’s Manual...
-
Page 38: Chapter 4 Driver Installation
You can download the drivers for the QBOX-200S Series from the our website and install as instructed there. For other operating systems, please contact us.
