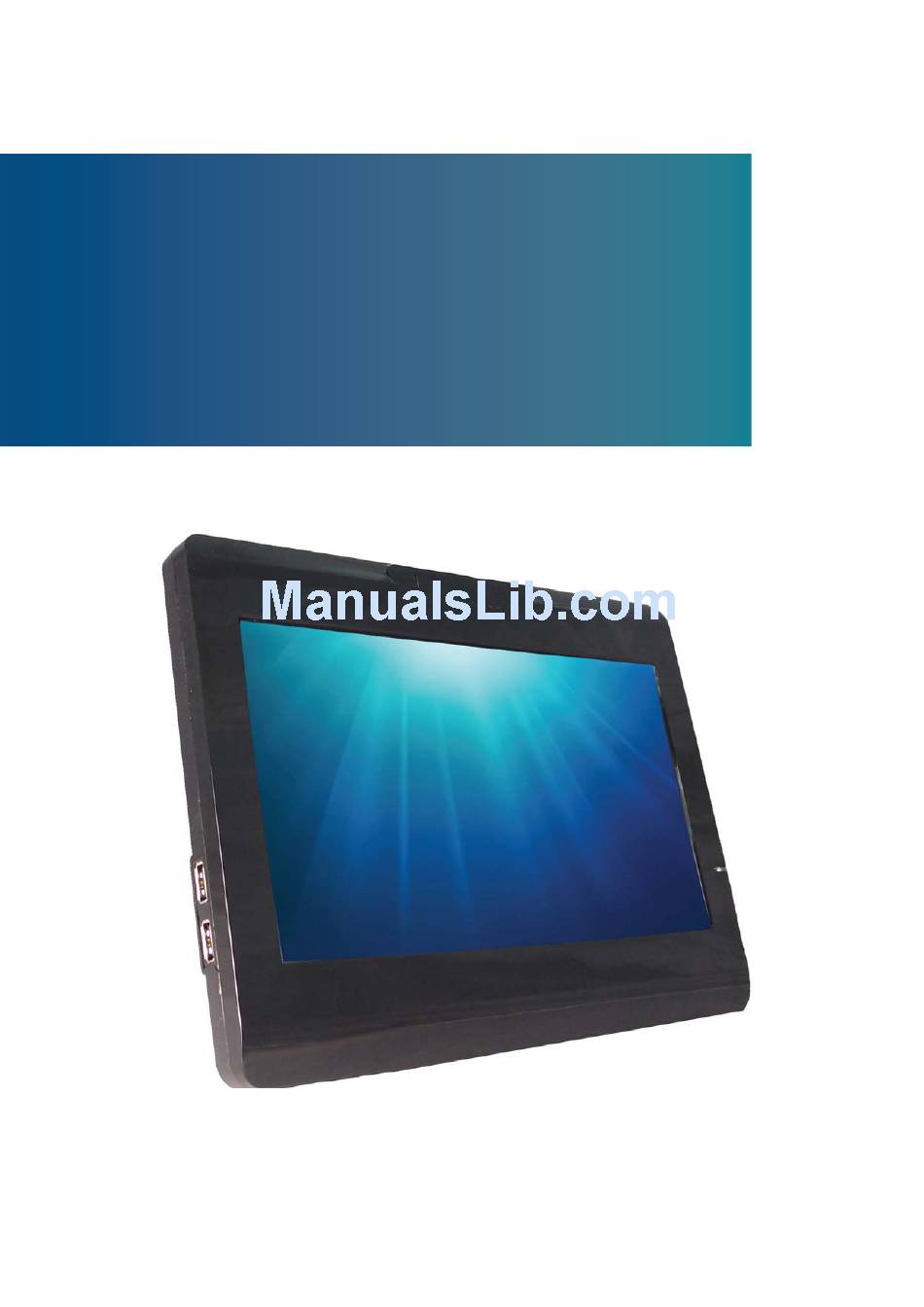

- Page 1 HPC-1010 10.1”Fanless Panel PC w/ Dual Core Intel® Atom™ Processor N2800 User’s Guide HPC-1010 User’s Manual...
- Page 2 Quanmax, nor the rights of others. Quanmax is a registered trademark of Quanmax. All trademarks, registered trademarks, and trade names used in this user’s guide are the property of their respective owners.
-
Page 3: Table Of Contents
Chapter 3 AMI BIOS Setup ..................26 Overview ..................... 26 Main Menu ..................27 Advanced Menu .................. 28 Boot Menu ..................35 Security Menu ..................36 Save & Exit Menu ................36 Chapter 4 D river Installation .................. 38 HPC-1010 User’s Manual... -
Page 4: Figures & Tables
Figure 8 VESA Mounting Hole Locations ........... 22 Figure 9 Wall Mounting Demonstrations ............ 23 Figure 10 Install Desktop Stand ..............24 Table 1 HPC-1010 product specification ............ 14 Table 2 BIOS Main Menu ................27 Table 3 Advanced Menu ................28 Table 4 Advanced Menu –... -
Page 5: Safety Instructions
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support. Access can only be gained by service persons or by users who have ... -
Page 6: When Working Inside A Computer
Also, before connecting a cable, make sure both connectors are correctly oriented and aligned. CAUTION Do not attempt to service the system yourself except as explained in this user’s guide. Follow installation and troubleshooting instructions closely. HPC-1010 User’s Manual... -
Page 7: Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. -
Page 8: Preface
Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify Quanmax customer service immediately. Refer to “Warranty Policy” for the return procedure. -
Page 9: Warranty Policy
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. -
Page 10: Maintaining Your Computer
Quanmax. Limitation of Liability In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. - Page 11 Line conditioners keep a system’s AC power source voltage at a fairly constant level and, therefore, can handle brownouts. Because of this added protection, line conditioners cost more than surge protectors. However, line conditioners cannot protect against a complete loss of power. HPC-1010 User’s Manual...
- Page 12 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. HPC-1010 User’s Manual...
-
Page 13: Chapter 1 Introduction
Chapter 1 Chapter 1 Introduction Overview ® The HPC-1010 10.1” Panel PC is combining the Intel Atom™ processor N2800 ® with the high integration of the Intel NM10 Express chipset for a wide range of industrial applications. Storage includes a 2.5" SATA hard drive or a solid-state drive (SSD). -
Page 14: Product Specifications
Operating Temperature: With Industrial SSD: -10 ~ 50° C (Ambient with air flow) With 2.5" HDD: 0 ~ 40° C (Ambient with air flow) Storage Temperature: -20°C to 80°C, 0%-90%, non-condensing Certification CE, FCC Class A Table 1 HPC-1010 product specification HPC-1010 User’s Manual... -
Page 15: System Tour
Power Button The power button allows powering ON and OFF the system. Ethernet The eight-pin RJ-45 LAN port supports a standard Ethernet cable for connection to a local network. HPC-1010 User’s Manual... - Page 16 HDMI connector for display output D-Sub 9 pin connector for RS-232/422/485 connection DVI-I The DVI-I (Digital Visual Interface-Integrated) connector allows you to connect an LCD monitor. It provides a high-speed digital interconnection between the computer and its display device. HPC-1010 User’s Manual...
-
Page 17: Mechanical Dimensions
Chapter 1 Mechanical Dimensions 261.98 x 199.98 x 61 mm ( W x D x H ) Figure 2 Mechanical Dimensions HPC-1010 User’s Manual... -
Page 18: Chapter 2 Getting Started
Chapter 2 Chapter 2 Getting Started Setting up your PC Connecting the monitor Connect the HDMI / DVI-I cable from your display to the HDMI / DVI-I port. HDMI DVI-I Figure 3 DVI- I/ HDMI HPC-1010 User’s Manual... -
Page 19: Figure 4 Connect Usb Mouse & Keyboard
Chapter 2 Connecting USB mouse & keyboard Your HPC-1010 does not come with a keyboard and mouse, but you can use any USB keyboard or mouse with your computer. Figure 4 Connect USB mouse & keyboard NOTE Using a third-party USB mouse or keyboard may require software drivers. -
Page 20: Figure 6 Com Port
Chapter 2 COM port COM port with the pin definitions. COM1RS-232 / 422 / 485 Port DB-9 Half Duplex Full Duplex RS-232 RS-422 RS-485 RS-485 DATA- DATA+ Figure 6 COM port HPC-1010 User’s Manual... -
Page 21: Figure 7 Turning On The System
Chapter 2 Turning on the system Connect the power adapter cable to the DC jack (DC IN) of the HPC-1010 Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power switch on the front panel to turn on the system... -
Page 22: Vesa Mounting
The product comes with VESA FDMI 75 standard mounting holes as shown below. Use 4 screws with the appropriate length for your mounting bracket. Figure 8 VESA Mounting Hole Locations NOTE To fasten the metal shelf, your monitor must comply with VESA75 standard. The VESA mounting kit is optional. HPC-1010 User’s Manual... -
Page 23: Wall Mount Kit
Chapter 2 Wall Mount Kit Below are the demonstrations of how to use Quanmax wall-mount kits Step1 Secure the VESA kit to the panel PC using the 4 screws. (M4x5L flat head) Step2 Install the wall-mount kit to the proper place of the wall by using the 6 screws. -
Page 24: Desktop Stand
Step2 Secure the VESA kit to the desktop stand using the 4 screws. (M4x5L round head) Step3 Secure the panel PC to the desktop stand using the 4 screws. (M4x5L flat head) Figure 10 Install Desktop Stand HPC-1010 User’s Manual... -
Page 25: Operating System And Drivers
2. If your system goes into suspend mode, please push the power button for 2 seconds to wake up the system. Maintenance and Prevention Your HPC-1010 system requires minimal maintenance and care to keep it operating correctly. Occasionally wipe the system with a soft dry cloth. -
Page 26: Chapter 3 Ami Bios Setup
This chapter provides a description of the AMI BIOS. The BIOS setup menus and available selections may vary from those of your product. For specific information on the BIOS for your product, please contact Quanmax. NOTE: The BIOS menus and selections for your product may vary from those in this chapter. -
Page 27: Main Menu
+- Change Opt. Frequency 1067 MHz (DDR3) F1: General Help System date [Sun 11/20/2011] F2: Previous Values System time [14:33:56] F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. HPC-1010 User’s Manual... -
Page 28: Advanced Menu
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. Onboard LAN 1 Controller Options: Disabled, Enabled Onboard LAN 1 Boot Options: Disabled, Enabled Onboard LAN 2 Controller Options: Disabled, Enabled Onboard LAN 2 Boot Options: Disabled, Enabled Audio Controller Options: Disabled, Enabled HPC-1010 User’s Manual... -
Page 29: Table 4 Advanced Menu – Display Configuration
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. Fixed Graphics Memory Size Options: 128MB, 256MB IGFX – Boot Type Options: VBIOS Default, CRT, DVI, HDMI, LVDS LVDS Backlight Control – Voltage Options: 0.0V, 0.5V, 1.0V, 1.5V, 2.0V, 2.5V, 3.0V, 3.5V, 4.0V, 4.5V, 5.0V HPC-1010 User’s Manual... -
Page 30: Table 5 Advanced Menu –Power Management Configuration
Options: Disabled, Enabled Resume From S3 By PS/2 Mouse Options: Disabled, Enabled Resume By PCIE Device Options: Disabled, Enabled Resume By RTC Alarm Options: Disabled, Enabled Watchdog Timer Configuration WDT Function [ Disabled ] ■ Options: Disabled, Enabled HPC-1010 User’s Manual... -
Page 31: Table 6 Advanced Menu –Cpu Advanced Configuration
F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. Hyper-Treading Options: Disabled, Enabled Execute Disable Bit Options: Disabled, Enabled Limit CPUID Maximum Options: Disabled, Enabled EIST Options: Disabled, Enabled HPC-1010 User’s Manual... -
Page 32: Table 7 Advanced Menu –Sata Configuration
F4 Save & Exit ESC Exit Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. Legacy USB Support Options: Disabled, Enabled, Auto EHCI hand-off Options: Disabled, Enabled Mass Storage Device Options: Auto, Floppy, Forced FDD, Hard Disk, CD-ROM HPC-1010 User’s Manual... -
Page 33: Table 9 Advanced Menu – Super Io Configuration
IO=3F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; Serial Port Type Options: RS232, RS422, RS485 HPC-1010 User’s Manual... -
Page 34: Table 11 Advanced Menu –H/W Monitor
: +12.160V F4 Save & Exit +1.05V : +1.072V +1.5V : +1.508 V ESC Exit +USBVCC : +4.989 V Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. CPU Warning Temperature Options: Disabled, 80 ºC, 85 ºC, 90 ºC HPC-1010 User’s Manual... -
Page 35: Boot Menu
Full Screen LOGO Display Options: Disabled, Enabled Bootup Numlock State Options: On, Off Boot Option #1 Options: UEFI, SATA PM: Disabled Boot Option #2 Options: UEFI, SATA PM: Disabled Hard Drive BBS Priorities ■ Boot Option #1 Options: SanDisk, Disabled HPC-1010 User’s Manual... -
Page 36: Security Menu
↑↓ Select Item Enter: Select Save Options +- Change Opt. Save Changes F1: General Help Discard Changes F2: Previous Values F3: Optimized Defaults Restore Defaults F4 Save & Exit ESC Exit Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. HPC-1010 User’s Manual... - Page 37 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. HPC-1010 User’s Manual...
-
Page 38: Chapter 4 D River Installation
Chapter 4 Driver Installation If your HPC-1010 does not come with an operating system pre-installed, you will need to install an operating system and the necessary drivers to operate it. After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system.
