Perfect Flame 61701 Owner's Manual

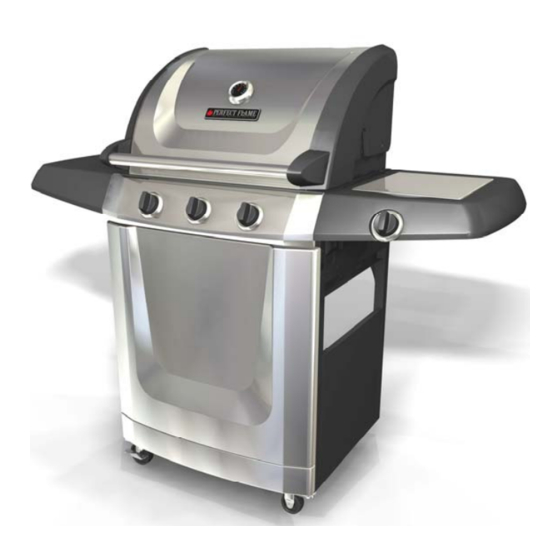

3-burner lp gas grill
Hide thumbs Also See for 61701:
Table of Contents

Advertisement

Quick Links

WARNING
Improper installation,
adjustment, alteration, service or
maintenance can cause injury or
property damage.
Read the installation,
operation and maintenance
instructions thoroughly before
installing or servicing this
equipment.
DANGER
Failure to follow these
instructions could result in fire
or explosion that could cause
property damage, personal
injury or death.
DANGER
DO NOT use gas grill for indoor
cooking or heating. TOXIC
fumes can accumulate and
cause asphyxiation. DO NOT
use in or on boats or
recreational vehicles.
PROP 65 WARNING
Chemicals known to the state of
California to cause cancer, birth
defects or other reproductive
harm are created by the
combustion of propan
WARNING
FOR YOUR SAFETY :
For Outdoor Use Only
(outside any enclosure)
SLG2008A
Owner's Manual
3-Burner LP Gas Grill
e.
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. IF YOU ARE ASSEMBLING THIS
UNIT FOR SOMEONE ELSE, GIVE THIS
MANUAL TO HIM OR HER TO SAVE FOR
FUTURE REFERENCE.
FOR CUSTOMER SERVICE, EMAIL TO
SERVICE@BBQTEK.COM OR
CALL 1-877-885-8227 (TOLL-FREE),
7:00 A.M. – 4:00 P.M.(PST), MONDAY-FRIDAY.
0
ITEM # 61701

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 61701 and is the answer not in the manual?

Questions and answers

Related Manuals for Perfect Flame 61701

Summary of Contents for Perfect Flame 61701

  • Page 1 ITEM # 61701 3-Burner LP Gas Grill WARNING Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the installation, operation and maintenance instructions thoroughly before installing or servicing this equipment. DANGER Failure to follow these...

  • Page 2: Grill Operation

    Grill Operation 1-2-3 Before Grilling, Step 1 Keep your grill a safe distance away from your property.* Step 2 Always Perform a Leak Test on all connections and hoses. * Step 3 Keep children away from the grill. During Grilling, (To avoid tripping safety valves, please follow these instructions carefully!) Step 1 First open lid and turn gas tank on slowly.

  • Page 3: Table Of Contents

    Table of Contents For Your Safety....................3 Illustrated Parts List ..................5 Hardware List....................6 Assembly Instructions..................7 Operating Your Grill..................13 Connecting Gas Cylinder.................14 Checking for Leaks..................14 Lighting Your Grill....................14 Excess flow safety valve reset procedure............16 Rotisserie Operating Instruction..............17 Care and Maintenance..................19 Award-Winning Barbecue Recipes..............20 Troubleshooting....................21 Warranty Program.....................23 SLG2008A...

  • Page 4: For Your Safety

    For Your Safety Dear Valued Customer, Congratulations on your new barbecue grill purchase! You’ve made the right choice. In this manual, you will find assembly instructions, suggestions for grilling and helpful hints, as well as guidelines for the safe operation, proper care and use of your grill.
  • Page 5 Safe Locations For Use Of This Outdoor Grill DANGER Never use this outdoor grill inside any building, garage, shed or breezeway, or inside any boat, trailer or recreational vehicle to prevent a possible fire and to prevent the possibility of carbon monoxide poisoning or asphyxiation. WARNINGS Do not use this appliance under overhead combustible surface or covered area (e.g., awnings, umbrellas, porches or gazeboes).

  • Page 6: Illustrated Parts List

    Illustrated Parts List AA. Left side panel....1pc BB. Right side panel…………1pc CC. Bottom panel……..……1pc DD. Front panel………..…….. 1pc EE. Front beam……….….. 1pc FF. Top beam………..….….1pc GG. Body assembly …….….1pc HH. Left side shelf………1pc II. Right side shelf ……..…..1pc JJ.

  • Page 7: Hardware List

    Hardware List M6x15mm Bolts 13pcs 6pcs M4x12mm M6x20mm Bolts 4pcs 6pcs Small Washer M6x45mm Bolts M4 Nut 4pcs 4pcs Spring Washer 15pcs M6 Nut screwdriver 19pcs M6 Washers Hardware listed above is not scaled to exact size. (A screwdriver is required on assembly and is included for your convenience). SLG2008A Owner’s Manual...

  • Page 8: Assembly Instructions

    Assembly Instructions Remove all contents from the carton packaging. Make sure all parts are present before attempting assembly. Once the grill is fully assembled, go back and check to make certain all the bolts are secure. Tighten again using the screwdriver provided if necessary.
  • Page 9 Step 3 a) Place the top beam (FF) in front of the cart assembly. Align the holes on the left inside of the cart assembly with holes on the cart top beam. b) Insert one M6x15mm bolt (A), one spring washer (D) and one M6 washer (E) into each hole.
  • Page 10 Step 5 a) Place the body assembly (GG) on top of the cart assembly. Note: Make certain the pre-drilled holes on the left side of the body assembly are properly aligned. b) Insert one M6x20mm bolt (B), one spring washer (D) and one M6 washer (E) into each hole on left side of the body assembly.
  • Page 11 Step 7 a) Align the holes on side knob seat (RR) with the holes on the right side shelf and side burner valve. Screw one M4x16mm bolt (F) and one small washer (G) into each pre-drilled hole. b) Tighten the bolts using the screwdriver provided. Insert the side burner knob (QQ) into knob shaft of valve.
  • Page 12 Step 9 a) Connect the side burner ignition cable by inserting it into the electrode. Make certain the connection is secure. Step 10 a) Place the three heat plates (KK) inside the grill upon the burners. b) Place the two cooking grates (LL) inside the grill upon the heating shields.
  • Page 13 Step 11 a) Hook the cup support (NN) into the grooves beneath the heat insulating plate. b) Place the grease cup (OO) on the cup support. Step 12 a) Insert the tank clip (PP) into the holes on the gas tank support. Place the gas tank on the tank support and clip it using the tank clip.

  • Page 14: Operating Your Grill

    Fully Assembled View Right Side Left Side Operating the Grill CAUTION: Use only the regulator provided. If a replacement is necessary, call our customer service center. The use of unauthorized parts can create an unsafe condition and environment. The propane gas supply cylinder used must be constructed and marked in accordance with the Specifications for Propane Gas Cylinders of the U.S.

  • Page 15: Connecting Gas Cylinder

    Connecting the Gas Cylinder LP (Propane) Gas Supply Connection 1. Always place the propane cylinder on the tank brackets located on the right side of the cart. 2. Always confirm that all burner control knobs are in the OFF position before activating the gas supply. 3.
  • Page 16 Ignite only the burners you wish to use, using the same method for each: Push desired burner valve knob and rotate slowly about 1/4 counterclockwise until a click is heard. The burner should light. If the burner does not light, return the valve knob to the “OFF” position immediately. Wait five minutes for the gas to clear and repeat the procedure.

  • Page 17: Excess Flow Safety Valve Reset Procedure

    Confirm that the burner is properly lit and that the flame pattern is as desired (see fig. A,B and C below for the proper flame patterns). If the flame pattern is other than normal, consult the Troubleshooting on page 21 for corrective action. FIG.

  • Page 18: Rotisserie Operating Instruction

    8. Wait for at least 5 minutes. 9. Re-connect the regulator to the LP tank. 10. Slowly turn the LP tank valve ¼ turn at a time and have the valve all the way open. 11. With the lid open: For grill with ignition button: turn on only ONE front burner control knob to the HIGH position. Ignite the grill by pushing the ignition button.
  • Page 19 13. Fuel, and/or charcoal briquettes, is not to be used with this appliance. 14. Do not expose to rain. 15. To ensure continued protection against risk of electrical shock, connect to properly grounded outlets only. 16. A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. 17.

  • Page 20: Care And Maintenance

    Care and Maintenance IMPORTANT Always allow to completely cool off before covering your grill to prevent corrosion from condensation. Caution: All cleaning and maintenance should be done when the grill is cool, with the fuel supply turned off at the control dial and the propane cylinder disconnected.

  • Page 21: Award-Winning Barbecue Recipes

    Award-Winning Barbecue Recipes Never-fail Barbecue Sauce Hardcore Grilled Trout Ingredients: Ingredients: ¼ cup Finely chopped onion ¼ cup Lemon or lime juice 2 tablespoons Butter or margarine 2 tablespoons Melted butter ¼ cup Brown sugar, firmly packed 2 tablespoons Vegetable oil 1 tablespoon Worcestershire sauce 2 tablespoons...

  • Page 22: Troubleshooting

    Troubleshooting Problem Possible Cause Prevention/Cure urner will not light using knobs or Wires and/or electrode covered Clean wire and /or electrode with igniter. with cooking residue. rubbing alcohol. Electrode and burners are wet. Wipe dry with cloth. Electrode cracked or broken – Replace electrode.
  • Page 23 Flame blow out. High or gusting winds. Turn front of grill to face wind or increase flame height. Low on propane gas. Replace or refill propane tank. Excess flow valve tripped. Refer to the Excessive flow safety valve reset procedure on page 16. Flare-up.

  • Page 24: Warranty Program

    Warranty Program Proof of purchase is required to access this warranty program, which is in effect from the date of purchase. If unable to provide proof of purchase or after the warranty has expired, customers will be subject to parts, shipping and handling fees. Full 30-Day Warranty Any missing parts can be replaced at no charge within 30 days from the date of purchase with a valid proof of purchase.
