WARNING
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property
damage.
Read the assembly, operation
and maintenance instructions
thoroughly before assembling
or servicing this equipment.
DANGER
Failure to follow these
instructions could result in fire
or explosion that could cause
property damage, personal
injury or death.
DANGER
DO NOT use gas grill for indoor
cooking or heating. TOXIC fumes
can accumulate and cause
asphyxiation. DO NOT use in or
on boats or recreational vehicles.
PROP 65 WARNING
Chemicals known to the state of
California to cause cancer, birth
defects or other reproductive
harm are created by the
combustion of liquid propane
gas
.
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only.
(outside any enclosure)

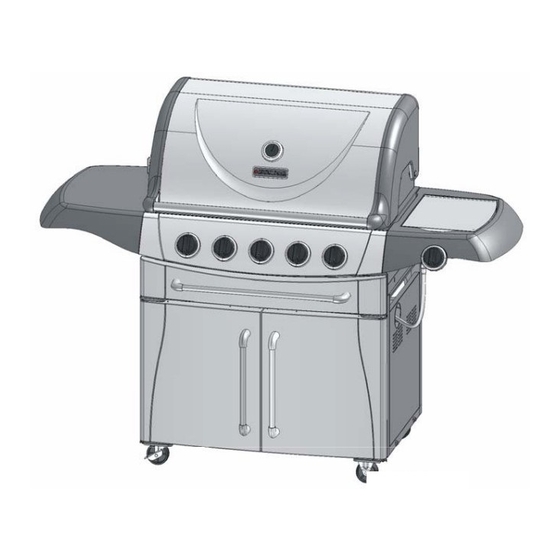

SLG2006C
Owner's Manual
5-Burner LP Gas Grill
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. IF YOU ARE ASSEMBLING THIS UNIT
FOR SOMEONE ELSE, GIVE THIS MANUAL TO HIM
OR HER TO SAVE FOR FUTURE REFERENCE.
FOR CUSTOMER SERVICE, EMAIL TO
SERVICE@PYROMAGICBBQ.COM
CALL 1-877-885-8227 (TOLL-FREE),
6 A.M. – 5 P.M.(PST),MONDAY-FRIDAY.
ITEM # 14103
OR
Printed in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 14103 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Perfect Flame 14103

Summary of Contents for Perfect Flame 14103

  • Page 1 ITEM # 14103 5-Burner LP Gas Grill WARNING Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the assembly, operation and maintenance instructions thoroughly before assembling or servicing this equipment. DANGER Failure to follow these...
  • Page 2 Grill Operation Quick Reference Before Grilling, Step 1 Keep your grill a safe distance away from your property.* Step 2 Always Perform a Leak Test on all connections and hoses.* Step 3 Keep children away from the grill. During Grilling, (To avoid tripping safety valves, please follow these instructions carefully!) Step 1 First open lid and turn gas valve on slowly.

  • Page 3: Table Of Contents

    Table of Contents For Your Safety ......................3 Illustrated Parts List ....................5 Hardware List ......................6 Assembly Instructions ....................7 Operating Your Grill .....................15 Propane tank Connection ........16 Checking for Leaks ..........16 Lighting Your Grill ..........16 Excess flow safety valve reset procedure …….…18 Care and Maintenance .........19 Award Winning Barbecue Recipes ..............20 Troubleshooting ....................21...

  • Page 4: For Your Safety

    For Your Safety Dear Valued Customer, Congratulations on your new barbecue grill purchase! You’ve made the right choice. In this manual, you will find assembly instructions, suggestions for grilling and helpful hints, as well as guidelines for the safe operation, proper care and use of your grill.
  • Page 5 Safe Locations for Use of This Outdoor Grill DANGER Never use this outdoor grill inside any building, garage, shed or breezeway, or inside any boat, trailer or recreational vehicle, to prevent a possible fire and to prevent the possibility of carbon monoxide poisoning or asphyxiation. WARNINGS Do not use this appliance under an overhead combustible surface or covered area (e.g., awnings, umbrellas, porches or gazeboes).

  • Page 6: Illustrated Parts List

    Illustrated Parts List 1. Right Panel -------------1pc 2. Left Panel---------------1pc 3. Bottom Panel-----------1pc 4. Back Panel-----------1pc 5. Cart front Beam--- -1pc 6. Door------------------2pcs 7. Drawer---------------------1pc 8. Body Assembly------1pc 9. Right side shelf----------1pc 10. Side Burner Shelf --------1pc 11. Side Burner Set--------1pc 12 Heat plate--- ---------5pcs 13.

  • Page 7: Hardware List

    Hardware List M6 x15 mm Bolts M6x20mm Bolts 4pcs 10pcs M6 x45 mm Bolts Spring Washer 18pcs 4pcs M4x12mm Bolt M6 Washer 18pcs 4pcs M4 Nut 3pcs M4 Washer 6pcs M6 Nut 2pcs 2pcs M4x16 mm Bolts Screwdriver M4 x29 mm Stud Hardware listed above is not scaled to exact size (A screwdriver is included for your convenience.) SLG2006C...

  • Page 8: Assembly Instructions

    Assembly Instructions Remove all contents from the carton packaging. Make sure all parts are present before attempting assembly. Once the grill is fully assembled, go back and check to make certain all the bolts are tight. Tighten again with the screwdriver provided if it is necessary.
  • Page 9 Step 3 Place the cart front beam (5) in front of the cart assembly. Align the holes on the inside rim of the right side of the cart assembly with the holes on the cart front beam. Insert a M6x15mm bolt (A), a spring washer (D) and a M6 washer (E) into each hole.
  • Page 10 Step 5 Slide the basket (22) onto the slots on the right door (6-1). Insert the pin on the bottom of the right door into the hole at the right bottom side of the cart assembly. Insert the pin on top of the right door into the right side of the cart front beam.
  • Page 11 Step 7 Place the body assembly (8) on top of the cart. Note: Make certain the pre-drilled holes on the left sides of the body assembly are properly aligned. Insert a M6x20mm bolt (B), a spring washer (D) and a M6 washer (E) into each hole on left sides of the body assembly.
  • Page 12 Step 9 Align the holes on side knob supprt (21) with the holes on the side shelf and side burner valve. Make certain the valve shaft base is flush with the side knob support. Screw a M4x16mm bolt (I) and a M4 washer into each pre-drilled hole.
  • Page 13 Step 11 Connect the ignition cable with the electrode. Make certain the connection is secure. Step 12 Place the five heat plates (12) inside the grill upon the burners. Place the three cooking grids (13) inside the grill upon the heating shields. Insert the four ends of warming rack (14) into the holes on top of grill body.
  • Page 14 Step 13 Align the holes on the rotisserie motor support (19) with the holes on the right side of the grill body. Insert a M6x15mm bolt (A) into each hole. Insert a M6 washer (E), a spring washer (D) and a M6 nut (J) into end of each bolt. Tighten all the bolts with nuts with the screwdriver provided.
  • Page 15 Step 15 Place the gas tank on the tank seat and clip it by the tank clip. Connect the tank with regulator by screwing the collar to the tank valve. (See diagram on page. 16). Make certain the connection is secure. Slide the tank into cart and insert the stopper into the hole on the front of bottom panel.

  • Page 16: Operating Your Grill

    Fully Assembled View Operating the Grill CAUTION: Use only the regulator provided. If a replacement is necessary, call our customer service center. The use of unauthorized parts can create an unsafe condition and environment. The propane gas supply cylinder used must be constructed and marked in accordance with the Specifications for Propane Gas Cylinders of the U.S.

  • Page 17: Propane Tank Connection

    LP (Propane) Gas Supply Connection Always place the propane cylinder on the designated tank support area of the grill. Always confirm that all burner control knobs are in the OFF position before activating the gas supply. Before connection, be sure that there is no debris caught in the head of the gas cylinder, head of the regulator valve, or in the head of the burner and burner ports.
  • Page 18 Using the Lighting Stick to Light the Main Burners Remove the cooking grid and heat plate from the burner you wish to light. Insert a match into the end of lighting stick. Light the match. Once lit, place the flame through the hole on grill body to reach the burner ports. (As in the fig.

  • Page 19: Excess Flow Safety Valve Reset Procedure

    Flare-ups “Flare-ups” sometimes occur when food drippings fall onto the hot heat plate(s) or burner(s) and ignite. Some flaring is normal and desirable, as it helps impart the unique flavors associated with grilled foods. Controlling the intensity of the flare- ups is necessary, however, in order to avoid burned or unevenly cooked foods and to prevent the possibility of accidental fire.

  • Page 20: Care And Maintenance

    Care and Maintenance IMPORTANT Always allow your grill to completely cool off before covering it to prevent corrosion from condensation Caution: All cleaning and maintenance should be done when the grill is cool, with the fuel supply turned off at the control dial and the propane cylinder disconnected.

  • Page 21: Award Winning Barbecue Recipes

    Award Winning Barbecue Recipes Never-fail Barbecue Sauce Hardcore Grilled Trout Ingredients: Ingredients: ¼ cup Finely chopped onion ¼ cup Lemon or lime juice 2 tablespoons Butter or margarine 2 tablespoons Melted butter ¼ cup Brown sugar, firmly packed 2 tablespoons Vegetable oil 1 tablespoon Worcestershire sauce...

  • Page 22: Troubleshooting

    Troubleshooting Problem Possible Cause Prevention/Cure Burner will not light using knobs Wires/or electrode covered with Clean wire and /or electrode with rubbing or ignitor cooking residue. alcohol. Electrode and burners are wet. Wipe dry with cloth. Electrode cracked or broken – sparks Replace electrode at crack.
  • Page 23 Flame blow out High or gusting winds Turn front of grill to face wind or increase flame height Low on propane gas. Replace or refill propane tank. Excess flow valve tripped Refer to the Excessive flow safety valve reset procedure. Flare-up Grease buildup.

  • Page 24: Warranty Program

    Warranty Program Proof of purchase is required to access this warranty program, which is in effect from the date of purchase. Inability to provide proof of purchase or after the warranty has expired, customers will be subject to parts, shipping and handling fees. Product Registration is required to receive full warranty coverage, which is in effect from the date of purchase.
