Perfect Flame 67119 Owner's Manual

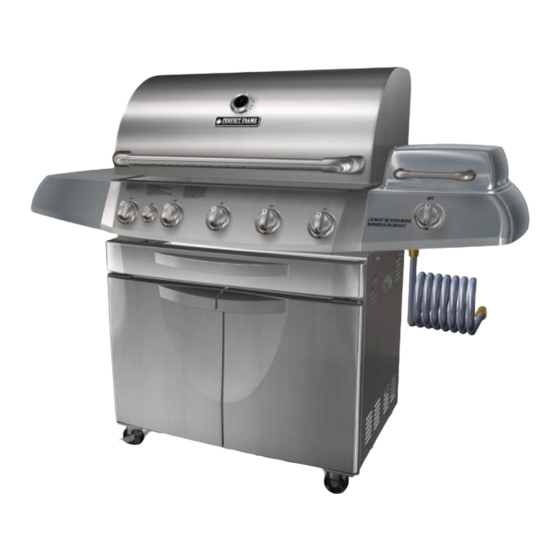

5-burner natural gas grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
W AR N IN G
Improper installation,
Adjustment, alteration, service or
Maintenance can cause injury or
property damage.
Read the installation,
operation and maintenance
instructions thoroughly before in
stalling o r servicing this
equipment.
D AN G E R
Failure to follow these
instructions could result in fire or
explosion that could cause
property damage, personal
injury or death.
D AN G E R
DO NOT use gas grill for indoor
cooking or heating. TOXIC
fumes can accumulate and
cause asphyxiation. DO NOT
use in or on boats or
recreational vehicles.
PROP 65 WARNING
Chemicals known to the state of
California to cause cancer, birth
defects or other re productive
harm are created by the
combustion o f propan
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)
S L G 2 0 07 D N
Owner's Manual
5 -Burner Natural Gas Grill
e.
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. IF YOU ARE ASSEMBLING THIS
UNIT FOR SOMEONE ELSE, GIVE THIS
MANUAL TO HIM OR HER TO SAVE FOR
FUTURE REFERENCE.
FOR CUSTOMER SERVICE, EMAIL TO
SERVICE@BBQTEK.COM OR
CALL 1-888-571-6888 (TOLL-FREE),
6 A.M. – 5 P.M. (PST), MONDAY-FRIDAY.
0
IT E M # 67119
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 67119 and is the answer not in the manual?

Questions and answers

Related Manuals for Perfect Flame 67119

Summary of Contents for Perfect Flame 67119

  • Page 1 IT E M # 67119 5 -Burner Natural Gas Grill W AR N IN G Improper installation, Adjustment, alteration, service or Maintenance can cause injury or property damage. Read the installation, operation and maintenance instructions thoroughly before in stalling o r servicing this equipment.

  • Page 2: Grill Operation

    Grill Operation 1-2-3 Before Grilling, Step 1 Keep your grill a safe distance away from your property.* Step 2 Always Perform a Leak Test. * Step 3 Keep children away from the grill. During Grilling, (To avoid tripping safety valves, please follow these instructions caref lly!) Step 1 First open lid and turn gas tank on slowly.

  • Page 3: Table Of Contents

    Table of Contents For Your Safety....................3 Illustrated Parts List ..................5 Hardware List.....................6 Assembly Instructions..................7 Operating Your Grill..................16 Natural gas connection........16 Checking for Leaks..........17 Lighting Your Grill..........17 Excess flow safety valve reset procedure..19 Care and Maintenance..................20 Award-Winning Barbecue Recipes..............21 Troubleshooting....................

  • Page 4: For Your Safety

    For Your Safety Dear Value d Customer, Congratulations on your new barbecue grill purchase! You' ve made the right choice. In this manual, you w ill find assembly in stricter ns, suggestions for grilling and helpful hints, as well as guidelines for the safe operations, proper care and use of your grill.
  • Page 5 Safe Location s For U se O f This Outdoor Grill D A N G E R Never use this outdoor grill inside any building, garage, shed or breeze w a y, or inside any boat, trailer or recreational vehicle, to prevent a possible fire and to prevent the possibility of carbon monoxide poisoning or asphyxiation. WARNINGS Do not use this appliance under overhead combustible surface or covered area (e.g., awnings, umbrellas, porches or gazeboes).

  • Page 6: Illustrated Parts List

    Illustrated Parts List 1. Bottom panel assembly.…1pc 2. Side panel ……..………..2pcs 3. Back panel ……….………1pc 4. Natural gas hose….….. 1pc 5. Front beam………….….. 1pc 6. Main doors………..…….2pcs 7. Storage basket……….….1pc 8. Drawer ……...…………….1pc 10. Right side shelf ………….1pc 11. Left side shelf….……….1pc 9.

  • Page 7: Hardware List

    Hardware List 14pcs (2 M6x20 Bolt 4pcs M4 Nut spare) M4x12 Bolt Hair Pin 6pcs 2pcs M6 Washer Shaft 12pcs 2pcs Spring Washer 12pcs screwdriver Stopper M4 Washer 6pcs Hardware listed above is not scaled to exact size. (A screwdriver is required on assembly and is included for your convenience). S L G 2 0 07 D N Owner’s Manual...

  • Page 8: Assembly Instructions

    Assembly Instructions R e move all contents from the carton packaging. Make sure all parts are pre sent before attempting assembly. Once the grill is fully assembled, go b a ck and check to make certain all the bolt s are tighten. Tighten a gain u sin g the screwdriver provide d if necessary.
  • Page 9 Ste p 3 a) Place the front beam (5) in front of the cart assembly. b) Align the holes on the left inside of the cart assembly with holes on the front beam. c) Insert one M6x20mm Bolt (A), one spring washer (D) and one M6 washer (C) into each hole.
  • Page 10 Step 5 a) Align the rollers of the drawers (8) with the drawer guides. b) Slide the drawer into the cart assembly. Step6 a) Place the body assembly (9) on top of the cart assembly. Note: Make certain the pre-drilled holes on the left side of the body assembly are properly aligned.
  • Page 11 Step7 a) Align the holes on the hinge s of side burner top lid (1 0 -1) with the h ole s on the hinges of 10 -2). right side shelf ( b) Insert one shaft (H) into e ach pre -drilled ho le on the hinges.
  • Page 12 Step9 a) Align the holes on side knob seat (13) with the holes on the right side shelf and side burner valve. Screw one M4x12mm bolt (B) and one M4 washer (E) into each pre-drilled hole. b) Tighten the bolts using the screwdriver provided.
  • Page 13 Step1 1 a) Place the side cooking grate (16) upon the side burner assembly. b) Place the side sear grid (15) upon the side burner support. c) Place the side grease cup (17) on the pre-attached side grease cup support. Step1 2 -1 When not using the smoke box (19): a) Place the five heating plates (18) inside the grill...
  • Page 14 Step1 2 -2 (Optional) When using with the smoke box: a) Only move one heating plate (18) away and put the smoke box (19) inside the grill body upon the burner. Step1 3 -1 When not using the cooking griddle (21): a) Place the three cooking grates (20) inside the grill upon the heating shields.
  • Page 15 Step1 3 -2 (Optional) When using the cooking griddle (21): a) Only move cooking grates (20) away and put the cooking griddle (21) inside the grill upon the heating shields. Step1 4 a) Insert stopper (J) into the ho le on back of cart a s show n .
  • Page 16 Step1 5 a) Connect the natural gas hose ( 4) with the side burner valve b y screwing the nut on end of the hose . Fully Assembled View Left Sid e Right Sid e S L G 2 0 07 D N Owner’s Manual...

  • Page 17: Operating Your Grill

    Operating Your Grill Your natural gas grill has been designed to operate on natural gas only, at a pressure of seven inches water column (7” W.C.). Check with your gas utility for local gas pressure, because in some areas natural gas pressure varies. Also, check with your gas company or with local building codes for instructions to install gas supply line or call a licensed and qualified installer.

  • Page 18: Checking For Leaks

    D A N G E R To prevent fire or explosion hazard when testing for a leak: Always perform the “leak test“ on page 17 before lighting the grill and each time the natural gas hose is connected for use. Do not smoke or allow other sources of ignition in the area while conducting a leak test.
  • Page 19 U s in g the Lighting S tic k to Light the Infra re d Burner O pen the top lid . Remove the lighting stick then in ser t a match in to the end o f lighting stick. Light the match .

  • Page 20: Excess Flow Safety Valve Reset Procedure

    FIG. A FIG. B FIG. C Normal: Soft blue flames with yellow tips Out of adjustment: Noisy hard blue Poor combustion: Wavy, yellow between I inch - 2 inches high. flames – too much air. flames- too little air. Burner installation and adjustment 1.

  • Page 21: Care And Maintenance

    6. Wait a t least 1 minute. 7. T urn burner control k n ob s OFF. 8. Wait for at least 5 minutes. 9. R e -connect the regulator to the L P tank. 1 0. Slowly turn the L P tank valve turn at a time a d have the valve all the w a y o p e n.

  • Page 22: Award-Winning Barbecue Recipes

    Award-Winning Barbecue Recipes Hardcore Grilled Trout Never-Fail Barbecue Sauce Ingredients: Ingredients: L e m on or lime juice Finely chopped onion 2 tablespoon s Melted b utter 2 tablespoons Butter or margarine 2 tablespoon s V e getable oil Brown sugar, firmly packed 2 tablespoon s C hopped parsley 1 tablespoon...

  • Page 23: Troubleshooting

    Trouble s hooting Problem P o s sib le C a u s e Prevention /C u re Burner w ill n o t light using knob s o r W ire s/o r electro de covered with C lea n w ire and /o r electro d e with igniter.
  • Page 24 F la m e b le w o u t. High o r g u sting w in d s. Turn front o f g rill to face w in d or in crease flam e h eight. Lo w o n propane g as. R e place or refill propane tan k.

  • Page 25: Warranty Program

    Warranty Program Proof of purchase is required to access this warranty program, which is in effect from the date of purchase. Inability to provide proof of purchase or after the warranty has expired, customers will be subject to parts, shipping and handling fees. Full 30-Day Warranty Any missing parts can be replaced at no charge within 30 days from the date of purchase, with a valid proof of purchase.
