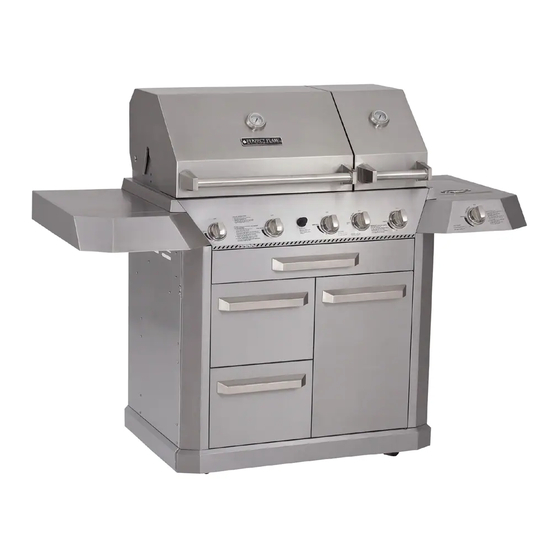

STAINLESS STEEL LP GAS GRILL
MODEL NO.: 720-0335
ITEM NO: 242608
®
FOR OUTDOOR USE ONLY
PLEASE CONTACT 1-800-554-5799 FOR ASSISTANCE
DO NOT RETURN TO PLACE OF PURCHASE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 720-0335 and is the answer not in the manual?

Questions and answers

Summary of Contents for Perfect Flame 720-0335

  • Page 1 STAINLESS STEEL LP GAS GRILL MODEL NO.: 720-0335 ITEM NO: 242608 ® FOR OUTDOOR USE ONLY PLEASE CONTACT 1-800-554-5799 FOR ASSISTANCE DO NOT RETURN TO PLACE OF PURCHASE...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION ONE SECTION FOUR Safety Instructions…………………………… Operating Instructions…………………… Placement of the Grill ……………………… Lighting Instructions……………………… Lighting Illustrations……………………… SECTION TWO To Match Light the Grill…………………. Assembly Instructions……………………….. Using the Side Burner…………………… Caster Assembly……………………………… Care & Maintenance of Side Burner…… Side Panel Assembly &...
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS RECOGNIZED SAFETY SYMBOLS, WORDS AND LABELS WARNING WARNING Do not try lighting this appliance without first reading the “LIGHTING INSTRUCTIONS” section of this manual. WARNING – Hazards or unsafe practices which COULD result in severe personal injury or death. WARNING Spiders and insects can nest inside the burners of CAUTION...
  • Page 4 SAFETY INSTRUCTIONS CAUTION WARNING When using a match to light the grill make Do not use the grill if the odor of gas is sure to use the attached lighting rod. present. Contact customer service at 1- 800-554-5799. CAUTION Before cleaning, make sure the gas supply WARNING and control knobs are in the “OFF”...
  • Page 5 SAFETY INSTRUCTIONS USING THE SIDE BURNER WARNING Inspect the gas supply hose prior to turning on Do not attempt to light the grill if gas odor is the gas. If there is evidence of cuts, wear or present. Contact customer service at 1-800- abrasion, it must be replaced prior to use.
  • Page 6 SAFETY INSTRUCTIONS The grill is not intended to be installed in or on WARNING recreational vehicles and/or boats. Do not try lighting this appliance without first reading the “LIGHTING INSTRUCTIONS” section Children should not be left alone or unattended in of this manual.
  • Page 7: Placement Of The Grill

    Do not use briquettes of any kind in the grill. Clean the grill with caution. To avoid steam burns, The 720-0335 liquid propane gas grill is designed do not use a wet sponge or cloth to clean the grill for optimum performance without the use of while it is hot.
  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Please read the instructions thoroughly and follow step by step. HARDWARE PACK DESCRIPTION SPECIFICATION QUANTITY FLAT SCREW 5/32” X 10 MM 12 pcs TRUSS HEAD SCREW 5/32” X 10 MM 27 pcs SPLIT LOCK 5/32” 19 pcs TRUSS HEAD SCREW 1/4”...
  • Page 9: Caster Assembly

    CASTER ASSEMBLY Take out bottom panel and four caster from the carton, Use 16 pcs of 1/4” X 12mm truss head screws and 16 pcs of 1/4” split locks (Pack C) to lock two casters which in the right of bottom panel and two casters with brake which in the left of bottom panel as shown figure below.
  • Page 10: Assembly

    SIDE PANEL ASSEMBLY Use 4 pcs of 5/32” X 10mm truss head screws and 4 pcs of 5/32” split locks (Pack B), to screw the left and light side panels to the bottom panel as shown figure below. When installing the right and left panel, the flat side must face outside.
  • Page 11: Back Panel Assembly

    BACK PANEL ASSEMBLY A: Assembly back panel to bottom panel with 3 pcs of 5/32” X 10mm truss head screws and 3 pcs 5/32” split locks (Pack B) as shown figure A. B:Use 2 pcs of 5/32” X 10mm truss head screws with 5/32” split locks (Pack B) and 4 pcs of 1/4”...
  • Page 12: Drawer Heat Shield Assembly

    DRAWER HEAT SHIELD ASSEMBLY Assembly the drawer heat shield with 3 pcs 5/32” X 10mm truss head screws and 3 pcs of 5/32” split locks (Pack B) to the cart clapboard as shown figure A and with 2 pcs 5/32” X 10mm truss head screws and 2 pcs of 5/32”...
  • Page 13: Cart Frame Assembly

    CART FRAME ASSEMBLY Assembly the cart frame with 4 pcs 1/4” X 10mm truss head screws and 4 pcs of 1/4’’split locks (Pack C) to the side panels and use 1 pc 5/32” X 10mm truss head screw and 1 pc of 5/32”...
  • Page 14: Drawer Assembly

    DRAWER ASSEMBLY Take one drawer into the cart as shown figure below. And take out another drawer as last step.
  • Page 15: Door Handle Assembly & Door Assembly

    DOOR HANDLE ASSEMBLY Assembly the door handle with 6 pcs of 5/32” X 10mm flat screws (Pack A) as shown figure below. Pack A DOOR ASSEMBLY Assembly the door: To insert the door in the hold of extended metal piece at the grill bottom: Press the hinge on the top of the door to insert it into the hole on upper extended metal piece : Use a pc of 5/32”...
  • Page 16: Cart Grill Head Assembly

    CART GRILL HEAD ASSEMBLY Insert the upper portion of grill onto the cart from top as shown figure A. Then use 4 pcs of 1/4” X 10mm truss head screws and 4 pcs 1/4” split locks (pack D) to the side panels as shown figure B.
  • Page 17: Panel Assembly

    SIDE SHELF FRONT PANEL Assembly the side shelf front panel with 4 pcs 5/32” X 10mm truss head (Pack B) to the side left shelf as shown figure below. Pack B SIDE BURNER CONTROL PANEL ASSEMBLY Use 4 pcs of 5/32” X 10mm truss head screws (Pack B) to screw the side burner control panel to the side burner bowl assembly.
  • Page 18: Side Shelf Assembly

    SIDE SHELF ASSEMBLY A: Assembly the side shelf with 4 pcs of 1/4” X 10mm truss head screws, 4 pcs of 1/4’’ flat washers and 4 pcs of 1/4’’ split locks (Pack D) to the left panel. B: Assembly the side burner with 4 pcs of 1/4” X 10mm truss head screws, 4 pcs of 1/4’’flat washers and 4 pcs of 1/4’’split locks (Pack D) to the right panel.
  • Page 19: Installation Of Side Burner Hose & Lp Regulator

    INSTALLATION OF SIDE BURNER HOSE AND LP REGULATOR Connect the side burner hose into the side shelf hook up as shown A . Insert the LP regulator into the hole in the side panel as shown B.
  • Page 20: Side Burner Flex Gas Line Assembly

    SIDE BURNER FLEX GAS LINE ASSEMBLY Insert the side burner flex gas line with side burner orifice through the hole of the side burner base and then push the nut until it forward to lock the side burner orifice. Caution: After you finished last step you need to connect the side burner igniter line with the side burner gas valve or you...
  • Page 21: Liquid Propane Cylinder Retention System

    LIQUID PROPANE CYLINDER RETENTION SYSTEM Take out gas tank retention bolt from pack G. Turn the retention bolt clockwise to tighten the gas cylinder. PROPANE REGULATOR HOOK-UP 1. Attach the regulator to the propane cylinder by turning the regulator handle clockwise. 2.
  • Page 22: Gas Hook Up

    Total gas consumption (per hour) of the 720-0335 CONNECTION liquid propane gas grill with all burners set on “HI”: Your grill is equipped with gas supply orifices for use only with liquid propane gas.
  • Page 23: Leak Testing

    LEAK TESTING GENERAL Although gas connections on the grill are leak Only those parts recommended by the tested prior to shipment, a complete gas tightness manufacturer should be used on the grill. check must be performed at the installation site. Substitutions will void the warranty.
  • Page 24: Installer Final Check

    INSTALLER FINAL CHECK Specified clearance maintained 24 inches The unit has been tested and is free of leaks. from combustible materials/construction. The gas supply shut off valve has been All internal packaging has been removed. located. The hose and regulator are properly All burners are factory installed.
  • Page 25: Operating Instructions

    OPERATING INSTRUCTIONS GENERAL USE OF THE GRILL AND ROTISSERIE Each main burner is rated at 15,000 BTU/Hr. The After its first use, the stainless steel adjacent to the main grill burners encompass the entire cooking rotisserie burner will most likely turn dark blue. This area and are side ported to minimize blockage from is a normal property of the non-rusting type falling grease and debris.
  • Page 26: Lighting Instructions

    NOTE Adjust the counter balance weight to balance the It is normal for the skewer to flex when larger cuts heavier side of the meat and avoid lopsided rotation of meat are being cooked. of the rotisserie motor. If the meat scrapes on the cooking grids during any CAUTION part of the rotation, the cooking grids must be When using the rotisserie burner, remove the...
  • Page 27: Lighting Illustrations

    LIGHTING ILLUSTRATIONS MAIN, SIDE & ROTISSERIE BURNER LIGHTING 1. Open the top cover or lid. 2. Push and turn the main, side, or rotisserie burner control knobs to the “HI” setting. Push the control knob until the burner ignites. The burner should ignite within 4 seconds (if burner does not ignite follow match lighting instructions on Page 26).
  • Page 28: To Match Light The Grill

    TO MATCH LIGHT THE GRILL If the burner will not light after several attempts using the control knobs, the burner may be lit with a match. 1. If you have already attempted to light the burner with the igniter, allow 5 minutes for any accumulated gas to dissipate.
  • Page 29: Using The Side Burner

    USING THE SIDE BURNER 4. If the smell of gas is detected and the igniter Inspect the gas supply hose prior to turning on is not functioning, immediately turn the control the gas. If there is evidence of cuts, wear or knob to the “OFF”...
  • Page 30: Care & Maintenance Of The Grill

    CARE & MAINTENANCE OF THE GRILL STAINLESS STEEL GRILL BURNERS Grease specks can gather and bake onto the Extreme care should be taken when moving a surfaces of the stainless steel, giving the burner. It must be correctly centered on the appearance of rust.
  • Page 31: Troubleshooting

    TROUBLESHOOTING WHEN TO LOOK FOR SPIDERS You should inspect the burners at least twice a WARNING year or immediately after any of the following Spiders and insects can nest inside the burners conditions occur: of the grill and disrupt gas flow. This very dangerous condition could cause a fire behind 1.
  • Page 32: Exploded View

    EXPLODED VIEW Model 720-0335...
  • Page 33: Parts List

    PARTS LIST Model No. 720-0335 DESCRIPTION DESCRIPTION Temperature Gauge Side Panel, Left Side Lid Front Trim Panel, Left Main Lid Swivel Caster 3 ” X 1 3/4” Logo Bottom Panel Main Lid Heat Insulating Spacer Cart Clapboard Main Lid Handle Heat Insulating...
  • Page 34 DESCRIPTION DESCRIPTION Side Shelf Trim Panel, Right Side Burner Contro l Panel Side Burner Lid Handle Side Burne r Gas Valve Side Burner Lid Hinge Rod Side Burner Manifold Side Burner Lid Side Burner Flex Gas Line Side Burner Cooking Grid Back Pie Cart Corner Frame, Top Side Burner Bowl Assembly Back Panel...
  • Page 35: Grilling Hints

    GRILLING HINTS The preparation of meat, whether rare, medium, To get the juiciest meat, add seasoning or salt or well done, is affected to a large degree by the after cooking is finished and turn the meat only thickness of the cut. once during cooking.
  • Page 36 FOOD WEIGHT FLAME APPROXIMATE SPECIAL OR THICKNESS SIZE TIME INSTRUCTIONS AND TIPS MEATS BEEF Hamburgers 1/2 to 3/4 inch Medium 10 to 18 minutes Grill, turning once when juices rise to the surface. Do not leave hamburgers unattended. A flare-up could occur quickly.
  • Page 37 FOOD WEIGHT FLAME APPROXIMATE SPECIAL OR THICKNESS SIZE TIME INSTRUCTIONS AND TIPS Breasts Medium 30 to 45 minutes Marinate with Italian dressing well-done FISH AND SEAFOOD Steaks Grill, turning once. Brush with Halibut 3/4 to 1 inch Medium to 8 to 15 minutes Melted butter, margarine or oil Salmon High...
  • Page 38: Grill Recipe Suggestions

    GRILL RECIPES seafood. Toss to coat. Cover, BARBECUED LONDON BROIL refrigerate 2 hours. 4 to 6 servings ¾ c. Italian dressing BBQ SALMON 2 large salmon steaks 2 tbs. oil Half-hour before cooking, turn the Salt & pepper burner to the grill on high. Drain 1tsp.
  • Page 39 overnight or a t least 6 to 8 hours. Wrap Strip off the skin and c hop eggplant PORK ROAST tortillas in foil. Remove meat from finely. Add all the seas onings. Chill Apple cider vinegar basting sauce: marinade. Cook on a pre-heate d gas grill thoroughly and serve on toast.
  • Page 40: Limited Warranty

    Our obligation under this warranty is limited to repair or replacement, at our option, of the product during the warranty period. The extent of any liability of Nexgrill Industries, Inc. under this warranty is limited to repair or replacement. This warranty does not cover normal wear of parts, discoloration of the...
