Perfect Flame 63033 Owner's Manual

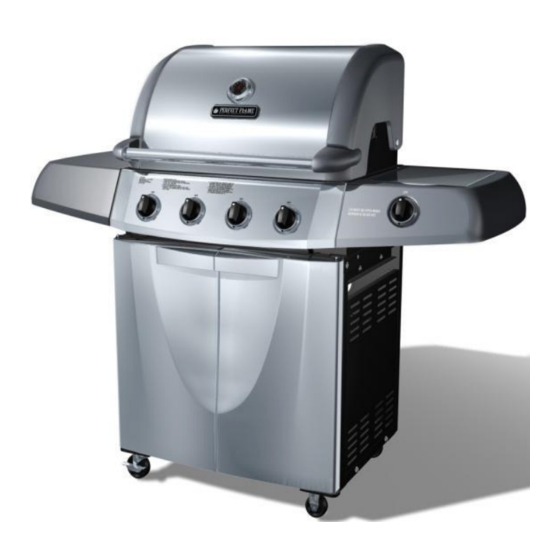

4-burner lp gas grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

W AR N IN G
Improper installation,
adjustment, alteration, service or
maintenance c a n c a u s e i n ju r y o r
R e a d t h e i n s t a l l at i o n ,
operations and maintenance
instructions thoroughly before
installing or servicing this
equipment.
D AN G E R
Failure to f ol lo w t h e s e
instructions could result in a
fir e o r explosion that could
c a u s e property d a m a g e,
personal injury o r death.
D AN G E R
DO NOT u s e gas grill f o r
indoor cooking or heating.
TOXIC fu m e s can accumulate
and cause asphyxiation. DO
NOT u s e in o r o n b oats o r
recreational vehicles.
PROP 65 WARNING
Chemicals k n o w n to the state
of to c a u s e c a n c e r, birth
defects or other reproductive are
created by the combustion of
propane.
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)
S L G 2 0 07 B
Owner's Manual
4-Burner LP Gas Grill
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. IF YOU ARE ASSEMBLING THIS
UNIT FOR SOMEONE ELSE, GIVE THIS
MANUAL TO HIM OR HER TO SAVE FOR
FUTURE REFERENCE.
FOR CUSTOMER SERVICE, EMAIL TO
SERVICE@BBQTEK.COM OR
CALL 1-888-571-6888 (TOLL-FREE),
6 A.M. – 5 P.M. (PST), MONDAY-FRIDAY.
0
IT E M # 63033

Advertisement

Table of Contents
loading

Related Manuals for Perfect Flame 63033

Summary of Contents for Perfect Flame 63033

  • Page 1 IT E M # 63033 4-Burner LP Gas Grill W AR N IN G Improper installation, adjustment, alteration, service or maintenance c a n c a u s e i n ju r y o r R e a d t h e i n s t a l l at i o n ,...

  • Page 2: Grill Operation

    Grill Operation 1-2-3 Before Grilling, Step 1 Keep your grill a safe distance away from your property.* Step 2 Always Perform a Leak Test. * Step 3 Keep children away from the grill. During Grilling, (To avoid tripping safety valves, please follow these instructions caref lly!) Step 1 First open lid and turn gas tank on slowly.

  • Page 3: Table Of Contents

    T a b le o f Contents For Your Safety....................3 Illustrated Parts List ..................5 Hardware List.....................6 Assembly Instructions..................7 Operating Your Grill..................16 Connecting Gas Cylinder........17 Checking for Leaks..........17 Lighting Your Grill..........17 Excess flow safety valve reset procedure...19 Care and Maintenance..................20 Award-Winning Barbecue Recipes..............22 Troubleshooting....................23 Warranty Program....................25 S L G 2 0 07 B...

  • Page 4: For Your Safety

    For Your Safety Dear Value d C u stoker, Congratulations on your new barbecue grill purchase! You've made the right choice. In this manual, you w ill find assembly in stricter ns, suggestions for grilling and helpful hints, as well as guidelines for the safe operations, proper care and use of your grill.
  • Page 5 Safe L o c a too n s F o r U s e O f T h is Outdoor Grill D A N G E R Never use this outdoor grill inside any building, garage, shed or breeze w a y, or inside any boat, trailer or recreational vehicle, to prevent a possible fire and to prevent the possibility of carbon monoxide poisoning or asphyxiation.

  • Page 6: Illustrated Parts List

    Illustrated Parts List 1. Left side panel………..…1pc 2. Right side panel .………..1pc 3. Bottom panel assembly…1pc 4. Back panel……….….….. 1pc 5. Front top beam……...….. 1pc 6. Main doors………..…….2pcs 7. Heat insulation plate.….1pc 8. Grill body assembly…….1pc 9. Left side shelf.……..…..1pc 10.

  • Page 7: Hardware List

    Hardware List M6x15mm Bolt 6pcs 6pcs M4x12mm Bolt M6x20mm Bolt Small Washer 4pcs 6pcs M6x45mm M4 Nut 4pcs 4pcs Bolt Spring Washer 10pcs Screwdriver 14pcs Large Washer Hardware listed above is not scaled to exact size. (A screwdriver is required on assembly and is included for your convenience). S L G 2 0 07 B Owner’s Manual...

  • Page 8: Assembly Instructions

    Assembly Instructions R e move all contents from the carton packaging. Make sure all parts are pre sent before attempting assembly. Once the grill is fully assembled, go b a ck and check to make certain all the bolt s are tighten. Tighten a gain u sin g the screwdriver provide d if necessary.
  • Page 9 Ste p 3 a) Place the front top beam (5) on front of the cart assembly. b) Align the holes on the left inside of the cart assembly with holes on the front top beam. c) Insert one M6x20mm Bolt (A),one spring washer (D) and one M4 washer (E) into each hole.
  • Page 10 Step 5 a) Slide the heat insulation plate (7) into the back of the cart assembly. b) Align the hole on the cart with pre-drilled holes on heat insulation plate. c) Screw one M6 bolt (A) and one M4 washer (E) into each pre-drilled holes.
  • Page 11 Step 7 a) Loosen the four side panel bolts (pre-attached) on the left side of the body assembly and allow of the bolts length to extend from the body assembly. b) Align the large holes of the left side shelf (9) with the bolts extended from the body assembly.
  • Page 12 Step 9 a) Open the side burner lid and place the side burner assembly (11) on the right side shelf. Make certain the venturi tube is connected properly with valve. b) Align the holes on the side burner assembly with the holes on the right side shelf (10).
  • Page 13 Step 1 a) Place the four heat plates (12) inside the grill upon the burners. b) Place the two cooking grates (13) inside the grill upon the heat plates. c) Insert the four feet of the warming grate-body (14) into the holes on top of grill body. d) Insert two ends of side warming grate-lid (15) into the holes on inside of the top lid.
  • Page 14 Step 1 3 a) Insert the tank c lip (1 8) into the h ole s o n the gas tank supp ort. b) P lace the gas tank on the tank s e at and clip it b y the tank clip (18). c) Connect the tank with regulator b y screw the collar onto the tank valve.

  • Page 15: Operating Your Grill

    Operating Your Grill C A U T IO N : U s e only the r e g u la to r provide d. If a re p la c e m e n t is necessary, c all o u r c u s to m e r service center. The u s e o f unauthorized p arts can create an unsafe condition and environment.

  • Page 16: Checking For Leaks

    Conduct the leak test outdoors in a well-ventilated area. Do not use matches, lighters or a flame to check for leaks. Do not use grill until all leaks have been stopped. If you are unable to stop a leak, disconnect the propane supply, call for gas appliance service or your local propane gas supplier.
  • Page 17 fire. S id e B u r n e r O pen lid while lighting the burner. Lid must remain open while burner is lit. Valve must b e in the “O FF” position. O pen cylinder valve. Push side burner knob fully and rotate it slowly about 1/4 turn counter-clockwise, then press the igniter promptly. T he burner should light.

  • Page 18: Excess Flow Safety Valve Reset Procedure

    Flare-ups “Flare-ups” sometimes occur when food drippings fall onto the hot heat distribution plate or burners and ignite. Some flaring is normal and desirable, as it helps impart the unique flavors associated with grilled foods. Controlling the intensity of the flare-ups is necessary, however, in order to avoid burned or unevenly cooked foods and to prevent the possibility of accidental fire.

  • Page 19: Care And Maintenance

    C a re a n d M a in ten a n c e IMPORTANT Always allow to completely cool off before covering your grill to prevent corrosion from condensation. Caution : All cleaning and maintenance should be don e w hen the g rill is cool, with the fu el supply turn ed o ff a t the control dial and the propane cylinder disconnected.

  • Page 20: Award-Winning Barbecue Recipes

    Award-Winning Barbecue Recipes Never-Fail Barbecue Sauce Hardcore Grilled Trout Ingredients: Ingredients: L e m on or lime juice Finely chopped onion 2 tablespoon s Melted b utter 2 tablespoons Butter or margarine 2 tablespoon s V e getable oil Brown sugar, firmly packed 2 tablespoon s C hopped parsley 1 tablespoon...

  • Page 21: Troubleshooting

    Trouble s hooting Problem P o s sib le C a u s e Prevention /C u re Burner w ill n o t light using knob s o r W ire s/o r electro de covered with C lea n w ire and /o r electro d e with igniter.
  • Page 22 F la m e b le w o u t. High o r g u sting w in d s. Turn front o f g rill to face w in d or in crease flam e h eight. Lo w o n propane g as. R e place or refill propane tan k.

  • Page 23: Warranty Program

    Warranty Program Proof of purchase is required to access this warranty program, which is in effect from the date of purchase. Inability to provide proof of purchase or after the warranty has expired, customers will be subject to parts, shipping and handling fees. Full 30-Day Warranty Any missing parts can be replaced at no charge within 30 days from the date of purchase, with a valid proof of purchase.
