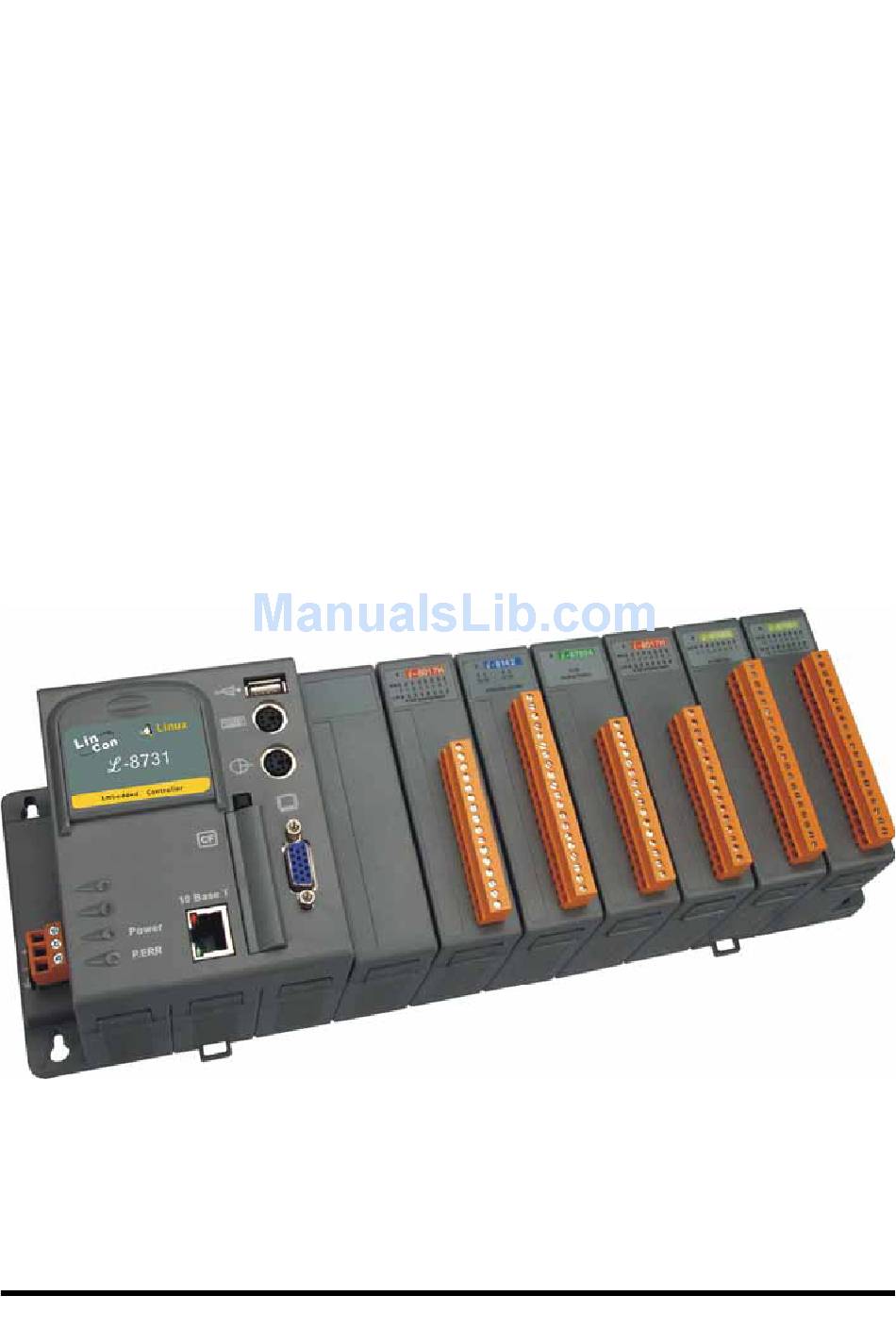

LinCon-8000
Compact Embedded Controller
Hardware User's Manual
REV 1.0.0.0
2004/9/15
LinCon8000 Series Hardware user's Manual, July/2003, v1.0 ----- 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Compact Embedded Controller LinCon-8000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICP DAS USA Compact Embedded Controller LinCon-8000

Summary of Contents for ICP DAS USA Compact Embedded Controller LinCon-8000

  • Page 1 LinCon-8000 Compact Embedded Controller Hardware User’s Manual REV 1.0.0.0 2004/9/15 LinCon8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 1...
  • Page 2 Warranty All products manufactured by ICP DAS are warranted against defective materials for a period of one year from the date of delivery to the original purchaser. Warning ICP DAS assumes no liability for damages consequent to the use of this product.

  • Page 3: Table Of Contents

    1. INTRODUCTION ... 4 1.1 P & R ACKAGE 1.2 L -8000 S ERIES 1.3 C ONTENTS OF 2. HARDWARE INFORMATION ... 8 2.1 F RONT IEW OF 2.2 S ... 9 PECIFICATIONS 3. APPLICATIONS ... 10 4. QUICK START ... 11 5 MECHANICAL INFORMATION ...

  • Page 4: Introduction

    Introduction 1.1 Package List & Release Note Package List： In addition to this manual, the package includes the following items: One set of LinCon8000 hardware One Compact Flash Memory Card for storing system files One hardware user’s manual (this manual) One release note One software utility CD with Software User’s Manual included Note：...

  • Page 5: Lincon-8000 Series

    1.2 LinCon-8000 Series The LinCon-8000 is the flagship compact embedded controller manufactured by ICPDAS. Its leading technology gives you all of the best features of both traditional PLCs and Linux capable PCs. The LinCon-8000 system is powered by Linux and brings in the Linux programming style and skill into the world of PC- based PLC.
  • Page 6 Model Description Speed L-8031 Embedded L-8331 206MHz Controller L-8731 LinCon8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 6 Embedded Slot Linux Flash SDRAM Peripherals 10BaseT Ethernet Port×1 VGA Port×1 CF Slot×1 USB×1 PS/2 Keyboard×1 Mbyte Mbyte PS/2 Mouse ×1 RS-232×1 RS-485×1 FRnet×...

  • Page 7: Contents Of Cd And Cf Memory Card

    1.3 Contents of CD and CF memory card CD : LinCon8000 SDK Source code of demo programs Software User’s Manual References are given in ReadMe.txt in the CD CF memory card (default is 128 Mbytes): LinCon8000 System files Demo programs References are given in the Software User’s Manual bundled CD LinCon8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 7...

  • Page 8: Hardware Information

    2. Hardware Information The LinCon-8000 Embedded Controller is competitive with Industrial PCs in performance, and is lower in price. The system provides VGA and PS/2 keyboard/mouse for local visualization and management. User control programs and data can be saved in persistent storage via Compact Flash and USB interfaces.

  • Page 9: Specifications

    2.2 Specifications Intel Strong ARM CPU, 206MHz SRAM: 64M bytes Flash Memory: 32M bytes EEPROM: 16K bytes 64-bit hardware unique serial number Built-in Watchdog Timer Real Time Clock COM0: Internal use COM1: Serial Control for 87K Series COM2: RS-232 COM3: RS-485 FRnet(Option) I/O Expansion Slot: 0-slot for L-8031...

  • Page 10: Applications

    3. Applications The following figure diagrams the general application area and structure of the LinCon-8000. Com2 is the standard RS232 interface, which can be connected via the modem or to the Com1 in the I-8000 Controller. Com3 is the RS-485 interface, which can be applied to control the ICPDAS DCON serial modules such as the I- 7000, I-8000 and I-87K.

  • Page 11: Quick Start

    4. Quick Start Step 1. Plug in your PS/2 keyboard and mouse. Step 2. Plug in your VGA monitor. Step 3. Connect the LinCon-8000 to the LAN Step 4. Insert the I-8K/87K series I/O modules into the LinCon-8000 slots. Step 5. Connect the COM2 or the COM3 ports to your devices controlled by LinCon-8000.

  • Page 12: Mechanical Information

    5 Mechanical Information 5.1 Dimensions 5.2 Dimensions Rail Mounting 5.3 Wall Mounting LinCon8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 12...

  • Page 13: Controller Cover

    5.4 Controller cover For safety and the controller setting memo, the LinCon-8000 provides a main controller cover to protect the reset push button applied under the uncontrolled situation. And it also offers an expansion slot setting record area and others configuration memo areas.
