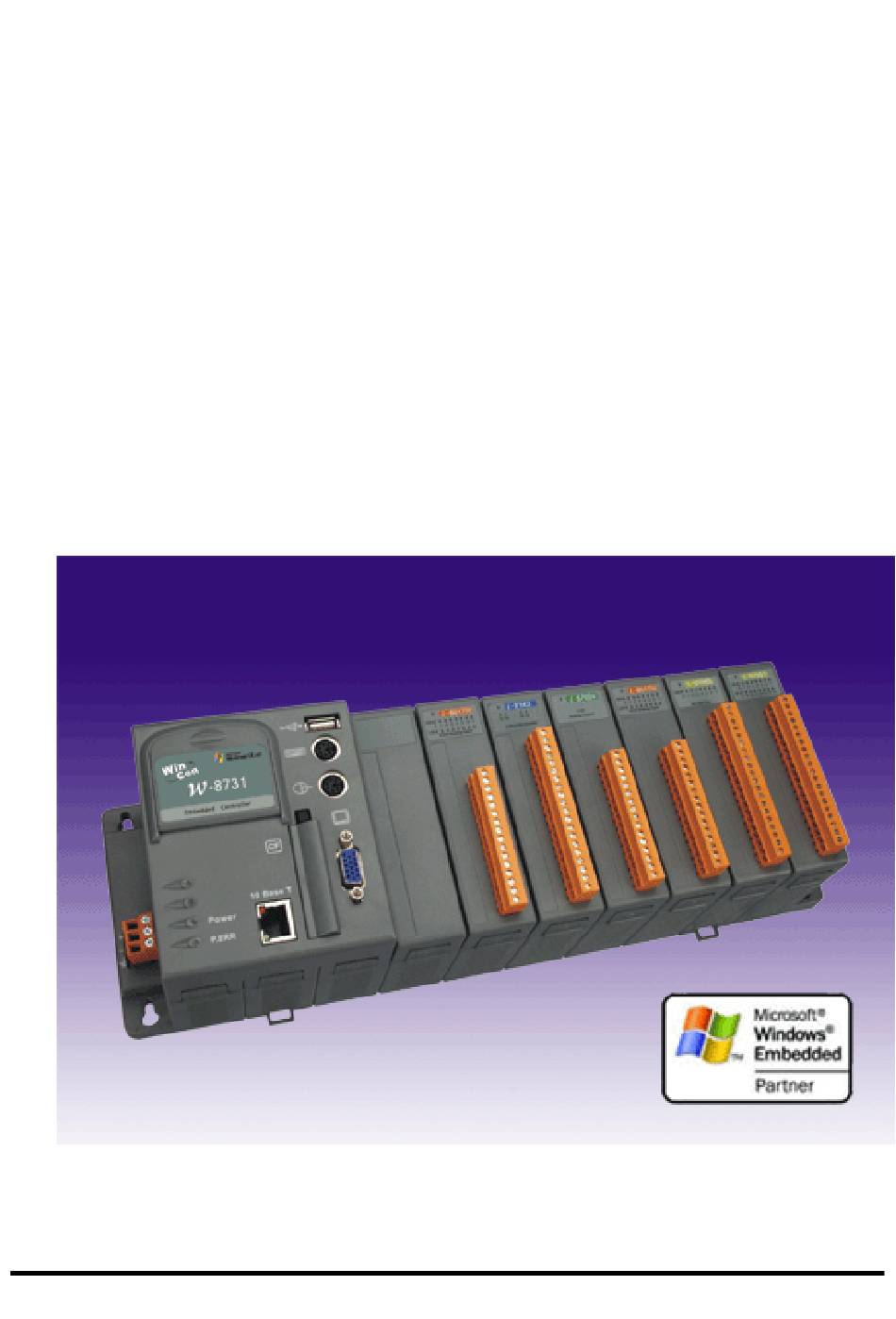

- Page 1 WinCon 8000 Compact Embedded Controller Hardware User’s Manual REV 1.2 2005/7/28 WinCon8000 Series Hardware user’s Manual, July/2005, v1.1 ----- 1...
- Page 2 Warranty All products manufactured by ICP DAS are warranted against defective materials for a period of one year from the date of delivery to the original purchaser. Warning ICP DAS assumes no liability for damages consequent to the use of this product.
-
Page 3: Table Of Contents
Table of Contents 1. INTRODUCTION ..................4 ................................4 ACKAGE 8000 S ..............................5 ERIES ........................8 ONTENTS OF MEMORY CARD 2. HARDWARE INFORMATION ...............9 8000 ............................9 RONT IEW OF .................................11 PECIFICATIONS 3. APPLICATIONS ..................12 ................................12 ................................13 4. QUICK START ..................14 5. MECHANICAL INFORMATION ............16 ................................16 IMENSIONS ..............................16... -
Page 4: Introduction
Introduction 1.1 Package List Package List In addition to this manual, the package includes the following items: One set of WinCon8000 hardware One Compact Flash Memory Card for storing system files One hardware user’s manual (this manual) One software utility CD with Software User’s Manual included Note If any of these items are missing or damaged, contact the local distributors for more information. -
Page 5: Wincon8000 Series

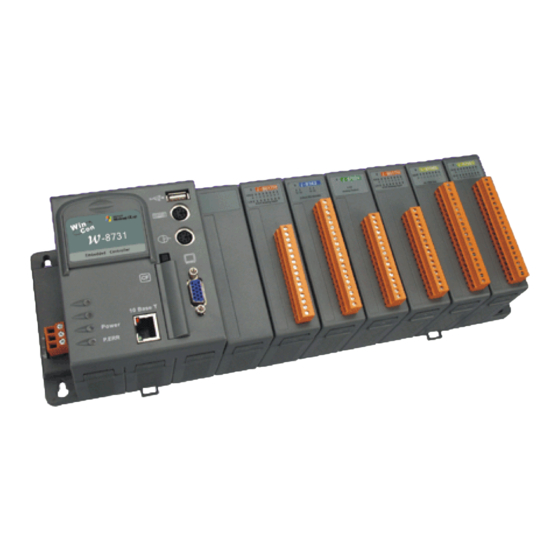

1.2 WinCon8000 Series The Wincon-8000 is the flagship compact embedded controller manufactured by ICPDAS. Its leading technology gives you all of the best features of both traditional PLCs and Windows capable PCs. The WinCon-8000 system is powered by Windows CE.NET and brings Windows programming style and skill into the world of PC-based PLC. - Page 6 can develop and run the SoftPLC program within the controller. The number 9 provides the SCADA application platform with InduSoft Web studio Run-time version on the system. And that means client can use the development tool of InduSoft Web studio to develop the application and download it on the controller for application.
- Page 7 Model Description Embedded Slot Flash SDRAM Peripherals Speed W-8041 Windows Embedded 10/100BaseT W-8341 206MHz CE .NET 64MB Controller Ethernet Port×2 W-8741 VGA Port×1 W-8047 ISaGRAF Windows CF Slot×1 W-8347 Embedded 206MHz CE .NET 64MB USB×2 W-8747 Controller RS-232×1 W-8049 InduSoft Windows RS-485×1 W-8349...
-
Page 8: Contents Of Cd And Cf Memory Card
1.3 Contents of CD and CF memory card CD : WinCon8000 SDK WinCon Utilities Source code of demo programs Software User’s Manual InduSoft User’s Manual References are given in ReadMe.txt in the CD CF memory card (default is 128 Mbytes): WinCon8000 System files WinCon Utilities Demo programs... -
Page 9: Hardware Information
2. Hardware Information The WinCon 8000 system competes in performance with Industrial PCs, but lower in price. The system provides VGA and PS/2 keyboard/mouse for local visualization and management. User control programs and data can be saved in persistent storage via Compact Flash and USB interfaces. Also, it does... - Page 10 2.1.2 WinCon-8x4x front view 2.1.2.1 Definition of Rotary SW (for W-8x4x only) Position Mode Normal Mode Clear Registry OS updated by PB Reserved User defined Always keep rotary SW at “0” position (normal mode), except : To clear registry, rotate to “1”position and power on WinCon then wait for 3 sec , WinCon will recover its registry to factory (default) setting.
-
Page 11: Specifications
2.2 Specifications Main Control unit 1 VGA port : Intel Strong ARM CPU, 206 MHz SRAM : 64M bytes 320×240×16 to 1024×768×16 Flash RAM : 32M bytes Default is 640×480×16 EEPROM : 16K bytes 1 Compact Flash slot : CF memory card 64-bit hardware unique Reset button serial number... -
Page 12: Applications
3. Applications The following figure shows the general application area and structure. 3.1 WinCon-8x3x WinCon8000 Series Hardware user’s Manual, July/2005, v1.1 ----- 12... -
Page 13: In On
3.2 WinCon-8x4x 3.2.1 Network Isolation 3.2.2 Network Redundancy WinCon8000 Series Hardware user’s Manual, July/2005, v1.1 ----- 13... -
Page 14: Quick Start
4. Quick Start Step 1. Insert the bundled CF memory card into the CF slot. Step 2. Plug in your PS/2 or USB keyboard and mouse. Step 3. Plug in your VGA monitor. Step 4. Connect your WinCon8000 to LAN Step 5. - Page 15 WinCon8000 Series Hardware user’s Manual, July/2005, v1.1 ----- 15...
-
Page 16: Mechanical Information
5. Mechanical Information 5.1 Dimensions 5.2 Din-Rail Mounting WinCon8000 Series Hardware user’s Manual, July/2005, v1.1 ----- 16... -
Page 17: Wall Mounting
5.3 Wall Mounting 5.4 Controller cover For safety and controller setting memo, WinCon8000 provides a main controller cover to protect the reset push button to be applied under the uncontrolled situation. And it also offers a expansion slot setting record area and others configuration memo area.
